SONIQ E24HB40A Manuale utente

E24HB40A

-1-

CONTENTS

CAUTION ............................... ........................ ........... ............ ........ 2

........................................................................................ 5

CONTROL BUTTON ....................................................................................... 6

TERMINAL .................................................................................................... 7

......... .......................................................................8

SPECIFICATIONS ......................................................................................... 15

SIMPLE TROUBLESHOOTING ..................................................................... 16

............ . .. .

STAND ASSEMBLY

.......... . .... .................................................................................. 4

ACCESSORY

REMOTE CONTROLLER

.......... ... ... .......................................................................10

MENU OPERATION

.............. ... ... .......................................................................14

MAIN LAUNCHER

-2-

CAUTION

-3-

CAUTION

-4 -

ACCESSORY

There are these accessories in the carton, the style will be different according to the

product model.

Note：E 32 H V 40 A

Quick installation manual

-5-

1. Please disconnect all the cable connections before installation.

2. Lay the TV face down on a flat surface, on a blanket or towel to avoid damaging the screen.

3. Please keep the TV in a horizontal position and fix the standing base with screws.

●stand of TV unit, in order to avoid damaging the TV unit.

Only use matching screws provided by manufacturer in the accessory bag to install the

100mm100mm

Wall Mounting Instruction:

This TV is equipped with mounting holes of 100 x 100mm.If the thickness of the wall mount is 2mm,

4PCS of type M6 x 8mm screws are required (the length of the screws fixed in the interior of the TV

should not be longer than 10mm)Recommend to use SONIQ wall mount and install by professional

people (do not operate while the TV is on).

STAND ASSEMBLY

-6-

CONTROL BUTTON

Note:

The following is only functional schematic, and the actual position and arrangement of

differect models may be different.

But ton Functions

. POWER:

6. SOURCE:

5. MENU:

1. VOL-:

2. VOL+:

3. CH-:

4. CH+:

7. Play/Pause:

8. Eject:

10. IR RECEIVER:

11. INDIC ATOR LED:

VOL+

CH+

POWER

SOURCE

CH-

VOL-

Disc Tray Slot

Insert the DVD

with the

label side

facing the back.

Eject disc

-7-

TERMINAL

The LED TV has many multimedia functions. It can be connected to many types of equipment..

The following paragraph shows how to connect to other Audio and Video devices.

VGA

AUDIO IN

DIGITAL

AUDIO OUT

(OPTICAL)

VGA RF IN

USB

VGA

cab le

Co m po sit e

cab le

Com p onent

cab le

HDMI

cab le

able TV

ompany

VHF/UHF

antenna

able re eiver/satellite box

Headphones

Po w er

ad ap t er

RF Coaxial

cab le

A ud io

cab le

Optical input

SONIQ does not supply

these cables.

-8-

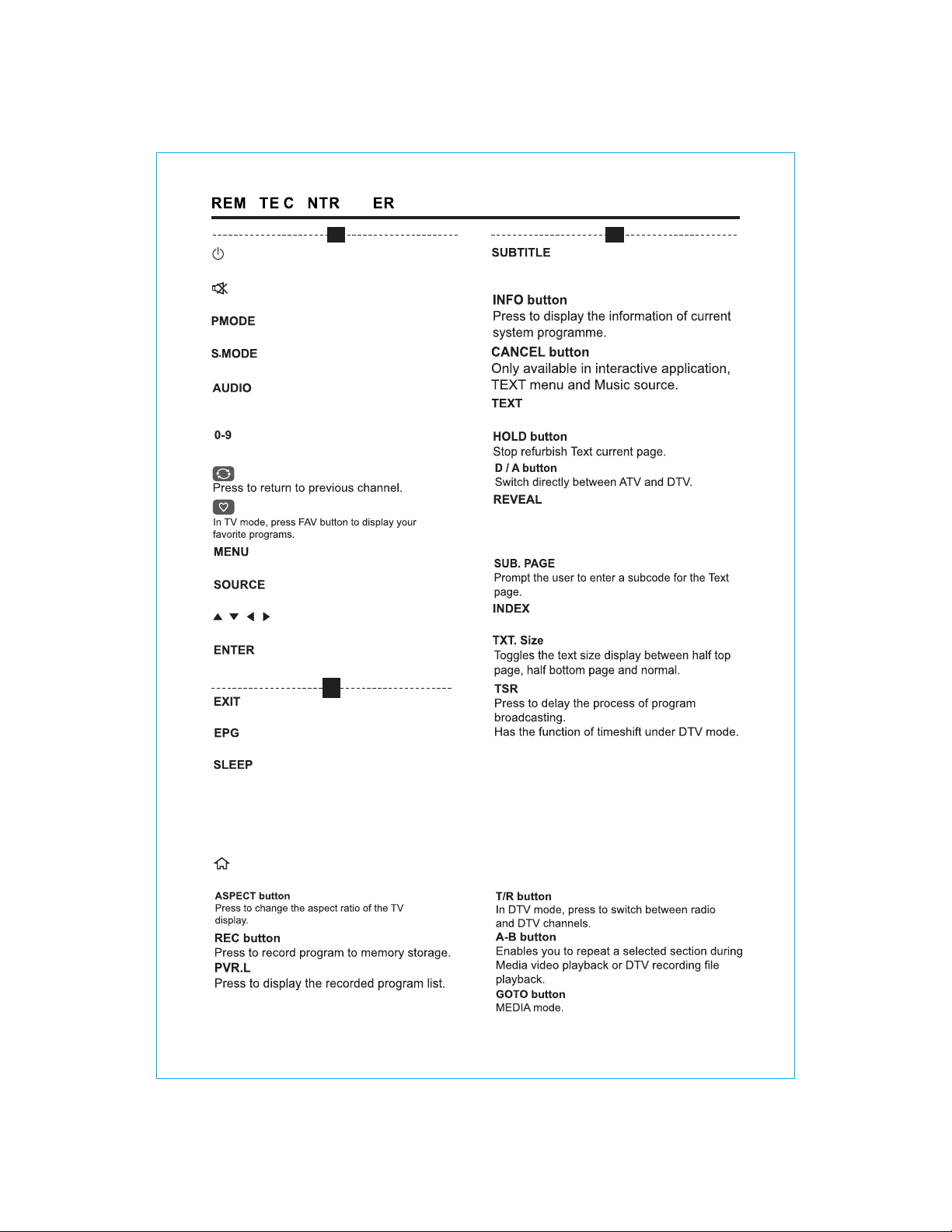

REMOTE CONTROLLER

●

Open the battery cover and insert 2 "AAA" batteries.

Point the remote control at the remote sensor located

on the unit.

When there is a strong ambient light source,

the performance of the infrared remote sensor may be

degraded, causing unreliable operation.

The recommended effective distance for remote is

about 16 feet (5 meters).

When the batteries become weak and the operating

distance of the remote control is greatly reduced, you

will need to replace the batteries.

If the remote control is not going to be used for a long

period of time, remove the batteries to avoid damage

caused by battery leakage or corrosion.

Do not mix old and new batteries or ALKALINE or

standard (CARBON-ZINC) or rechargeable

(NICKEL-CADMIUM) batteries.

Always remove batteries as soon as they become weak.

Weak batteries can leak and severely damage the

remote control.

Do not dispose of batteries in fire, they may explode

or leak.

Batteries should not be exposed to excessive heat such

as sunshine, fire or the like.

CAUTION :

Danger of explosion may occur if

battery is incorrectly replaced.

The remote controller cannot be used unless it is within the receivable range. Before you

use the remote control, please make sure there's no obstacle between the remote control

and the receiver.

-9 -

O O OLL

Press this button enter to TELETEXT mode.

Display Electronic Program Guide menu.

Display Audio language for DTV.

Nicam function for ATV.

With this key, you can switch over subtitles of

different languages.

Press this button to see

the answers. Press this button again to hide

the answers.

TFor teletext Mode.

For teletext Mode.



Cycle through available video picture modes.

Cycle through different sound settings.

Display the input source list.

Access the Main Menu.Exit the current menu or function.



Control d

Enter button, or display channel list.

irection Up, Down, Left, Right.

Standby or switch on the TV.

Set to mute or return to previous sound level.

Controls the automatic turn off time.

Adjust volume up and down.

Scan channels up and down.

VOL+/-

CH+/-

Usethesebuttonstoenternumbers



Enter the main page./ HOME

CH.LIST

Display program list.

FREEZEF

reeze the picture.

TITLE/PBC

Button to enable/disable PBC mode.In PBC mode,

you can access the track/scene directly by using

the numeric keypad.ITLE button - Press to access the

TITLE MENU of a DVD.

USB/SD

Quick access to multimedia.
