Sony Ericsson Z1 Manuale utente

1246-2438 Rev 1

Sony Ericsson Mobile Communications AB –Company Internal

Component Replacement

- electrical -

R800i, R800a, R800x, R800at, Z1

Component Replacement (elect)

1246-2438 Rev 1

Sony Ericsson Mobile Communications AB –Company Internal

2(17)

CONTENTS

1Replaceable Components .............................................................3

2Component Placing........................................................................6

3Repair Actions................................................................................7

3.1 Shield Can Fence Modifications .........................................................7

3.2 Additional Repair Info..........................................................................8

4Revision History...........................................................................17

For general information about electrical repair related issues, refer to

1220-1336: Generic Repair Manual - electrical

Component Replacement (elect)

1246-2438 Rev 1

Sony Ericsson Mobile Communications AB –Company Internal

3(17)

1 Replaceable Components

EXPLANATION OF ABBREVIATIONS USED IN THE COLUMN ‘COMMENTS’ BELOW

COMPONENT LOCATION

P= Primary side

S= Secondary side

MOISTURE SENSITIVITY LEVEL

MSLX (X = 1, 2, 2A, 3, 4, 5, 5A or 6)

For more information on moisture sensitivity levels:

Refer to 1220-1336: Generic Repair Manual –electrical, section ‘Moisture & Baking’!

REPAIR METHOD

HA = Hot Air (removal & mounting)

ST = Soldering Tool (removal & mounting)

HA/ST = Hot Air for removal - Soldering Tool for mounting

BGA = BGA Station

BH = Bottom Heater

ADDITIONAL INFORMATION

1 (2,3,4, etc.) = Proceed to ‘Additional Repair Info’ for further instructions in the indicated section(s).

CALIBRATION

C= Calibration of the phone is required after replacing the component

Calibration to be done by authorized centers only!

Component Replacement (elect)

1246-2438 Rev 1

Sony Ericsson Mobile Communications AB –Company Internal

4(17)

Position

Component

Part no.

Comments

B5000

B5002

B5003

B5500

B5501

Vibrator Bar Analog DC

Microphone

1204-8172

1220-4770

1220-4470

1210-7410

P BGA 1

S HA 20

S HA

P BGA 2

S BGA

C5200

C5606

C5613

Capacitor 1.0 uF +/-10% 25.0 V K0603

Capacitor 1.5 nF +/-10% 50.0 V K0402

Capacitor Ceramic 4,7 uF +/-20% 25, V 08

1000-0076

1000-6548

1220-2537

S HA

E1000

Shield Can Closed Drawn Can - RF

1233-5273

S BGA

L3900

L3901

L3902

L3903

L3904

L4001

L5402

L5403

L5503

L5504

L5505

L5506

L5507

L5508

L5600

L5601

Ind WW 2.2 uH

Ind Chip 2.2 uH +/- 20% K0805

Ind WW 2.2 uH

Ind WW 2,2 uH +/-20% K3012

Filter

Filter 0.0 Hz 0402

Ind WW 10, uH

Ferrite B 240.0 Ohm 200.0 mA 0201

1232-8769

1234-7293

1232-8769

1223-4064

1000-2609

1200-0317

1000-3331

1000-2593

S HA

P HA 3

S HA 4

S HA

N1200

N1600

N1700

N1701

N1800

N1902

N2100

N2500

N2501

N3802

N3803

N4003

N4400

N4401

N4402

N4500

N4700

N4800

N4801

N4802

N5200

N5300

N5301

ASIC RF Transceiver 308 NSP

ASIC RF Transceiver QTR-8200 308-NSP

Mod PA WCDMA 3X3X1 824-849MHz - REX-Q

Mod PA WCDMA 3X3X1 880-915MHz

Mod PA WCDMA 3X3X1 1920-1980MHz - REX-Q

Mod PA WCDMA 3X3X1 1850-1910MHz - REX-Q

Mod PA QUAD GSM850/GSM900/DCS/EDGE

RF Antenna Switch GSM & UMTS/CDMA DUAL

IC Amp 1010x0.4

Mod BB WLAN 6.57 x 5.62 x 0.55mm

IC Switch 2x2x0.6 mm, 8pin

IC Lin TDFN-8

IC Lin WDFN6 Protection Interface Circui

IC Lin Converter Step Down

IC Dri WL-CSP 2x1.5 4x3 balls, 0.5mm pit

IC ESD Prot Micro QFN 16L 3,3x1,5mm

IC Vreg PLP1010-4

IC Switch UMLP-28 Dual Row (3.6X2.8mm) I

IC ESD Prot 2.50x1.20x0.50mm

IC ESD Prot

IC Amp CSP-9 Class D Mono

1228-1206

1228-2273

1238-0476

1238-0477

1238-0469

1238-0474

1232-2928

1237-2994

1232-9070

1227-7418

1239-0547

1221-6812

1228-1705

1227-6376

1219-2970

1225-4036

1201-6465

1228-8877

1227-5811

1227-8675

1237-8660

S BGA C CDMA Only

S BGA C All Band

(Not CDMA)

S HA C For Band 5

S HA C For Band 8

S HA C All Band

(Not CDMA)

S HA C For Band 2

S BGA C All Band

(Not CDMA)

S HA C All Band

P HA

S BGA

S HA

S HA 5

S HA

S HA 6

S HA

Component Replacement (elect)

1246-2438 Rev 1

Sony Ericsson Mobile Communications AB –Company Internal

5(17)

Position

Component

Part no.

Comments

N5400

N5500

N5600

N5701

ASIC Tjatte3 CSP20

IC Amplifier 500mA

IC WL-CSP 6x4 balls

MEMS Compass Analog

1000-0198

1203-4594

1212-7979

1228-7182

S HA

S HA 6

S HA

S4803

S4804

S4805

S4806

S4807

S4808

S4809

S4810

S5000

S5001

S5002

S5003

S5004

S5005

S5006

S5007

Input Switch

Input Switch Other TACT SWITCH 3.7 x 3.7

Input Switch

Input Switch Side Push/

Input Switch Other TACT SWITCH 3.7 x 3.7

Input Switch Other TACT SWITCH

1001-0060

1213-3638

1001-0060

1245-9546

1213-3638

1230-4023

P HA/ST

S HA

S HA/ST

P HA/ST 19

P HA/ST 21

S BGA

S HA/ST

V3801

V3802

V3803

V4400

V4802

V5000

V5100

V5102

V5300

V5301

V5500

V5600

ZenerDiode, 5.6V, Pb-free

Trans N-ch FET 1.2X0.8X0.5

LED White 2.04x1.64x0.7mm

LED RED/GREEN/BLUE

Diode Schottky 20.0 V SOD323

Diode Protection 5, V SOD-923

Trans P-ch FET WDFN6

Diode Zener 5.0 V SOT-723

MOSFET & Schottky Diode

1001-1864

1200-2023

1228-6212

1200-1926

1200-1679

1201-8440

1200-1780

1203-0201

1201-3866

S HA

P BGA 7

S HA/ST 8

P HA 9

S HA

W2100

Internal Antenna Connector

1000-0308

P HA

X1900

X1901

X2500

X2501

X3801

X4300

X4500

X5000

X5100

X5101

X5200

X5401

Conn Coax Receptacle 0p test switch

Conn Pogopin 2p

Conn Coax Receptacle 0p test switch

Conn Leaf Spring Receptacle 1p

Conn Pogopin Plug 5p

Conn BtB Receptacle 64p

Conn BtB Receptacle 30p Hirose DF37B

Conn FPC Receptacle 8p

Card Conn SIM push-pull w/switch

Connector BtB

Conn USB micro B Receptacle 5p mid-mount

CONNECTOR/5 POS/FPC

1221-6477

1233-8058

1221-6477

1200-2144

1226-6294

1231-1872

1216-9089

1232-9797

1227-3532

1202-0859

1232-9759

1001-6666

P BGA 10

P BGA 11

P BGA 12

P HA 17

P BGA 13

S BGA

P BGA 14

P BGA 15

S BGA

P BGA 16

Z2100

Z2101

Z2500

Z4300

Z4301

Z4302

Z5200

Filter 1.575 GHz

Filter SAW 1.575 GHz

Filter Cer RF 2.45 GHz Bluetooth/W-LAN

Filter 100.0 MHz

1236-2944

1211-5714

1228-7102

1224-6060

S HA

P HA

S HA

S HA 18

S HA

Component Replacement (elect)

1246-2438 Rev 1

Sony Ericsson Mobile Communications AB –Company Internal

6(17)

2 Component Placing

To access the Component Placing document, double-click the icon below.

Applicable for on-screen viewing only –icon not shown on hard-copies.

Component Replacement (elect)

1246-2438 Rev 1

Sony Ericsson Mobile Communications AB –Company Internal

7(17)

3 Repair Actions

Refer to the Tools Catalogue/Matrix for information about equipment required for PBA repair!

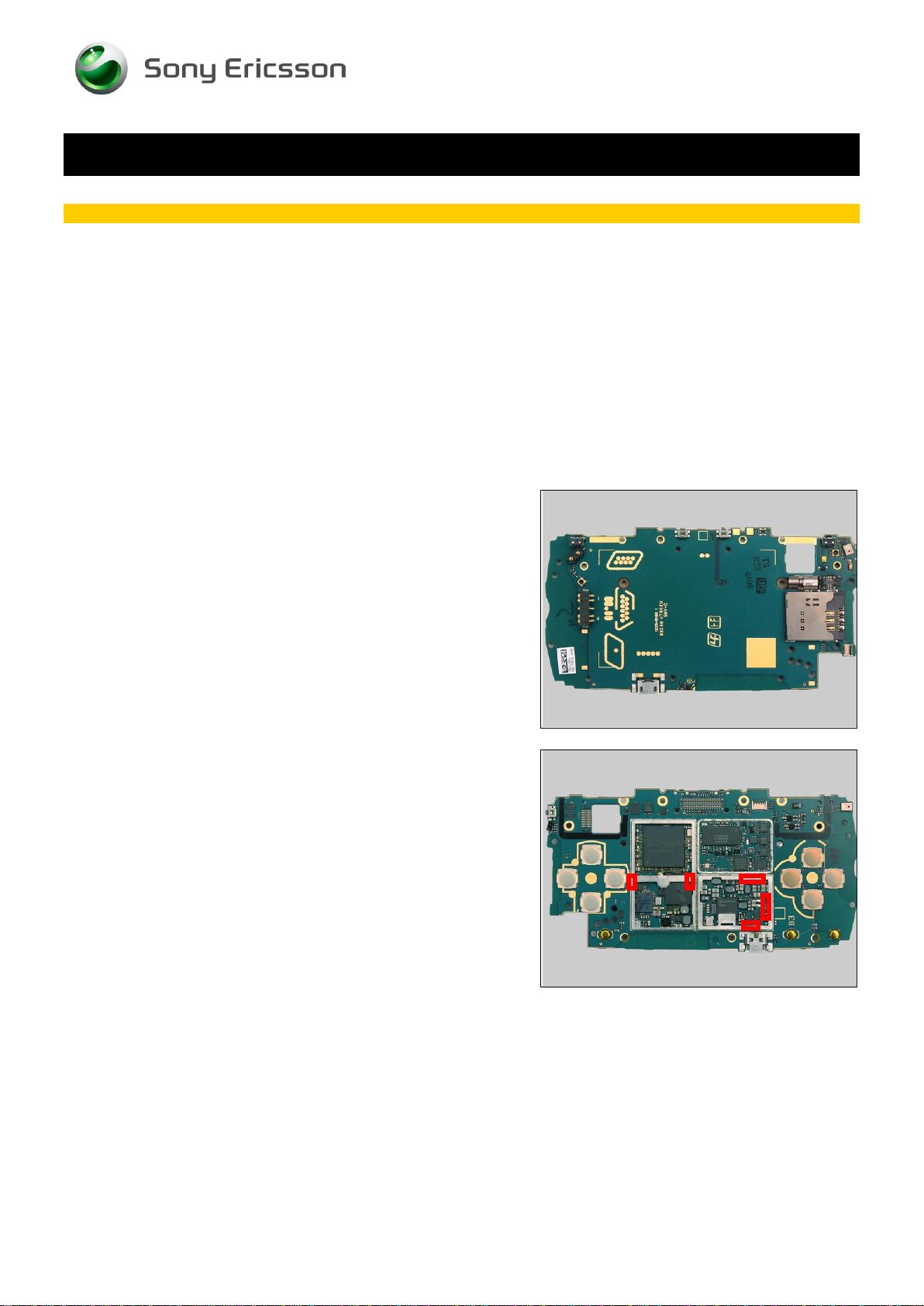

3.1 Shield Can Fence Modifications

Refer to the pictures below of the primary and secondary sides for repairs that require the Shield Can

Fence to be modified:

the shield can lid has to be removed

the red symbols show where the frame should be cut to enable rework

after rework the height of the frame should not be affected

it should not be visible that rework has been carried out when the lid has been mounted

Primary side

Secondary side

Component Replacement (elect)

1246-2438 Rev 1

Sony Ericsson Mobile Communications AB –Company Internal

8(17)

Repair Actions

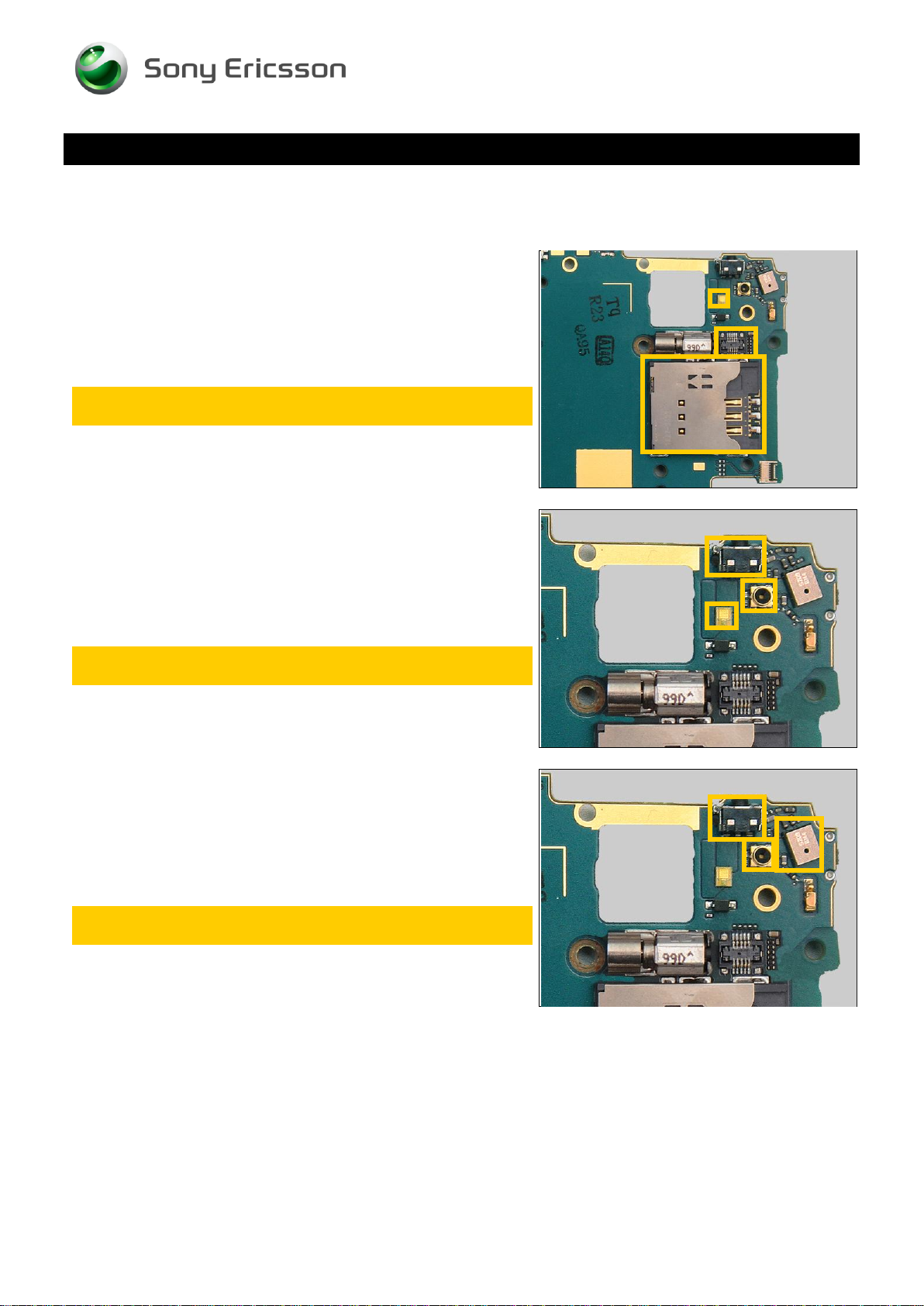

3.2 Additional Repair Info

B5000

Protect the white LED, the BtB connector and the SIM

connector with capton tape!

B5500

Protect the white LED, the switch connector and the

Coax connector with capton tape!

L5503, L5504, L5505

Protect the Microphone, the switch connector and the

Coax connector with capton tape!

Component Replacement (elect)

1246-2438 Rev 1

Sony Ericsson Mobile Communications AB –Company Internal

9(17)

L5506, L5507, L5508

Protect the Microphone with capton tape!

Component Replacement (elect)

1246-2438 Rev 1

Sony Ericsson Mobile Communications AB –Company Internal

10(17)

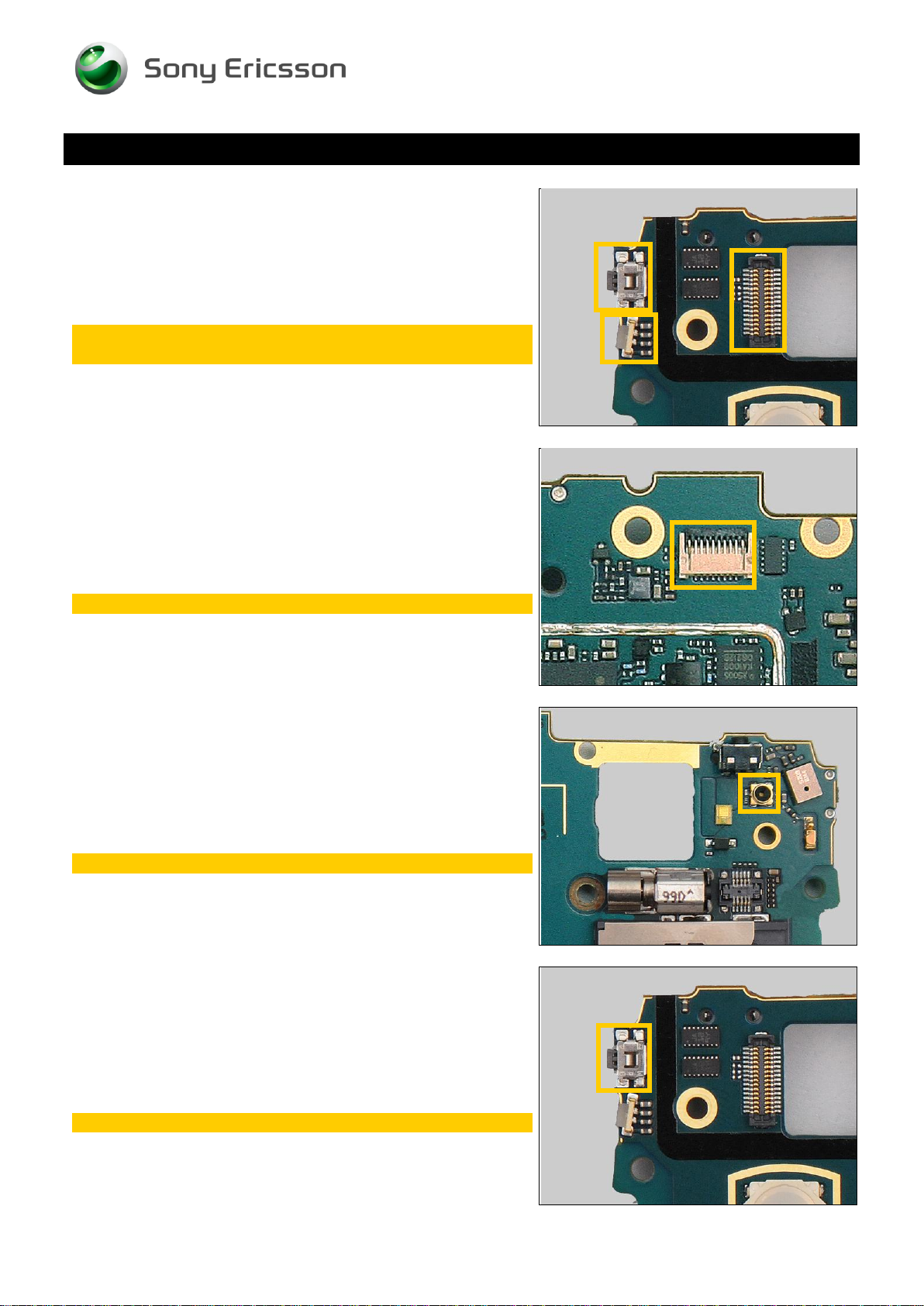

Repair Actions: Additional Repair Info

N4401, N4402

Protect the On/Off key connector, the LED and the BtB

connector with capton tape!

N4802, N5500

Protect the ZIF connector with capton tape!

V4400

Protect the Coax connector with capton tape!

V4802

Protect the On/Off key connector with capton tape!
