Sony Ericsson T258c Manuale utente

T258c

User guide

This is the Internet version of the user'sguide. © Print only for private use.

Congratulations on your purchase of the Sony

Ericsson T258c. For additional phone content, go to

www.sonyericsson.com/cn/fun. Register now to get free

online storage and special offers at

www.sonyericsson.com/cn/myphone. For product

support, go to www.sonyericsson.com/cn.

Instruction symbols

The following instruction symbols appear in this User

guide:

> Use the navigation key to scroll and select.

Press the navigation key up.

Press the navigation key down.

Press the navigation key to the left.

Press the navigation key to the right.

Note

Tip

Warning

Indicates that a service or function is network- or

subscription-dependent. All menus or functions

may not be available in your phone. Consult your

network operator for more information.

This is the Internet version of the user'sguide. © Print only for private use.

Prepare the phone

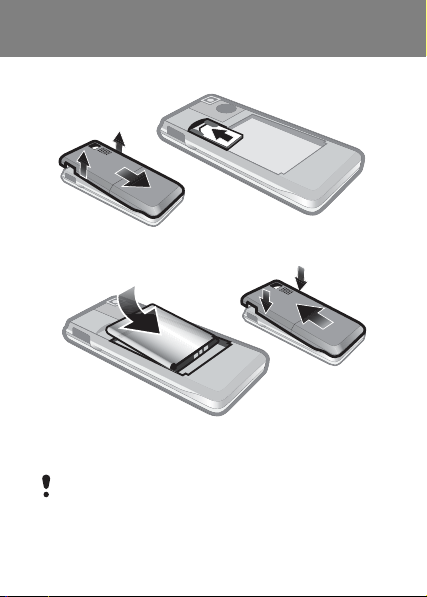

To insert the SIM card and battery

1Remove the battery cover. Slide the SIM card into its

holder with the contacts facing down.

2Insert the battery with the label side up and the

connectors facing each other. Replace the battery

cover as shown in the picture.

Do not force the battery cover into place. Slide the

battery cover carefully onto the phone and close it.

This is the Internet version of the user'sguide. © Print only for private use.

Charge the battery

Your phone battery is partly charged when you

buy it.

Non-USB Charger

(old type)

USB Charger

(new type)

A AC adapter

A1 AC adapter

connector

A2 AC adapter USB

socket

B USB cable

B1 USB cable connector

B2 USB cable plug

It may take 30 minutes for the battery icon to appear

on the screen.

This is the Internet version of the user'sguide. © Print only for private use.

Using the USB charger

To connect the charger and charge the battery

1Connect the USB cable plug to the AC adapter USB

socket, as shown in the above illustration. The USB

cable is supplied with your phone.

2Connect the USB cable connector to your phone.

Press a key to view the charging status on the screen.

It takes approximately 2.5 hours to fully charge the

battery.

To remove the charger

1Charge your battery until the battery icon indicates

a full charge.

2.5 h

This is the Internet version of the user'sguide. © Print only for private use.

2Tilt the USB charger connector upwards to remove it.

Note:

1The USB cable for the new USB charger shown in the

illustration (Part. B in the new-type charger illustration)

on page 4 is only intended for charging your phone.

Do not use it for transferring data.

2The USB cable for the USB charger shown in the

illustration (Part. B in the new-type charger illustration)

is only intended for connection to the AC adapter

(Part. A in the new-type charger illustration) to charge

your phone. It must not be used for connection to a

PC.

3Sony Ericsson strongly recommends that you use only

Sony Ericsson branded original batteries, the part of

power supply device in accordance with YD/T 1591-

2006 specifications of Communications Industry

Standards of P. R. China (Part A in the new-type

charger illustration) and the USB cable supplied with

your phone to charge the phone. The use of third-party

products may decrease the performance of your

phone and/or pose a risk to your health or safety.

4Sony Ericsson recommends that you never mix the use

the new USB charger and the old non-USB charger.

The phone with new-type charger in box cannot be

charged with the old-type charger, and vice versa.

The use of both the chargers may decrease the

performance of your phone and/or pose a risk to your

health or safety.

This is the Internet version of the user'sguide. © Print only for private use.

Turn the phone on

1Press and hold down .

2Enter your PIN if requested. To correct mistakes,

select Delete.

3Select OK.

4Select a language.

5Enter the time and date and

select Save.

To turn the phone off

•Press and hold down .

Standby

After you have turned the phone on and entered your

PIN, the name of your operator appears on the screen.

This is called standby. You can now make and receive

calls.

You can use the phone during charging. You can

charge the battery for more or less than 2.5 hours.

Interrupted charging will not damage the battery.

This is the Internet version of the user'sguide. © Print only for private use.

SIM and PIN

SIM card

The SIM (Subscriber Identity Module) card, which

you get from your network operator, contains

information about your subscription. Always turn

off your phone and detach the charger before

you insert or remove the SIM card.

PIN code

You may need a PIN (Personal Identification Number) to

activate the services in your phone. Your PIN is supplied

by your network operator. Each PIN digit appears as *,

unless it starts with emergency number digits, for example,

112 or 911. You can call an emergency number without

entering a PIN.

You can save contacts on the SIM card before

removing it from your phone. Contacts may also be

saved in the phone memory. See Contacts on page

19.

If you enter the wrong PIN three times in a row, PIN

blocked. Enter PUK provided by your operator.

appears. To unblock it, you need to enter your PUK

(Personal Unblocking Key).

This is the Internet version of the user'sguide. © Print only for private use.

Menu overview

Extras Monternet FM radio

Calendar

Timer

Stopwatch

Calculator

My files

My games

Homepage

Bookmarks

Go to URL

Edit bookmark

Show pictures

Push access

Push inbox

Clear cache

Internet profile

Camera Messaging Alarms

Take pic.

Camera pics

Slide show

Text message

Picture message

Settings

Calls Contacts Settings

Call list

Time and cost

Call settings

View contacts

Find contacts

Add contact

My number

Voicemail

Delete contacts

Speed dial

Copy all contacts

Send contacts

Settings

Sound & alerts

Wallpaper

Theme

Time and date

Language

Select network

Infrared port

Advanced

Phone status

Some menus and icons in this document may vary

depending on operator, network or subscription.

This is the Internet version of the user'sguide. © Print only for private use.

Phone overview

Selection key

Volume

keys

Navigation

key with

shortcuts.

Call key

Keylock

Infrared

port

End key,

On/off

key

Stereo handsfree and

battery charger connector
