Sony Ericsson T616UG Manuale utente

MobilePhoneT616

Contents 1

Contents

Getting to know your phone 4

Key functions, quick keys, entering letters.

Personalizing your phone 17

Download settings or choose from the phone.

Calling 25

Use the Phonebook, voice control, call options.

Messaging 45

Multimedia messaging, chat and email.

Camera 54

Use the camera.

Setting up mMode and Email 58

All you need to know about setting up your browser and

email.

Using Your Browser 65

Your browser, bookmarks.

Transferring and exchanging information 68

Bluetooth wireless technology, synchronization.

More features 72

Calendar, alarm clock, stopwatch, timer, games.

Security 80

SIM card lock, phonelock.

Troubleshooting 82

Why doesn’t the phone work the way I want?

Additional information 84

Safe and efficient use, warranty, declaration of conformity.

Icons 92

What do the icons mean?

Index 98

T616UG-R2.book Page 1 Monday, August 4, 2003 10:19 AM

2 Contents

Sony Ericsson

First edition (June 2003)

This manual is published by Sony Ericsson Mobile

Communications AB, without any warranty.

Improvements and changes to this manual

necessitated by typographical errors, inaccuracies

of current information, or improvements to programs

and/or equipment, may be made by Sony Ericsson

Mobile Communications AB at any time and without

notice. Such changes will, however, be incorporated

into new editions of this manual.

©Sony Ericsson Mobile Communications AB, 2003

Publication number: AE/LZT 123 7547 R1

Please note:

Some oftheservices in this manual are notsupported

by all networks. This also applies to the GSM

International Emergency Number 911 or 112.

Please contact your network operator or service

provider if you are in doubt whether you can use

a particular service or not.

Please read the Guidelines for safe and efficient use

and the Limited warranty chapters before you use

your mobile phone.

The BLUETOOTH trademarks are owned by

Bluetooth SIG, Inc.

T9™ Text Input is a trademark or a registered

trademark of Tegic Communications.

T9™ Text Input is licensed under one or more of the

following: U.S. Pat. Nos. 5,818,437, 5,953,541,

5,187,480, 5,945,928, and 6,011,554; Canadian Pat.

No. 1,331,057, United Kingdom Pat. No. 2238414B;

Hong Kong Standard Pat. No. HK0940329; Republic

of Singapore Pat. No. 51383; Euro.Pat. No. 0 842

463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE,

GB; and additional patents are pending worldwide.

Java and all Java based trademarks and logos are

trademarks or registered trademarks of Sun

Microsystems, Inc. in the U.S. and other countries.

End-user license agreement for Sun™ Java™

J2ME™.

1. Restrictions: Software is confidential copyrighted

information of Sun and title to all copiesis retained by

Sun and/or its licensors. Customer shall not modify,

decompile, disassemble, decrypt, extract, or

otherwise reverse engineer Software. Software may

not be leased, assigned, or sublicensed, in whole or

in part.

T616UG-R2.book Page 2 Monday, August 4, 2003 10:19 AM

Contents 3

2. Export Regulations: Software, including technical

data, is subject to U.S. export control laws, including

the U.S. Export Administration Act and its associated

regulations, and may be subject to export or import

regulations in other countries. Customer agrees to

comply strictly with all such regulations and

acknowledges that it has the responsibility to obtain

licenses to export, re-export, or import Software.

Software may not be downloaded, or otherwise

exported or re-exported (i) into, or to a national or

resident of, Cuba, Iraq, Iran, North Korea, Libya,

Sudan, Syria (as such listing may be revised from

time to time) or any country to which the U.S. has

embargoed goods; or (ii) to anyone on the U.S.

Treasury Department's list of Specially Designated

Nations or the U.S. Commerce Department's Table of

Denial Orders.

3. Restricted Rights: Use,duplication or disclosure by

the United States government is subject to the

restrictions as set forth in the Rights in Technical Data

and Computer Software Clauses in DFARS 252.227-

7013(c) (1) (ii) and FAR 52.227-19(c) (2) as

applicable.

SyncML initiative Ltd. (1999-2002). All rights

reserved.

Other product and company names mentioned herein

may be the trademarks of their respective owners.

Any rights not expressly granted herein are reserved.

T616UG-R2.book Page 3 Monday, August 4, 2003 10:19 AM

4 Getting to know your phone

Getting to know your phone

About this user’s guide

The “Getting to know your phone” chapter gives a

quick overview of the main functions of the phone,

shortcuts and general information.

More information and downloads are available at

www.SonyEricsson.com/ or wap.SonyEricsson.com/

Available services

Some services and functions described in this user’s

guide are network or subscription-dependent, which

means that all menus may not be available in your

phone.

This symbol indicates that a service or

function is network or subscription-

dependent.

Please consult your network operator for

more information about your subscription.

Assembly

Before you can use your phone you need to:

• Insert the SIM card.

• Attach and charge the battery. See “SIM card and

battery information” on page 5.

Note: Always turn off the phone and detach the

charger before you insert or remove a SIM card.

The SIM card

When you register as a subscriber with a network

operator, you get a SIM (Subscriber Identity Module)

card. The SIM card contains a computer chip that

keeps track of your phone number, the services

included in your subscription, and your Phonebook

information, among other things.

Tip: Check if your information is saved to the SIM

card before you remove it from another phone. For

example, Phonebook entries may be saved in the

phone memory.

T616UG-R2.book Page 4 Monday, August 4, 2003 10:19 AM

Getting to know your phone 5

SIM card and battery information

It may take up to 30 minutes before an icon

appears when charging.

1. Insert the SIM card. Slide the metal holder over the

SIM card to lock it in place.

2. Place the battery on the back of the phone with the

label side up.

3. Place the back cover as shown in the picture and

slide it into place.

4. Connect the charger to the phone at the flash symbol

( ). The flash symbol on the charger plug must face

upwards.

5. It may take up to 30 minutes before the battery

charging icon appears in the display.

6. Wait approximately 4 hours or until the icon

indicates that the battery is fully charged. If you do

not see the battery icon after this time, press any key

or the joystick to activate the display.

7. Remove the charger by tilting the plug upwards.

Note: You have to insert the SIM card and charge

the battery before you can use the phone.

0 min.

T616UG-R2.book Page 5 Monday, August 4, 2003 10:19 AM

6 Getting to know your phone

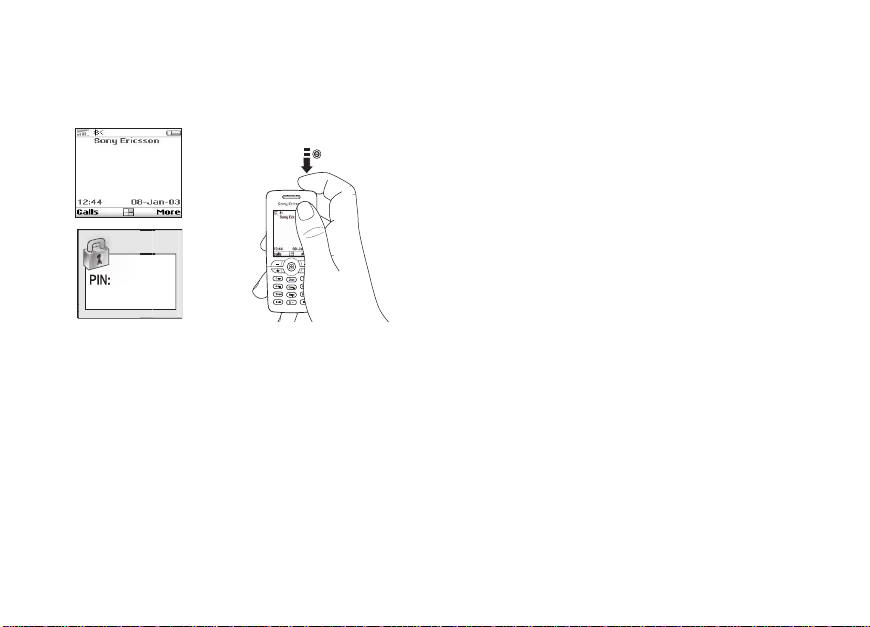

Turning the phone on

To turn on the phone

Press and briefly hold the on/off button on the top of

the phone.

Note: When you turn on the phone it takes up to 40

seconds to begin operating.

Note: If your service provider requires the use of a

PIN (Personal Identity Number), then the PIN:

screen noted above will appear, and you will find the

default PIN in the collateral material developed by

your service provider. Otherwise, the PIN: screen

will not appear, and the standby screen will be

displayed.

When you enter your pin, the digits will be masked

with an asterisk (*). Do not choose emergency

numbers for your PIN because emergency numbers

are not masked. Some number sequences may not be

hidden because they could be part of an emergency

number sequence.

Note: If you enter the wrong PIN three times in a

row, the SIM card is blocked and the message "PIN

blocked" appears. To unblock it, you need to enter

your PUK (Personal Unblocking Key). Your PUK is

provided by your network operator.

To turn off the phone

Press and hold the on/off button at the top of the phone.

on/off

Wel

T616UG-R2.book Page 6 Monday, August 4, 2003 10:19 AM

Getting to know your phone 7

Navigating the menus

The main menus are shown as icons on the desktop.

To go to the desktop, press the joystick.

Example

To set an alarm

1. Use the joystick to scroll to Organizer, and press the

left key to select it.

2. Use the joystick to scroll down to Alarms, and press

the left key to select this function. Press the

left key again to select Alarm.

3. Enter the time and press the left key to save

your entry.

Throughout this user’s guide instructions such as those

above will be given in a shorter form, as follows:

To set an alarm

1. Scroll to Organizer, Alarms, Alarm.

2. Enter the time, Save.

To make and receive calls from standby

• Enter the area code and phone number, press Call.

•Press

End Call to end the call.

• When the phone rings, press Yes to answer the call.

Desktop

Press to go back one

level in the menus.

Press and hold to

return to standby.

Move up,

down, left,

right through

menus.

Press toselect

highlighted

items.

Press to select the

options shown

above these keys

in the display.

T616UG-R2.book Page 7 Monday, August 4, 2003 10:19 AM

8 Getting to know your phone

Key functions

Press once to activate camera

function. Press again to take a

picture.

Volume keys increase/decrease

the earpiece volume during a

call. Scroll through menus, lists

and text. Enter the Status menu

in standby. Press twice to reject

an incoming call. Press once to

mute the ring tone when

receiving a call.

Press to select the options that

appear in the display

immediately above these keys.

Press once to go back one level

in the menus. Press and hold to

return to standby.

Enter *.

Shiftbetween lower/uppercase

when entering text.

Press and hold to enter a pause

in dial strings.

Infrared port.

Press and hold to switch the

phone on or off.

Press to go directly to the

Internet.

4-way navigation and center

select allows you to move

through the menus, lists and

texts. The arrows indicate the

direction to tilt the joystick.

Press down on the joystick to

select an option.

Delete numbers, letters or an

item from a list. Press and

hold to mute the microphone

(during calls) or mute sound.

1-9, 0 Enter digits, 0–9, and letters.

Press and hold to enter

the international prefix +.

Press 7 to enter a pause in

stored numbers. Press 9 to

enter a question mark (?).

Enter # or a space.

T616UG-R2.book Page 8 Monday, August 4, 2003 10:19 AM

Getting to know your phone 9

Quick keys

Useful key combinations are described below.

To... When in standby:

Quickly access the main

menu items Tilt the joystick to the

right. Then, press the

digit key that

corresponds to the

location of the menu

icon.

Start the camera Press

Go directly to the internet Press to go directly

to mMode.

make an emergency call enter the emergency

number and press Call

enter Call Contact press

enter Call List press Calls ( )

enter Internet Services press

voice dial press and hold a volume

key or say your magic

word (when voice dial

is on)

call your voicemail press and hold

enter the +sign press and hold

mute the ring tone when

receiving a call press , or press a

volume key once

set the phone to silent press and hold

reach a contact beginning

with a specific letter press and hold any of the

keys -

reach a phone number at a

specific position. press the position

number and

speed dial press any of the number

keys - and

Call

Take a picture Press to start the

camera. Press again

to take a picture.

To... When in standby:

T616UG-R2.book Page 9 Monday, August 4, 2003 10:19 AM

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sony Ericsson Telefono cellulare

Sony Ericsson

Sony Ericsson W705 Walkman Manuale utente

Sony Ericsson

Sony Ericsson Xperia Z Ultra Manuale utente

Sony Ericsson

Sony Ericsson K630 Manuale di programmazione

Sony Ericsson

Sony Ericsson K660i Manuale utente

Sony Ericsson

Sony Ericsson Walkman W380 Manuale utente

Sony Ericsson

Sony Ericsson G700c Manuale utente

Sony Ericsson

Sony Ericsson XPERIA mini Manuale di servizio

Sony Ericsson

Sony Ericsson XPERIA X8 Manuale utente

Sony Ericsson

Sony Ericsson K220 Guida di riferimento rapido

Sony Ericsson

Sony Ericsson K600i Manuale utente

Sony Ericsson

Sony Ericsson T226 Guida di riferimento rapido

Sony Ericsson

Sony Ericsson K600i Manuale utente

Sony Ericsson

Sony Ericsson K500 Series Manuale utente

Sony Ericsson

Sony Ericsson TM717 Equinox Manuale utente

Sony Ericsson

Sony Ericsson T700 Manuale utente

Sony Ericsson

Sony Ericsson W100i Manuale tecnico

Sony Ericsson

Sony Ericsson K610im Manuale di riferimento

Sony Ericsson

Sony Ericsson K700i Manuale

Sony Ericsson

Sony Ericsson F500i Manuale utente

Sony Ericsson

Sony Ericsson T200 Guida di riferimento rapido

Sony Ericsson

Sony Ericsson J120 Manuale utente

Sony Ericsson

Sony Ericsson W53S Guida all'installazione

Sony Ericsson

Sony Ericsson Xperia X10i Guida all'installazione

Sony Ericsson

Sony Ericsson T630 Manuale utente

Manuali Telefono cellulare popolari di altre marche

Zte

Zte BLADE A520 Manuale utente

Nokia

Nokia Lumia 620 Manuale utente

Blackbe;rry

Blackbe;rry KEYone Manuale utente

Bea-fon

Bea-fon X5 Premium Manuale utente

Blackbe;rry

Blackbe;rry 8707 Series Manuale utente

Blackbe;rry

Blackbe;rry Storm Istruzioni operative

LG LM-X420QN Manuale utente

LifeWatch

LifeWatch V Manuale utente

Bea-fon

Bea-fon SILVER LINE SL860 Manuale utente

IKI Mobile

IKI Mobile KF4.5i Manuale utente

Hitech

Hitech HT-850 Manuale utente

Yezz

Yezz Fashion F10 Manuale utente

Point Mobile

Point Mobile PM60 Manuale utente

Blackbe;rry

Blackbe;rry Q10 Manuale utente

Blackbe;rry

Blackbe;rry Bold 9900 Manuale utente

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuale utente

LG LM-K420EMW Manuale utente

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuale utente
