This is the Internet version of the user'sguide. © Print only for private use.

Z258c

User guide

This is the Internet version of the user'sguide. © Print only for private use.

Congratulations on your purchase of the Sony Ericsson Z258c.

For additional phone content, go to www.sonyericsson.com/

cn/fun. Register now to get free online storage and special

offers at www.sonyericsson.com/cn/myphone. For product

support, go to www.sonyericsson.com/cn.

Instruction symbols

The following instruction symbols appear in this User guide:

> Use the navigation key to scroll and select.

Press the navigation key up.

Press the navigation key down.

Press the navigation key to the left.

Press the navigation key to the right.

Tip

Note

Warning

Indicates that a service or function is network- or

subscription-dependent. All menus or functions may

not be available in your phone. Consult your network

operator for more information.

This is the Internet version of the user'sguide. © Print only for private use.

Prepare the phone

Always turn off your phone and detach the charger before you

insert or remove the SIM card.

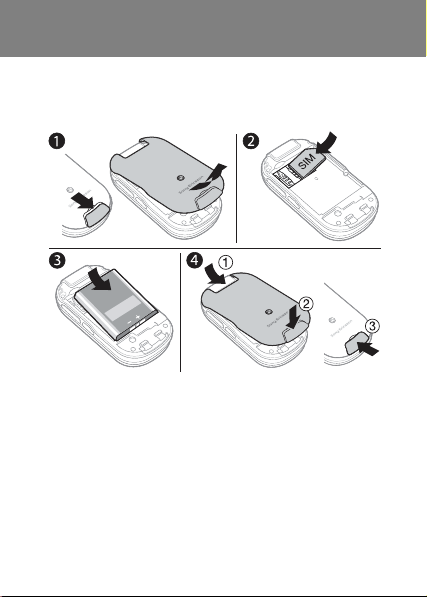

To insert the SIM card and battery

1Remove the battery cover by sliding the battery release

latch down.

2Slide the SIM card into its holder with the contacts facing

down.

3Insert the battery with the label side up and the connectors

facing each other.

4Slide the battery cover into place and close the battery

release latch.

This is the Internet version of the user'sguide. © Print only for private use.

Charge the battery

Your phone battery is partly charged when you buy it.

Non-USB Charger

(old type)

USB Charger

(new type)

A AC adapter

A1 AC adapter

connector

A2 AC adapter USB

socket

BUSBcable

B1 USB cable connector

B2 USB cable plug

It may take 30 minutes for the battery icon to appear on the

screen.

This is the Internet version of the user'sguide. © Print only for private use.

Using the USB charger

To connect the charger and charge the battery

1Connect the USB cable plug to the AC adapter USB socket,

as shown in the above illustration. The USB cable is supplied

with your phone.

2Connect the USB cable connector to your phone. Press

a key to view the charging status on the screen. It takes

approximately 2.5 hours to fully charge the battery.

To remove the charger

1Charge your battery until the battery icon indicates a full

charge.

2Tilt the USB charger connector upwards to remove it.

This is the Internet version of the user'sguide. © Print only for private use.

Note:

1The USB cable for the new USB charger shown in the

illustration on page four (Part. B in the new-type charger

illustration) is only intended for charging your phone. Do

not use it for transferring data.

2The USB cable for the USB charger shown in the

illustration (Part. B in the new-type charger illustration)

is only intended for connection to the AC adapter (Part. A

in the new-type charger illustration) to charge your phone.

It must not be used for connection to a PC.

3Sony Ericsson strongly recommends that you use only

Sony Ericsson branded original batteries, the part of power

supply device in accordance with YD/T 1591-2006

specifications of Communications Industry Standards of P.

R. China (Part A in the new-type charger illustration) and

the USB cable supplied with your phone to charge the

phone. The use of third-party products may decrease the

performance of your phone and/or pose a risk to your

health or safety.

4Sony Ericsson recommends that you never mix the use the

new USB charger and the old non-USB charger. The phone

with new-type charger in box cannot be charged with the

old-type charger, and vice versa. The use of both the

chargers may decrease the performance of your phone

and/or pose a risk to your health or safety.

You can use the phone during charging. You can charge the

battery for more or less than 2.5 hours. Interrupted charging

will not damage the battery.

This is the Internet version of the user'sguide. © Print only for private use.

Turn the phone on

To turn on the phone

1Press and hold down .

2Enter your PIN if requested.

To correct mistakes, press

3Select OK.

4Select a language.

5At first start-up, select Yes to use the setup wizard to make

a phone setup. Select No to use the setup wizard later.

To turn off the phone

•Press and hold down .

To use the setup wizard

•From standby select Menu > Settings > General > Setup

wizard > Basic setup.

After you have turned the phone on and entered

your PIN, the name of your operator appears on the

screen. This view or screen is called standby. You can now

make and receive calls.

This is the Internet version of the user'sguide. © Print only for private use.

SIM card

The SIM (Subscriber Identity Module) card, which you

get from your network operator, contains information

about your subscription. Always turn off your phone

and detach the charger before you insert or remove

the SIM card.

PIN code (SIM card lock)

The PIN (Personal Identification Number) code is a SIM card

lock that protects your subscription, but not the phone itself.

If the card is locked, you have to enter the PIN code when you

turn on your phone. Each PIN digit appears as *, unless it

starts with emergency number digits, for example, 112 or 911.

You can call an emergency number without entering a PIN.

You can save contacts on the SIM card before removing if

from your phone. Contacts may also be saved in the phone

memory. See Contacts on page 19.

If you enter the wrong PIN three times in a row, the following

message appears: PIN blocked. To unblock, enter your

PUK code provided by your network operator.

To unblock your SIM card, see Locks on page 42.

This is the Internet version of the user'sguide. © Print only for private use.

Menu overview

Calls Internet Games

Camera Messaging File manager

Write new

Inbox

Call voicemail

Drafts

Outbox

Sent messages

Saved messages

Templates

Settings

Camera album

Pictures

Ringtones

Themes

Bookmarks

Games

Applications

Other

Organizer Contacts Settings

Online services

Alarm

Applications

Calendar

Tasks

Notes

Calculator

Timer

Stopwatch

Options

New contact

General

Sounds & alerts

Display

Calls

Connectivity

Some menus and icons described in this document may vary

depending on operator, network or subscription. Some options

may vary when the default settings are changed.

This is the Internet version of the user'sguide. © Print only for private use.

Phone overview

Camera key

Back key

Internet key Navigation key

Volume

buttons

C key (Clear)

On/off key

Infrared port

Microphone

Right selection

key

Left selection

key

Charging

(USB

connector)

Network

coverage

Battery status

Function for

right selection

key

Function for

left selection

key

Calls Menu
