Sony Ericsson Akono HBH-608 Manuale utente

Akono™ Headset

HBH-608

English

Español

简体中文

繁體中文

This is the Internet version of the user’s guide © Print only for private use.

Akono™ Headset HBH-608

FCC statement

This device complies with part 15 of the FCC rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) This device must accept any interference

received, including interference that may cause undesired operation.

Sony Ericsson HBH-608

First edition (February 2005)

This manual is published by Sony Ericsson Mobile

Communications AB, without any warranty. Improvements and

changes to this manual necessitated by typographical errors,

inaccuracies of current information, or improvements to programs

and/or equipment, may be made by Sony Ericsson Mobile

Communications AB at any time and without notice. Such changes

will, however, be incorporated into new editions of this manual.

©Sony Ericsson Mobile Communications AB, 2005

Publication number: LZT 108 7684/1 R1A

Some of the services in this manual are not supported by all

networks. This also applies to the GSM International Emergency

Number 112. Contact your network operator or service provider if

you are in doubt whether you can use a particular service or not.

The Bluetooth word mark and logos are owned by the Bluetooth SIG,

Inc. and any use of such marks by Sony Ericsson is under license.

This product is leadfree and halogenfree.

User Guide

Guía del usuario

用户指南

使用手冊

This is the Internet version of the user’s guide © Print only for private use.

Akono™ Headset HBH-608

The Akono™ Headset HBH-608 can be connected to

any device with Bluetooth wireless technology that

supports the handsfree or headset profile. This user guide

focuses on usage with a Sony Ericsson mobile phone.

Auricular Akono™ HBH-608

El auricular Akono™ HBH-608 puede conectarse a

cualquier dispositivo que disponga de tecnología

inalámbrica Bluetooth y que admita perfiles de manos

libres o de auricular. Esta guía del usuario se centra en la

utilización del dispositivo con un teléfono móvil de

Sony Ericsson.

Akono™ 蓝牙耳机 HBH-608

利用蓝牙无线技术，Akono™ 蓝牙耳机 HBH-608

可以与支持免提或耳机模式的任何设备连接。本用

户指南着重介绍在索尼爱立信手机上的使用方法。

Akono™ 耳機 HBH-608

Akono™ 耳機 HBH-608 可經 Bluetooth(藍芽) 無

線技術，連上任何支援免持及耳機模式的裝置。本

使用手冊特別說明如何在 Sony Ericsson 手機上使用

本耳機。

Introduction

Introducción

简介

簡介

This is the Internet version of the user’s guide © Print only for private use.

Call handling button

Botón de gestión de llamadas

呼叫操作按钮

通話處理鈕

Microphone

Micrófono

话筒

麥克風

Indicator light

Indicador luminoso

指示灯

顯示燈號

Decorative panel

Panel decorativo

装饰面板

裝飾面板

Front

Parte delantera

正面

This is the Internet version of the user’s guide © Print only for private use.

Back

Parte posterior

背面

Ear hook

Enganche para la

oreja

耳挂

配戴耳鉤

Speaker

Altavoz

扬声器

擴音器

Increase volume

Subir volumen

增加音量

放大音量

Charging connector

Conector de carga

充电连接器

充電接口

Decrease volume

Bajar volumen

降低音量

This is the Internet version of the user’s guide © Print only for private use.

User Guide symbols

Símbolos de la guía del usuario

《用户指南》符号

使用手冊符號

Press and release

Pulsar y soltar

按下后松开

壓放

Indicator light

Indicador luminoso

指示灯

顯示燈號

Press and hold

Mantener pulsado

按下并保持

按住

Steady red light

Luz roja fija

持续红灯亮

持續的紅燈

Steady green light

Luz verde fija

持续绿灯亮

持續的綠燈

Press simultaneously

Pulsar simultáneamente

同时按住

同時按

This is the Internet version of the user’s guide © Print only for private use.

User Guide symbols (continued)

Símbolos de la guía del usuario

(continuación)

《用户指南》符号（续）

使用手冊符號（續前）

Ring signal

Señal de timbre

响铃信号

鈴聲

Beep tone

Tono de pitido

蜂鸣声

嗶聲

Red flash

Flash rojo

红灯闪烁

閃紅燈

Green flash

Flash verde

绿灯闪烁

閃綠燈

This is the Internet version of the user’s guide © Print only for private use.

CLA-11

CST-13

First time use: Charge approximately 8 hours before

using the headset. (For battery capacity see p. 33.)

Utilización por primera vez: Cárguelo aproximadamente

durante 8 horas antes de utilizar el auricular. (Consulte en

la p. 33 la capacidad de la batería.)

首次使用：首次使用手机前，请将电池充电约 8 小

时。（有关电池容量的信息，请参见第 33 页。）

首次使用時：使用耳機前，請先充電 8 小時左右。

（電池容量的說明，請參考第 33 頁。）

Getting started

Introducción

入门

準備開始

Chargers

Cargadores

充电器

充電器

This is the Internet version of the user’s guide © Print only for private use.

Battery needs charging

Debe cargar la batería

电池需要充电

電池需要充電

Charging

Carga

充电中

充電中

Fully charged

Completamente cargado

已充满

電已充足

Charging

Carga

充电

充電

This is the Internet version of the user’s guide © Print only for private use.

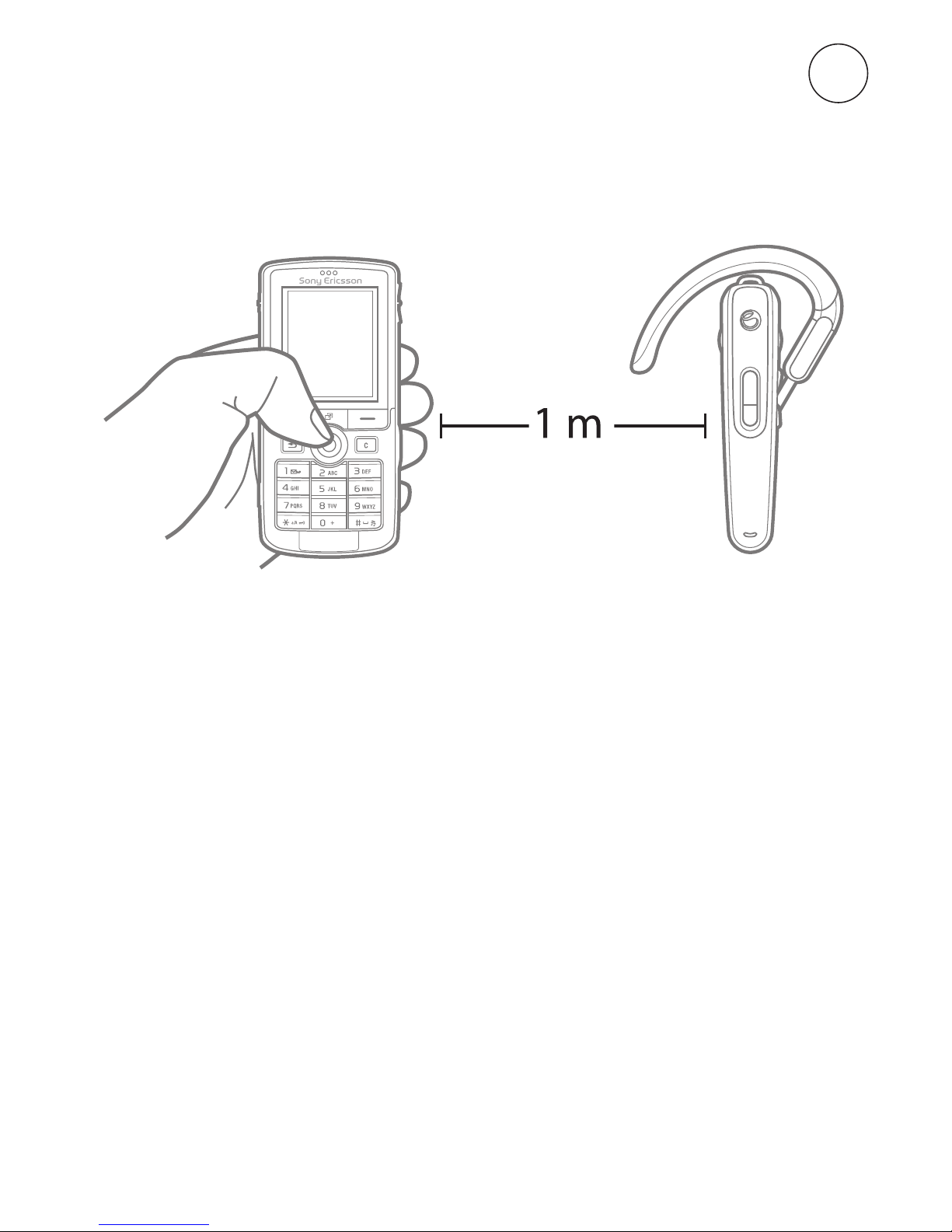

Before you can use your Bluetooth headset with your

phone it has to be added once to the phone:

1. Prepare your headset according to A or B (see p. 12).

2. Follow the instructions from the phone user guide

on how to turn on and then add a Bluetooth device to

your phone. The passkey of the headset is 0000.

After you have added the headset to the list of

Bluetooth devices in the phone, it will automatically

connect to the phone as soon as it is turned on and

within range.

Adding the headset to the phone

Añadir el auricular al teléfono

将耳机添加到手机上

將耳機連上手機

This is the Internet version of the user’s guide © Print only for private use.
