Quick Start Guide
LocationFree Base Station LF-B20
For more details about this product, refer to the Operating
Instructions installed on the supplied CD-ROM.
©2007 Sony Corporation Printed in Japan
2
Sony LF-B20 3-215-275-11(1)
AT/BE/CH/DE/DK/ES/FI/GB/IE/
IT/LU/NL/NO/PT/SE
English
Hereby, Sony Corporation declares that this LF-B20 is in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/
Français
Par la présente Sony Corporation déclare que l’appareil LF-B20 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE. Pour toute information complémentaire, veuillez consulter l’URL suivante :
http://www.compliance.sony.de/
Deutsch
Hiermit erklärt Sony Corporation dass sich diese LF-B20 in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG befindet. Weitere Informationen erhältlich unter: http://www.compliance.sony.de/
Español
Por medio de la presente Sony Corporation declara que el LF-B20 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o
exigibles de la Directiva 1999/5/CE. Para mayor información, por favor consulte la siguiente URL:
http://www.compliance.sony.de/
Nederlands
Hierbij verklaart Sony Corporation dat het toestel LF-B20 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn
1999/5/EG. Nadere informatie kunt u vinden op: http://www.compliance.sony.de/
Svenska
Härmed intygar Sony Corporation att denna LF-B20 står i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser
som framgår av direktiv 1999/5/EG. För ytterligare information gå in på följande hemsida:
http://www.compliance.sony.de/
3
Sony LF-B20 3-215-275-11(1)
Italiano
Con la presente Sony Corporation dichiara che questo LF-B20 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla
direttiva 1999/5/CE. Per ulteriori dettagli, si prega di consultare il seguente URL: http://www.compliance.sony.de/
Português
Sony Corporation declara que este LF-B20 está conforme com os requisitos essenciais e outras provisões da Directiva 1999/5/CE. Para mais
informações, por favor consulte a seguinte URL: http://www.compliance.sony.de/
Suomi
Sony Corporation vakuuttaa täten että LF-B20-tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden
ehtojen mukainen. Halutessasi lisätietoja, käy osoitteessa: http://www.compliance.sony.de/
Dansk
Undertegnede Sony Corporation erklærer herved, at følgende udstyr LF-B20 overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/
EF. For yderligere information gå ind på følgende hjemmeside: http://www.compliance.sony.de/
Norsk
Sony Corporation erklærer herved at utstyret LF-B20 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF. Hvis du
vil har mer informasjon skal du gå til denne URL-adresse: http://www.compliance.sony.de/
In some of the countries listed above, Sony may not currently sell this product, even though such countries appear on the package and in the
operating instructions as countries of intended use.
This device is approved for the country or region of intended use. Using this device with the affixed approval label removed may be punishable by law.
LF-B20 LocationFree Base Station AC-LX1B AC adapter LocationFree Base Station stand IR Blaster
Mains lead (Type BF) Mains lead (Type C-6) LFA-PC20 LocationFree Player
software with Operating
Instructions and a serial key for
LocationFree Player software
Scart to A/V cable
(labeled with a yellow label)
(for INPUT only)
Notes
Use this mains lead if you use the unit
in the United Kingdom.
This mains lead may not be supplied
depending on the country.
Notes
Use this mains lead if you use the unit
outside the United Kingdom.
This mains lead may not be supplied
depending on the country.
A/V to Scart cable
(labeled with a blue label)
(for OUTPUT only)
LAN cable
Quick Start Guide (this guide)
Important Notice
EUROPEAN GUARANTEE INFORMATION DOCUMENT
4
Sony LF-B20 3-215-275-11(1)
Package Contents
5
Sony LF-B20 3-215-275-11(1)
Table of Contents
Package Contents....................................................................................... 4
Base Station Setup .....................................................................................6
Device Registration..................................................................................34
Troubleshooting .......................................................................................35
6
Sony LF-B20 3-215-275-11(1)
LocationFree
Base Station LF-B20
Router
Do you have
- The Base Station and the router in a same room?
Wirelessly connect a client (e.g. PC, PSP) directly with the Base Station.
The Base Station and the router are connected with a LAN cable.
The Base Station is used only in your home without a router (no Internet connection).
PC
TV
How would you like to set up the Base Station in your home?
TYPE A
Jump TYPE A on Page 8
Video
Living room
7
Sony LF-B20 3-215-275-11(1)
Wirelessly connect a client (e.g. PC, PSP) with the Base Station via the wireless router.
The Base Station and the wireless router are also connected wirelessly.
Do you have
- The Base Station and the router in different rooms?
- A wireless router ?
LocationFree
Base Station LF-B20
PC
Wireless router
TYPE B
TV
Video
Living room
Jump TYPE B on Page 20
CLIENTAP WLAN
CLIENTAP WLAN
8
Sony LF-B20 3-215-275-11(1)
TYPE ASet up the LocationFree Base Station

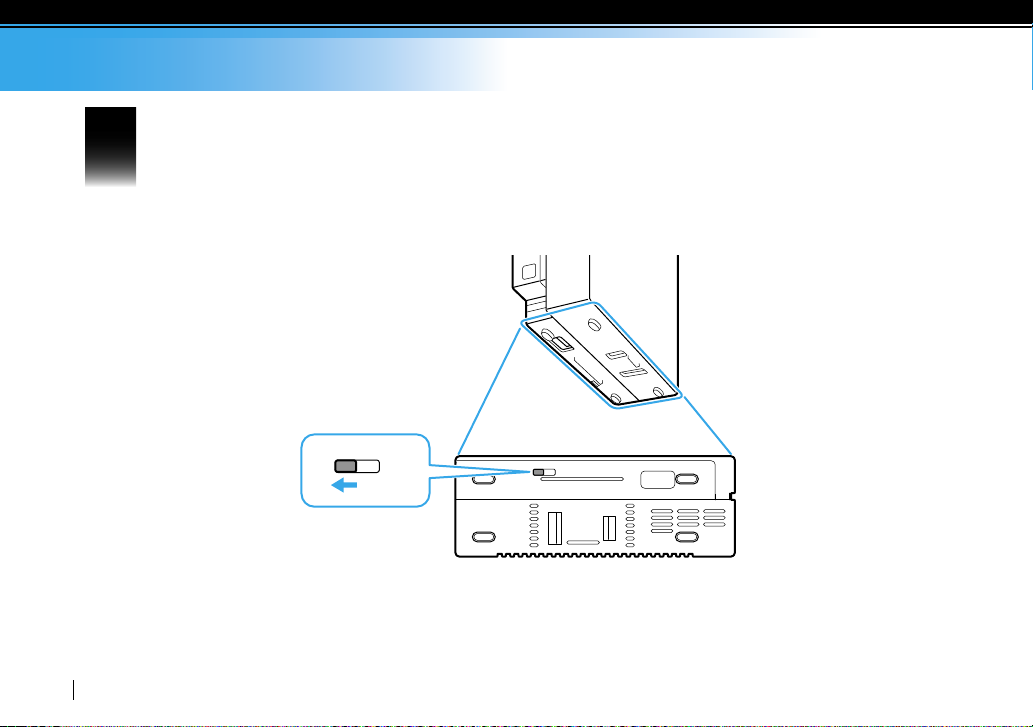

Make sure that the switch on the bottom of the Base Station is set to the Access Point
(AP) mode.
1
The bottom of the Base Station
9
Sony LF-B20 3-215-275-11(1)
Holes
Claws
Stand
Attach the stand.
2
10
Sony LF-B20 3-215-275-11(1)
TYPE A
IR BLASTER
LAN
12
S VIDEO
IN 1
INOUT
VIDEO
AUDIO
L
R
VIDEO
AUDIO
L
R
VIDEO
DC IN 12V
AUDIO
L
R
IN 2
OUT
IN 1
VIDEO
AUDIO
L
R
VIDEO
AUDIO
L
R
OUT
IN
OUT
IR BLASTER
12
Connect your TV to the Base Station (refer to the illustration below).
Connect to your TV using VIDEO OUT if your video device has a single VIDEO OUT.
Video Input
TV, etc. Video Output
(Video signal from
Video Input 1 will
be emitted)
Rear of the
Base Station
Connect video devices (PVR, DVD and STB) to the Base Station.
3
: Audio/video signal flow
A/V to Scart cable
(blue label; supplied)
Tip
You can also use S-video cables
(not supplied) to connect audio/
video devices to the Base Station.
