Sony TA-F3000 Manuale utente

— 1 —

SERVICE MANUAL

AEP Model

UK Model

TA-F3000ES

E Model

Chinese Model

TA-F3000

TA-F3000/F3000ES

SPECIFICATIONS

Photo: TA-F3000

INTEGRATED STEREO AMPLIFIER

MICROFILM

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

— 2 —

TABLE OF CONTENTS

1. GENERAL .......................................................................... 3

2. ELECTRICAL ADJUSTMENTS .................................. 4

3. DIAGRAMS

3-1. Circuit Boards Location ........................................................ 4

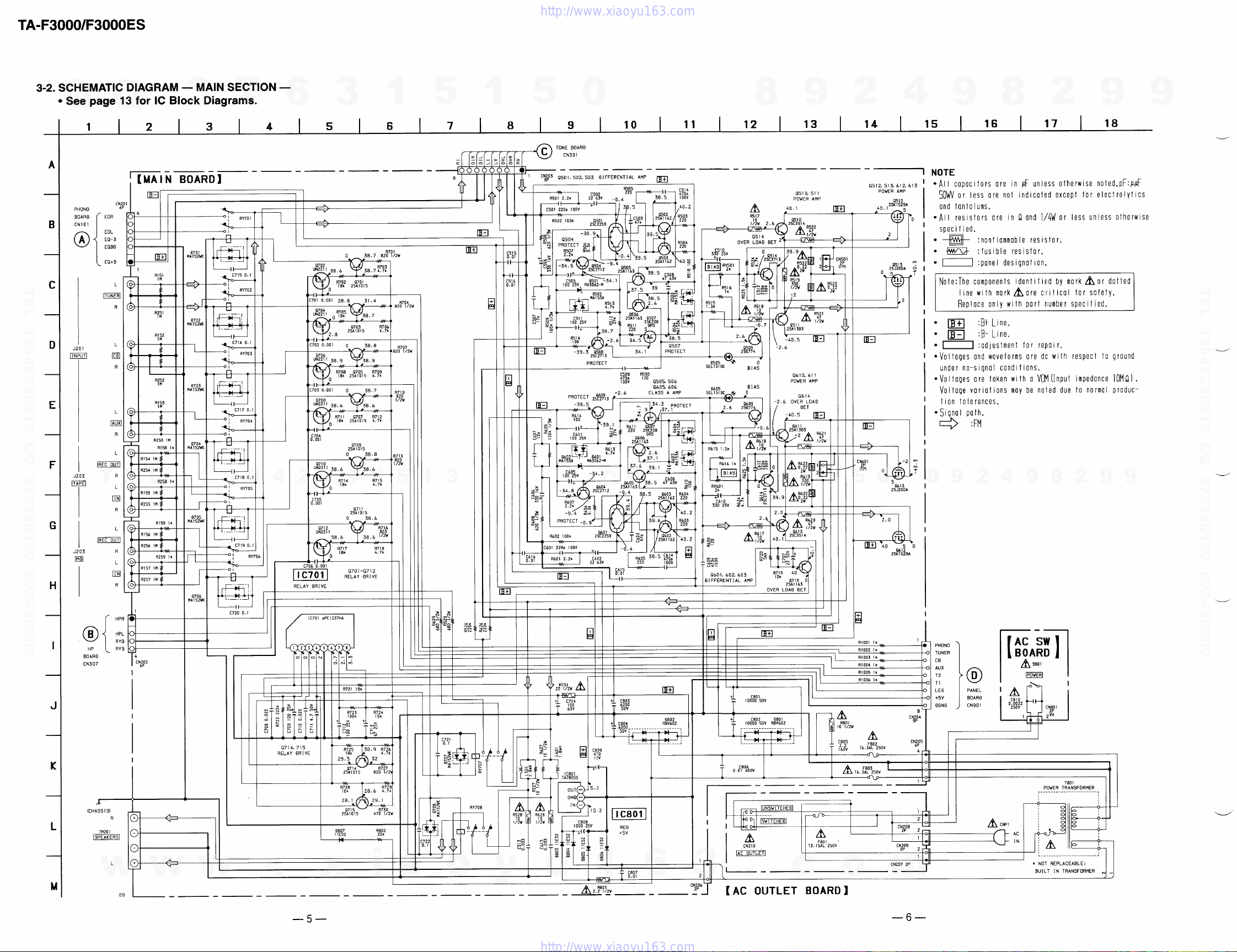

3-2. Schematic Diagram — Main Section — .............................. 5

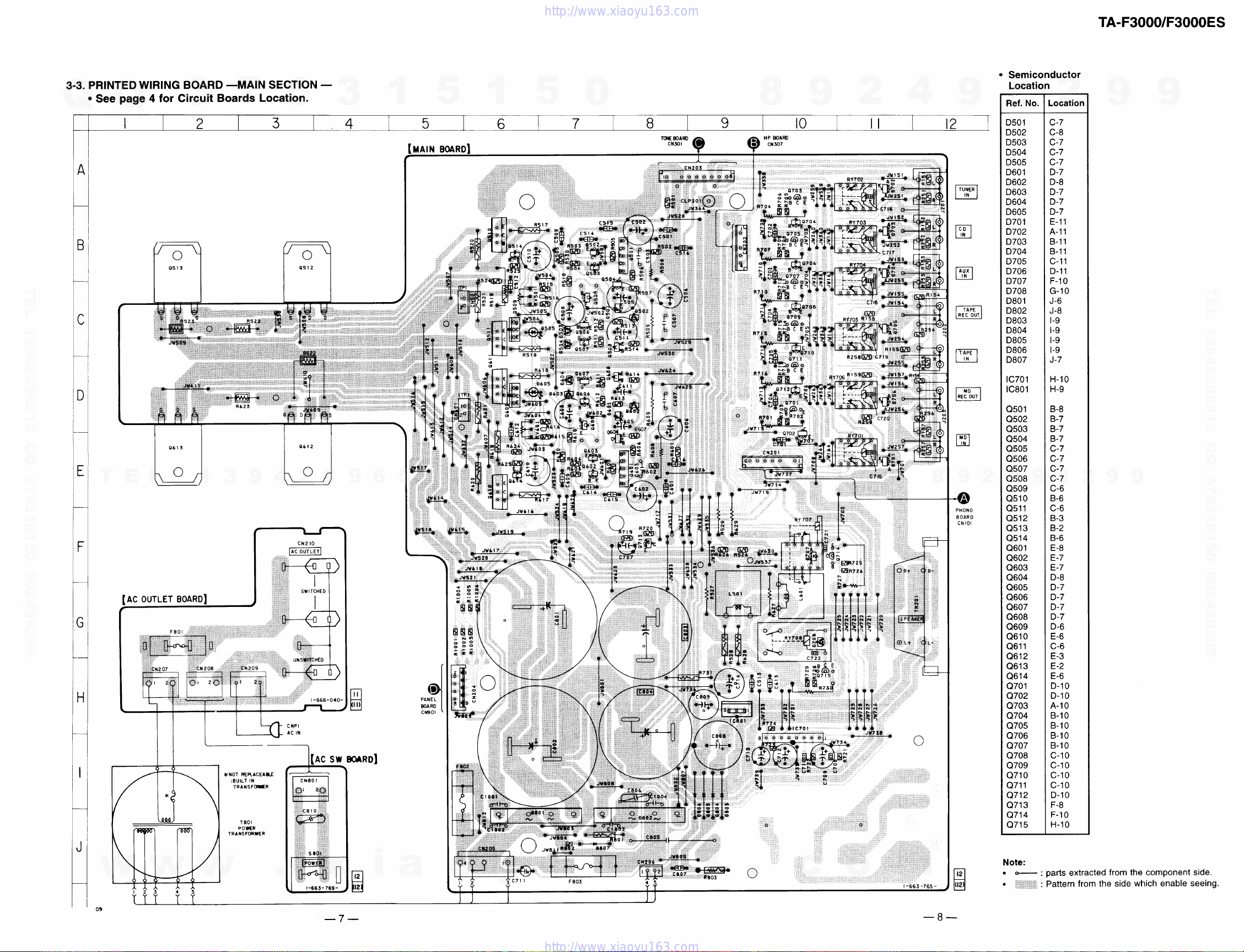

3-3. Printed Wiring Board — Main Section —............................ 7

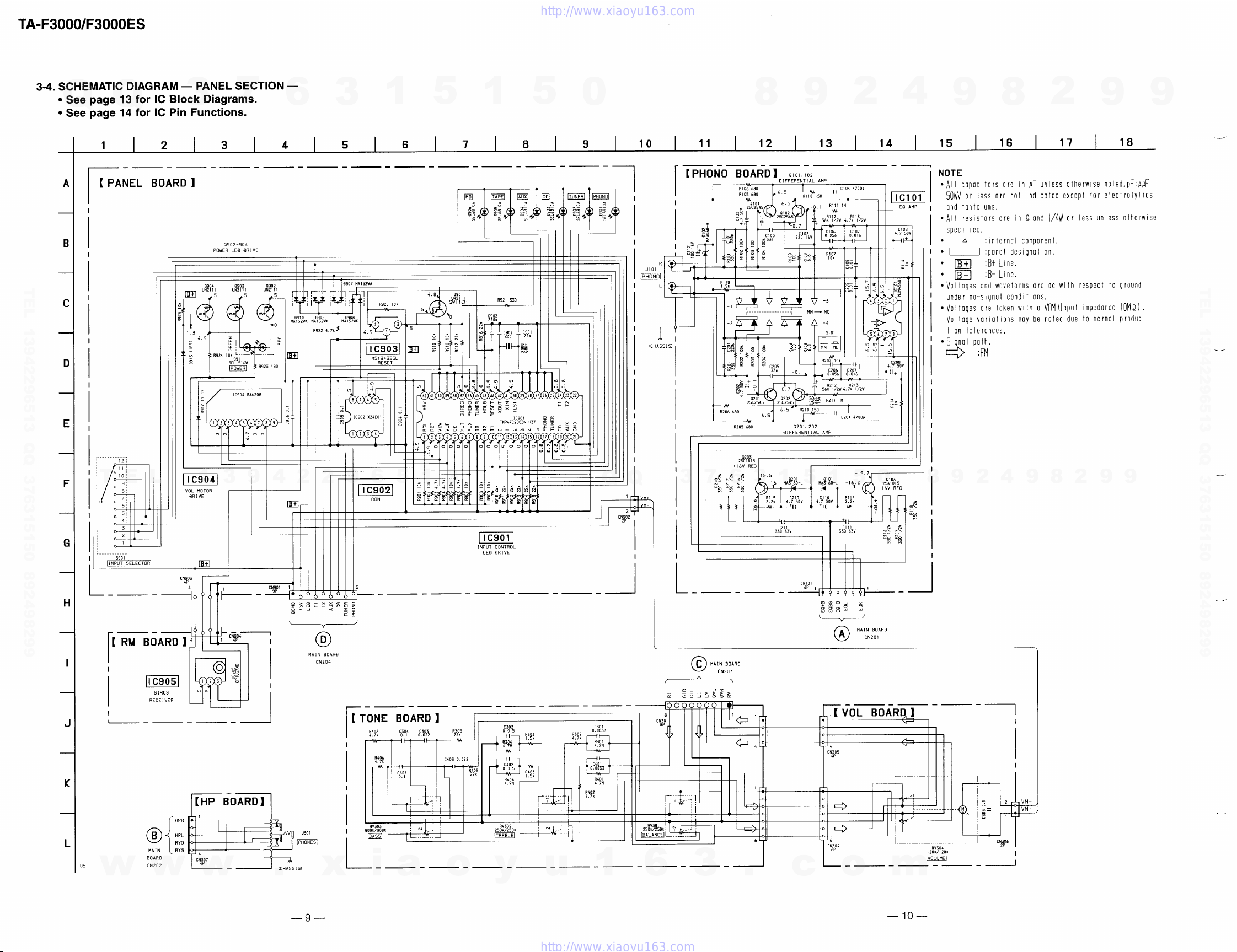

3-4. Schematic Diagram — Panel Section — ..............................9

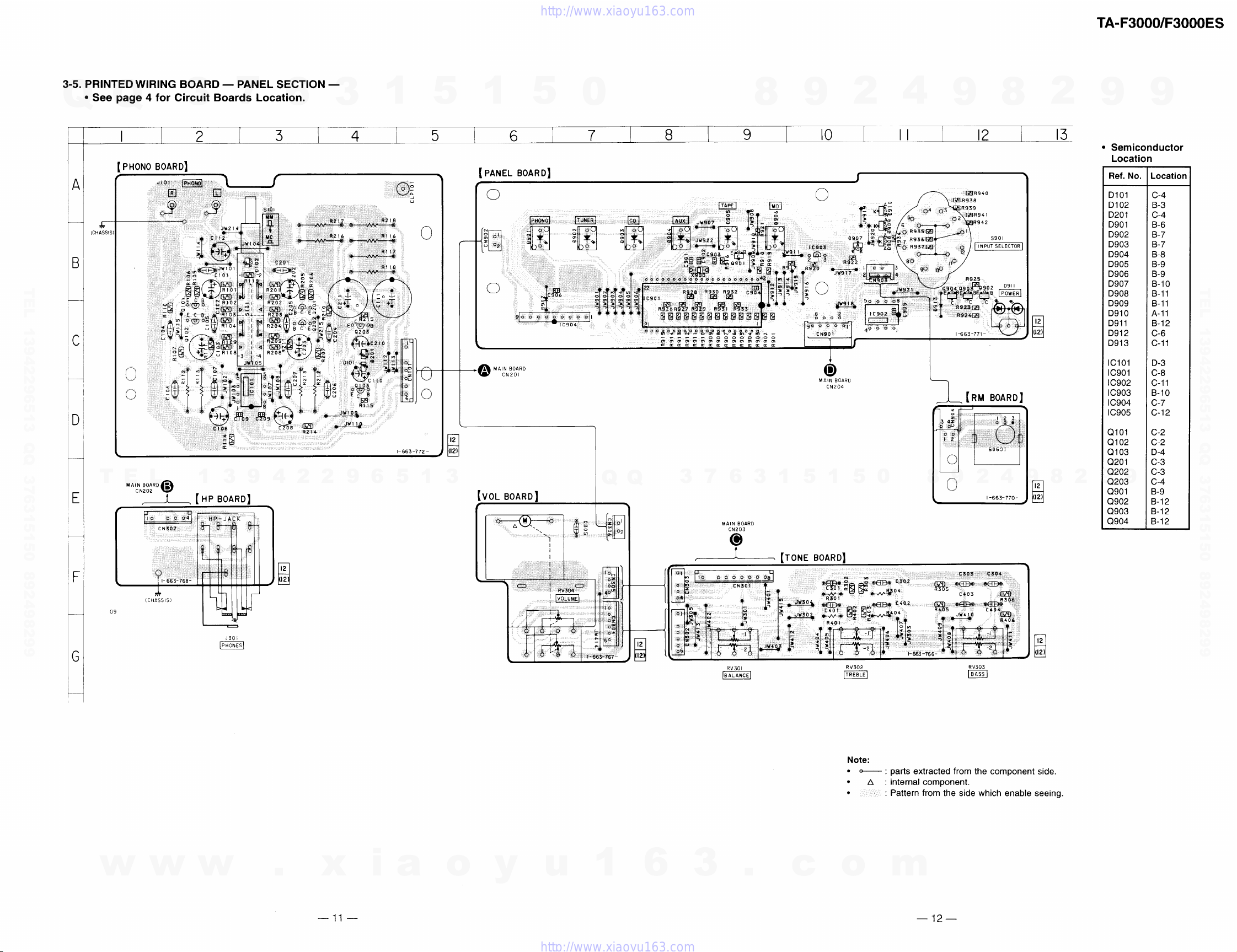

3-5. Printed Wiring Board — Panel Section — ......................... 11

3-6. IC Block Diagrams ............................................................. 13

3-7. IC Pin Function ................................................................... 14

4. EXPLODED VIEWS

4-1. Front Panel Section ............................................................. 15

4-2. Chassis Section ................................................................... 16

5. ELECTRICAL PARTS LIST ........................................ 17

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be

damaged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of soldering iron around 270˚C

during repairing.

• Do not touch the soldering iron on the same conductor of the

circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering

or unsoldering.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK !OR DOTTED LINE

WITH MARK !ON THE SCHEMATIC DIAGRAMS AND IN

THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.

REPLACE THESE COMPONENTS WITH SONY PARTS

WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS

MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

— 3 — — 4 —

SECTION 2

ELECTRICAL ADJUSTMENTS

Bias Adjustment

1. Rotate the semi-fixed resistors (RV501, RV601) for bias

adjustment to the MIN side fully (counterclockwise direc-

tion).

2. Connect a digital voltmeter to CN501 (TP) and CN601

(TP).

1P : ’side, 2P : ‘side

3. Turn ON the power button, and adjust RV501 and RV601

sothat the digital voltmeter display becomes 22 mV ± 2mV

within 5 seconds.

4. After the adjustment, turn OFF the power button.

SECTION 3

DIAGRAMS

3-1. CIRCUIT BOARDS LOCATION

PHONO board

HP board

AC SW board

RM board

AC OUTLET board

VOL board

PANEL board

MAIN board

TONE board

Adjustment Location

[MAIN BOARD] (Component side)

CN601 (TP)

CN501 (TP)

RV501

RV601

C801

C802

Bias Adjustment

Digital volt meter

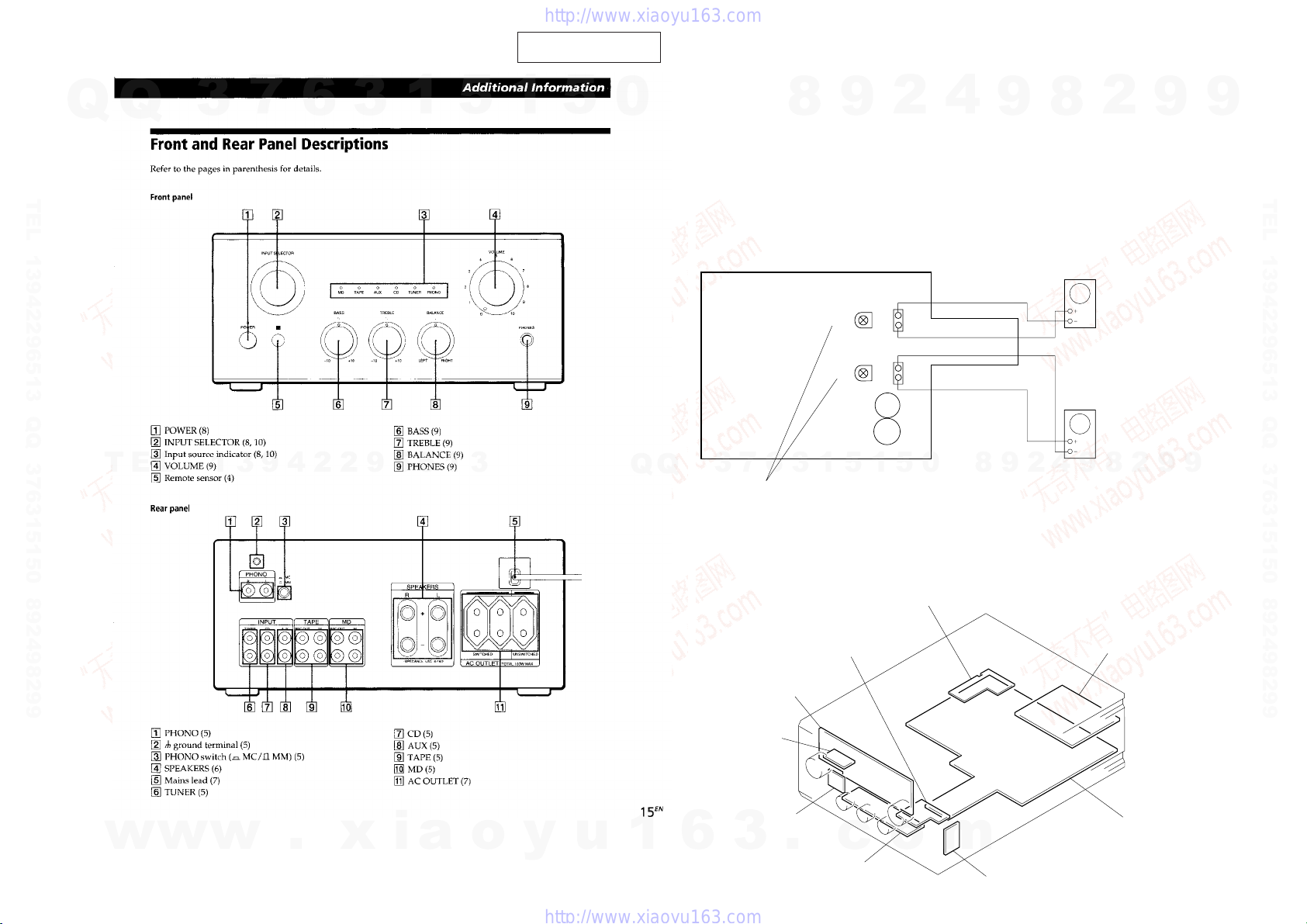

SECTION 1

GENERAL This section is extracted from

instruction manual.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

— 13 — — 14 —

3-6. IC BLOCK DIAGRAMS

• Main section

IC701 µPC1237HA

1 2 3 4 5 6 7 8

OVER LOAD DET

F/F

OFFSET DET

LATCH/

AUTORESET

MUTE

AC OFF

DET

• Panel section

IC902 X24C01

IC904 BA6208

VCC

TEST INPUT

SCL

SDA

VSS

START

STOP

LOGIC

CONTROL

LOGIC

START CYCLE H.V. GENERATION

TIMING

& CONTROL

E PROM

32 x 32

XDEC

INC

LOAD

R/W

OUT

WORD

ADDRESS

COUNTER

YDEC

OUT

ACK

DATA REGISTER

1 2 3 4 5 6 7 89

OUTPUT 2

Vcc

GND

INPUT 2

INPUT 1

MOTOR

DRIVE

MOTOR

DRIVE

REG

SWITCH

OUTPUT1

Clock

Data

Down

CD input relay signal output

Mute Control signal output when switching (Mute: H)

AUX input relay signal output

Connected to ground

TAPE input relay signal output

MD input relay signal output

Relativity position detection signal of rotary switch

(One of them terminal: L, the other terminal: H)

Function LED drive signal (ON: L)

Ground

Not used

Function LED drive signal (ON: L)

Not used

Test terminal (Not used)

Oscillation signal 8MHz

Reset signal (Reset: L)

Cancellation of hold mode signal (Start: H)

TUNER input relay signal output

PHONO input relay signal output

SIRCS signal (Active: L)

Not used

Power supply (+5V)

Pin No. Pin Name I/O Function

25 to 29

38 to 41

RCL

RDT

VDW

VUP

MUT

AUX

PHONO

TUNER

AUX

GND

TEST

XIN

XOUT

RESET

HOLD

TUNER

PHONO

SIRCS

+5V

I/O

–

3-7. IC PIN FUNCTION

• IC901TMP47C200BN-H371 (INPUT CONTROL, LED DRIVE)

Serial data of EEPROM (X24C01)

VR motor control signal (Active: H, Stop: L-L, Brake: H-H)

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

— 15 —

SECTION 4

EXPLODEDVIEWS

NOTE:

• -XX, -X mean standardized parts, so they may have

some difference from the original one.

• Items marked “*” are not stocked since they are

seldom required for routine service. Some delay

should be anticipated when ordering these items.

• The mechanical parts with no reference number in

the exploded views are not supplied.

• Hardware (# mark) list and accessories and pack-

ing materials are given in the last of this parts list.

The components identified by mark !

or dotted line with mark !are critical

for safety.

Replace only with part number

specified.

4-1. FRONT PANEL SECTION

Supplied

withRV304

Supplied

with J301

12 13

not supplied

Supplied

with RV301,

RV302,RV303

Supplied

with S901

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1 4-988-742-11 SCREW (M3X8), HEXAGON SOCKET

2 4-986-728-01 KNOB (VOL)

3 4-986-729-01 KNOB (TONE)

4 4-986-728-11 KNOB (VOL)

5 X-4947-788-1 PANEL SUB ASSY, FRONT (F3000)

5 X-4948-711-1 PANEL SUB ASSY, FRONT (F3000ES)

*6 4-986-734-01 LENS, LED

8 X-4947-759-1 BUTTON ASSY, POWER

*9 1-663-769-11 AC SW BOARD

*10 4-989-314-01 TUBE (LED)

*11 A-4392-951-A PANEL BOARD, COMPLETE

12 1-777-740-11 WIRE (FLAT TYPE) (4 CORE)

13 1-777-739-11 WIRE (FLAT TYPE) (9 CORE)

*14 1-663-770-11 RM BOARD

*15 1-663-766-11 TONE BOARD

*16 4-986-716-01 CASE

*17 1-663-767-11 VOL BOARD

*18 1-663-768-11 HP BOARD

19 3-846-312-01 SPACER

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

— 16 —

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

*51 4-935-964-21 WASHER

*52 A-4392-944-A MAIN BOARD, COMPLETE

53 X-4948-228-1 SCREW ASSY

*54 4-923-873-01 BRACKET, CORD STOPPER

*55 3-703-244-00 BUSHING (2104), CORD

56 3-704-515-41 SCREW (BV/RING)

57 4-947-010-01 SCREW, FEEDER FIXED

58 1-506-113-00 SHORT PLUG

*59 4-990-696-01 PANEL, BACK (F3000)

*59 4-990-696-11 PANEL, BACK (F3000ES)

60 4-970-145-01 ESCUTCHEON (P)

61 4-970-146-01 BUTTON

*62 A-4392-950-A PHONO BOARD, COMPLETE

*63 4-986-722-01 PLATE, BOTTOM

64 X-4947-892-1 FOOT ASSY

*65 4-988-215-01 INSULATOR

66 3-831-441-XX CUSHION, SPEAKER

67 3-531-576-11 RIVET

68 4-992-453-01 INSULATOR

*69 1-666-040-11 AC OUTLET BOARD

!CNP1 1-558-568-21 CORD, POWER

!T801 1-431-369-11 TRANSFORMER, POWER

The components identified by mark !

or dotted line with mark !are critical

for safety.

Replace only with part number speci-

fied.

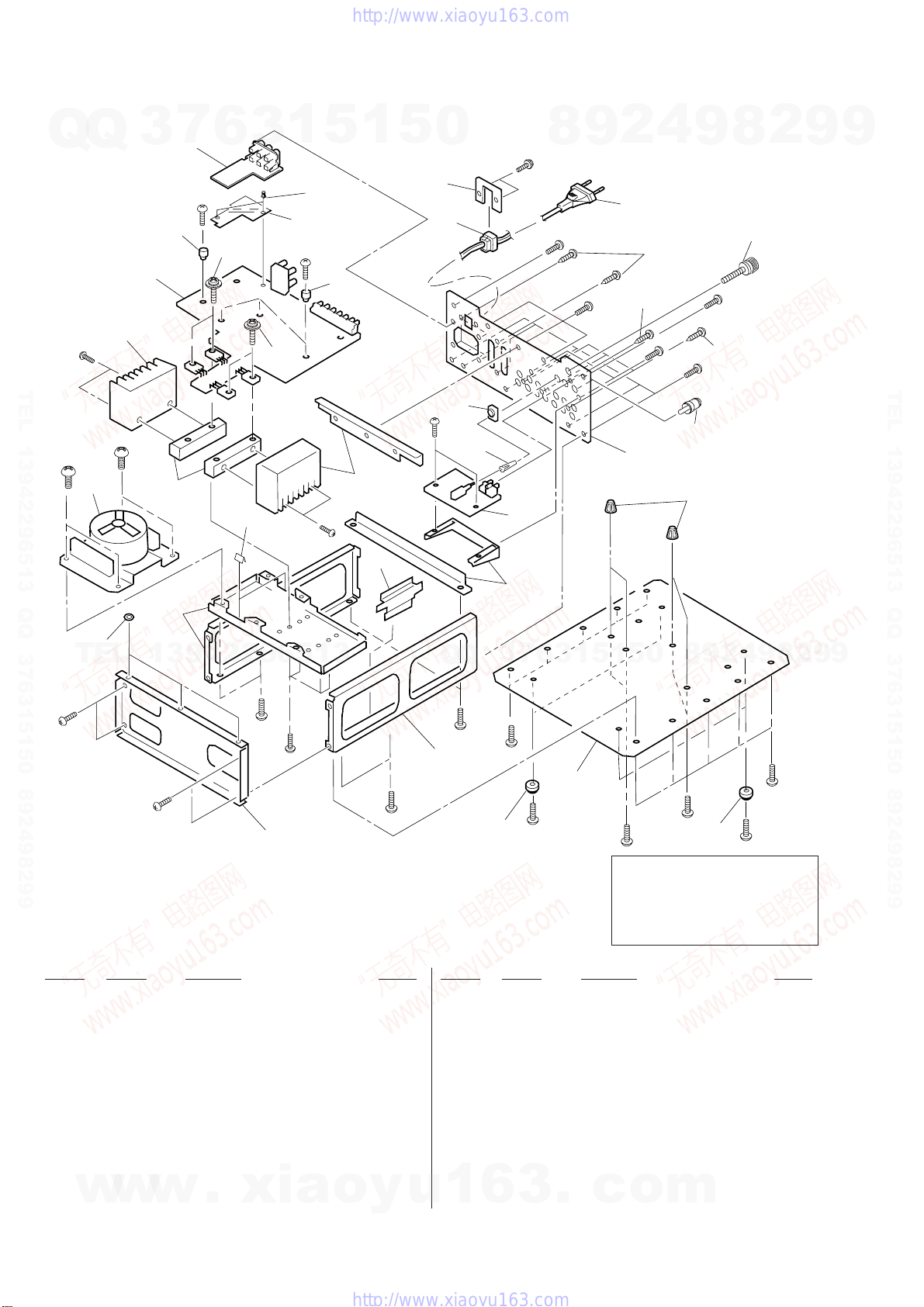

4-2. CHASSIS SECTION

not supplied

not

supplied

not

supplied

#5 #2

#4 #4

56 57

not supplied

T801 not supplied not supplied not supplied

CNP1

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com
