Sony TA-F5000 Manuale utente
3-810-424-11(1)
1996 by Sony Corporation
Integrated
Stereo Amplifier
Operating Instructions
Mode d’emploi
Manual de instrucciones
Manual de instruções
Bedienungsanleitung
Gebruiksaanwijzing
Bruksanvisning
Instruzioni per l’uso
GB
F
E
P
TA-F5000
D
NL
S
I
2GB
On the prevention of howling
Do the following:
—lower the volume.
—keep the turntable as far from the
speakers as possible.
—use commercially available audio
insulators on the bottom of the
turntable.
—keep the microphone away from the
speakers during use.
For further protection against howling,
set the speakers or turntable on top of a
heavy wooden board or concrete slab.
If you have any questions or
problems concerning your amplifier,
please consult your nearest Sony
dealer.
WARNING
To prevent fire or shock
hazard, do not expose the unit
to rain or moisture.
To avoid electrical shock, do
not open the cabinet. Refer
servicing to qualified
personnel only.
Do not install the appliance in
a confined space, such as a
bookcase or built-in cabinet.
Precautions
On safety
• Do not disassemble the cabinet as this
may result in an electrical shock.
Refer servicing to qualified personnel
only.
• Should any solid object or liquid fall
into the cabinet, unplug the amplifier
and have it checked by qualified
personnel before operating it any
further.
On power sources
• Before operating the amplifier, check
that the operating voltage of the
amplifier is identical with your local
power supply. The operating voltage
is indicated on the nameplate at the
rear of the amplifier.
• If you are not going to use the
amplifier for a long time, be sure to
disconnect the amplifier from the wall
outlet. To disconnect the AC power
cord (mains lead), grasp the plug
itself; never pull the cord.
On placement
• Place the amplifier in a location with
adequate ventilation to prevent heat
built-up and prolong the life of the
amplifier.
• Do not place the amplifier near heat
sources, or in a place subject to direct
sunlight, excessive dust or mechanical
shock.
• Do not place anything on top of the
cabinet that might block the
ventilation holes and cause
malfunctions.
On operation
Before connecting other components, be
sure to turn off and unplug the
amplifier.
On cleaning the amplifier
Clean the cabinet, panel and controls
with a soft cloth slightly moistened with
a mild detergent solution. Do not use
any type of abrasive pad, scouring
powder or solvent such as alcohol or
benzine.
3GB
GB
Welcome!
Thank you for purchasing the Sony
Integrated Stereo Amplifier. Before
operating the amplifier, please read this
manual thoroughly and retain it for
future reference.
About This Manual
Conventions
The following icon is used in this
manual:
Indicates hints and tips for making
the task easier.
TABLE OF CONTENTS
Getting Started
Unpacking 4
Hookup Overview 4
Audio Component Hookups 5
Speaker System Hookups 6
Mains Lead Hookups 7
Listening to the Music 8
Recording 10
Additional Information
Troubleshooting 11
Specifications 11
Front and Rear Panel Descriptions 12
Getting Started
4GB
S
POWER
INPUT SELECTOR BASS TREBLE BALANCE VOLUME
PHONES
–10 +10 –10 +10 LEFT RIGHT 010
19
28
37
46
5
MD TAPE AUX CD TUNER MM - PHONO - MC

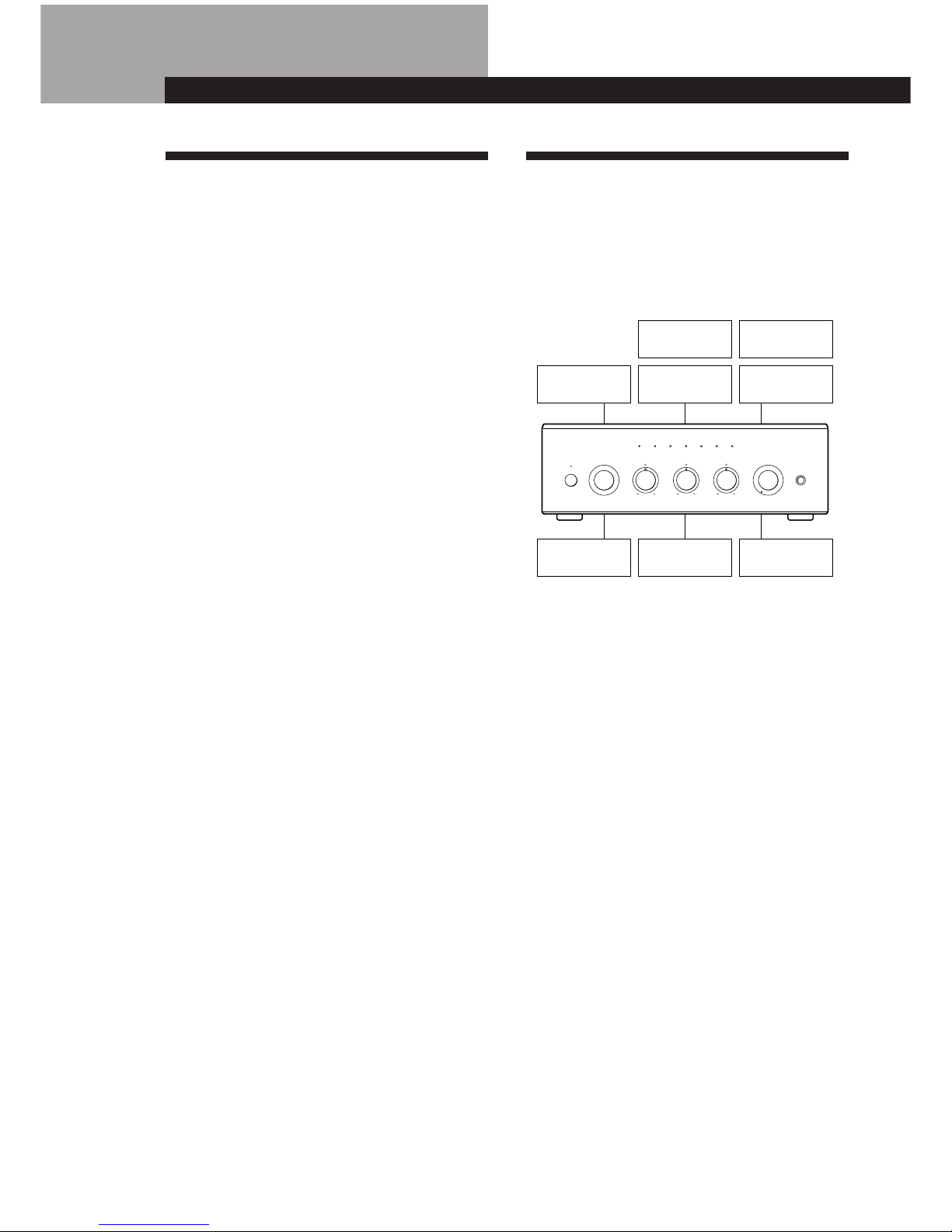

Hookup Overview
The amplifier allows you to connect and control the
following audio components. Follow the hookup
procedure indicated for each component that you want
to connect.
To learn the location and name of each jack, see “Front
and Rear Panel Descriptions” on page 12.
Before you get started
• Turn off the power to all components before making
any connections.
• Do not connect the mains leads of the various
components until all connections are completed.
• Use the audio connecting cords supplied with each
component for hooking up with the amplifier.
Purchase and use optionally available cords as
required.
• Be sure to make connections firmly to prevent hum
and noise.
• When connecting an audio connecting cord, be sure
to match the R (right) and L (left) jacks on the
amplifier to the R and L jacks on the other
components.
MD deck CD player Turntable
Tape deck Tuner
Speaker (L) Speaker (R)
Active speaker
etc.
Unpacking
Check that you have received the following supplied
items:
• Shorting plugs* (2)
• Mains lead (1)
* plugged into the PHONO jacks when shipped from
the factory
5GB
Getting Started
MD deck
Turntable
1Remove the shorting plugs from the PHONO jacks before
connecting the cables.
Notes
• Do not insert the shorting plugs into the MD REC OUT,
TAPE REC OUT, or PRE OUT jacks. Doing so may stop
output from the amplifier or cause the unit to
malfunction.
• Leave the shorting plugs in the PHONO jacks if you do
not connect a turntable. Removing the shorting plugs
without connecting a turntable may cause noise in the
audio signal.
2Connect the audio connecting cords.
• If your turntable has an earth lead
To prevent hum, connect the earth lead to the yearth
terminal on the amplifier.
TV or VCR
Active speaker, etc.
PHONO
RL
PHONO
RL
y
Amplifier Turntable
OUTPUT
LINE
L
R
INPUT
L
TUNER CD AUX
R
Amplifier TV or VCR
PRE OUT
R L
INPUT
Active speaker, etc.
Amplifier

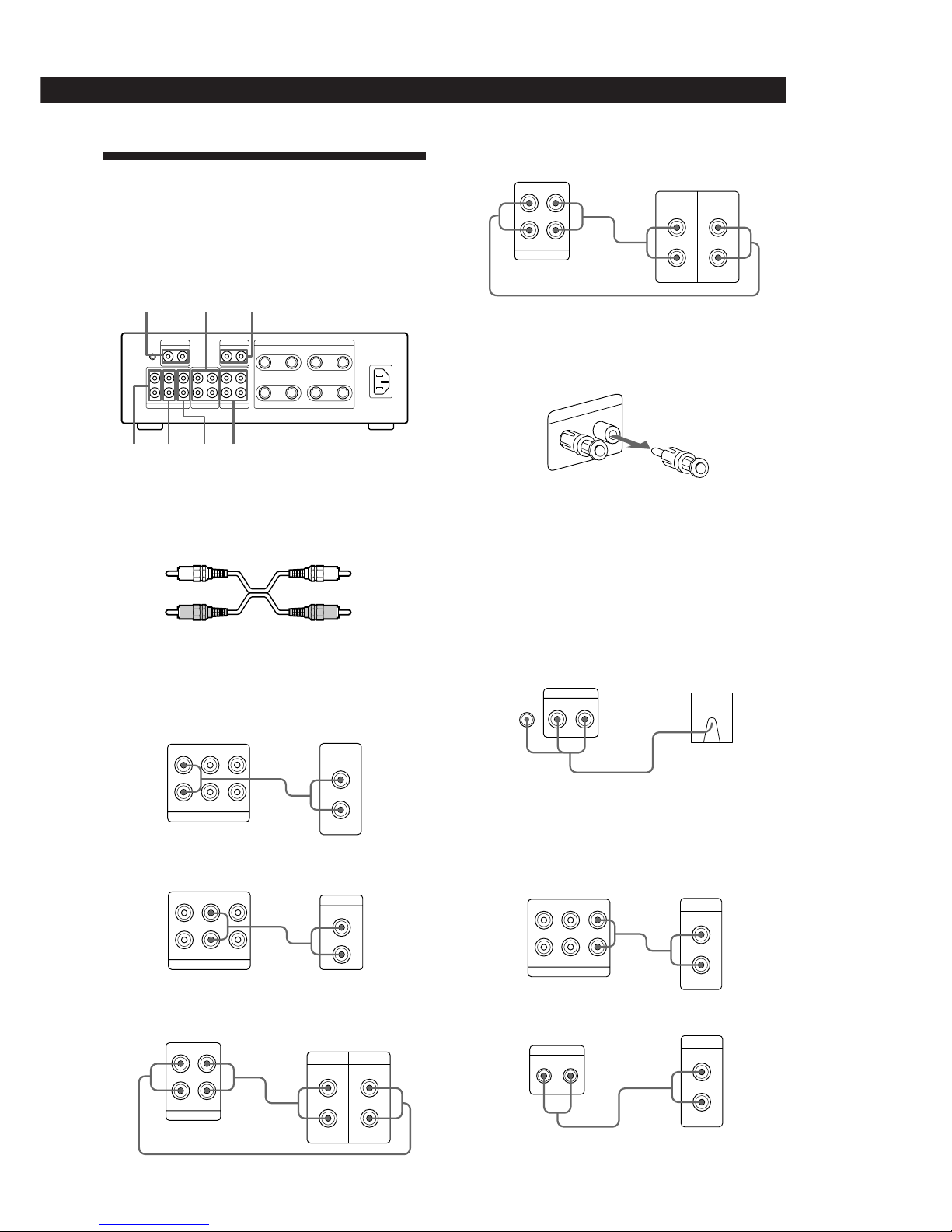

Audio Component Hookups
Overview
Here you learn how to connect your audio components
to the amplifier.
What cords will I need?
Audio connecting cords (not supplied) (1 for each
component and turntable; 2 for each tape deck, or MD deck)
Hookups
The arrow çindicates signal flow.
Tuner
CD player
Tape deck
MDAUXCDTUNER
PHONO TAPE PRE OUT
White (L)
Red (R)
White (L)
Red (R)
OUTPUT
LINE
INPUT
L
TUNER CD AUX
RL
R
Amplifier Tuner
LINE OUT
L
INPUT
L
TUNER CD AUX
R
R
Amplifier CD player
TAPE
INREC OUT OUTPUT
LINE INPUT
LINE L
R
Amplifier Tape deck
MD
INREC OUT OUTPUT
LINE INPUT
LINE
R
L
L
R
Amplifier MD deck
Getting Started
6GB
]}
Connecting to normal speakers
Connect the speakers to the MAIN terminals on the
amplifier.
Note
Use speakers with a nominal impedance of 4 to 16 ohms.
Connecting to bi-wire system speakers
Since the MAIN and BI-WIRE terminals provide
simultaneous output, you can use them to bi-wire a
pair of compatible speakers. Connect the BI-WIRE
terminals to the speaker’s high frequency driver and
connect the MAIN terminals to the speaker’s low (or
mid) frequency driver.
Note
When outputting at the same time to two speaker systems or
connecting to a bi-wire system speaker, use speakers with a
nominal impedance of 8 to 16 ohms.

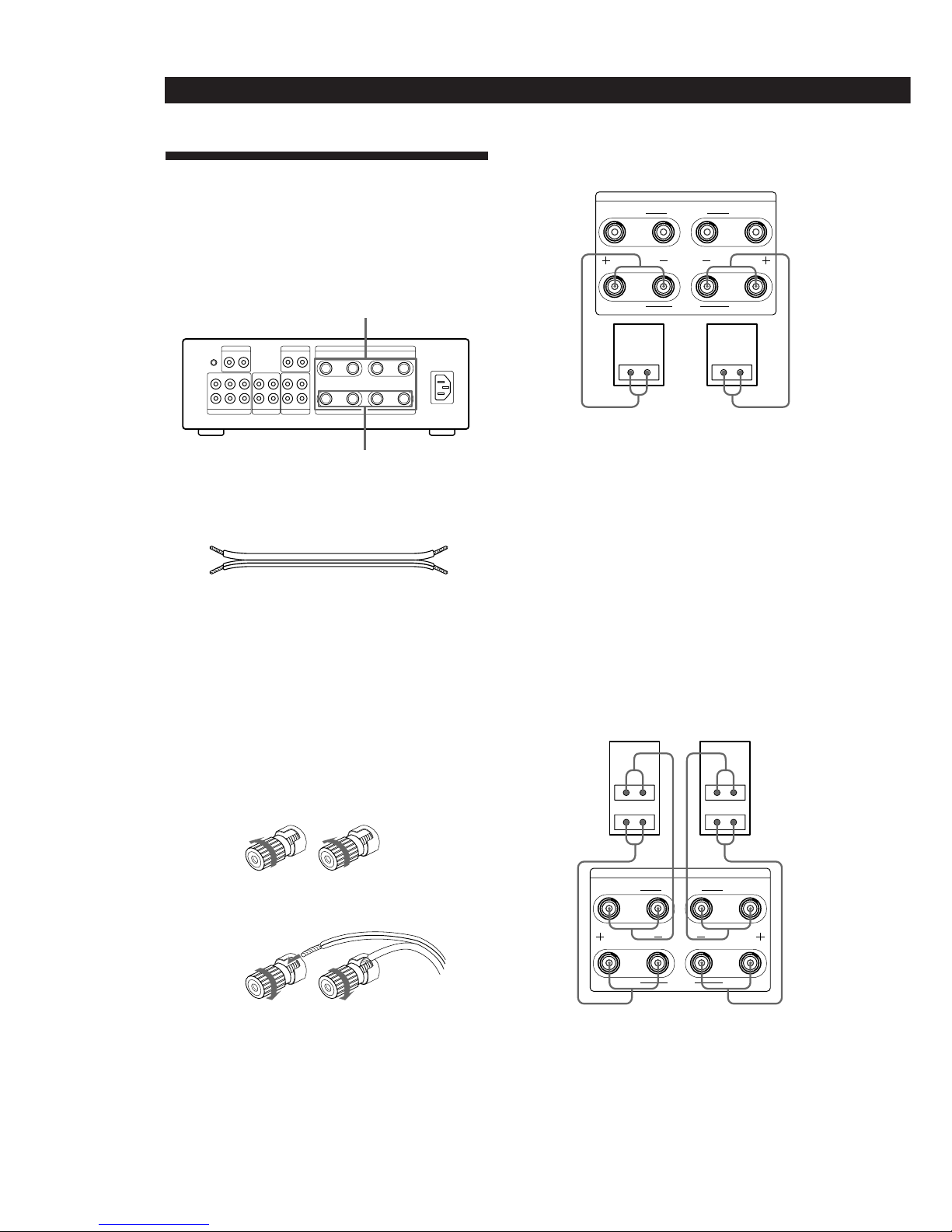

Speaker System Hookups
Overview
Here you learn how to connect a pair of speakers to the
amplifier. You can make either normal or bi-wire
connections.
What cords will I need?
Speaker cord (not supplied) (1 for each speaker/2 for each
bi-wired speaker)
Twist the stripped ends of the cord about 2/3 inch (15 mm).
Be sure to match the speaker cord to the appropriate
terminal on the components: + to + and – to –. If the cords
are reversed, the sound will be distorted and will lack bass.
We recommend designating the striped (or marked) speaker
cord as “+” to help to prevent an accidental polarity
mismatch.
Hookups
To connect the speaker cords
]}
BI-WIRE
MAIN
SPEAKERS
R BI-WIRE L
IMPEDANCE USE(MAIN+BI-WIRE TOTAL)4-16Ω
R MAIN L
]}
]}
Right speaker Left speaker
]}
SPEAKERS
R BI-WIRE L
IMPEDANCE USE(MAIN+BI-WIRE TOTAL)4-16Ω
R MAIN L
]}
Right speaker Left speaker
7GB
Getting Started

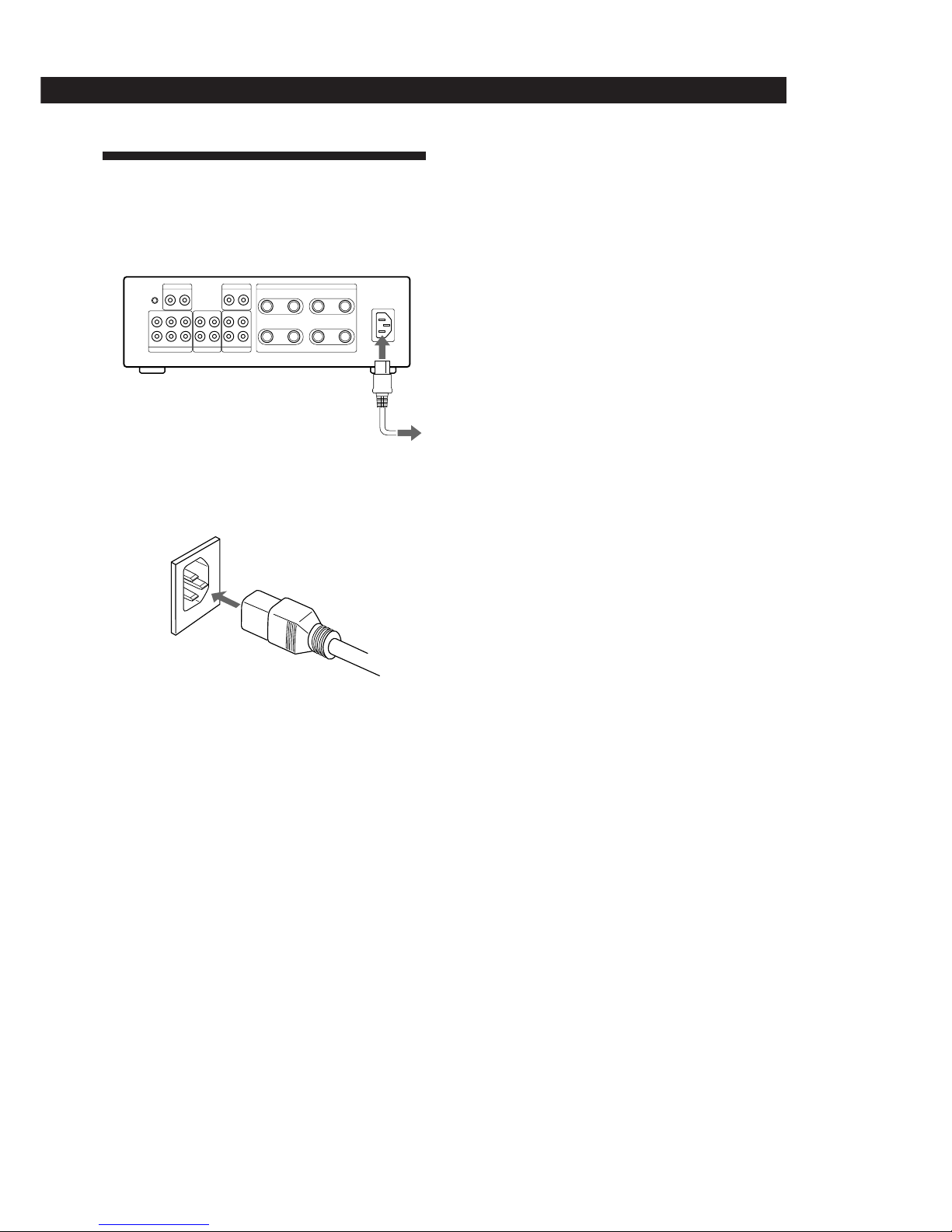

Mains Lead Hookups
Do the following to connect this amplifier to a wall
outlet after you have completed all the previous
connections.
1Connect the supplied mains lead to the AC IN
(230 V) terminal.
2Connect the other end of the supplied mains lead
to a wall outlet.
Note
Separate the mains lead, audio connecting cords and speaker
cords. Noise or sound deterioration may occur when audio
connecting cords are in contact with the mains lead, or when
the mains lead or speaker cords are placed near the tuner’s
loop aerial or aerial wire.
to a wall outlet
8GB
Basic Operations
S
POWER
INPUT SELECTOR BASS TREBLE BALANCE VOLUME
PHONES
–10 +10 –10 +10 LEFT RIGHT 010
19
28
37
46
5
MD TAPE AUX CD TUNER MM - PHONO - MC

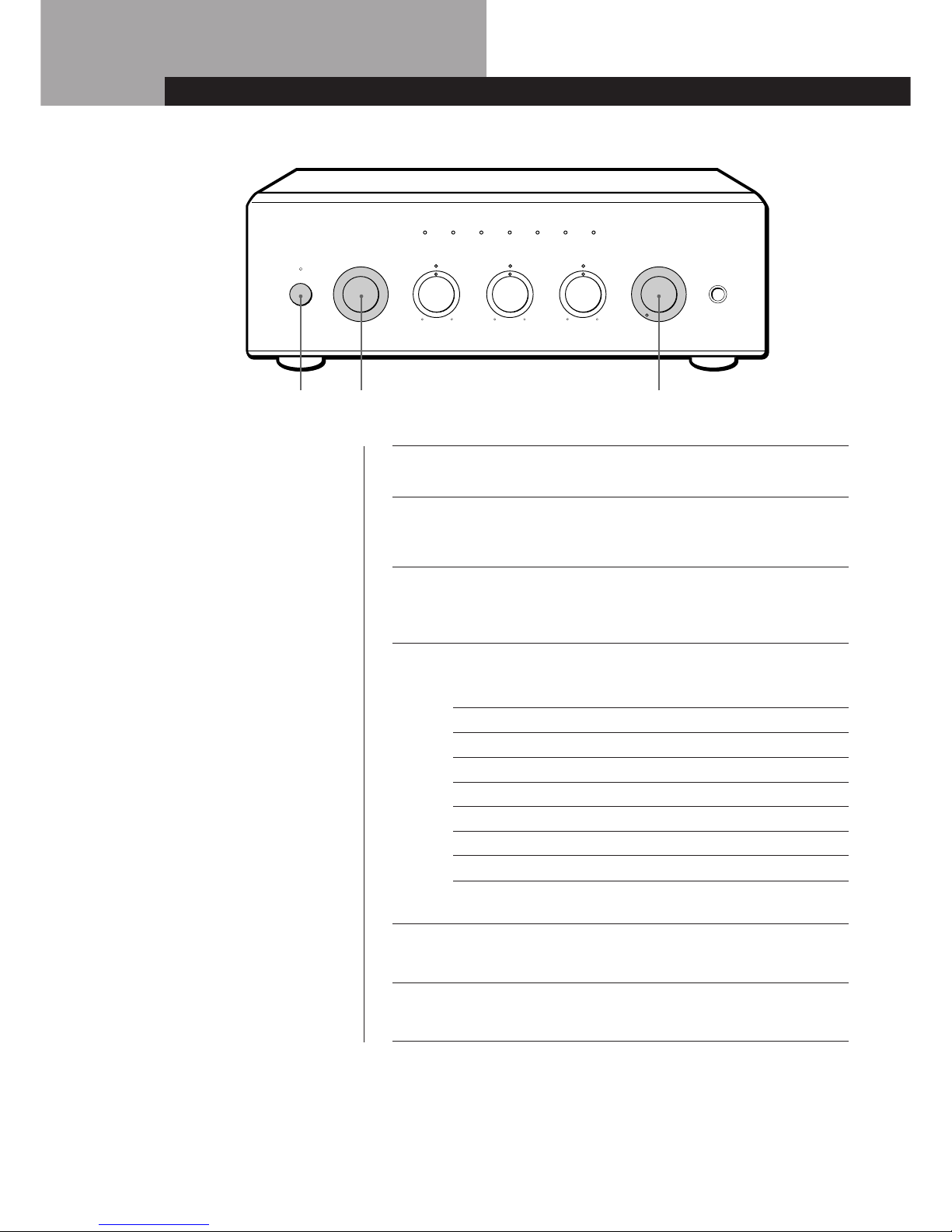

Turn on the programme source you want to listen to.
Turn VOLUME fully counterclockwise (to “0”) to prevent
damaging the speakers with excessive output.
Press POWER to turn on the amplifier.
The POWER indicator changes from red to green.
Set INPUT SELECTOR to the respective programme source.
The indicator for the selected programme source lights up.
Play the programme source.
Adjust the volume level by turning VOLUME.
2, 634
1
2
3
To listen to a
Record
Radio broadcast
Compact disc
Source connected to AUX
Cassette tape
Mini disc
Turn INPUT SELECTOR to
PHONO MC*/MM*
TUNER
CD
AUX
TAPE
MD
4
5
6
Listening to the Music
* Select MC or MM according to the type of cartridge you are using.
Basic Operations
9GB
To avoid howling
This phenomenon, called “acoustic feedback”, occurs when vibrations from the
speakers are transmitted through the air or via solid objects (such as shelves, a
cabinet, or the floor) to the stylus of a turntable (or to a microphone), amplified and
reproduced through the speakers again.
If howling occurs, it may damage the speakers or cause the connected components to
malfunction. If howling occurs, check the following.
• Turn VOLUME down.
• Move speakers away from the turntable.
• Place the turntable on the solid surface.
• Use commercially available audio insulator.
• When using a microphone, move the microphone away from speakers.
To further reduce the possibility of howling, place the speakers or turntable on a
heavy board, such as one made of concrete.
Note
Continuous output at high levels that cause the sound to distort.

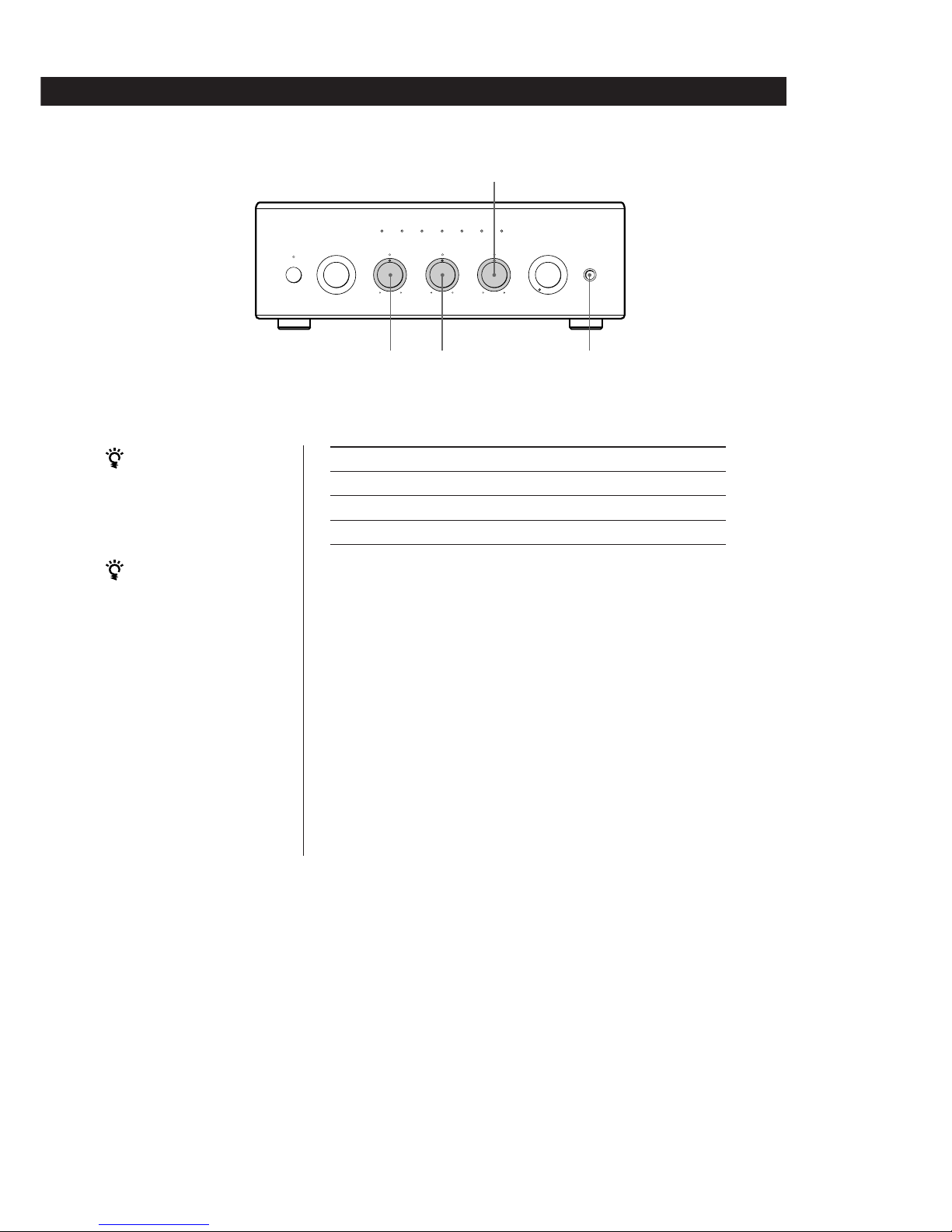

To adjust
the bass
the treble
the balance
Turn
BASS
TREBLE
BALANCE
To listen through
headphones
Connect a pair of headphones
to PHONES. No sound
comes from the speakers.
To avoid damaging the
amplifier or speakers
We recommend the following
procedure for turning off the
power.
1 Turn VOLUME fully
counterclockwise (to “0”).
2 Turn off the amplifier.
3 Turn off the programme
source.
S
POWER
INPUT SELECTOR BASS TREBLE BALANCE VOLUME
PHONES
–10 +10 –10 +10 LEFT RIGHT 010
19
28
37
46
5
MD TAPE AUX CD TUNER MM - PHONO - MC
BALANCE
Connect the
headphones.
TREBLEBASS
10GB
Basic Operations

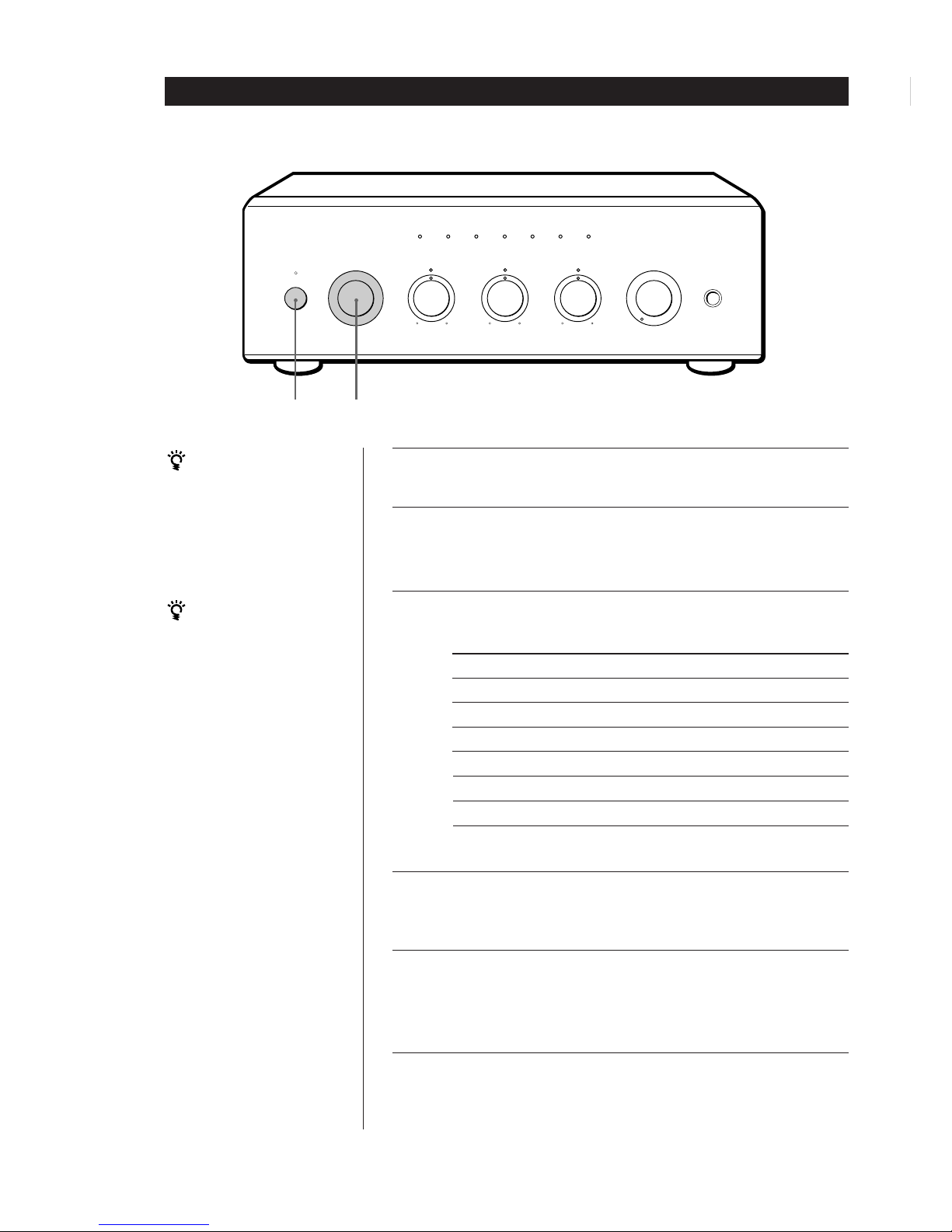

Recording
S
POWER
INPUT SELECTOR BASS TREBLE BALANCE VOLUME
PHONES
–10 +10 –10 +10 LEFT RIGHT 010
19
28
37
46
5
MD TAPE AUX CD TUNER MM - PHONO - MC
23
Turn on the programme source you want to record.
Press POWER to turn on the amplifier.
The POWER indicator changes from red to green.
Select the programme source that you want to record by
turning INPUT SELECTOR.
Prepare the recording component to record, then start
recording.
Start playing the programme source.
The adjustment of the tone or volume level does not effect the
recorded sound.
To record from
Record
Radio broadcast
Compact disc
Source connected to AUX
Cassette tape
Mini disc
Turn INPUT SELECTOR to
PHONO MC*/MM*
TUNER
CD
AUX
TAPE
MD
1
2
3
4
5
You can record to two
components
simultaneously
When both a cassette deck
and MD deck are connected,
the selected programme
source can be recorded by
both decks.
To avoid damaging the
amplifier or speakers
We recommend the following
procedure for turning off the
power.
1 Turn VOLUME fully
counterclockwise (to “0”).
2 Turn off the amplifier.
3 Turn off the components.
To stop recording
1 Stop recording of the recording component.
2 Stop playback on the playing component.
* Select MC or MM according to the type of cartridge you are using.
Indice
Lingue:
Altri manuali Sony Amplificatore
Sony
Sony SPA-3 Manuale utente
Sony
Sony XM-3040 Manuale utente
Sony
Sony XM-4501 Manuale utente
Sony
Sony XM-SD14X Manuale utente
Sony
Sony XM-N1004 Manuale utente
Sony
Sony TA-AX350 Manuale utente
Sony
Sony TA-V702 Manuale utente
Sony
Sony TA-VE215 Manuale utente
Sony
Sony PHA-3 Manuale utente
Sony
Sony XM-5540F Manuale utente
Sony
Sony XM-GTR6001 Manuale utente
Sony
Sony TA-N77ES Manuale utente
Sony
Sony XM-604EQX Marketing Specifications Manuale utente
Sony
Sony 4-151-113-11 (1) Manuale utente
Sony
Sony PHA-1A Manuale utente
Sony
Sony XM-3046 Manuale utente
Sony
Sony XM-5ES Manuale utente
Sony
Sony TA-F501ES Manuale utente
Sony
Sony TA-1140 Manuale utente
Sony
Sony PHA-3 Manuale utente
