SERVICE MANUAL

INTEGRATED STEREO AMPLIFIER

AEP Model

UK Model

SPECIFICATIONS

TA-FE230/FE330R/FE530R

Photo: TA-FE530R (BLACK)

http://cxema.ru

– 2 –

TABLE OF CONTENTS

1. GENERAL

Location of Controls ....................................................... 3

2. DISASSEMBLY ......................................................... 4

3. DIAGRAMS

3-1. Note for Printed Wiring Boards

and Schematic Diagrams ................................................ 7

3-2. Printed Wiring Board – MAIN Section – ...................... 9

3-3. Schematic Diagram – MAIN Section –.......................... 11

3-4. Printed Wiring Boards – PANEL Section – .................. 13

3-5. Schematic Diagram – PANEL Section – ....................... 15

3-6. Printed Wiring Boards – POWER Section –................. 17

3-7. Schematic Diagram – POWER Section – ..................... 19

3-8. IC Pin Function Description ........................................... 22

4. EXPLODED VIEWS................................................ 23

5. ELECTRICAL PARTS LIST ............................... 26

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK !OR DOTTED

LINE WITH MARK !ON THE SCHEMATIC DIAGRAMS

AND IN THE PARTS LIST ARE CRITICAL TO SAFE

OPERATION. REPLACE THESE COMPONENTS WITH

SONY PARTS WHOSE PART NUMBERS APPEAR AS

SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-

LISHED BY SONY.

http://cxema.ru

– 3 –

SECTION 1

GENERAL This section is extracted from

instruction manual.

LOCATION OF CONTROLS

•Front View

1I/ubutton

2Remote sensor (TA-FE330R/FE530R)

3EON LINK button and indicator

(TA-FE530R)

4PHONES jack

5SPEAKERS switch

6BASS dial

7TREBLE dial

8BALANCE dial

9LOUDNESS button

0INPUT SELECTOR

!¡ SOURCE DIRECT button

(TA-FE330R/FE530R)

!™ VOLUME dial

!£ TAPE1 MONITOR switch

(TA-FE530R)

3 4 5 6 7 8 9 !º !¡ !™ !£

•Rear View

http://cxema.ru

– 4 –

CASE

PANEL ASS’Y

Note: Follow the disassembly procedure in the numerical order given.

SECTION 2

DISASSEMBLY

two screws

(CASE)

screw (CASE)

two screws

(CASE)

case

connector (CN7) (FE230)

connector (CN903)

(FE330R/FE530R)

two clamps

screw (BVTP3

claw

panel ass’y

three screws

(BVTP3

claw

screw (BVTP3

connector (CN812)

(FE530R)

wire (flat type) (13 core)

(CN815)

wire (flat type) (13 core)

(CN811)

http://cxema.ru

– 5 –

MAIN BOARD

connector

(CN951)

connector

CN952: FE330R/FE530R

CN952A: FE230

screw (BVTP3

MAIN board

six screws

(BVPT 3

(FE330R/FE530R)

six screws

(BVPT 3

(FE230)

six screws (BVPT 3

FE230

()

http://cxema.ru

– 7 – – 8 –

SECTION 3

DIAGRAMS

3-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

Note on Printed Wiring Boards:

•Y: parts extracted from the component side.

•¢: internal component.

•b: Pattern from the side which enables seeing.

•Indication of diode

Note on Schematic Diagrams:

• All capacitors are in µF unless otherwise noted. pF: µµF

50 WV or less are not indicated except for electrolytics

and tantalums.

• All resistors are in Ωand 1/4W or less unless otherwise

specified.

•¢: internal component.

•2: nonflammable resistor.

•5: fusible resistor.

•C: panel designation.

•U: B+ Line.

•V: B– Line.

• Voltages are dc with respect to ground under no-signal

conditions.

no mark :TUNER

• Voltages are takenwithaVOM(Inputimpedance10MΩ).

Voltage variations may be noted due to normal produc-

tion tolerances.

• Signal path.

F:TUNER

E:TAPE1/DAT IN

a: REC OUT

d:TAPE2/MD IN

J: CD

I: PHONO

Note: The components identified by mark !or dotted line

with mark !are critical for safety.

Replace only with part number specified.

This marking side is cathode.

DC-SUP board FUSE board

AC-SW board (FE230)

POWER SW board

(FE330R/FE530R)

H. P board

FUNCTION SW board

CONTROL board TAPE MONITOR board

(FE530R)

MAIN board

AC OUTLET board

(FE330R: AEP/FE530R: AEP)

AC-RY board (FE330R/FE530R)

• Circuit Boards Location

http://cxema.ru

TA-FE230/FE330R/FE530R

3-2. PRINTED WIRING BOARD – MAIN Section – • See page 8 for Circuit Boards Location.

(Page 17)

– 9 – – 10 –

D101 C-4

D301 E-6

D302 E-6

D351 E-6

D352 E-6

D601 C-5

D902 C-5

D903 C-5

IC101 D-3

IC102 C-1

IC301 E-7

IC601 E-3

IC901 E-5

Q101 E-5

Q102 E-5

Q103 C-4

Q104 E-4

Q151 E-5

Q301 E-6

Q351 D-6

Q901 C-5

Q902 C-5

Q903 E-4

• Semiconductor

Location

Ref. No. Location

(Page 13) (Page 18) (Page 17) (Page 14) (Page 13)

http://cxema.ru

TA-FE230/FE330R/FE530R

– 11 – – 12 –

3-3. SCHEMATIC DIAGRAM – MAIN Section – • See page 21 for IC Block Diagrams.

The components identified by mark !or dotted

line with mark !are critical for safety.

Replaceonlywithpart number specified.

(Page 15)

(Page 15) (Page 16)

(Page 19)

(Page 20)

(Page 19)

http://cxema.ru

TA-FE230/FE330R/FE530R

– 13 – – 14 –

3-4. PRINTED WIRING BOARDS – PANEL Section – • See page 8 for Circuit Boards Location.

(Page 9) (Page 9)

(Page 18)

(Page 9)

D811 A-4

D812 B-4

D813 B-5

D814 B-6

D816 B-6

D817 B-6

D819 B-6

D820 B-2

D821 F-10

D822 E-10

D823 E-1

D801 B-7

D802 B-7

D803 B-6

D804 B-7

D805 B-7

D806 B-8

D807 B-3

D808 A-3

D809 A-3

D810 A-4

• Semiconductor Location

IC801 B-5

IC802 B-2

IC803 F-10

Q801 B-7

Q802 B-8

Q803 C-2

Q804 B-5

Q806 B-3

Q807 B-3

Q808 A-4

Q809 F-10

Q810 B-8

Q811 B-10

Q812 F-10

Q813 F-10

Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location

http://cxema.ru

TA-FE230/FE330R/FE530R

– 15 – – 16 –

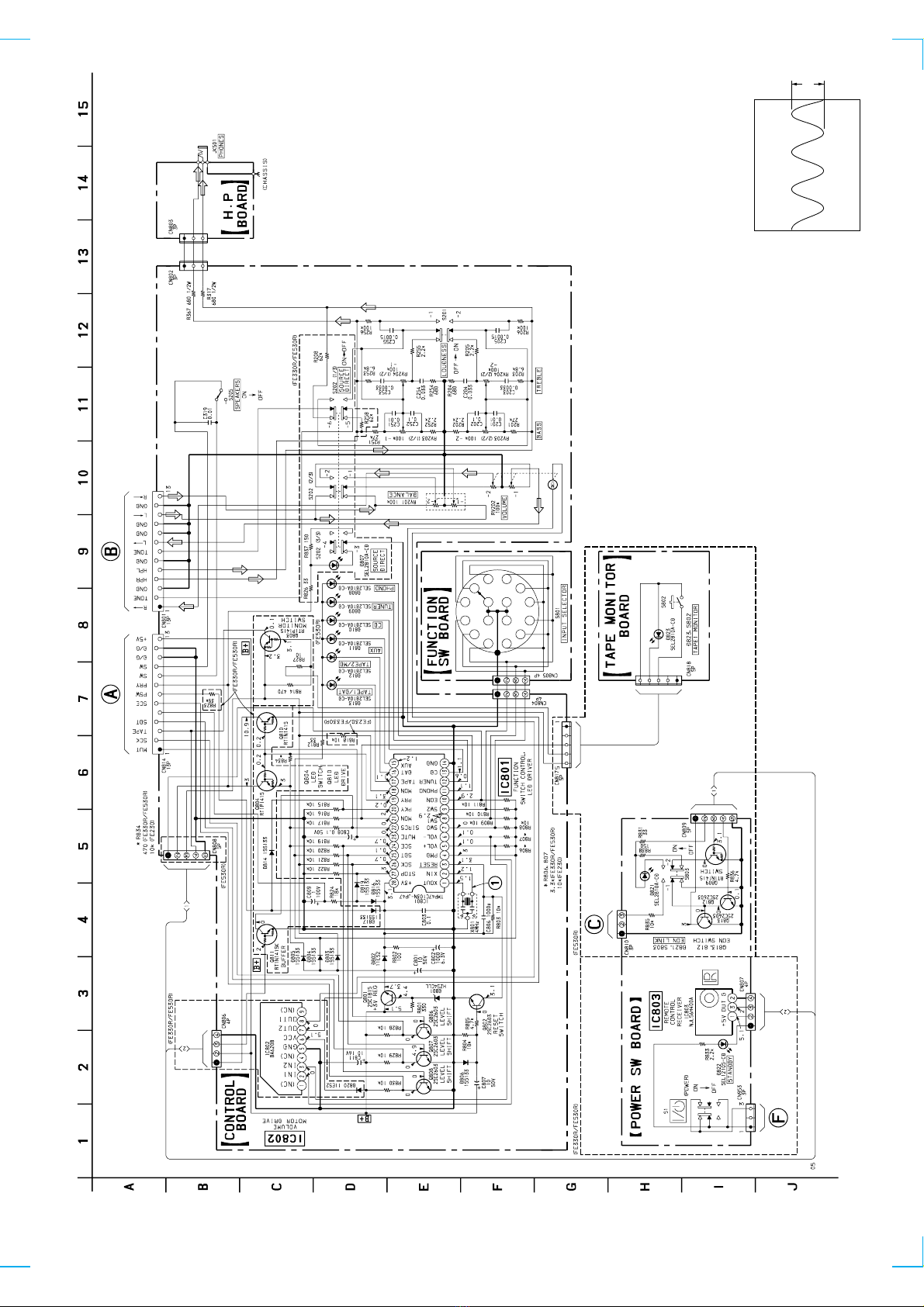

3-5. SCHEMATIC DIAGRAM – PANEL Section – • See page 21 for IC Block Diagrams.

• Waveform

1IC801 2(XIN)

2.5 Vp-p

4 MHz

(Page 11) (Page 11)

(Page 11)

(Page 20)
