SERVICE MANUAL

INTEGRATED STEREO AMPLIFIER

AEP Model

TA-FE320R/FE520R

UK Model

TA-FE320R

SPECIFICATIONS

TA-FE320R/FE520R

Photo: TA-FE520R

– 2 –

TABLE OF CONTENTS

1. GENERAL

Location of Controls ....................................................... 3

2. DISASSEMBLY ......................................................... 4

3. DIAGRAMS

3-1. Notes for Printed Wiring Boards

and Schematic Diagrams ................................................ 6

3-2. Printed Wiring Board – MAIN Section – ...................... 7

3-3. Schematic Diagram – MAIN Section –.......................... 9

3-4. Printed Wiring Boards – PANEL Section – .................. 11

3-5. Schematic Diagram – PANEL Section –....................... 13

3-6. Printed Wiring Boards – POWER Section – ................. 15

3-7. Schematic Diagram – POWER Section – ..................... 16

3-8. IC Pin Function Description ........................................... 18

4. EXPLODED VIEWS................................................ 19

5. ELECTRICAL PARTS LIST ............................... 21

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK !OR DOTTED

LINE WITH MARK !ON THE SCHEMATIC DIAGRAMS

AND IN THE PARTS LIST ARE CRITICAL TO SAFE

OPERATION. REPLACE THESE COMPONENTS WITH

SONY PARTS WHOSE PART NUMBERS APPEAR AS

SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-

LISHED BY SONY.

– 3 –

SECTION 1

GENERAL This section is extracted from

instruction manual.

LOCATION OF CONTROLS

Front Panel

1I/u(POWER) button

2Remote control sensor

3INPUT SELECTOR switch

4VOLUME control

5EON LINK button (TA-FE520R only)

6PHONES jack

7SPEAKERS switch

8BASS control

9TREBLE control

0BALANCE control

!¡ LOUDNESS button

!™ SOURCE DIRECT button

!£ TAPE MONITOR button (TA-FE520R only)

Rear Panel

– 4 –

FRONT PANEL SECTION

MAIN BOARD

Note: Follow the disassembly procedure in the numerical order given.

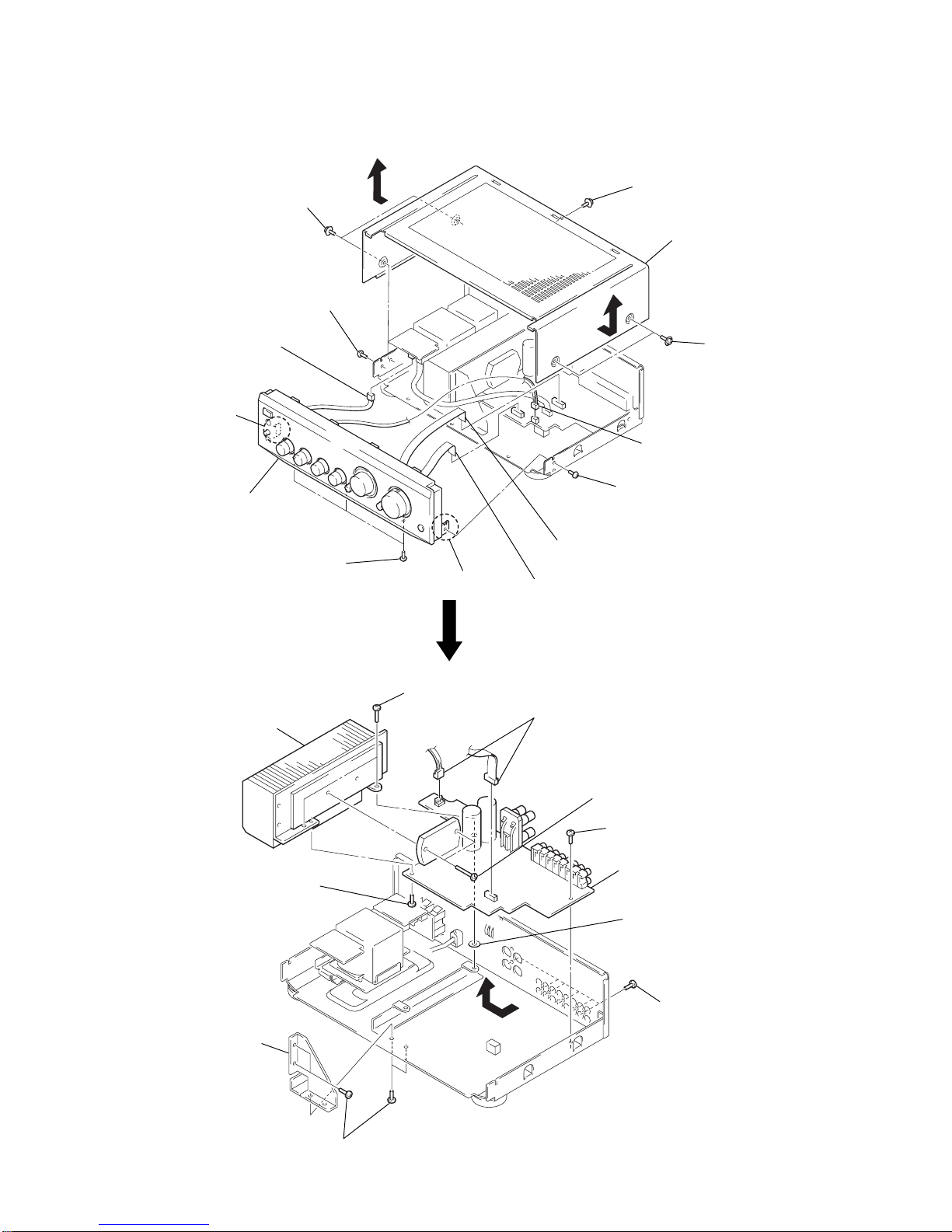

SECTION 2

DISASSEMBLY

screw

(CASE)

two screw

(CASE)

screw

(BVTP3

three screws

(BVTP3

screw

(BVTP3

connector

(CN812) (FE520R)

connector

(CN902)

claw

front panel section

wire (flat type) (13 core)

(CN815)

wire (flat type) (13 core)

(CN811)

1

two screws

(CASE)

case

six screws

(BVTP3

screw

(BVTP3

screw

(BVTP3

10)

two connectors

(CN951, 952)

bracket

(HEAT SINK)

washer

(FIBER DIA.10)

5

two screws

(BVTP3

10)

2

four screws

(BVTP3

!¡

MAIN board

8

two screws

(BVTP3

16)

0

heat sink

– 5 –

SECTION 3

DIAGRAMS

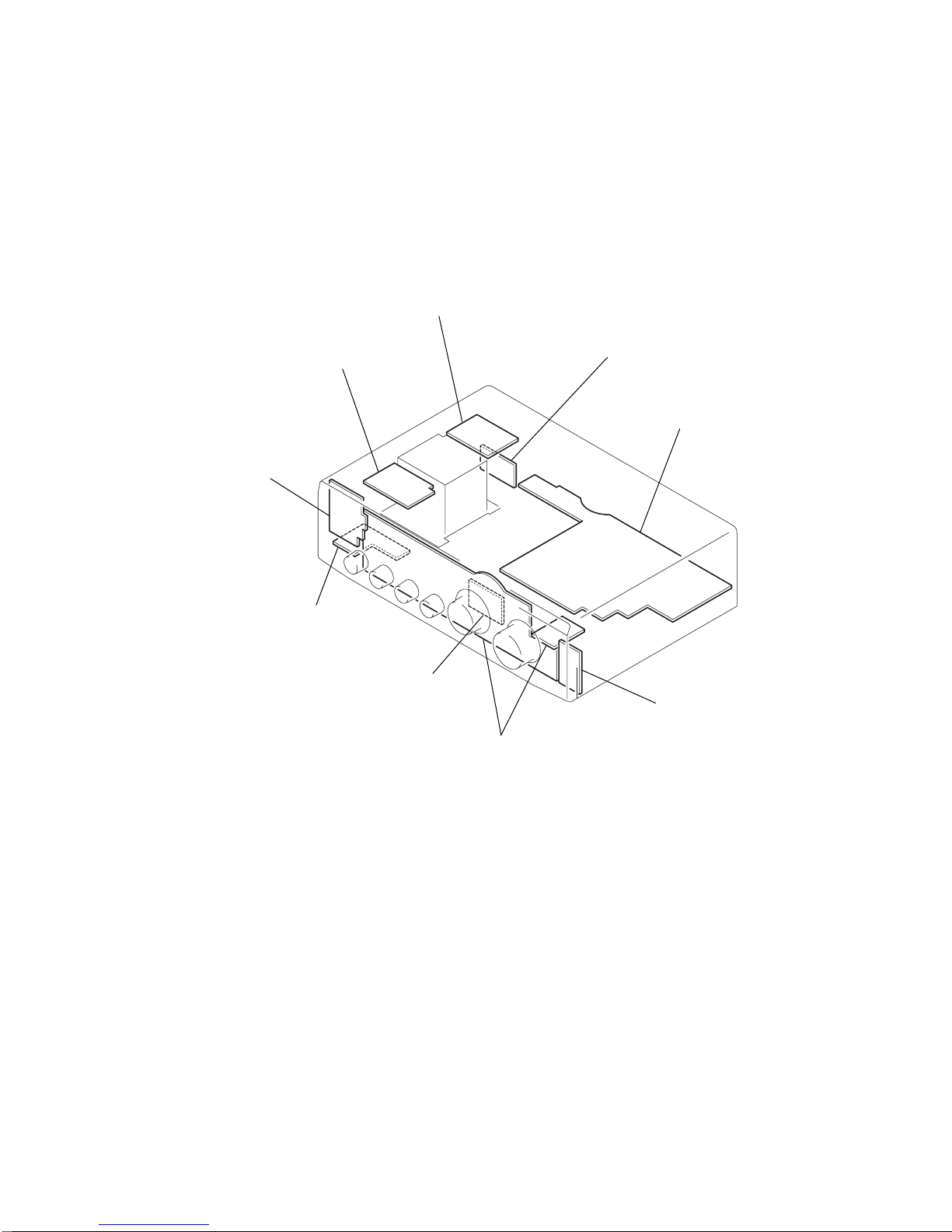

• Circuit Boards Location

RELAY AC board

RELAY DC board

POWER SW board

HP board

FUNCTION SW board

CONTROL board

TAPE MON board (FE520R

)

MAIN board

AC OUTLET board (AEP)

Note on Schematic Diagram:

• All capacitors are in µF unless otherwise noted. pF: µµF

50 WV or less are not indicated except for electrolytics

and tantalums.

• All resistors are in Ωand 1/4W or less unless otherwise

specified.

•¢: internal component.

•2: nonflammable resistor.

•5: fusible resistor.

•C: panel designation.

Note on PrintedWiring Boards:

•Y: parts extracted from the component side.

•¢: internal component.

•b: Pattern from the side which enables seeing.

•Indication of diode

•U: B+ Line.

•V: B– Line.

• Voltages are dc with respect to ground under no-signal

conditions.

no mark : TUNER

• Voltages aretakenwith aVOM(Input impedance 10MΩ).

Voltage variations may be noted due to normal produc-

tion tolerances.

• Signal path.

F: TUNER

E: PB (TAPE1/DAT)

a: REC

d: PB (TAPE2/MD)

J: CD

I: PHONO

Note: The components identified by mark !or dotted line

with mark !are critical for safety.

Replace only with part number specified.

3-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

This marking side is cathode.

TA-FE320R/FE520R

– 9 – – 10 –

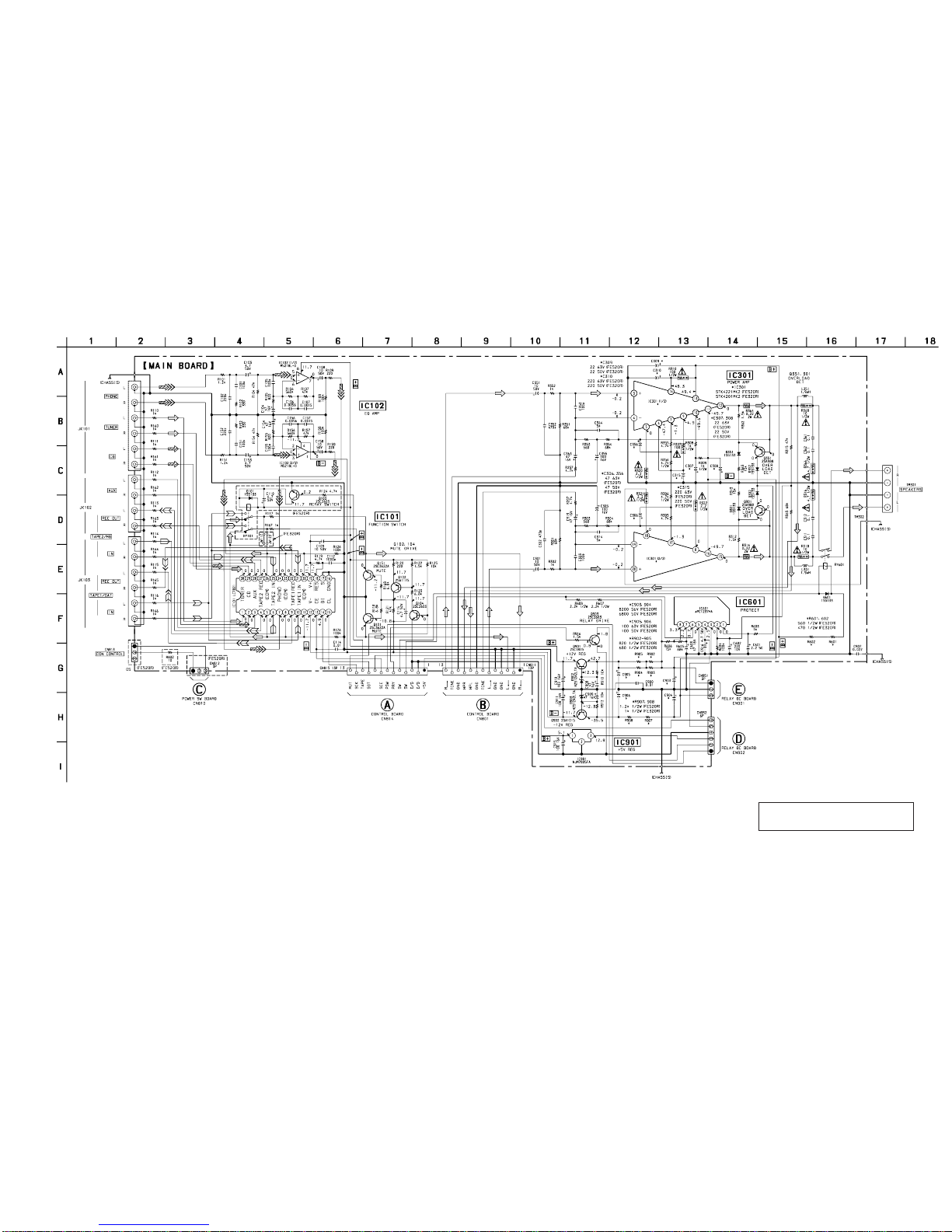

3-3. SCHEMATIC DIAGRAM – MAIN Section – • See page 17 for IC Block Diagrams.

The components identified by mark !or dotted

line with mark !are critical for safety.

Replaceonlywithpartnumberspecified.

(Page 13)

(Page 13) (Page 14)

(Page 16)

TA-FE320R/FE520R

– 13 – – 14 –

3-5. SCHEMATIC DIAGRAM – PANEL Section – • See page 17 for IC Block Diagrams.

(Page 9) (Page 9)

(Page 9)

(Page 16)

– 15 –

• Semiconductor

Location

Ref. No. Location

D901 B-2

D904 A-1

D905 B-1

D906 B-1

D907 B-1

D908 B-1

D909 B-1

D910 A-2

D911 E-2

3-6. PRINTED WIRING BOARDS – POWER Section –

•See page 5 for Circuit Boards Location.

– 16 –

3-7. SCHEMATIC DIAGRAM – POWER Section –

The components identified by mark !or dotted

line with mark !are critical for safety.

Replaceonly with part numberspecified.

(Page 10)

(Page 13)
