Sony TAM-100 Manuale utente
– 1 –
Canadian Model

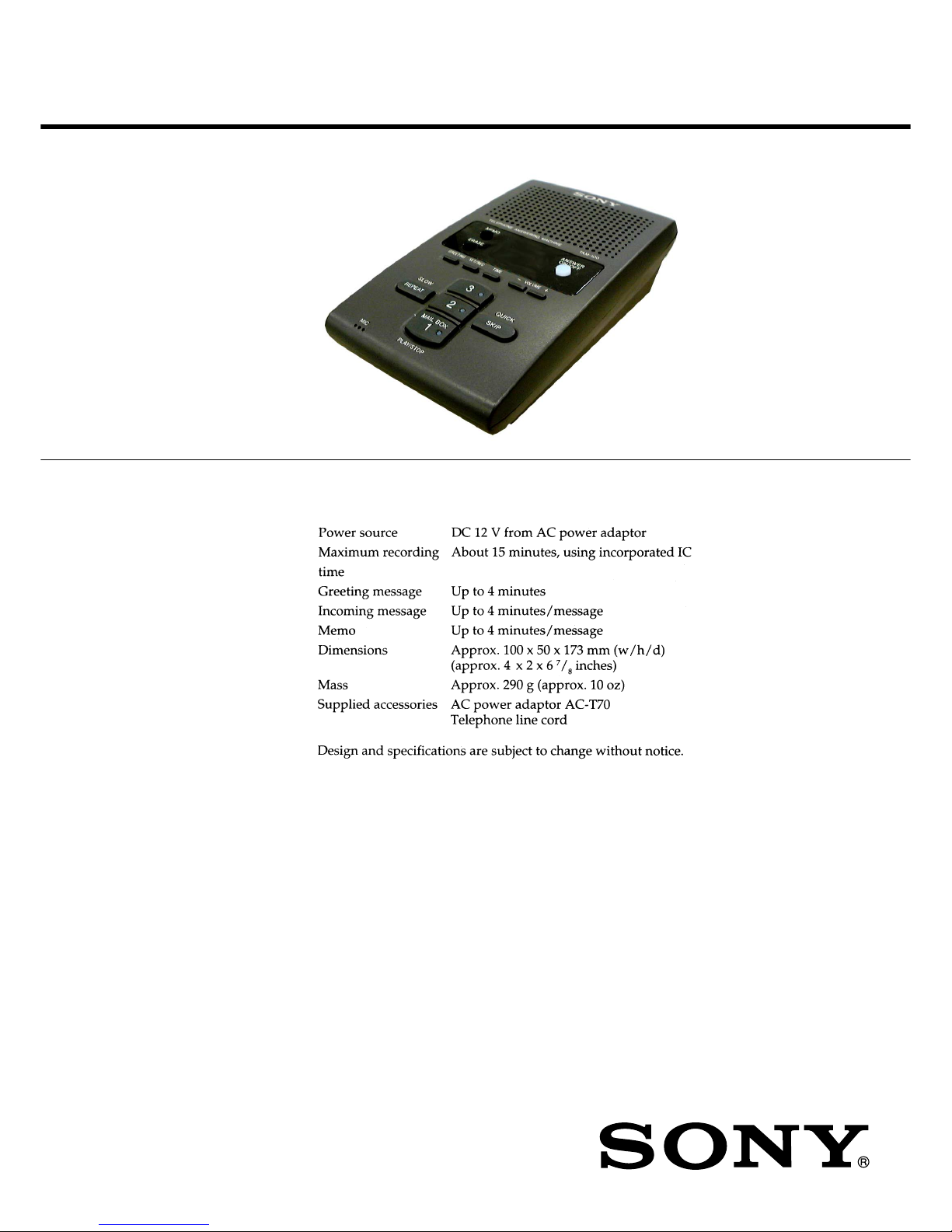

SPECIFICATIONS
SERVICE MANUAL
TELEPHONE ANSWERING MACHINE
TAM-100
Ver 1.2 2001.08
9-926-514-33
2001H0200-1
© 2001.8
Sony Corporation
Personal Audio Company
Shinagawa TEC Service Manual Production Group
– 2 –
TAM-100
Ref. No. Part No. Description Remark
PARTSFORINS TALLATION AND CONNECTIONS
**************************************
!51 1-476-822-11 ADAPTOR, AC (AC-T70)
52 1-696-454-11 CORD (WITH MODULAR PLUG)(LINE)
53 3-866-411-61 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
54 3-866-418-61 GUIDE, QUICK START (ENGLISH,FRENCH)
Ref. No. Part No. Description Remark
1 3-034-197-01 FOOT, RUBBER
EXPLODED VIEW
1
1
51
52
53
54
• The following part are an available for service parts of this model.
The components identified by
mark 0or dotted line with
mark 0are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
– 3 –
TAM-100
TAM-100
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.2 2001.08 Change to “exchange service manual.” (SPM-01032)
1.1 2001.06 Model change (serial No.4,000,001 and later).
Change points : Main board, DSP controller (U1), SP901, cabinet
(lower), instruction manual, quick start guide, AC adptor. (ENG-01008)
1.0 1999.04 New
