MICROFILM

SERVICE MANUAL

US Model

Canadian Model

CVX-V1

AEP Model

UK Model

CVX-V1P

COLOR VIDEO CAMERA

CVX-V1/V1P

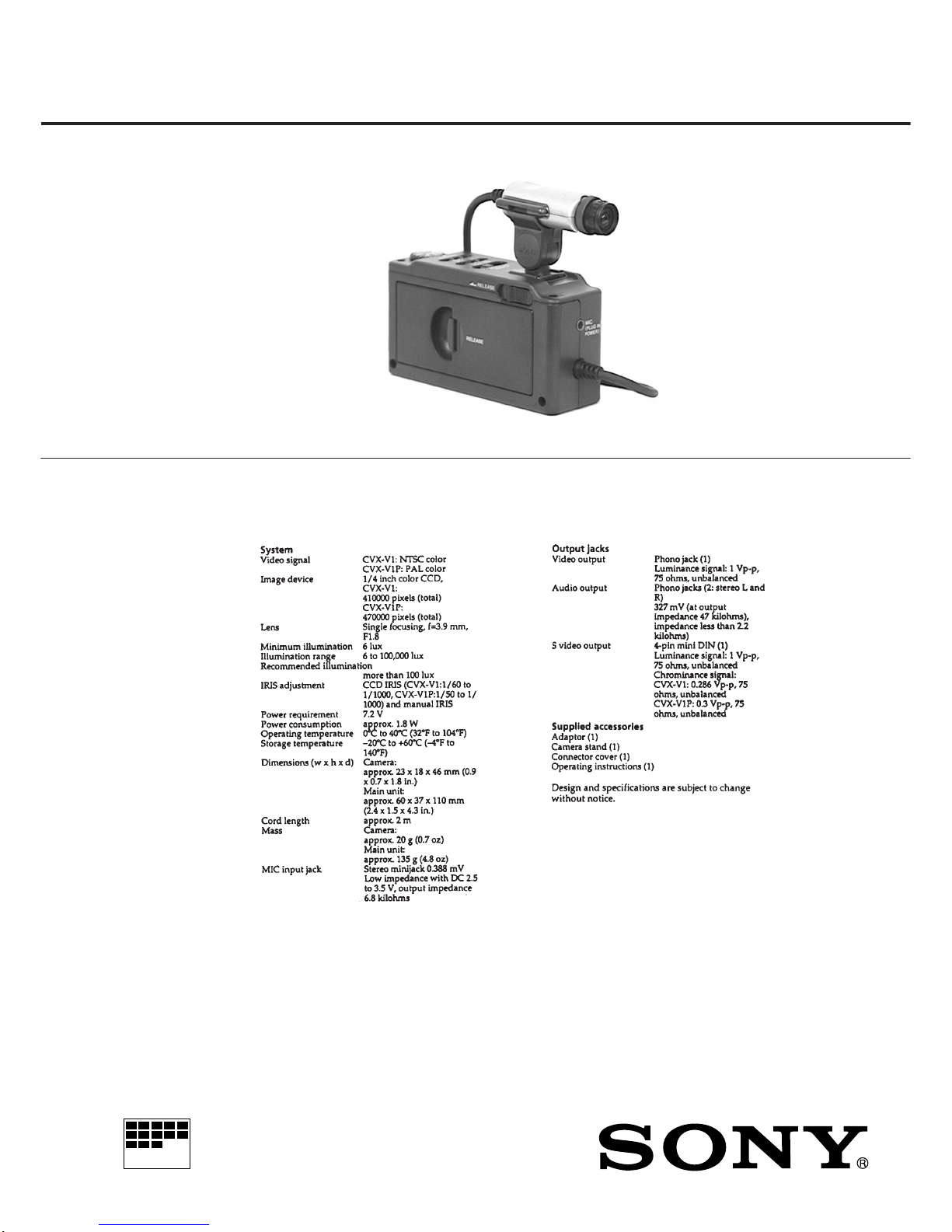

SPECIFICATIONS

NTSC model: CVX-V1

PAL model : CVX-V1P

Photo: CVX-V1P

CVX-V1/V1P

4-7 4-8 4-9 4-10

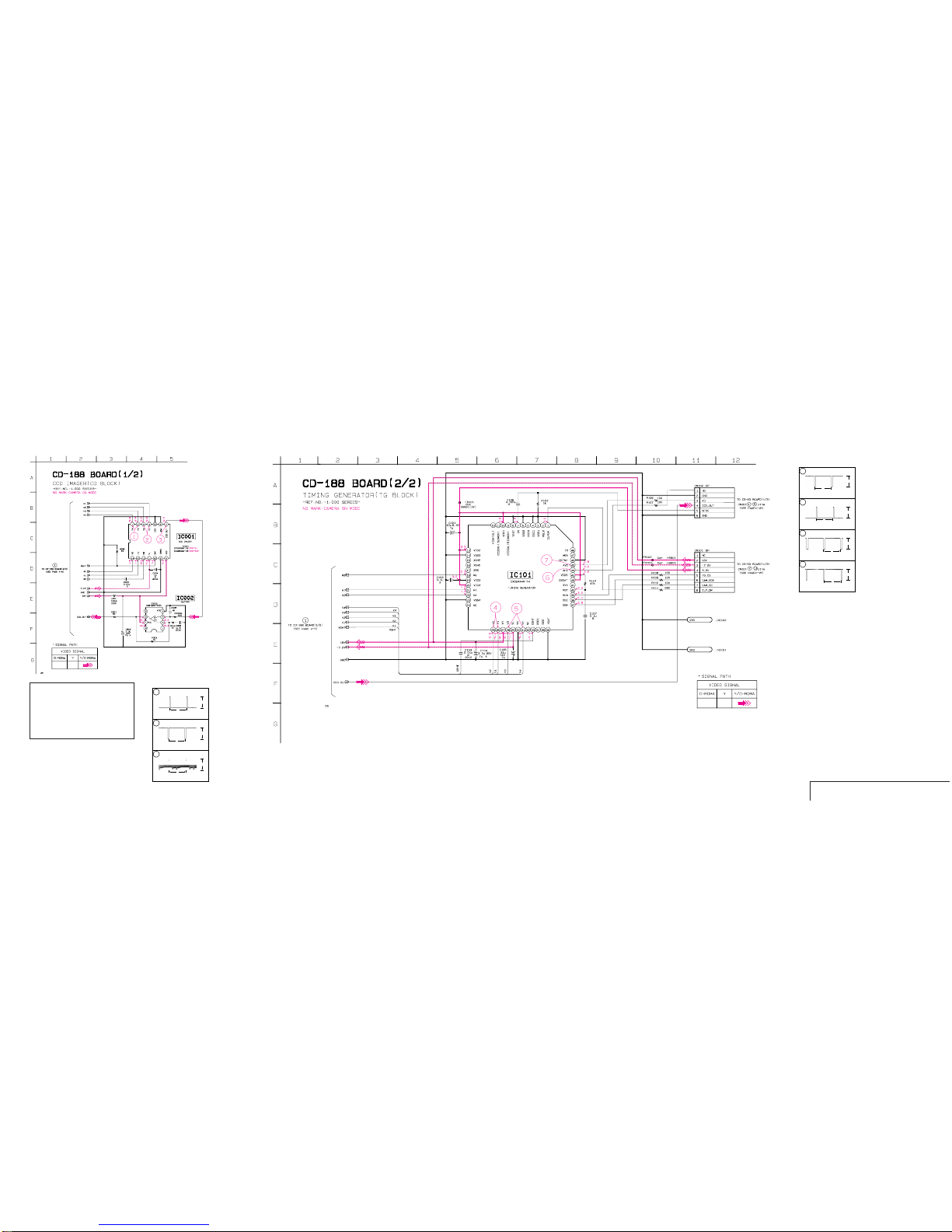

CD-188 (CCD IMAGER), (TIMING GENERATOR) SCHEMATIC DIAGRAM

CD-188 BOARD (2/2)

7 Vp-p

IC101 @∞, @§

7 Vp-p

IC101 @•, #¡

3 Vp-p

IC101 $¢

3 Vp-p

IC101 $∞

CCD IMAGER

TIMING GENERATOR

CD-188 (1/2) CD-188 (2/2)

CD-188 BOARD (1/2)

7 Vp-p

IC001 1, 2

7 Vp-p

IC001 3, 4

1.0 Vp-p

IC001 7

Precautions for Replacement of CCD Imager

• The CD-188 board mounted as a repair part is not equipped

with a CCD imager.

When replacing this board, remove the CCD imager from the

old one and mount it onto the new one.

• If the CCD imager has been replaced, carry out all the

adjustments for the camera section.

• As the CCD imager may be damaged by static electricity from

its structure, handle it carefully like for the MOS IC.

In addition, ensure that the receiver is not covered with dusts

nor exposed to strong light.

CVX-V1/V1P

4-15 4-16 4-17 4-18

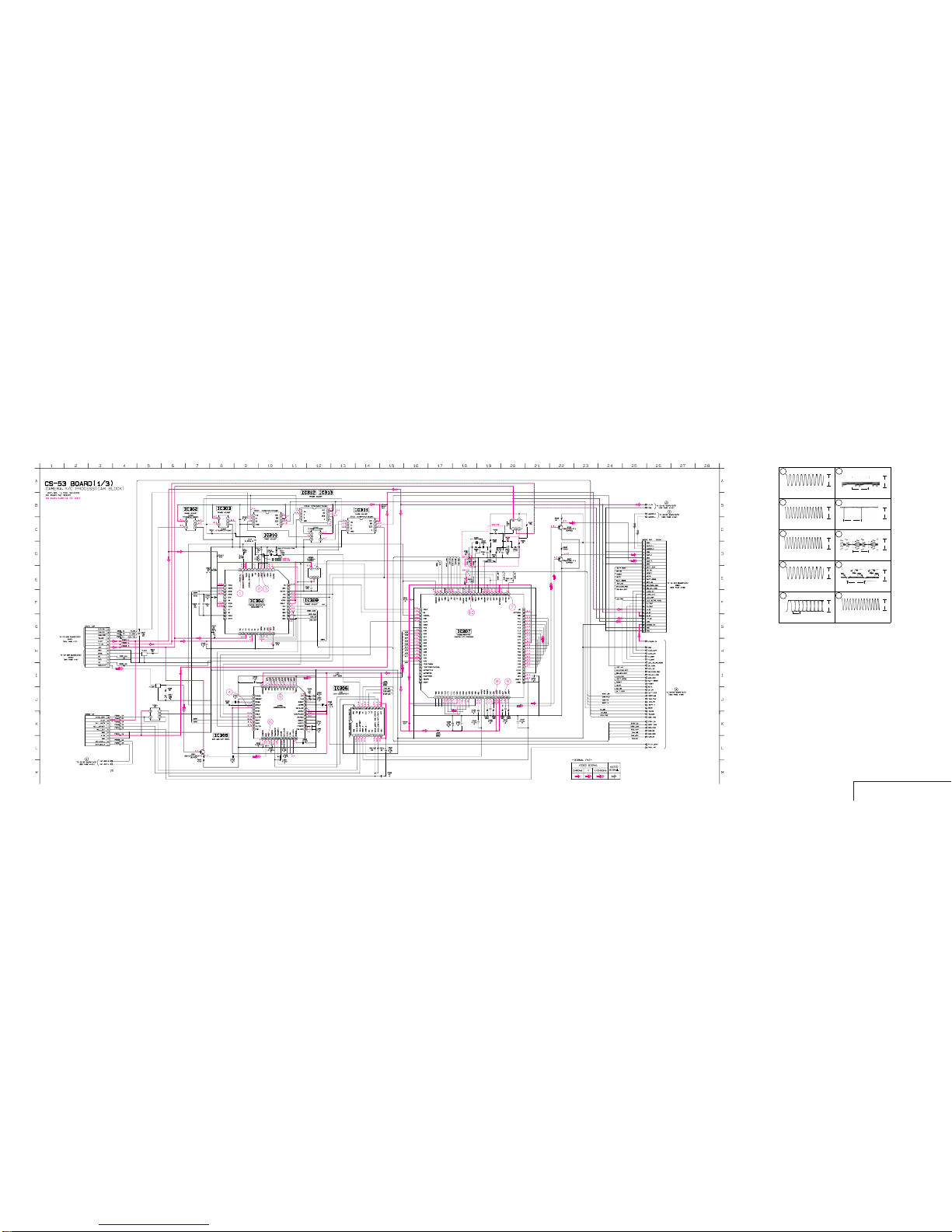

CS-53 (CAMERA, Y/C PROCESS) SCHEMATIC DIAGRAM

CAMERA, Y/C PROCESS

CS-53 (1/3)

CS-53 BOARD (1/3)

0.6 Vp-p

IC307 @º

0.9 Vp-p

IC307 @£

3 Vp-p

IC307 %¡

28.636 MHz V=60Hz: NTSC

V=50Hz: PAL

0.8 Vp-p

IC304 5

14.318 MHz: NTSC

14.187 MHz: PAL

14.318 MHz: NTSC

14.187 MHz: PAL

28.636 MHz: NTSC

28.375 MHz: PAL

1.8 Vp-p

IC304 !¡

0.8 Vp-p

IC304 4

17.734475 MHz

PAL

2.3 Vp-p

IC307 ^£

0.9 Vp-p

IC305 !§

1.0 Vp-p

IC305 @§

3.2 Vp-p

IC305 2– 0

0.14usec

NTSC model: CVX-V1

PAL model : CVX-V1P

CVX-V1/V1P

4-20 4-21 4-22

CVX-V1/V1P

MODE CONTROL

CS-53 (2/3)

CS-53 BOARD (2/3)

3 Vp-p

IC502 ^™

IC502 $¡

20 MHz

0.2 Vp-p

IC502 %™

32.768 kHz

V=60Hz: NTSC

V=50Hz: PAL

0.7 Vp-p

CS-53 (MODE CONTROL) SCHEMATIC DIAGRAM • See page 4-11 for CS-53 BOARD printed wiring board.

NTSC model: CVX-V1

PAL model : CVX-V1P

CVX-V1/V1P

4-23 4-24

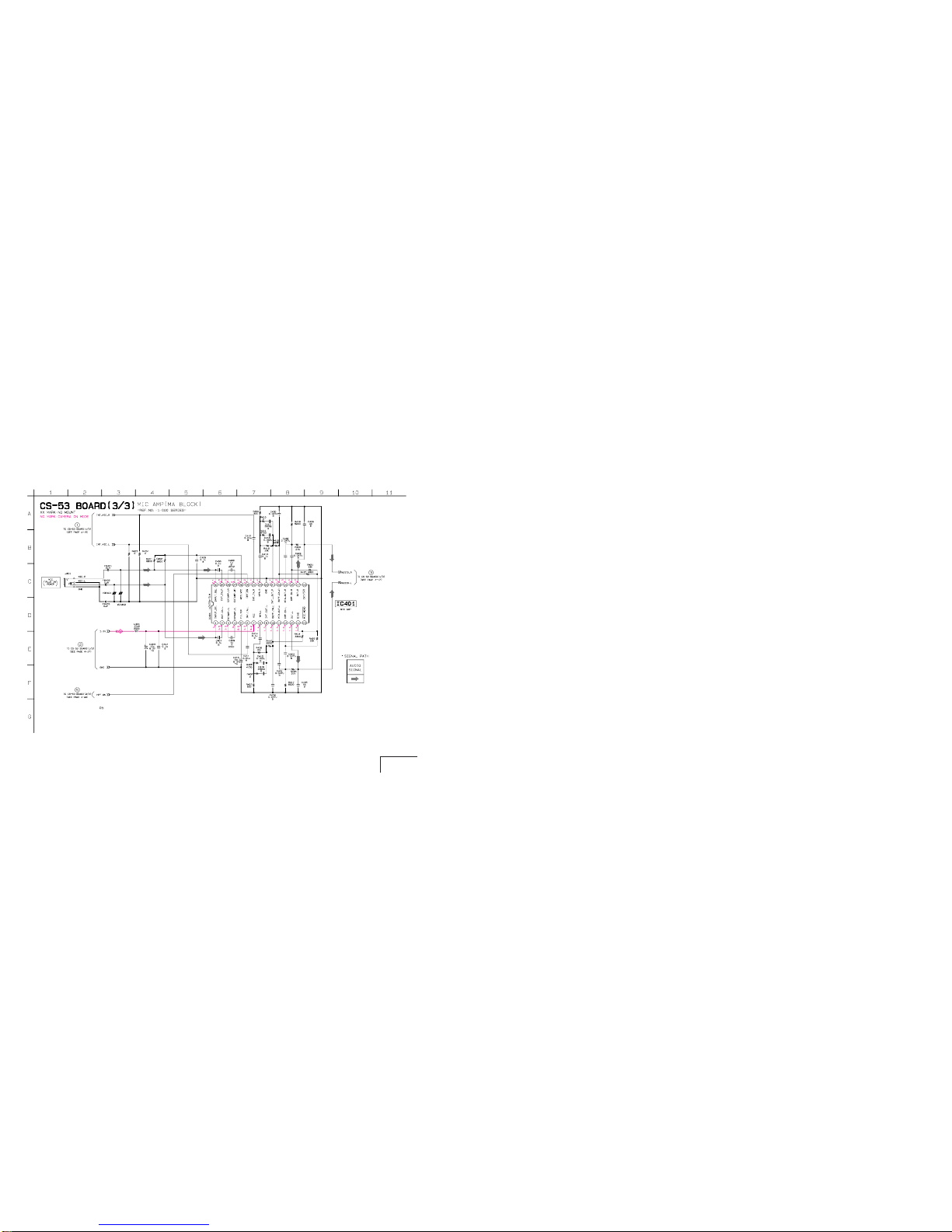

CS-53 (MIC AMP) SCHEMATIC DIAGRAM • See page 4-11 for CS-53 BOARD printed wiring board.

MIC AMP

CS-53 (3/3)

CVX-V1/V1P

4-33 4-34 4-35

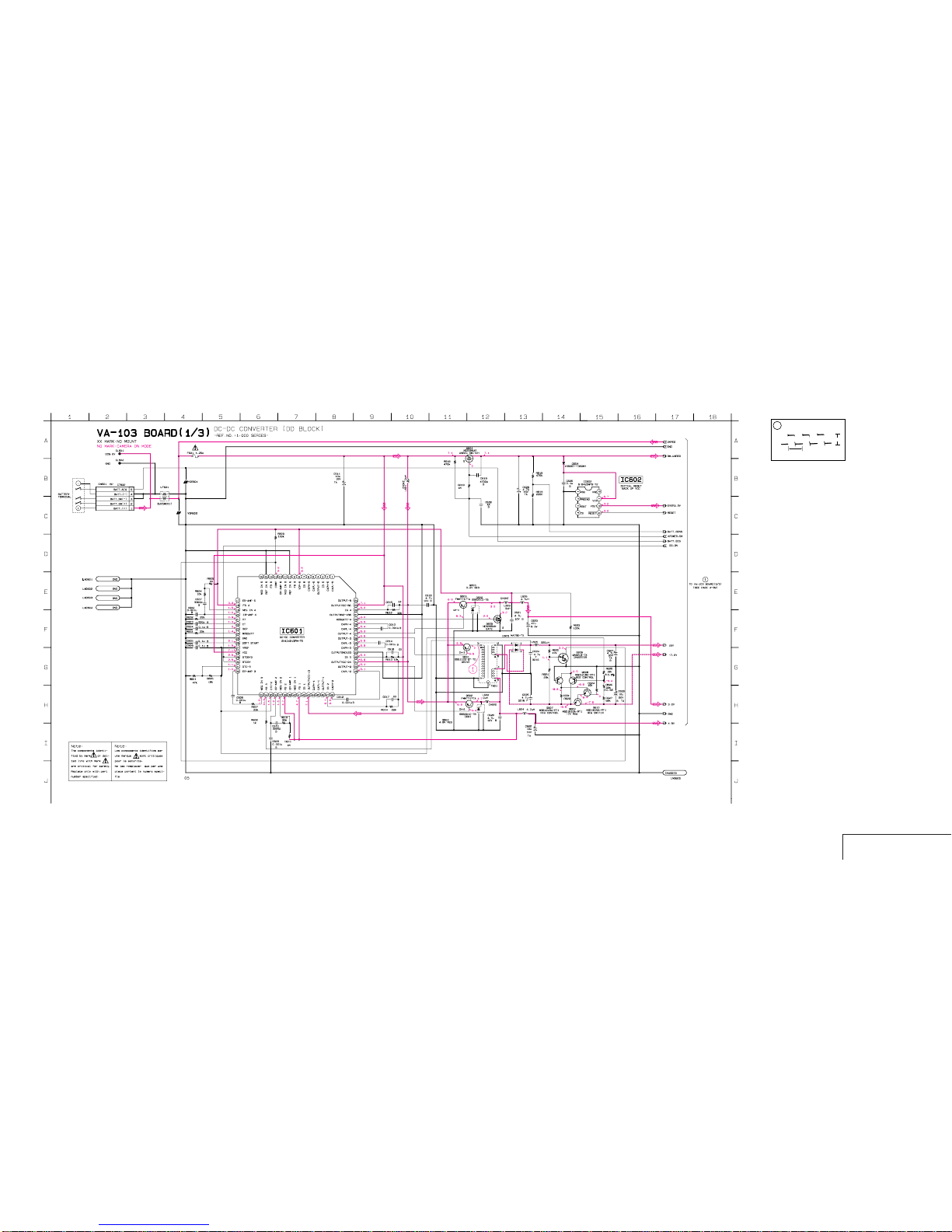

VA-103 BOARD (1/3)

2.0 µsec

13 Vp-p

Q601 C

DC-DC CONVERTER

VA-103 (1/3)

VA-103 (DC-DC CONVERTER) SCHEMATIC DIAGRAM

CVX-V1/V1P

4-36 4-37 4-38

VA-103 BOARD (2/3)

0.46 Vp-p

IC701 @™

0.5 Vp-p

IC701 !§

IC701 6

1.0 Vp-p

IC701 !¢

1.8 Vp-p

IC701 9

1.1 Vp-p

IC701 #¡

2.1 Vp-p

VIDEO/AUDIO I/O

VA-103 (2/3)

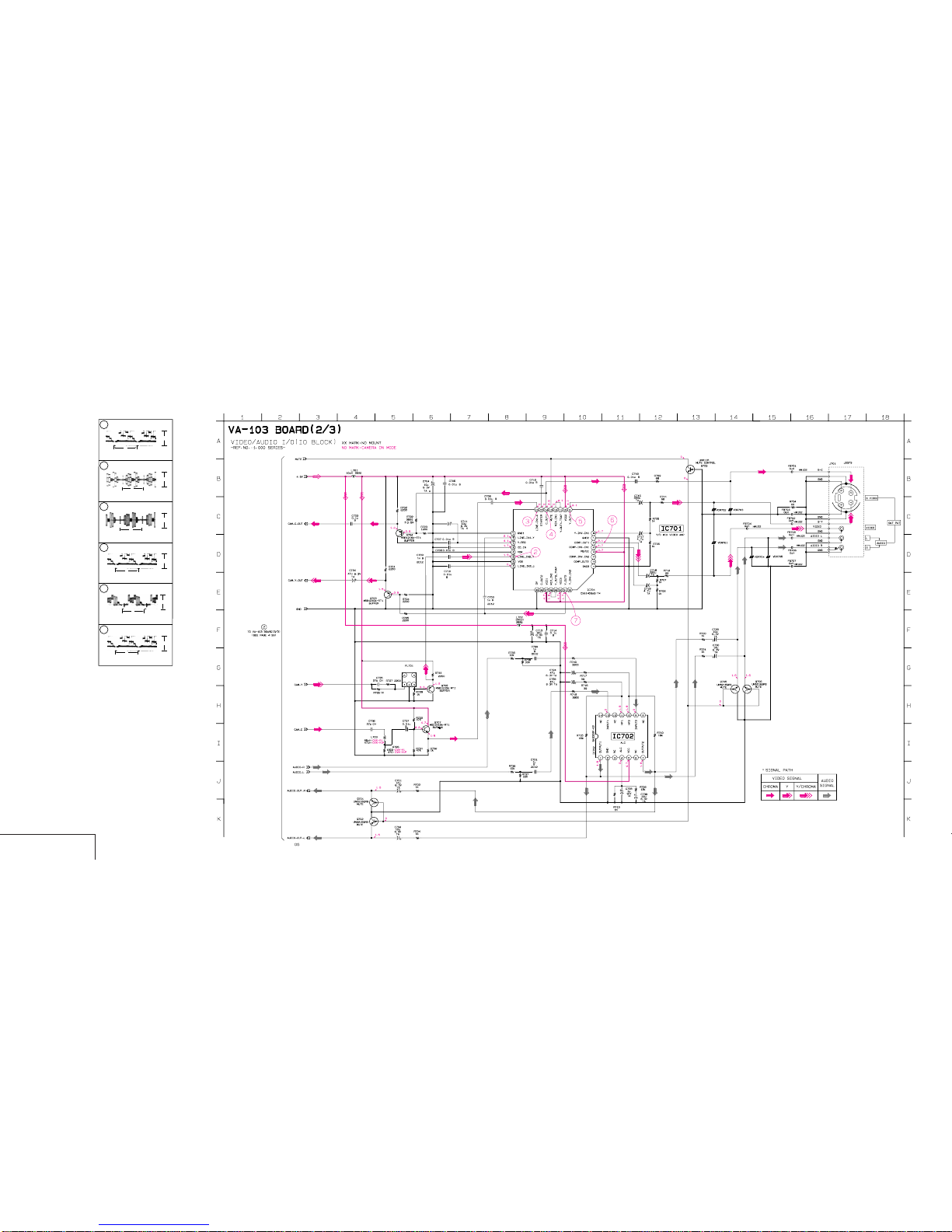

VA-103 (VIDEO/AUDIO I/O) SCHEMATIC DIAGRAM • See page 4-28 forVA-103 BOARD printed wiring board.

CVX-V1/V1P

4-39 4-40 4-41 E

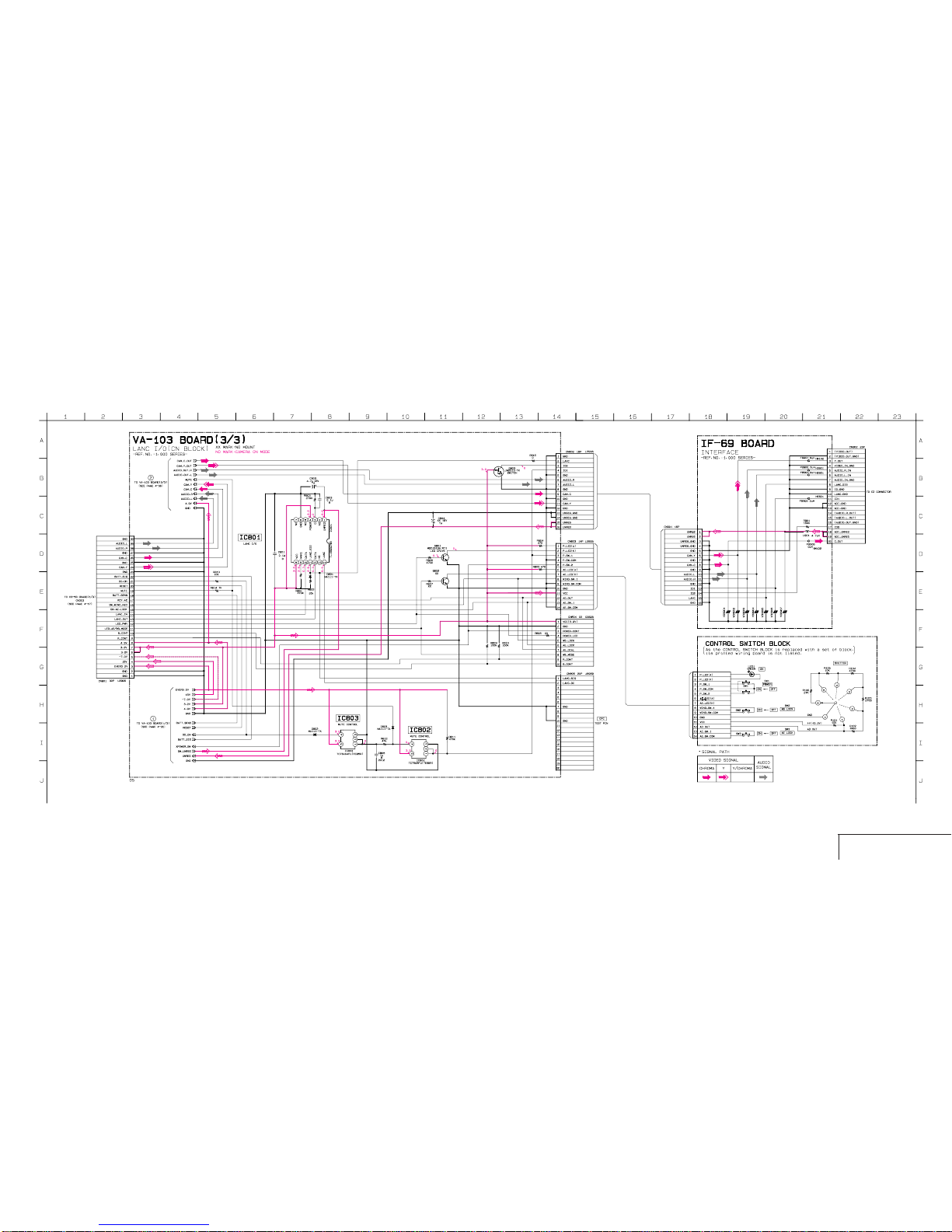

VA-103 (LANC I/O),IF-69 (INTERFACE) SCHEMATIC DIAGRAM • See page 4-28 forVA-103 BOARD and IF-69 BOARD printed wiring boards.

LANC I/O

INTERFACE

VA-103 (3/3) IF-69
