Sony XR-C6100 Manuale utente

1998 by Sony Corporation

3-861-989-21 (2)

Operating Instructions EN

FM/AM

Cassette Car

Stereo

XR-C6100

Owner’s Record

The model and serial numbers are located on the bottom of the unit.

Record the serial number in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this

product.

Model No. XR-C6100 Serial No.

For installation and connections, see the supplied Installation/Connections

manual.

Welcome!

Thank you for purchasing the Sony Cassette

Car Stereo. This unit lets you enjoy a variety of

features by using an optional rotary

commander and wireless remote commander.

In addition to the tape playback and the radio

operation you can expand your system by

connecting optional CD/MD unit*.

*You can connect to an CD changer, MD changer, or an

CD player, MD player.

Warning

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or

television reception, which can be determined

by turning the equipment off and on, the user

is encouraged to try to correct the interference

by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the

equipment and receiver.

— Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

— Consult the dealer or an experienced radio/

TV technician for help.

You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate

this equipment.

Table of contents

This Unit Only With Optional Equipment

Getting Started

Resetting the unit ................................................ 4

Detaching the front panel .................................. 4

Setting the clock .................................................. 5

Cassette Player

Listening to a tape ............................................... 5

Playing a tape in various modes ....................... 6

Radio

Memorizing stations automatically

— Best Tuning Memory (BTM) ................... 7

Memorizing only the desired stations ............. 7

Receiving the memorized stations.................... 7

Storing the station names

— Station Memo ............................................ 8

Other Functions

Adjusting the sound characteristics ................. 9

Attenuating the sound ....................................... 9

Changing the sound and beep tone ................. 9

CD/MD Unit

Playing a CD/MD ............................................. 10

Scanning the tracks

— Intro scan ................................................. 11

Playing tracks repeatedly

— Repeat play .............................................. 11

Playing tracks in random order

— Shuffle play ............................................. 11

Labeling a CD

— Disc Memo (CD unit with

custom file function) .............................. 12

Selecting the specific tracks for playback

— Bank (CD unit with custom file function)

Additional Information

Precautions ......................................................... 13

Maintenance ....................................................... 14

Dismounting the unit ....................................... 15

The rotary commander labels ......................... 15

Location of controls .......................................... 16

Specifications ..................................................... 18

Troubleshooting guide ..................................... 19

Index ................................................................... 21

Getting Started

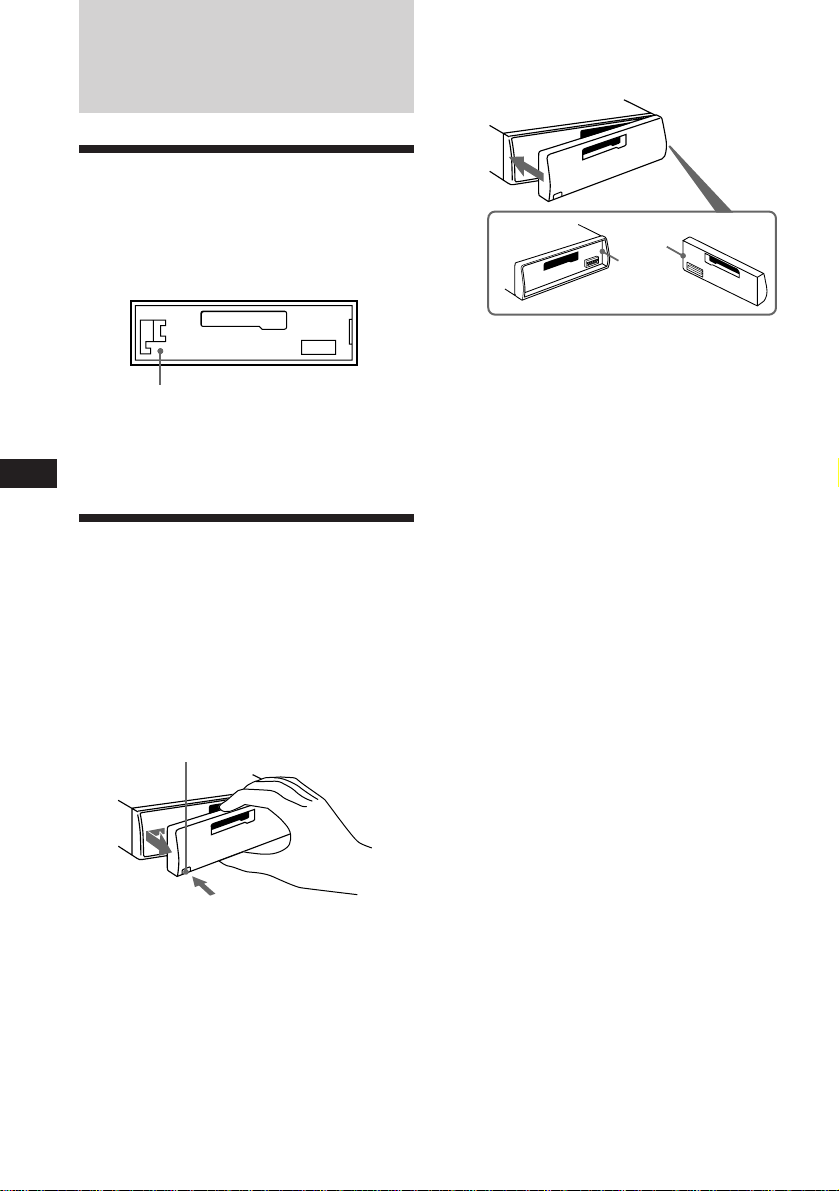

Resetting the unit

Before operating the unit for the first time or

after replacing the car battery, you must reset

the unit.

Press the reset button with a pointed object,

such as a ball-point pen.

Note

Pressing the reset button will erase all the memorized

programme and memory functions.

Detaching the front panel

The front panel of this unit can be detached to

prevent the unit from being stolen.

1Press (OFF).

2Press (RELEASE) to open up the front

panel. Then slide the front panel a little

to the left, and pull it off towards you.

Notes

• Be sure not to drop the panel when detaching it from the

unit.

• If you press (RELEASE) to detach the panel while the

unit is still turned on, the power will automatically turn

off to protect the speakers from being damaged.

Reset button

(RELEASE)

Attaching the front panel

Attach part Aof the front panel to part Bof

the unit as illustrated and push until it clicks.

Notes

•Make sure the front panel is right side up when attaching

it to the unit as it cannot be attached upside down.

•Do not press the front panel too hard when attaching it

to the unit. It can easily be attached by pressing it lightly

against the unit.

•When you carry the front panel with you, keep it in the

supplied case.

•Do not press hard or put excessive pressure on the

display windows of the front panel.

•Do not expose the front panel to direct sunlight, heat

sources such as hot air ducts or leave it in a humid place.

Never leave it on the dashboard etc. of a car parked in

direct sunlight where there may be a considerable rise in

temperature inside the car.

Caution alarm

If you turn the ignition key to the OFF position

without removing the front panel, the caution

alarm will beep for a few seconds (only when

the POWER SELECT switch is set to the A

position).

If you connect an optional power amplifier to

the LINE OUT and do not use the built-in

amplifier, the beep tone will be disabled.

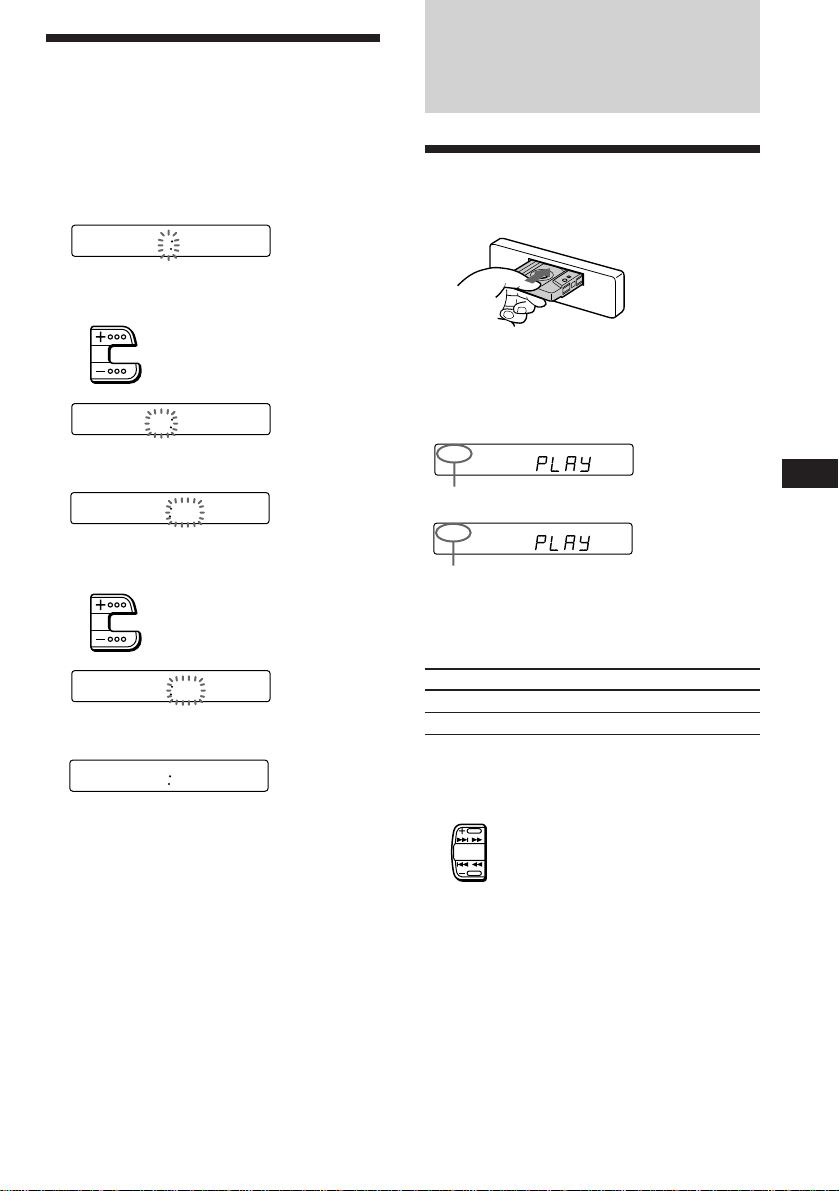

Setting the clock

The clock has a 12-hour digital indication.

For example, setting it to 10:08

1Press (OFF) or (DSPL) during operation.

2Press (DSPL) for two seconds.

1Set the hour digits.

2Press (SEL) momentarily.

3Set the minute digits.

3Press (DSPL) momentarily.

Note

If the POWER SELECT switch on the bottom of the unit is

set to the Bposition, the clock cannot be set unless the

power is turned on. Set the clock after you have turned on

the radio.

The hour digit blinks.

to go backward

to go forward

The minute digit blinks.

to go backward

to go forward

The clock activates.

Getting Started/Cassette Player

Press

(OFF)

Fast-forward

Rewind

100



1000



1000



1008



1008





FWD



REV

The side facing up is being played.

The side facing down is being played.

Stop playback

Eject the cassette

Cassette Player

Listening to a tape

Insert a cassette.

Playback will start automatically.

If a cassette is already inserted, press

(SOURCE) repeatedly until “PLAY” is

displayed.

Tip

To change the tape transport direction, press (MODE)

(*) during tape playback.

Fast-winding the tape

During playback, press either side of

(SEEK/AMS) more than two second.

To start playback during fast-forwarding or

rewinding, press (MODE) (*).

SEEK

AMS

Switching to the radio while fast-

winding a tape

— Automatic Tuner Activation (ATA)

Press (5) during playback.

“ATA” appears on the display.

When fast-forwarding or rewinding with

(SEEK/AMS) for two seconds, the tuner will

turn on automatically.

To cancel this function, press (5) again.

Skipping blanks during tape

playback — Blank skip

Press (6) during playback.

“BL SKIP” appears on the display.

Blanks longer than eight seconds will

automatically be skipped during tape

playback.

To cancel this function, press (6) again.

Playing a tape recorded in the

Dolby B NR system

Press the (3) when you want to listen to

a tape recorded in the Dolby*B NR

system.

“a” appears on the display.

To cancel this function, press (3) again.

*Dolby noise reduction manufactured under license from

Dolby Laboratories Licensing Corporation.

“DOLBY” and the double-D symbol aare trademarks

of Dolby Laboratories Licensing Corporation.

Playing a CrO2or metal tape

Press (4) when you want to listen to a

CrO2(TYPE II) or metal (TYPE IV) tape.

“MTL” appears on the display.

To cancel this function, press (4) again.

Locating the beginning of a track

— Automatic Music Sensor (AMS)

You can skip up to nine tracks at one time.

During playback, press either side of

(SEEK/AMS) momentarily.

Note

The AMS function may not work when :

• the blanks between tracks are shorter than 4 seconds

• there is noise between tracks

• there are long sections of low volume or quiet sections.

Changing the displayed items

Each time you press (DSPL) momentarily

during tape playback, the displayed item

changes as follows:

z Tape playback zClock zFrequency*

*While the ATA function activated.

Playing a tape in various

modes

Searching for the desired track

— Intro scan

Press (1) during playback.

“INTRO” appears on the display.

The first 10 seconds of all the tracks are played.

When you find the desired track, press again.

The unit returns to the normal playback mode.

Playing tracks repeatedly

— Repeat play

Press (2) during playback.

“REP” appears on the display.

When the currently played track is over, it will

be played again from the beginning.

To cancel this function, press (2) again.

SEEK

AMS

To locate the succeeding tracks

To locate the preceding tracks

Cassette Player/Radio

Memorizing only the

desired stations

Up to 6 stations on each band (FM1, FM2, FM3,

AM1, and AM2) can be stored on the preset

number buttons in the order of your choice.

Therefore, 18 FM stations can be memorized.

If you try to store another station on the same

preset number button, the most recent stored

station will be erased.

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band.

3Press (SEEK/AMS) to search for the

station you wish to store on a preset

number button.

4Press the desired preset number button

((1) to (6)) for two seconds.

The number of the selected preset number

button appears on the display.

Receiving the memorized

stations

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band.

3Press the preset number button

momentarily ((1) to (6)) on which the

desired station is stored.

Tip

Press either side of (PRESET/DISC) to receive in order the

stations stored in the memory (Preset Search Function).

Radio

Memorizing stations

automatically

— Best Tuning Memory (BTM)

This function selects from the currently

received band the stations with the strongest

signals and memorizes them in order of their

frequency.

PREVENTING ACCIDENTS!

When tuning in while driving, use the

automatic tuning or memory preset search

function instead of manual tuning.

1Press (SOURCE) repeatedly to select the

tuner.

Each time you press (SOURCE), the source

changes as follows:

zTAPE zTUNER zCD zMD

2Press (MODE) repeatedly to select the

band.

Each time you press (MODE), the band

changes as follows:

zFM1 zFM2 zFM3

AM2ZAM1 Z

3Press (LCL/BTM) for two seconds.

Notes

• The unit will not store stations with weak signals on the

preset number buttons. If there are only a few stations

received, some preset number buttons will remain empty.

• When a preset number indicated on the display, the unit

starts storing station from the one currently display.

Changing the displayed items

Each time you press (DSPL), the display

changes between the frequency and the clock.

If you cannot tune in a preset

station

Press either side of (SEEK/AMS)

momentarily to search for the station

(automatic tuning).

Scanning stops when a station is received.

Press either side of (SEEK/AMS) repeatedly

until the desired station is received.

Note

If the automatic tuning stops too frequently, press

(LCL/BTM) momentarily until “LCL” light up on the

display (local seek mode). Only the stations with relatively

strong signals are tuned in.

Tip

If you know the frequency, press and hold either side of

(SEEK/AMS) until the desired station is received (manual

tuning).

Storing the station names

— Station Memo

You can assign a name to each radio station

and store it in memory. The name of the

station currently tuned in appears in the

display. You can store up to eight characters

for a station.

Storing the station names

1Tune in a station whose name you want

to store.

2Press (FILE) for two seconds.

3Enter the characters.

1Press (+) to select the desired

characters.

(A nB nC n··· Z n0 n1 n2 n

··· 9 n+ n– n*n/ n\ n> n<

n. n_ )

If you press (–), the characters appear

in the reverse order.

If you want to put a blank space

between characters, select “_” (under-

bar).

2Press (SEL) after locating the desired

character.

The flashing cursor moves to the next

space.

If you press (SEL) when the eighth

character (farthest right character) is

flashing, the flashing part goes back to

the first character (farthest left

character).

3Repeat steps 1and 2to enter the

entire name.

4To return to the normal radio reception,

press (FILE) for two seconds.

Tip

To erase/correct a name, enter “_” (under-bar) for each

character.

Displaying the station name

Press (DSPL) during radio reception.

Each time you press (DSPL), the item

changes as follows:

zStation name*zFrequency zClock

*If the station name is not stored, “NO NAME”

appears in the display for one second.



FM1



FM1

W

FM1

W

FM1

Erasing the station name

1Tune in any station and press (FILE) for

two seconds.

2Press (5) while pressing (SEL).

3Press (+) or (–) to select the name that

you want to erase.

4Press (SEL) for two seconds.

The name is erased.

Repeat steps 3 and 4 if you want to erase

other names.

5Press (FILE) for two seconds.

The unit returns to the normal radio

reception mode.

Other Functions

Adjusting the sound

characteristics

1Select the item you want to adjust by

pressing (SEL) repeatedly.

VOL (volume) nBAS (bass) nTRE (treble)

nBAL (left-right) nFAD (front-rear)

2Adjust the selected item by pressing

either (+) or (–).

Adjust within three seconds after selecting.

(After three seconds the button will again

serve as the volume control button.)

Attenuating the sound

Press (ATT).

The “ATT” indication flashes.

To restore the previous volume level, press

again.

Changing the sound and

beep tone

Boosting the bass sound — D-bass

You can enjoy clear and powerful bass sound.

The D-bass function boosts the low frequency

signal with a sharper curve than conventional

bass boost.

You can hear the bass line more clearly even if

the vocal volume remains the same. You can

emphasize and adjust the bass sound easily

with the D-bass control. This effect is similar to

the one you get when you use an optional

subwoofer system.

Moreover, the Digital D-bass*function creates

even sharper and more powerful bass sounds

than Analog D-bass.

continue to next page n

Radio/Other Functions

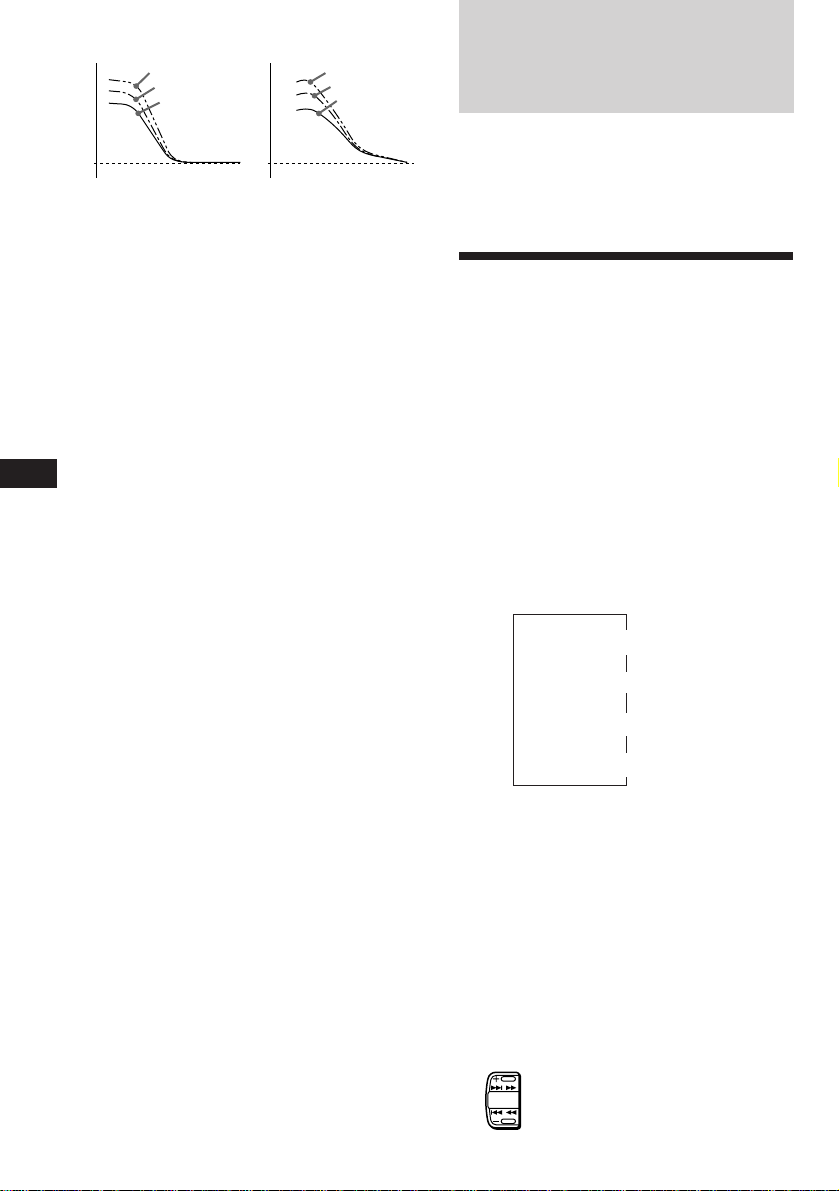

Adjusting the bass curve

Turn the D-BASS control to adjust the

bass level (1, 2 or 3).

“D-BASS”*appears in the display.

To cancel, turn the control to the OFF position.

*If an optional CD changer has the Digital D-bass

function, “DIGITAL D-BASS” appears on the display

during CD playback.

Note

If the bass sound becomes distorted, adjust the D-BASS

control or volume button.

Attenuating the beep tone

Press (6) while pressing (SEL).

To obtain the beep tone again, press these

buttons again.

Note

If you connect an optional power amplifier to the LINE

OUT and do not use the builtin amplifier, the beep tone

will be disabled.

To locate the succeeding tracks

To locate the preceding tracks

SEEK

AMS

0dB

D-BASS 3

D-BASS 2

D-BASS 1

0dB

D-BASS 3

D-BASS 2

D-BASS 1

Digital D-bass Analog D-bass

Level

Frequency (Hz)Frequency (Hz)

With Optional Equipment

CD/MD Unit

This unit can control a maximum of seven

external CD/MD units in this configuretion:

CD unit - maximum of five

MD unit - maximum of five.

Any combination up to seven will work.

Playing a CD/MD

Press (SOURCE) until the desired unit

indication appears on the display.

CD/MD playback starts.

When a CD/MD unit is connected, all the

tracks play from the beginning.

Selecting CD/MD units (when

several CD/MD units are connected)

Press (MODE) repeatedly to select the desired

CD/MD unit.

Changing the displayed items

Each time you press (DSPL) during CD/MD

playback, the item changes as follows:

Elapsed playback time

Disc name*1

Track name*2

Clock

*1If there is no prerecorded name for a CD or MD, “NO

NAME” appears in the display.

*2If the track name of an MD is not prerecorded “NO

NAME” appears in the display.

Tip

If the name of the MD is too long, only the first eight

characters appear in the display.

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, press either side of

(SEEK/AMS) once for each track you wish

to skip the tracks.

Altri manuali per XR-C6100

Indice

Altri manuali Sony Ricevitore per auto

Sony

Sony CDX-L550X - Fm/am Compact Disc Player Guida del prodotto

Sony

Sony MEX-BT38UW - Bt Slot Usb 1wire Manuale utente

Sony

Sony CDX-4480ESP - Am/fm Compact Disc Changer Manuale utente

Sony

Sony CDX GT310 - Radio / CD Guida del prodotto

Sony

Sony CDX-GT61UI - Cd Receiver With Ipod... Manuale utente

Sony

Sony CDX-GT81UW - Usb Receiver Manuale utente

Sony

Sony CDX-GT250M Manuale utente

Sony

Sony CDX-4000RV Manuale utente

Sony

Sony MEX 1GP - Giga Panel Radio Manuale utente

Sony

Sony CDX-L600X - Fm/am Compact Disc Player Guida del prodotto

Sony

Sony CDX-GT100 - Fm/am Compact Disc Player Guida del prodotto

Sony

Sony CDX-R3300 - Fm/am Compact Disc Player Manuale utente

Sony

Sony ST-SA50ES - Am/fm Tuner Guida utente

Sony

Sony CDX-GT450U Guida del prodotto

Sony

Sony XR-4800 Manuale utente

Sony

Sony CDX-GT71W - Fm/am Compact Disc Player Guida del prodotto

Sony

Sony XR-CA630X Manuale utente

Sony

Sony XR-CA430X Manuale utente

Sony

Sony XR-3690RDS Manuale utente

Sony

Sony CDX-GT420iP - Radio / CD Manuale utente

Sony

Sony XR-C7220 Manuale utente

Sony

Sony MEX-BT2500 Guida del prodotto

Sony

Sony XR-7500 Manuale utente

Sony

Sony Model XR-3509 Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente

Medion

Medion Car Audio Manuale utente

Philips

Philips CEM5000 Manuale utente
