Sony CDU948S Manuale utente

CDU948S

CD-R Drive Unit

User’s Guide

CDU948S

CD-R Drive Unit

User’s Guide

3-862-158-13(1)

Owner’s Record

The model and serial numbers are located on the bottom of the drive. Record these

numbers in the spaces provided below. Refer to them whenever you call upon your sales

representative regarding this product.

Model No. Serial No.

Safety Regulations

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel

only.

CAUTION

As the laser beam in this CDU948S is harmful to the eyes, do not attempt to disassemble

the cabinet. Refer servicing to qualified personnel only.

The use of optical instruments with this product will increase eye hazard.

The use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation.

DANGER

INVISIBLE LASER RADIATION WHEN OPEN.

AVIOD DIRECT EXPOSIRE TO BEAM

VORSICHT

UNSICHTBARE LASERSTRAHLUNG. WENN ABDECKUNG

GEOFFNET

NICHT DEMSTRAHL AUSSETZEN.

This label is located on the drive unit’s internal

chassis.

Dieses Etikett befindet sich auf dem inneren Chassis

des Laufwerkes.

DANGER

VORSICHT

ADVARSEL

VARNING

VAROI

INVISIBLE LASER RADIATION WHEN OPEN.

AVOID DIRECT EXPOSURE TO BEAM.

RADIATIONS INVISIBLES DU LASER EN CAS D'OUVERTURE.

EVITER TOUTE EXPOSITION DIRECTE AU FAISCEAU.

UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET.

NICHT DEM STRAHL AUSSET ZEN.

USYNLIG LASERSTRÅLING VED ÅBNING.

UNDGÅ UDS/ETTELSE FOR STRÅLING.

USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES.

UNNGÅ EKSPONERING FOR STRÅLEN.

OSYNLIG LASERSTRÅLING NÅR DENNA DEL AR ÖPPNAD.

STRÅLEN ÄR FARLIG.

NÄKYMÄTÖN AVATTAESSA OLET ALTTINA LASERSÄTEILYLLE.

ÄLÄ KATSO SÄTEESEN.

This label is located on the bottom of the drive unit enclosure.

Dieses Etikett befindet sich am Boden des Laufwerksgehäuses.

This unit uses CD-R discs with the following mark.

This unit uses CD-ROM discs with the following mark.

When you use this unit as a CD player, use compact

discs with the following mark.

WARNING — For the customers in U.S.A.

You are cautioned that any changes or modifications not expressly approved in this

manual could void your authority to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no gurantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CLASS 1

LASER PRODUCT

LASER KLASSE 1

PRODUKT

This CD-R drive unit is classified as a CLASS 1 LASER

PRODUCT.

The CLASS 1 LASER PRODUCT label is located at the

bottom of the enclosure.

Bei diesem CD-R-Laufwerk Serie handelt es sich um ein Laser-Produkt der Klasse 1.

Dieses Etikett befindet sich am Boden des Laufwerksgehäuses.

Contents

Introduction 5

Location and Function of Parts and Controls 6

Front Panel ......................................................................................... 6

Rear Panel .......................................................................................... 7

Precautions 8

Example of System Setup 9

Installing the Drive Unit into the Computer 10

Getting Started ................................................................................. 10

Setting the Jumpers.......................................................................... 10

Opening the Computer ..................................................................... 12

Connecting the Drive ........................................................................ 13

Mounting the Drive ........................................................................... 14

Host Adapter Installation .................................................................. 16

Closing the Computer ....................................................................... 17

Installing the Software Driver 18

Using Discs and Caddies 19

Loading a Caddy with a Disc ............................................................ 19

Storing Discs and Caddies ............................................................... 21

Care of Discs .................................................................................... 21

Operating the Drive 22

Starting Up........................................................................................ 22

Ejecting a Caddy .............................................................................. 23

Specifications 25

Introduction

The CDU948S is a drive unit for CD-R discs, which stores a

maximum of 650 Mbytes of digital data.

The drive unit has the following features:

• Reads and writes data in each CD-ROM, CD-ROM XA and

Multi-Session standard formats.

• Reads standard CD-DA (“Red Book”) encoded discs, and reads

and writes CD-R discs conforming to “Orange Book Part II.”

• Supports the following write modes: Disc at once, Session at once,

Track at once, Variable packet, Fixed packet and Multisession.

• Outputs the audio as 16-bit digital data over the SCSI interface.

• Supports read and write operation at each standard speed, double

speed and quadruple speed, and read-only operation at eightfold

speed.

Supports real time error correction at all speeds.

• 5 1/4 inch half-height drive form factor.

• SCSI bus interface embedded. (Based on SCSI-2)

• 2 MB buffer memory.

• Capable of audio CD playback provided with audio line output

and headphones jack.

• Fast access time assures high-speed reading and writing opera-

tions.

• CD caddy for disc protection.

• Power loading and power eject.

• Emergency eject function which allows the caddy to be ejected

manually.

• Capable of real time layered error correction.

• Employs a casing with an airtight frame.

■Software requirement

Install the appropriate application software before using this unit.

Introduction

Location and Function of Parts and Controls

Front Panel

CD CaddyCD Caddy

1Caddy insertion slot

Accepts a caddy loaded with a CD-ROM or CD-R disc.

2Emergency eject hole

Insert a fine rod into this hole to eject a caddy manually in

emergencies.

3Eject button

Ejects the caddy from the drive unit.

4Busy indicator

This indicator shows the unit’s status in various phases of

operation.

* Seek, read and write: Flashes amber

* Error: Lights up amber and stays lit

When the power is turned on, the indicator lights up green.

5Volume control

Controls the volume of the analog audio output provided via a

headphones jack.

6Headphones jack

Provides two channel analog audio output.

Location and Function of Parts and Controls

Rear Panel

1Jumper block for SCSI bus

Specify assignment of the SCSI bus.

2Terminators

The terminator resistors are inserted into the sockets. Remove the

resistors when the SCSI bus is to be terminated externally.

Note:

Some models are shipped without terminators.

When installing the terminators, orient them so that the GND pin

(the end marked with a dot) is toward the right side of the socket.

3Power-in connector

Connect to the power supply of the host computer.

4SCSI bus interface connector

Connect to a SCSI host adapter using a connecting cable.

5Audio output connector

Outputs analog audio signals.

See page 14 for detail.

6Frame ground tab

Connect to one of the host computer’s ground cables when the

drive frame is not in direct contact with the computer.

Location and Function of Parts and Controls

Precautions

■Installation

• Avoid placing the drive in a location subject to:

–high humidity

–high temperature

–excessive dust

–mechanical vibration

–direct sunlight.

We recommend to use the drive in a horizontal position. Do not use

it in a tilted position.

■Operation

• Do not move the drive during operation. This may cause it to

malfunction during reading or writing.

• Avoid exposing the drive to sudden changes in temperature as

condensation may form on the lens inside the drive as a result.

Should the surrounding temperature suddenly rise while the drive

is on, wait at least one hour before you turn off the power.

Operating the drive immediately after a sudden increase in

temperature, may result in a malfunction during reading or

writing.

■Transportation

• Keep the original packing materials for future transport of the

drive.

• Remove the caddy before moving the drive and, if you take the

drive out of the computer, repack the drive as you received it.

Precautions

Example of System Setup

To use the CD-R device, the following components are required:

• Computer (IBM-PC/AT* compatible)

• SCSI-Host adapter

• SCSI-Interface cable (50 to 50 pin flat cable)

• Software (Device driver, utilities)

Example of System Setup

* IBM-PC/AT is a registered trademark of International Business Machines

Corporation.

Installing the Drive Unit into the Computer

As you go through this section, you may wish to refer to your

computer’s manual for a more detailed description of how to install

internal drives.

Getting Started

• Prepare the necessary parts and tools that have not been supplied:

–Screwdriver

–four screws 3 mm in diameter (Screws must not extend more

than 4.0 mm into the side panels or the bottom plate.)

–two mounting rails if your computer has mounting tracks.

• Unplug the computer and disconnect the cables attached to the

back for your own safety. Do not turn on the power of the

computer before completing the entire installation process.

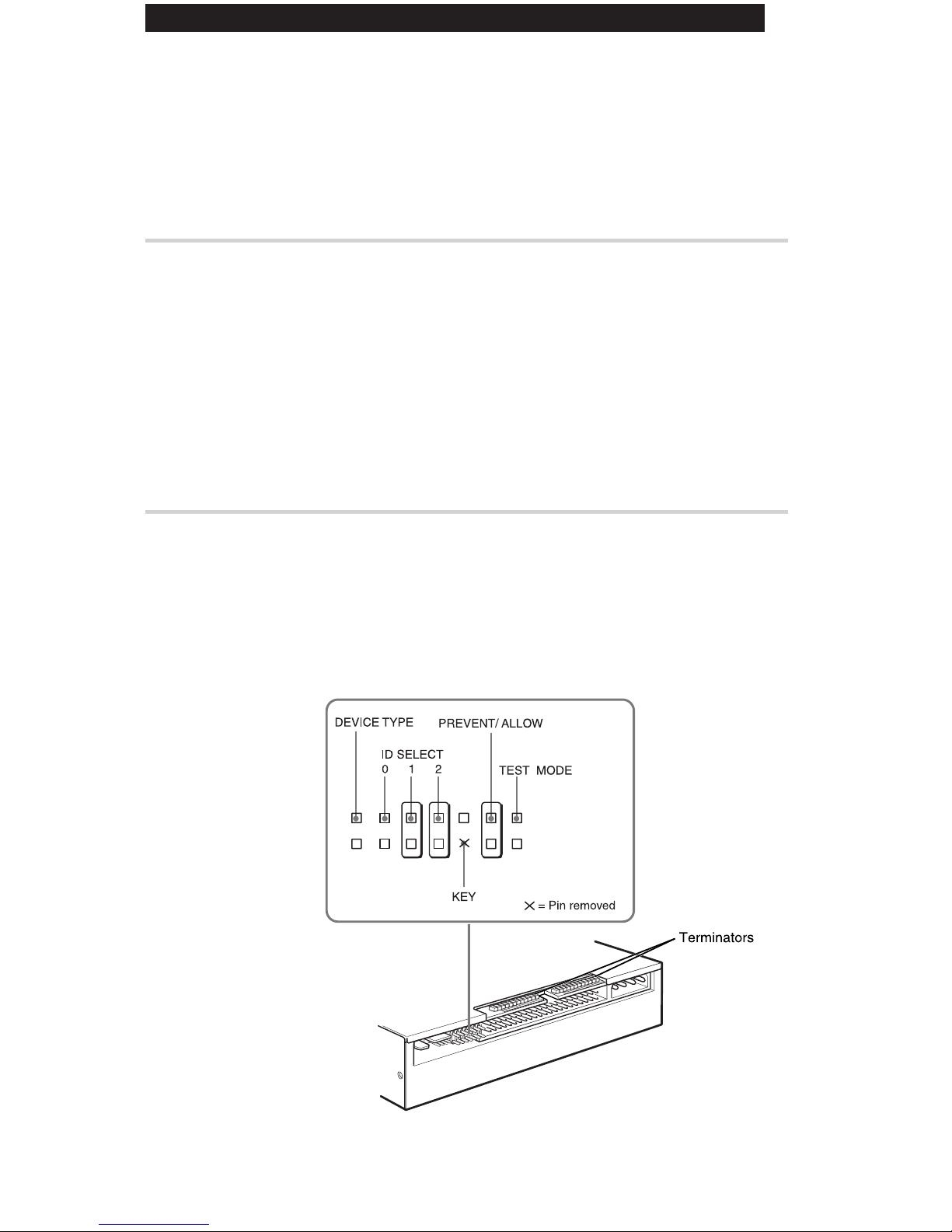

Setting the Jumpers

Set the jumpers on the rear panel of the drive unit in accordance

with the configuration of your computer system.

The jumpers are preset, as illustrated below, at the factory.

Installing the Drive Unit into the Computer
