Sony Giga Juke NAC-HD1E Manuale di istruzioni

NAC-HD1E.GB.3-213-272-11(1)

3-213-272-11(1)

Connections .................................................. 2

Listening to CDs or Radio Broadcasts

.................................................................... 5

Using the Hard Disk Drive ........................ 7

Using the Internet.....................................14

HDD Network Audio Component

NAC-HD1E

This manual explains the basic connections and

operations that will allow you to enjoy music on

your GIGA JUKE.

For a fuller explanation of the various operations,

refer to the supplied Operating Instructions.

Quick Connection and

Operation Guide

Troubleshooting ........................Back cover

NAC-HD1E.GB.3-213-272-11(1)

2GB

Connections

Connect the AM loop antenna.

Connect the AM loop antenna to the AM

antenna terminals on the unit.

Pull on the cord lightly aerwards to conrm

that the antenna is rmly connected.

Notes

Make sure to keep the AM loop antenna away

from the unit or other AV equipment as this may

produce noise in the radio reception.

Make sure the metal leads (not the part covered

with vinyl insulation) are securely inserted into

the antenna terminals.

Connect the FM wire antenna.

Connect the FM wire antenna to the FM

antenna jack on the unit.

FM wire antenna

Notes

Make sure not to wind the FM wire antenna up

during use.

Aer connecting the FM wire antenna, lay it out

so that it is as parallel to the oor as possible.

Connect the amplier.

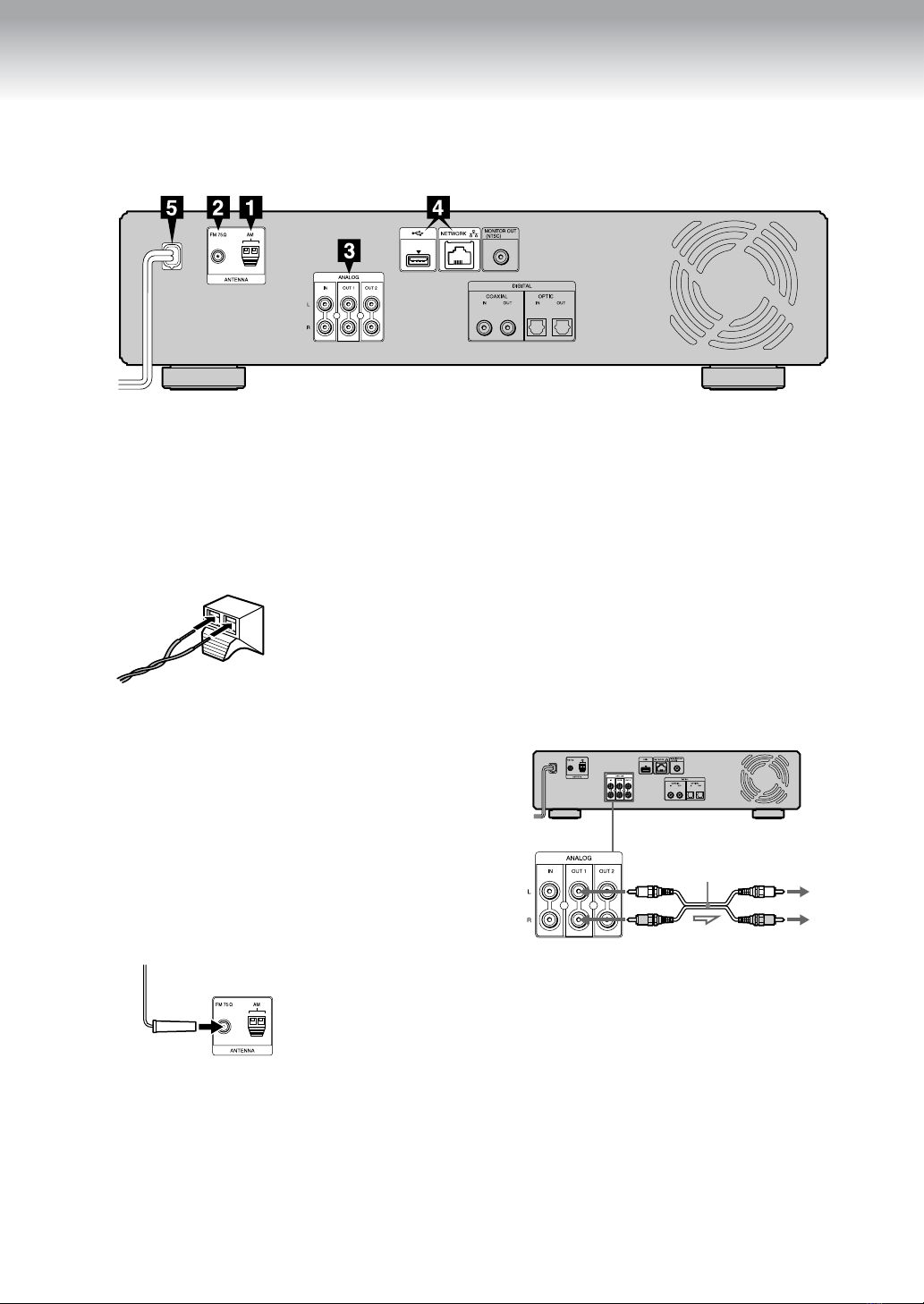

Use the supplied audio connecting cord to

connect the ANALOG OUT 1 jacks of the

unit to the input jack (TAPE, MD, etc.) of the

amplier. Make sure to match the color-coded

cords to the appropriate jacks of the unit; red

(right) to red and white (le) to white.

Audio connecting

cord (supplied)

: Signal ﬂow To the input jack (TAPE, MD,

etc.) of the ampliﬁer

NAC-HD1E.GB.3-213-272-11(1)

3GB

When connecting the unit to a digital

amplier or other digital component

You can connect a digital amplier or other

digital component to the DIGITAL COAXIAL

OUT jack or DIGITAL OPTICAL OUT

connector of the unit. Refer to page 80 of the

operating instructions for details.

Connect the unit to a network.

If you have a network environment, you can

easily connect the unit to the Internet as

shown in the gure below.

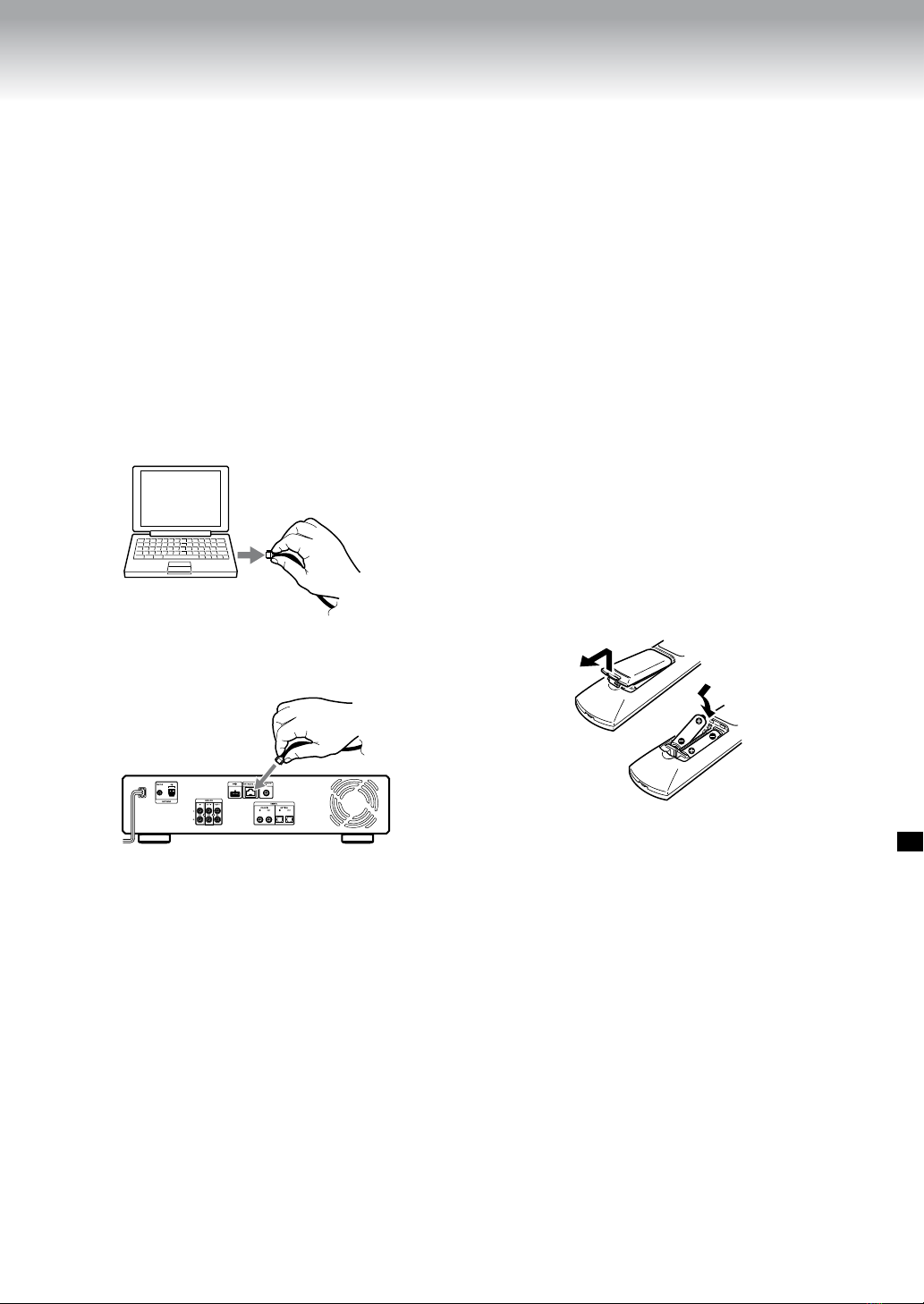

Disconnect the network cable from your

computer.

Connect the network cable to the

NETWORK port of the unit.

Notes

is method of accessing the Internet may not

be possible for some Internet service provider.

While the network cable is connected to the

unit as described above, you will not be able to

access the Internet on the computer. If you want

to connect to the Internet from the unit and

the computer at the same time, you must use a

separate network cable to connect the computer

to the network. For details on connections, refer

to the page 82 of the Operating Instructions or

the customer support site of Sony Europe, http://

support.sony-europe.com/ (for the customers in

Europe only).

Connect the power cord.

Connect the power cord to a wall outlet aer

all other connections have been made.

The unit turns on automatically and

starts making the initial settings. Wait

until the unit turns o again.

e initial settings may take a few minutes

depending on the unit’s condition.

WARNING

Do not disconnect the power cord while the initial

setup is in progress. Doing so may cause the unit to

malfunction.

Inserting the batteries into the

remote control

Insert two size-AA (R6) batteries (supplied)

into the remote control with the and 

terminals matching the polarity markings.

When the remote control is no longer able to

operate the unit, replace both batteries with

new ones.

NAC-HD1E.GB.3-213-272-11(1)

4GB

Setting up the AM loop antenna

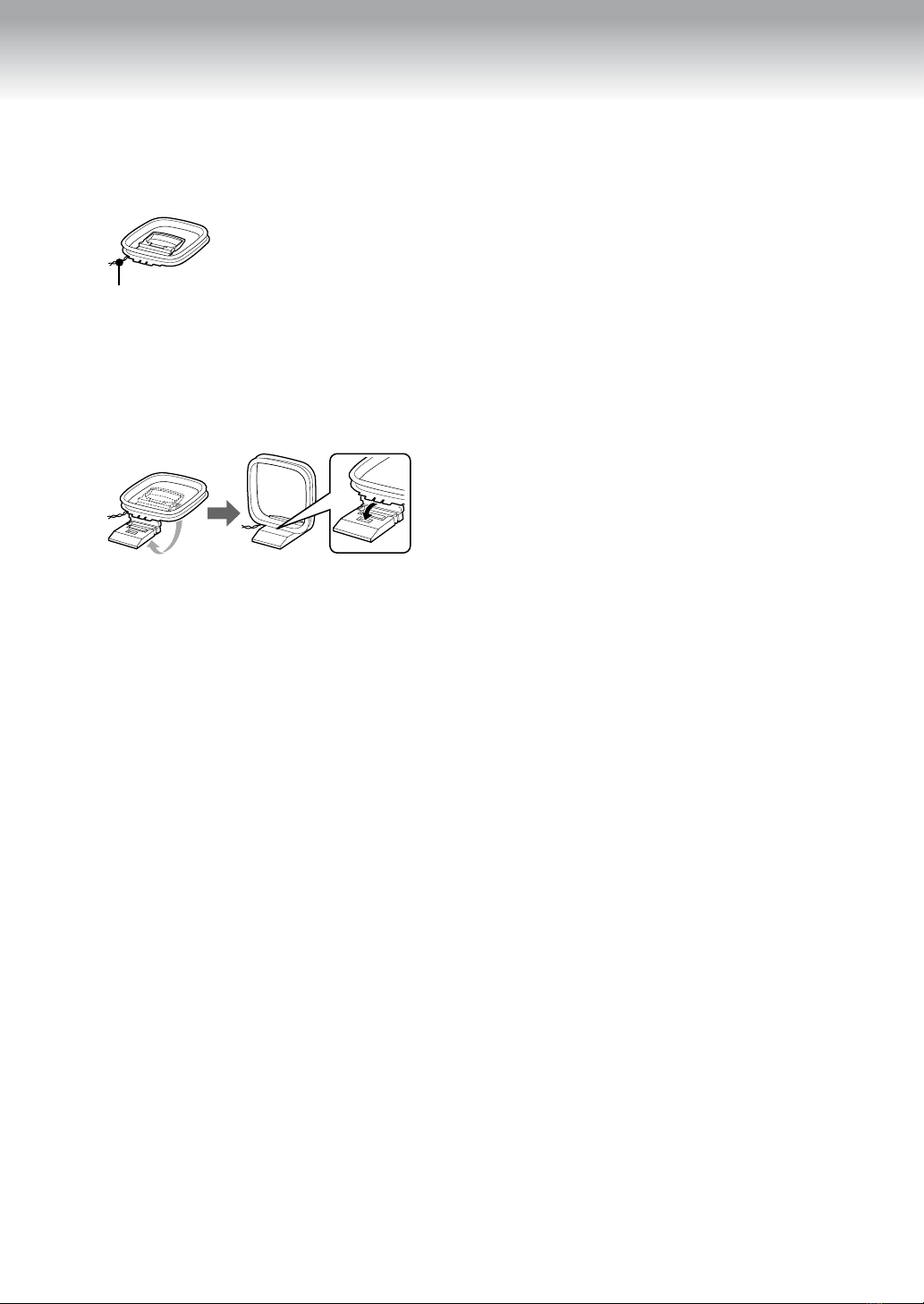

Unroll the antenna cord from the antenna.

Antenna cord

Assemble the AM loop antenna so that it

stands vertically.

Unfold the stand, raise the antenna vertically

and insert it into the slot as shown in the gure

below.

NAC-HD1E.GB.3-213-272-11(1)

5GB

Listening to an audio CD

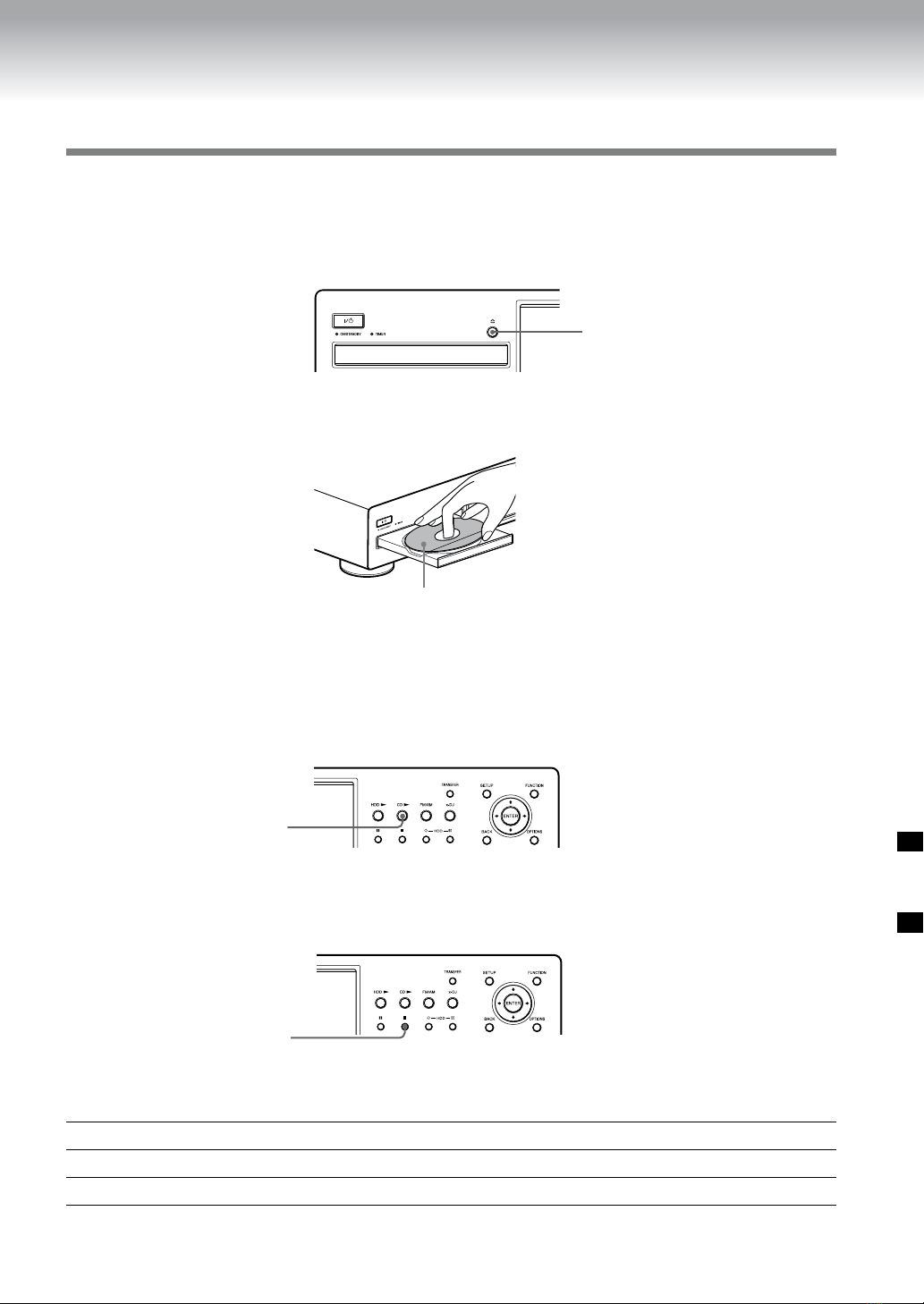

Press .

e disc tray slides out.



Place an audio CD into the disc tray.

Load a CD with the label side up.

Press CD.

e disc tray closes and playback starts.

When an audio CD is loaded, the unit automatically starts searching for title information

within its database or over the Web (when connected to the Internet).

CD

To stop playback

Press .



To perform other operations on the remote control

To pause playback Press .

To select the previous/next track Press /.

To fast rewind or fast forward Press and hold down /.

Listening to CDs or Radio Broadcasts

NAC-HD1E.GB.3-213-272-11(1)

6GB

Listening to the radio

Press FM/AM.

Press the button repeatedly to select FM or AM.

FM/AM

Press TUNING + or TUNING – on the remote control to tune in a station.

TUNING +/–

Listening to CDs or Radio Broadcasts (continued)

NAC-HD1E.GB.3-213-272-11(1)

7GB

Using the Hard Disk Drive

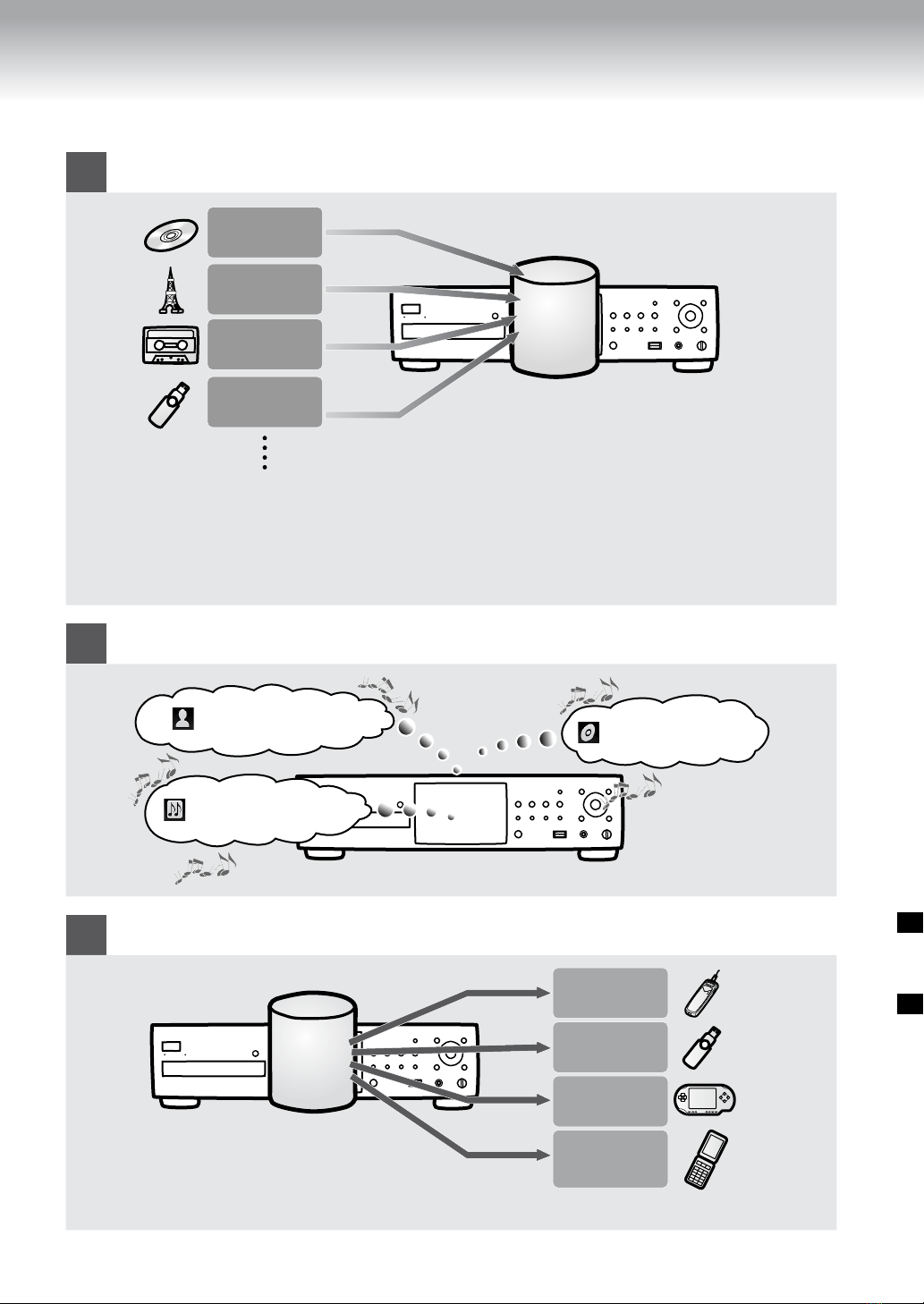

For details on recording from an audio CD or importing from a USB storage device: See page 8

SSaving

Audio CDs

FM/AM

External

component*

USB storage

device

Hard Disk

Drive

(HDD)

* You can connect an analog component (such as a cassette deck) to the

ANALOG IN jacks of the unit to make analog recording.

You can connect a digital component (such as a digital tuner) to the

DIGITAL COAXIAL IN jack or DIGITAL OPTICAL IN connector of the

unit to make digital recording.

LListening

See page 11

Playback by artist

Playback by genre

Playback by album

TTransferring

For details on transferring data to a “WALKMAN”: See page 13

Hard Disk

Drive

(HDD)

USB storage

device

PSP

“WALKMAN”

phone (mobile

phone)

“WALKMAN”

NAC-HD1E.GB.3-213-272-11(1)

8GB

Saving ~ Recording from an audio CD ~

Press and place an audio CD into the disc tray.

e unit automatically starts searching for title information within its database or over the

Web (when connected to the Internet).

Load a CD with the label side up.

Press CDand start playback.

CD

Press HDD .

e unit starts recording from the rst track and adds title information to the recorded

tracks.

HDD 

To stop recording

Press .

Using the Hard Disk Drive (continued)

NAC-HD1E.GB.3-213-272-11(1)

9GB

Saving ~ Importing ﬁles from a USB storage device ~

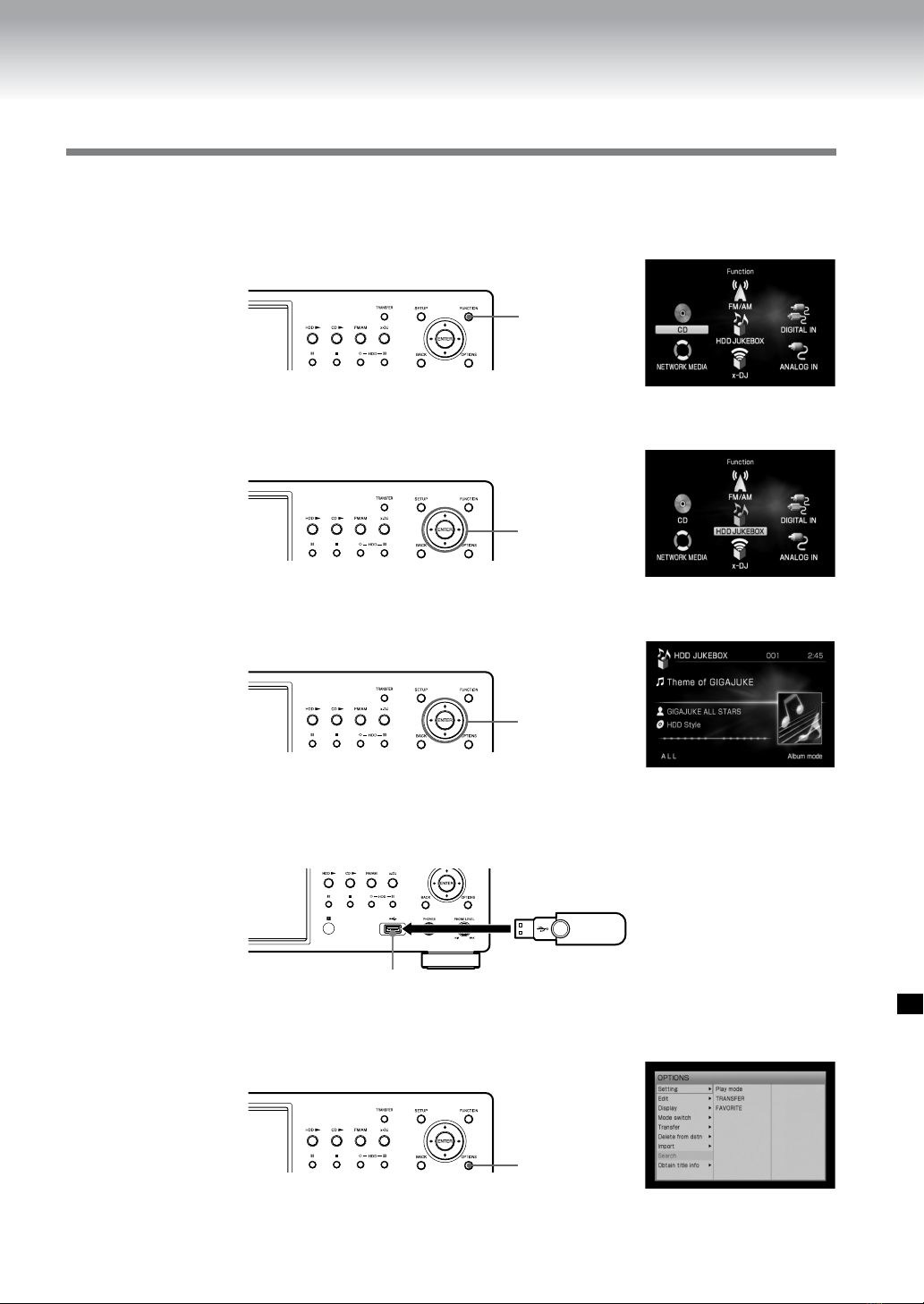

Press FUNCTION to display the Function menu.

FUNCTION

Press ///to select [HDD JUKEBOX].

///

Press ENTER.

ENTER

Connect the USB storage device to the USB connecting jack of the unit.

Refer to the operation manual of the USB storage device as well.

USB connecting jack

USB storage device

Press OPTIONS to display the Option menu.

OPTIONS

Continued



NAC-HD1E.GB.3-213-272-11(1)

10GB

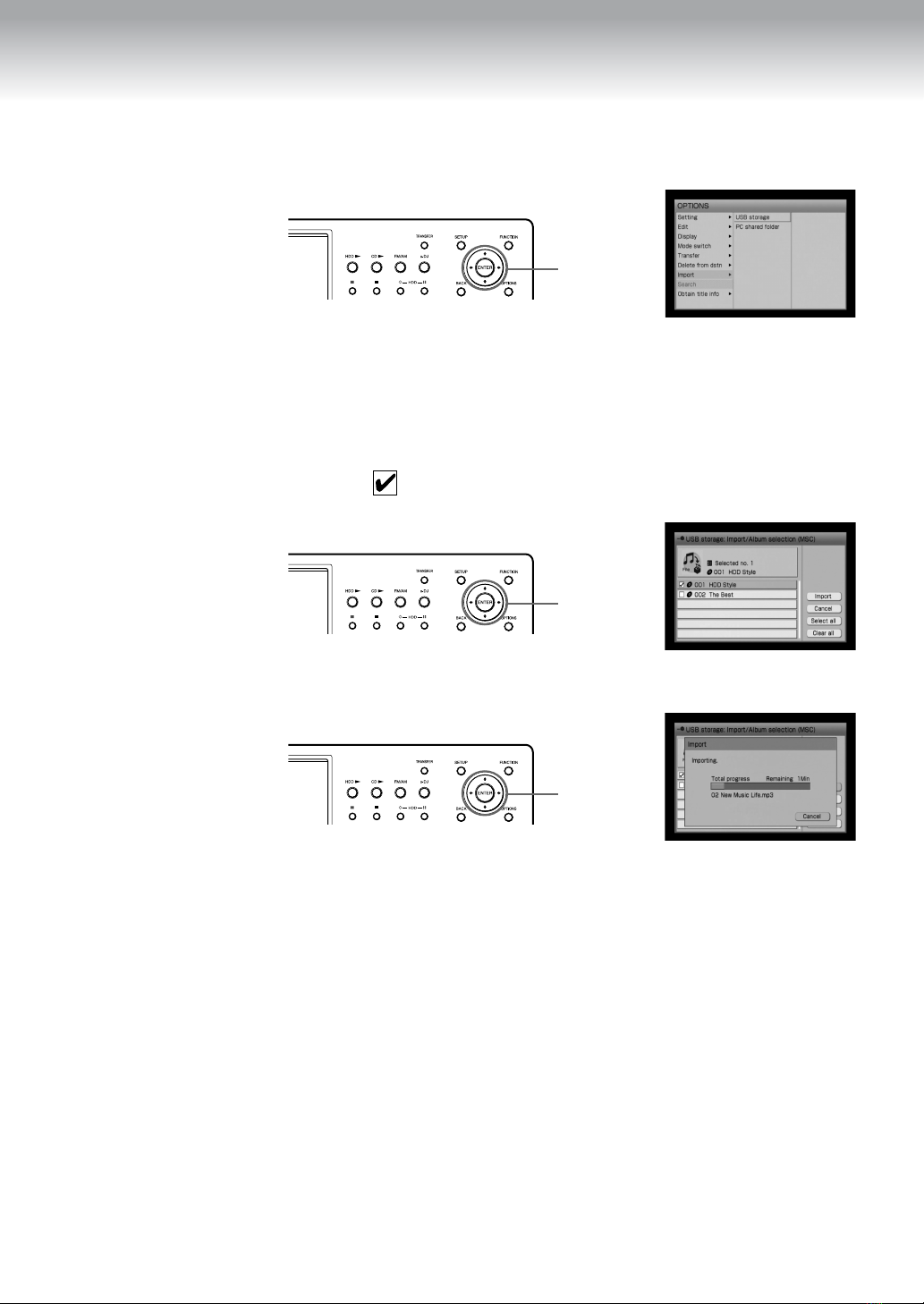

Press //to select [Import] – [USB storage] and press ENTER.

///

ENTER

If the drive selection display appears, select the drive.

If the connected USB storage device has only one drive, the drive selection display does not

appear.

Press /to select the album you want to import and press ENTER.

e selected album is checked .

You can remove a check mark by pressing ENTER again.

//ENTER

Press to select [Import] and press ENTER.

/ENTER

To cancel importing

Press ENTER.

Notes

You can import a maximum of 10,000 tracks at a time.

If two USB storage devices are connected to both jacks (front and rear) at the same time, the device connected to the

front jack takes priority.

To record from an external component

Refer to page 32 of the supplied Operating Instructions for details on connections and operations.

Using the Hard Disk Drive (continued)
