3-861-298-14 (1)

Portable

MiniDisc Recorder

Operating instructions

Manual de instrucciones

Manual de Instruções

Bruksanvisning

Käyttöohjeet

Инструкция по эксплуатации

MZ-R50

1997 by Sony Corporation

Portable MiniDisc Recorder MZ-R50

FIN

2-EN

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the

cabinet. Refer servicing to qualified

personnel only.

Caution

The use of optical instruments with this

product will increase eye hazard.

Information

IN NO EVENT SHALL SELLER BE

LIABLE FOR ANY DIRECT,

INCIDENTAL OR CONSEQUENTIAL

DAMAGES OF ANY NATURE, OR

LOSSES OR EXPENSES RESULTING

FROM ANY DEFECTIVE PRODUCT

OR THE USE OF ANY PRODUCT.

"MD WALKMAN" is a trademark of Sony

Corporation.

This mark is valid for Russian version only.

3-EN

Welcome!

Welcome to the world of the MiniDisc!

Here are some of the capabilities and

features you'll discover with the new

MiniDisc Recorder.

• Shock-resistant memory — Offsets up

to 40 seconds of optical read errors.

• Easy operation with the new remote

control — Keep the main unit in your

pocket and operate the MiniDisc player

through the shuttle dial on the remote

control; the LCD diplays track

information, playback mode as well as

battery condition.

• High-fidelity recording — Low-noise,

low-distortion, high-fidelity recording

through the optical digital input jack.

• Vertical jog dial — You can select your

desired tracks directly by simply

rotating a dial.

• Digital synchro-recording — The

recorder automatically starts and

pauses recording in sync with

operation on the connected digital

equipment.

• Sampling rate converter — This unit

enables you to record programs from

digital equipment using other

sampling rates, such as a BS tuner or

DAT deck.

• Long-time recording with monaural

sound — You can record up to 148

minutes on a disc using monaural

recording.

• Position pointer — The display shows

you the current location on the disc.

• Date and time stamp function — The

built-in clock automatically records the

date and time whenever you make a

recording.

• Title function — You can see disc and

track titles in the display while you are

playing/recording an MD.

4-EN

Table of contents

Recording an MD right away! .................................6

Playing an MD right away!......................................8

Various ways of recording.....................................10

Two ways of connecting to a sound source ....................................... 10

Recording with digital input ............................................................... 11

To start/stop recording in sync with the source player

(Synchro-recording)......................................................................... 11

Recording from a microphone............................................................. 12

Recording in monaural for double the normal recording time ...... 13

Adjusting the recording level manually (Manual recording) ......... 13

Checking the remaining time or the recording position.................. 14

On the recorder ................................................................................ 14

On the remote control ..................................................................... 15

Setting the clock to stamp the recorded time .................................... 16

Various ways of playback ......................................17

Selecting the track number or track name directly........................... 17

Playing tracks repeatedly ..................................................................... 17

Emphasizing bass (DIGITAL MEGA BASS) ..................................... 18

Protecting your hearing (AVLS).......................................................... 18

Checking the remaining time or the playing position ..................... 19

On the recorder ................................................................................ 19

On the reomte control ..................................................................... 19

Locking the controls (HOLD) .............................................................. 20

Connecting to a stereo system ............................................................. 20

5-EN

Editing recorded tracks ..........................................21

Erasing tracks ......................................................................................... 21

To erase a track................................................................................. 21

To erase the whole disc ................................................................... 21

Adding a track mark ............................................................................. 22

Erasing a track mark ............................................................................. 22

Moving recorded tracks........................................................................ 23

Labeling recordings............................................................................... 23

Power sources.........................................................25

Using a lithium ion rechargeable battery........................................... 25

Using dry batteries ................................................................................ 26

Additional information ..........................................27

Precautions ............................................................................................. 27

Troubleshooting..................................................................................... 29

System limitations ................................................................................. 31

Messages ................................................................................................. 32

Specifications.......................................................................................... 34

What is an MD? ..................................................................................... 35

Looking at the controls ......................................................................... 37

6-EN

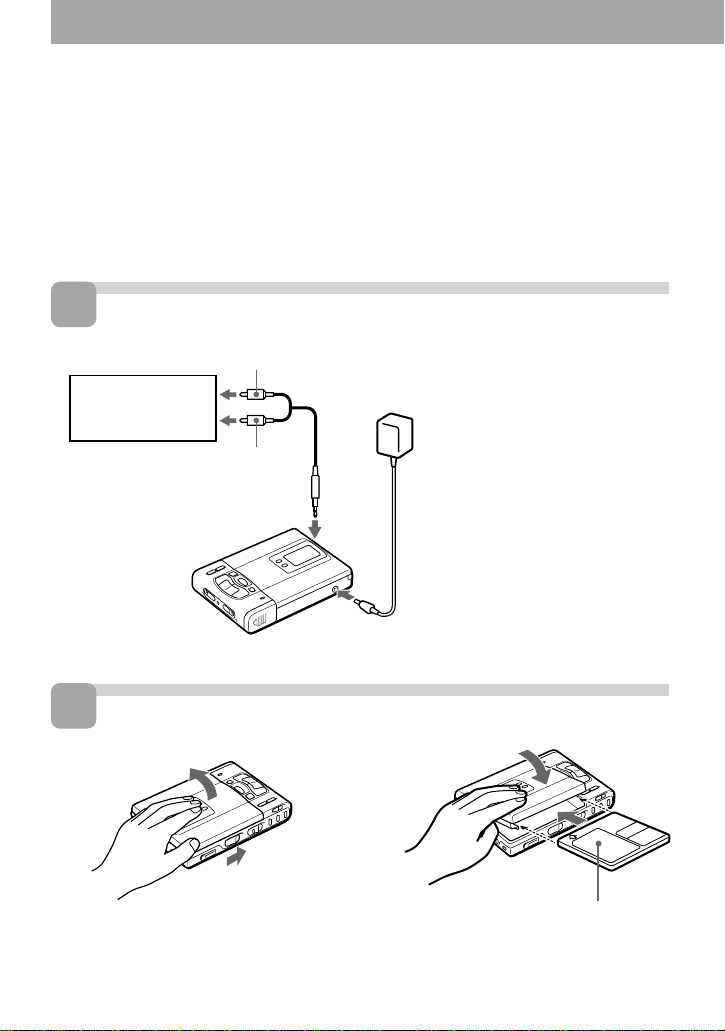

Make connections.

Insert a recordable MD.

Recording an MD right away!

Sound from CD players, cassettecorders, etc., will be sent

analogically, but recorded digitally, in stereo. To record from a digital

source, see “Recording with digital input” (page 11).

1Slide OPEN and open the lid. 2Insert a recordable MD with the

label side facing up, and press the

lid down to close.

to LINE OUT

to LINE IN (OPTICAL)

R (red)

L (white)

to DC IN 6V

AC power adaptor

(supplied)

CD player,

cassette recorder,

etc. (source)

Line cable

(RK-G129, not supplied)*

to a wall outlet

*Use the connecting cords without an

attenuator. To connect to a portable

CD player having a stereo mini-jack,

use the RK-G136 connecting cord

(not supplied).

7-EN

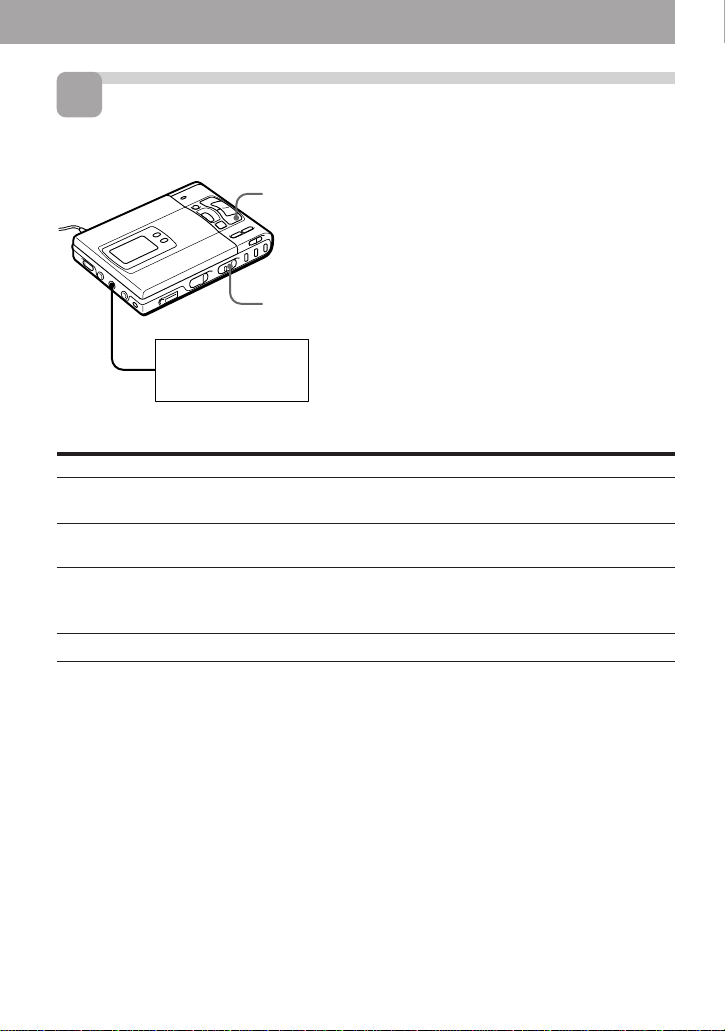

Record an MD.

1Press and slide REC to the right .

“REC” lights up and recording starts.

2Play the CD or tape you want to

record.

To stop recording, press p.

“Data Save“ or ”Toc Edit” flashes while data

of the recording (the track’s start and end

points, etc.) is being recorded. Do not move

or jog the recorder or disconnect the power

source while the indication is flashing in the

display.

CD player, cassette

recorder, etc. (source)

Pause

Record from the end of the

previous recording.

Record partway through the

previous recording.

Remove the MD.

Press

P1)

Press Pagain to resume recording.

END SEARCH and slide REC.

(, +or =to find the start point

of recording and press pto stop. Then

slide REC.

pand open the lid.2)

1) A track mark is added at the point where you press P; thus the remainder of the track will be

counted as a new track.

2) Once you open the lid, the point to start recording will change to the beginning of the first track.

Check the point to start recording on the display.

If the recording does not start

•Make sure the recorder is not locked (page

20).

•Make sure the MD is not record-protected

(page 28).

•Premastered MDs cannot be recorded over.

For models supplied with the AC plug

adaptor

If the AC power adaptor does not fit the wall

outlet, use the AC plug adaptor.

•The level of the recorded sound is adjusted

automatically.

•You can monitor the sound during

recording. Connect the supplied

headphones with remote control to 2/

REMOTE and adjust the volume by

pressing VOLUME +/– (VOL +/– on the

remote control). This does not affect the

recording level.

REC

8-EN

Playing an MD right away!

To use the recorder on a rechargeable battery or dry batteries, see

“Power Sources“ (pages 25, 26).

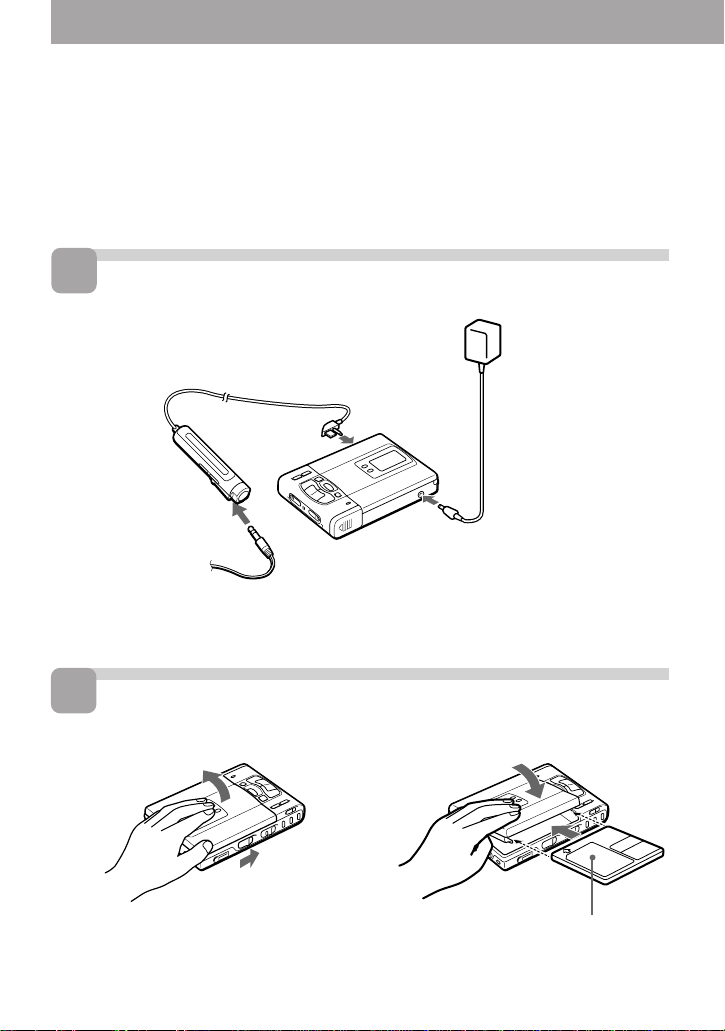

Make connections.

Insert an MD.

2Insert an MD with the label side

facing up, and press the lid down to

close.

1Slide OPEN and open the lid.

to a wall outlet

AC power adaptor

(supplied)

to DC IN 6V

to 2/REMOTE

Headphones with a

remote control

(supplied)

9-EN

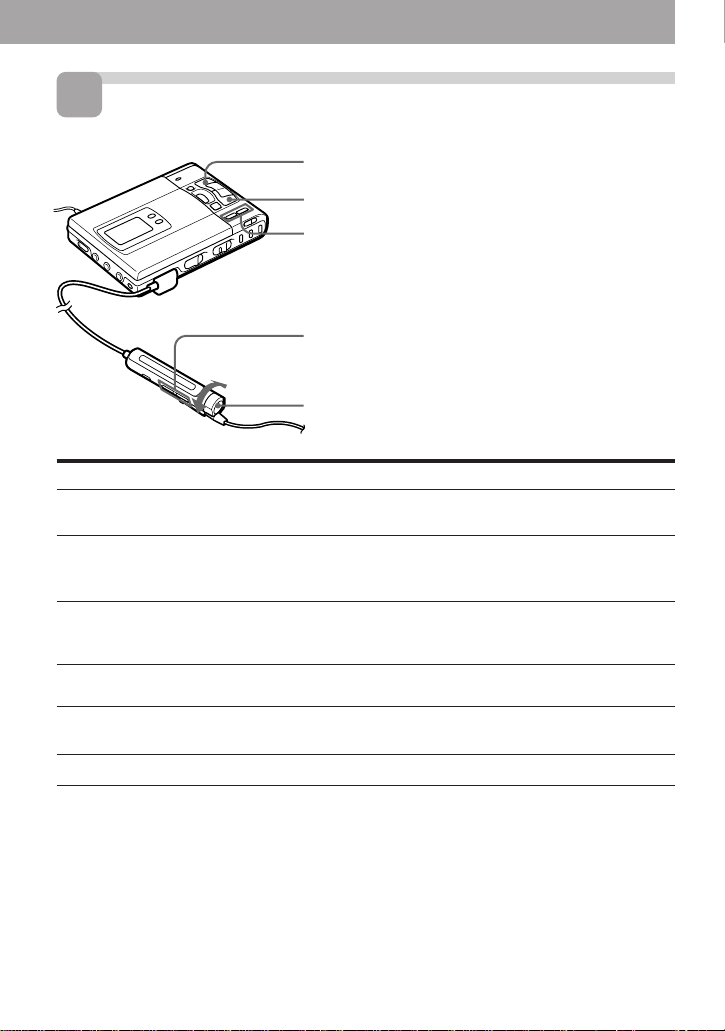

Play an MD.

Pause

Find the beginning of the current track

Find the beginning of the next track

Go backwards while playing1)

Go forward while playing1)

Remove the MD

Press (Beeps in the headphones)

P(Continuous short beeps)

Press Pagain to resume play.

=once (Turn the control to =on the

remote control)

(Three short beeps)

+once (Turn the control to (•+on

the remote control)

(Two short beeps)

keep pressing =(Turn and hold the

control to =on the remote control)

keep pressing +(Turn and hold the

control to (•+on the remote control)

pand open the lid.2)

1) To go backward or forward quickly without listening, press Pand keep pressing =or +.

2) Once you open the lid, the point to start play will change to the beginning of the first track.

If the play does not start

Make sure the recorder is not locked (page

20).

When using optional headphones

Use only headphones with stereo mini plugs.

You cannot use headphones with micro

plugs.

Playback will switch automatically between

stereo and monaural according to the sound

source.

VOL +/–

(

VOLUME

+/–

To stop play, press p.

A long beep sounds in the headphones.

1Press ((Turn the control to

(•+on the remote control).

A short beep sounds in the headphones.

2Press VOLUME (VOL on the remote

control) +/– to adjust the volume.

The volume will be shown in the display.

10-EN

Two ways of connecting to a sound source

The input jack of this recorder works as both digital and analog input jacks. Connect the

recorder to a CD player or a cassette recorder using either digital input or analog input. To

record, see “Recording with digital input” (page 11) to record using digital input, and

“Recording an MD right away!” (page 6) to record using analog input.

Difference between digital and analog inputs

zVarious ways of recording

Connectable source

Usable cord

Signal from the source

Recorded track numbers

Recorded sound level

Analog (line) input

Equipment with an analog

(line) output jack

Line cable (with 2 phono

plugs or a stereo-mini plug)

Analog

Even when a digital source

(such as a CD) is connected,

the signal sent to the recorder

is analog.

Marked automatically

•after more than 2 seconds of

blank or low-level segment.

•when the recorder is

paused while recording.

You can erase unnecessary

marks after recording

(“Erasing a track mark”,

page 22).

Adjusted automatically. Can

also be adjusted manually

(“Adjusting the recording

level manually”, page 13).

Difference Input Digital input

Equipment with an optical

digital output jack

Digital cable (with an optical

or an optical-mini plug)

Digital

Marked (copied)

automatically

•at the same positions as the

source.

•when the recorder is

paused while recording.

Note

Track marks may be copied incorrectly :

•when you record from some CD players or multi disc players using digital input.

•when the source is in shuffle or program play mode while recording using digital input. In this

case, play the source in normal play mode.

Same as the source

Altri manuali per MZ-R50 Analog PCLink

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Sony Lettore CD

Sony

Sony CDP-C700 Manuale utente

Sony

Sony D-FJ401 - Discman Manuale utente

Sony

Sony CDP-CX250 - 200 Disc Cd Changer Manuale utente

Sony

Sony CFD-560 Manuale utente

Sony

Sony D-EJ360 - PSYC CD Walkman Manuale utente

Sony

Sony CDP-XA1ES Manuale utente

Sony

Sony BDP-S1 Manual Addendum: Audio Codec Information (firmware ver 2.0 or... Manuale utente

Sony

Sony CD Walkman D-EQ550 Manuale utente

Sony

Sony CDX-MP450X Primary User Manual (English Manuale utente

Sony

Sony CDX-454RF - Compact Disc Changer System Guida del prodotto

Sony

Sony Walkman D-EJ761 Manuale utente

Sony

Sony CDX-R6550 Manuale utente

Sony

Sony CFD-ZW700 - Cd Radio Cassette-corder Manuale utente

Sony

Sony CFD-S33 - Cd Boombox Manuale utente

Sony

Sony WALKMAN D-CS901 Manuale di istruzioni

Sony

Sony CDX-GT27 Manuale utente

Sony

Sony CDX-M750 - Fm/am Compact Disc Player Manuale utente

Sony

Sony CDP-C910 - Compact Disc Player Manuale utente

Sony

Sony D-FJ737 Manuale utente

Sony

Sony CFD-E75 Marketing Manuale utente

Sony

Sony Walkman D-NE9 Manuale utente

Sony

Sony MZ-N505 OpenMG Jukebox NOTES on installing &... Manuale utente

Sony

Sony CDX-L460X Manuale utente

Sony

Sony CDX-81 - Fm-am Compact Disc Player Manuale utente

Manuali Lettore CD popolari di altre marche

RCA

RCA RP-7923 Manuale utente

Pioneer

Pioneer DEH-P3550MP XM Manuale utente

Philips

Philips AZ1207 Manuale utente

Philips

Philips CD582 Manuale utente

Philips

Philips AZ 6821 Manuale utente

Lasonic

Lasonic MSU-2020 Manuale utente

THOMSON

THOMSON RCD150 Manuale utente

Denon

Denon DCD-1420 Manuale utente

Panasonic

Panasonic SJ-MR100 Manuale utente

Onkyo

Onkyo DX-7210 Manuale utente

Denon

Denon DVM-4800 Manuale utente

JBL

JBL MR-32 Manuale utente

RCA

RCA RCD152 Manuale utente

Technics

Technics SL-PS770A Manuale utente

Clarion

Clarion compact disc Manuale utente

Philips

Philips Expanium AZ 1538 Manuale utente

Rotel

Rotel RCD 975 Manuale utente

Pioneer

Pioneer CLD-D790 Manuale utente
