Sony XA-CC1 Manuale utente

3-257-674-11 (1)

Operating Instructions

Connection Adapter

2003 Sony Corporation Printed in Japan

XA-CC1

Features

The XA-CC1 is a connection adapter for connecting a car cradle to a Sony master unit having the CD/

MD changer control function.

Car Cradle Ready Sony car audio units are ;

•Units with CD/MD Changer Control from 2003 forward

•Following units

MEX-5DI,CDX-MP70, CDX-MP30,CDX-M730,CDX-M630,CDX-CA900X,CDX-CA720X,

CDX-CA700X,CDX-CA705M,XR-CA630X,XR-CA430X

Specifications

Power requirement 12 V DC negative ground

Dimensions Approx. 97.2 ×55.7 ×23.7 mm

( 3 7/8×2 1/4×15/16 in.)

(w/h/d)

(not including connection cable)

Mass Approx. 260 g (10 oz.)

(including connection cable)

Input Car cradle I/O input (8pin)

Output SONY-BUS control output (8pins)

SONY-BUS audio output (RCA-pin)

ATT control output

Design and specifications are subject to change without notice.

Installation

Before installation

•Choose the installation location carefully so that the unit does not interfere with normal driving

operations.

•Avoid installing the unit where it would be subject to :

— high temperatures, such as from direct sunlight or hot air from the heater.

— draft, rain or moisture.

— dust or dirt.

— magnetic fields.

•Install the unit at a to location that does not obstruct the operation of passenger-side airbag.

Installation location

Install the unit inside the car panel or glove box is recommended.

Please consult qualified technician or service personnel if you cannot attach the connection adapter to

the car securely.

If you have any questions or problems concerning your unit that are

not covered in this manual, please consult your nearest Sony dealer.

Contents of this manual are printed on chlorine-free

paper using VOC (Volatile Organic Compound)-free

vegetable-oil-based ink.

Before making any connection, disconnect the ground terminal of the car battery to avoid short

circuits.

Connections

Precautions

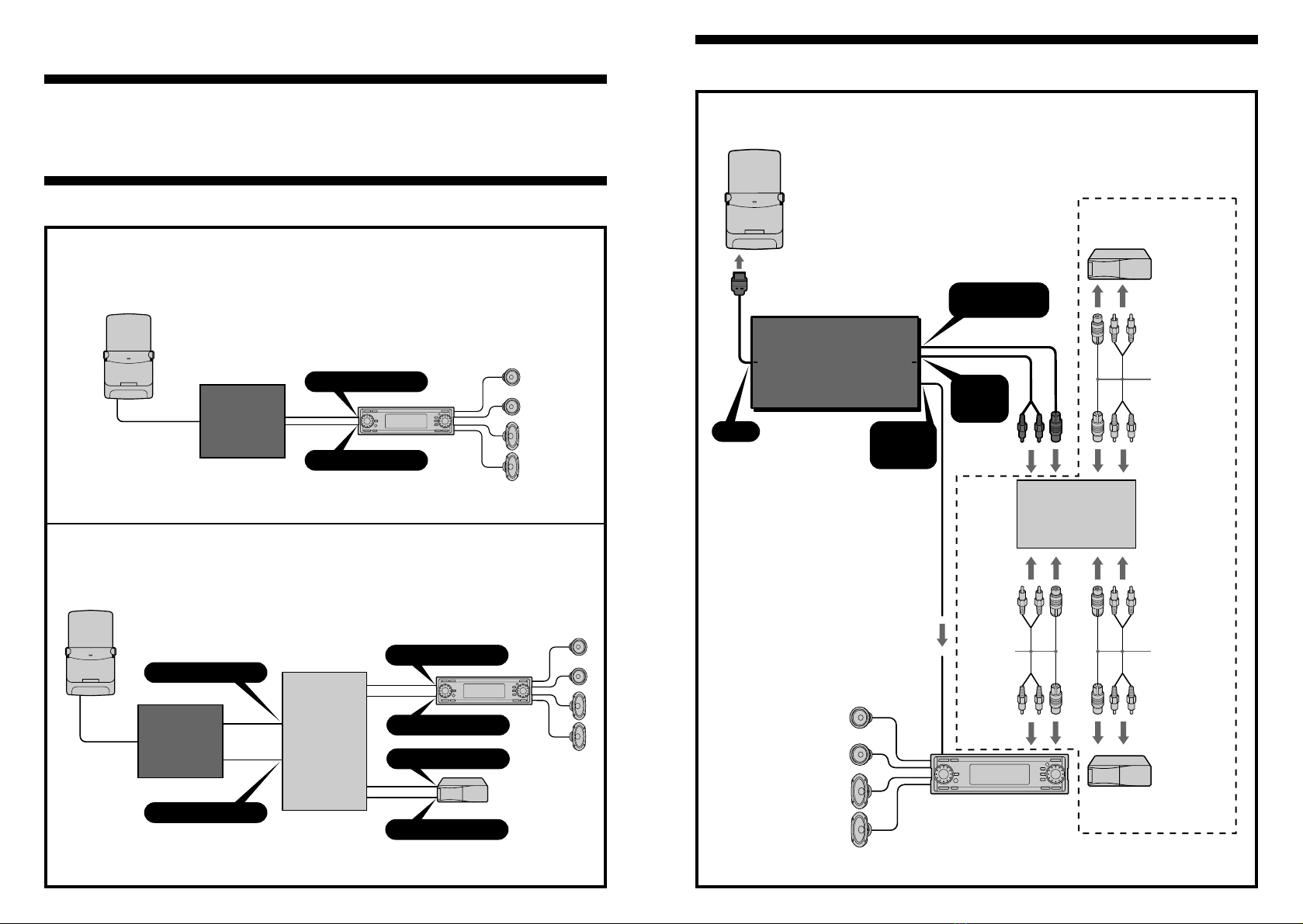

Connection diagram

Connection example

I / O SONY BUS

BUS AUDIO IN

BUS CONTROL IN

Connection

Adapter

XA-CC1

Source

selector

XA-C30

(optional)

Connection

Adapter

XA-CC1

Light blue

ATT

Car cradle

Supplied with

the CD/MD

changer

BUS AUDIO IN

Source selector

XA-C30

(optional)

Sony BUS compatible

CD/MD changer

(optional)

Sony BUS compatible

car audio

Supplied with

the CD/MD

changer

Sony BUS compatible

CD/MD changer

(optional)

BUS CONTROL IN

BUS AUDIO IN

BUS CONTROL OUT

Rear speaker

Front speaker

Supplied

with the

XA-C30

1.6m

Car cradle

BUS AUDIO OUT

BUS

CONTROL OUT

BUS

AUDIO

OUT

ATT

ATT OUT

I/O

ATT
