Sony PCV-RS600C - Vaio Desktop Computer Manuale utente

Welcome

Thank you for purchasing a Sony VAIO®computer! Your new computer is a superb blend of high technology and easy-to-use

functionality. The information provided here is designed to help you to become familiar with the hardware and software

programs included with your system.

View the Electronic Flyer, which provides updates and supplemental information about your computer.

Go to the Sony Online Support Web site, to view the VAIO®Computer Specifications, which lists your computer's

hardware specifications and preinstalled software information.

For information about the Sony software preinstalled on your computer, click Start in the Windows®taskbar, and

then click Welcome to VAIO life.

Page 1

Getting Started

Congratulations on your purchase of the Sony VAIO®computer! Your new, high-performance, multimedia computer combines

state-of-the-art computer functionality with the latest audio, video and information technology features.

Unpacking Your Computer

Planning an Ergonomic Work Space

Page 2

Unpacking Your Computer

Your computer may not be supplied with all of the accessories shown, depending on the system configuration purchased.

For details on the accessories supplied with your computer, go to the Sony Online Support web site at

http://www.sony.com/pcsupport to view the online specifications sheet.

Your VAIO®computer is not supplied with System or Application Recovery CDs. Use the VAIO Recovery utility to recover

your computer's operating system and preinstalled software.

Computer and supplied accessories

Giga Pocket Personal Video Recorder accessories

(For models equipped with Giga Pocket features)

Manuals

VAIO®Computer Quick Start —Provides basic information on setting up and registering your computer. The Quick

Start also provides resources for technical support, safety guidelines, and owner's information.

Online Documentation

VAIO®Computer User Guide —Contains information on the hardware and preinstalled software programs included

with your system.

To access the online manual: Page 3

1. Click Start in the Windows taskbar, then click Help and Support.

2. From the VAIO Help And Support Center menu, click VAIO User Guide.

Specifications —This online specifications sheet describes the hardware and software configuration of your VAIO

computer. Go to the Sony Online Support Web site at http://www.sony.com/pcsupport to view the specifications

sheet.

VAIO®Software —Provides specific information on the preinstalled software on your computer.

To access this online software information:

1. Click Start in the Windows®taskbar.

2. Click Welcome to VAIO life.

Hard Disk Drive Recovery

Your computer is equipped with the VAIO Recovery Wizard, a utility program that recovers your computer's operating

system and preinstalled software.

For more information about hard disk recovery:

1. Click Start in the Windows®taskbar, then click Help and Support.

2. From the VAIO Help And Support Center menu, click VAIO Recovery Options.

Other

A software library, containing the Microsoft®software and Sony®end-user license agreements.

Page 4

Planning an Ergonomic Work Space

Before you set up your new computer, find the best location for your new computer and plan your work space. There are

several ergonomic factors to consider when you arrange your work space:

Stable work surface —Use a stable work surface large enough to support the computer and other peripheral

equipment.

Ventilation —Leave at least eight inches of space on the left and back sides of your computer to enable proper

ventilation.

Placement of the keyboard, mouse, and other input devices —Place your keyboard, mouse, and other input

devices so that your arms and hands are in a relaxed, comfortable position. The keyboard should be directly in front

of you. Adjust the level of the keyboard so that your lower arms are parallel to the floor. Keep your wrists in a

relaxed position when you are using the keyboard —not angled up or down. Use the palmrest briefly, for resting.

While typing, never use the palmrest or rest your hands on the table. Position the mouse at the same level as the

keyboard. Hold the mouse with a relaxed hand, and use your whole arm to move it. Take breaks during sessions

with your computer. Excessive use of the mouse or a joystick may strain muscles or tendons.

Furniture and posture —Sit in a chair with good back support and armrests. Adjust the level of the chair so your

feet are flat on the floor. A footrest may make you more comfortable. Sit with relaxed, upright posture —avoid

slouching forward or leaning far backward.

Viewing angle of the display —Position the display 18 to 26 inches directly in front of you, with the top of the

screen at or a little below eye level. Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by placing the display in the proper position.

Lighting —Choose a location where windows and lights do not create glare and reflection on the display. Use

indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help

reduce glare. Proper lighting adds to your comfort and work effectiveness.

Page 5

Locating Controls And Ports

This section is intended to familiarize you with the controls, ports and jacks on your computer. Your computer may not be

equipped with all of these hardware features, and the location of the controls, ports, and jacks may vary from the

illustrations shown in this section. See the specifications sheet for your computer on the Sony Online Support Web site at

http://www.sony.com/pcsupport.

About the Front Panel

About the Back Panel

About the Keyboard

About the Remote Control

Page 6

About the Front Panel

The front panel of your VAIO®computer enables access to the optical and floppy disk drives. On certain models, the front

panel also provides access to a Memory Stick®media slot, Giga Pocket®Personal Video Recorder features, SmartMedia ,

CompactFlash®/Microdrive media card slot, Universal Serial Bus (USB) and i.LINK®ports that enable you to connect

compatible peripheral devices. System configuration may vary, depending on the model purchased. See the specifications

sheet for your computer on the Sony Online Support Web site at http://www.sony.com/pcsupport.

Front panel

1Optical drive 1

See the online specifications sheet for optical drive information.

2Optical drive 21

See the online specifications sheet for optical drive information.

3Floppy disk drive

Reads and writes data from and to a 3.5-inch floppy disk.

4Floppy disk drive access indicator

Light is green while reading and writing data from and to a floppy disk.

5Power button

The power button turns the computer on/off. Page 7

6Standby indicator

Light is amber when the computer is in Stand by mode.

7Memory Stick media slot and access indicator2

Reads and writes data from and to a Memory Stick®media. The access indicator is amber when reading or writing data to a

Memory Stick media.

8Media access indicator3

Light is amber when reading or writing data.

9S-video In jack2

Connection for an S-video cable (optional).

Composite video In jack2

Connection for a video cable (optional).

Composite audio L In jack2

Connection for an audio cable (optional).

Composite audio R In jack2

Connection for an audio cable (optional).

10 Optical drive 1 eject button

Ejects a disc from Optical drive 1.

11 Optical drive 2 eject button

Ejects a disc from Optical drive 2.

12 Floppy disk eject button

Ejects a floppy disk.

13 Power indicator (VAIO)

Light is blue when the computer is on. The light turns off when the computer is in Standby mode or turned off.

14 Hard disk drive and optical disc drive access indicator

Light is amber while reading and writing data. Page 8

15 CompactFlash/Microdrive media card slot2

Reads and writes data from and to CompactFlash®or Microdrive media.

16 SmartMedia slot2

Reads and writes data from and to SmartMedia media.

17 Universal Serial Bus (USB 2.0) ports4

Connections for compatible high/full/low-speed USB devices.

18 i.LINK 4-pin S400 port (IEEE 1394)

Connection for a compatible digital device.

1A s econd optical drive is optional on certain V A IO ®c omputer models. See the specifications s heet for details on your c omputer's hardware configuration.

2Not available on all models. See your online specifications sheet for details.

3O n models equipped with these hardware features, the media access indicator light is amber when reading or writing data to the SmartMedia or

CompactFlash®/M icrodrive®s lots.

4T he number of USB ports may vary depending on the model purchased.

For your convenience, your computer includes USB and i.LINK ports on both the front and back panels. The 4-pin

i.LINK port is located on the front panel and the 6-pin i.LINK port is located on the back.

Additional information

Your computer is equipped with one or more optical disc drives that have a drive eject button on the drive door.

After pushing the eject button, wait for the drive to stop reading the CD. It may take a few moments for the drive

tray to eject.

Gently push the drive tray in, when closing the optical drive door. Do not force the door or handle roughly.

After closing the drive door, wait a few moments for the drive to begin reading the CD.

Page 9

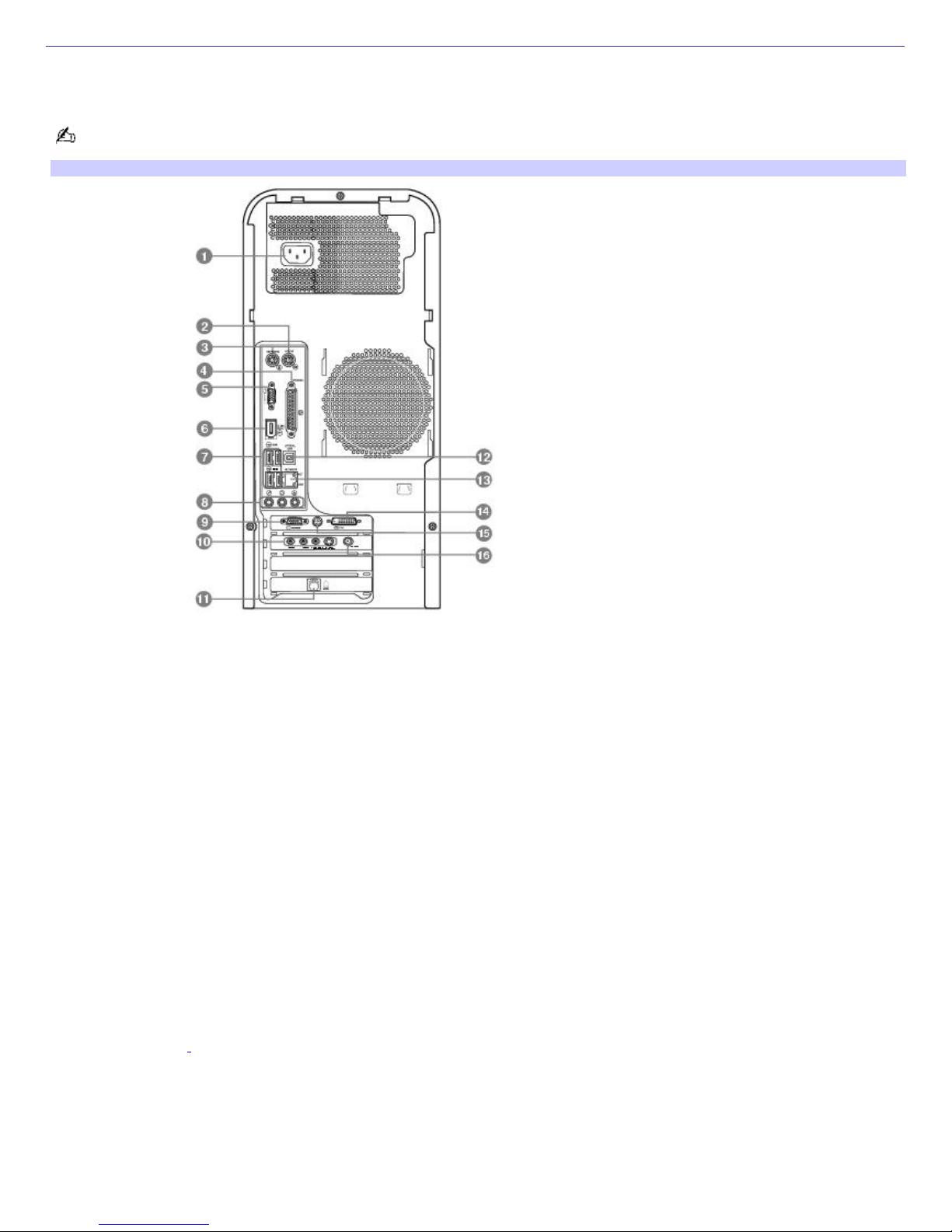

About the Back Panel

The back panel of your computer contains the ports for supplied and optional accessories. The icons on the back panel

locate and identify the ports and jacks on your computer.

Your hardware configuration may vary based on the computer model purchased.

Back panel

1AC Input port

Connection for the supplied power cord.

2Mouse port

Connection for a PS/2®mouse.

3Keyboard port

Connection for a PS/2®keyboard.

4Printer port

Connection for a parallel device, such as a printer or scanner.

5Monitor port1

Connection for a standard display.

6i.LINK 6-pin S400 port (IEEE 1394)

Connection for a compatible digital device. Page 10
