Sony VPCJ111FX Guida

VPCJ1 Series Optical Disk Drive

Replacement Instructions

P/N 9892 1985 Rev. B 1/3

Step 1. With the Computer powered on,

eject the Optical Disk Drive (ODD).

Step 2. Turn off the computer and

disconnect the AC Adapter. CAUTION:

Failure to do so can result in

damage to the computer.

Place the computer upside down on a

protected surface with the front edge

facing you.

Optical Drive Removal

(Steps 3-6)

Step 3. The Optical Disk Drive is

located on the Left side of the unit as

shown.

These easy instructions are intended to guide you through the replacement process.

Before you begin, place your computer on a clean or covered surface to avoid damage to the

computer's case.*

Follo the ESD (Electrostatic Discharge) damage prevention instructions:

oHold parts by the edges, a ay from exposed circuitry hen possible.

oDo not alk around excessively as this promotes static build-up.

Before you begin, remove any je elry you may be earing to prevent scratches to the surface

of your computer.*

The appearance of the electronic components sho n in the illustrations may be different from

the components shipped. This slight difference does not affect the accuracy of these

instructions.

* Sony is not responsible for damage caused by incorrect handling of the computer.

IMPORTANT!

PLEASE READ BEFORE YOU START

VPCJ1 Series Optical Disk Drive

Replacement Instructions

P/N 9892 1985 Rev. B 2/3

tep 4.

Using the enclosed magnetic

screwdriver, loosen the two (2) screws

securing the ODD Bay. These screws

cannot be completely removed. They

will stay enclosed in the assembly.

Step 5.

Gently pull the ODD tray out

so that it is completely exposed.

Step 6

Move your fingers down to

the base of the ODD Assembly and

gently pull to remove the entire

Assembly.

ODD Disassembly

(Steps 7-10)

Step 7. Identify the four (4) side screws

that secure the ODD Brackets to the

ODD.

Step

Remove the screws &

Brackets

Put the ODD Brackets and screws

aside for transfer to the new ODD.

Step 9

Position the new ODD (Label

side down) and identify the correct

bracket with the corresponding ODD

side (as shown). Take note of the

different shapes for each bracket and

the proper alignment of the screw

holes.

Step 10. Using the ODD Screws, install

the ODD Brackets onto the new ODD.

NOTE: After installation, all brackets

should sit flush.

ODD Installation

(Steps 11-13)

Step 11. Align the ODD assembly

properly (label side down) and slide

into the computer.

VPCJ1 Series Optical Disk Drive

Replacement Instructions

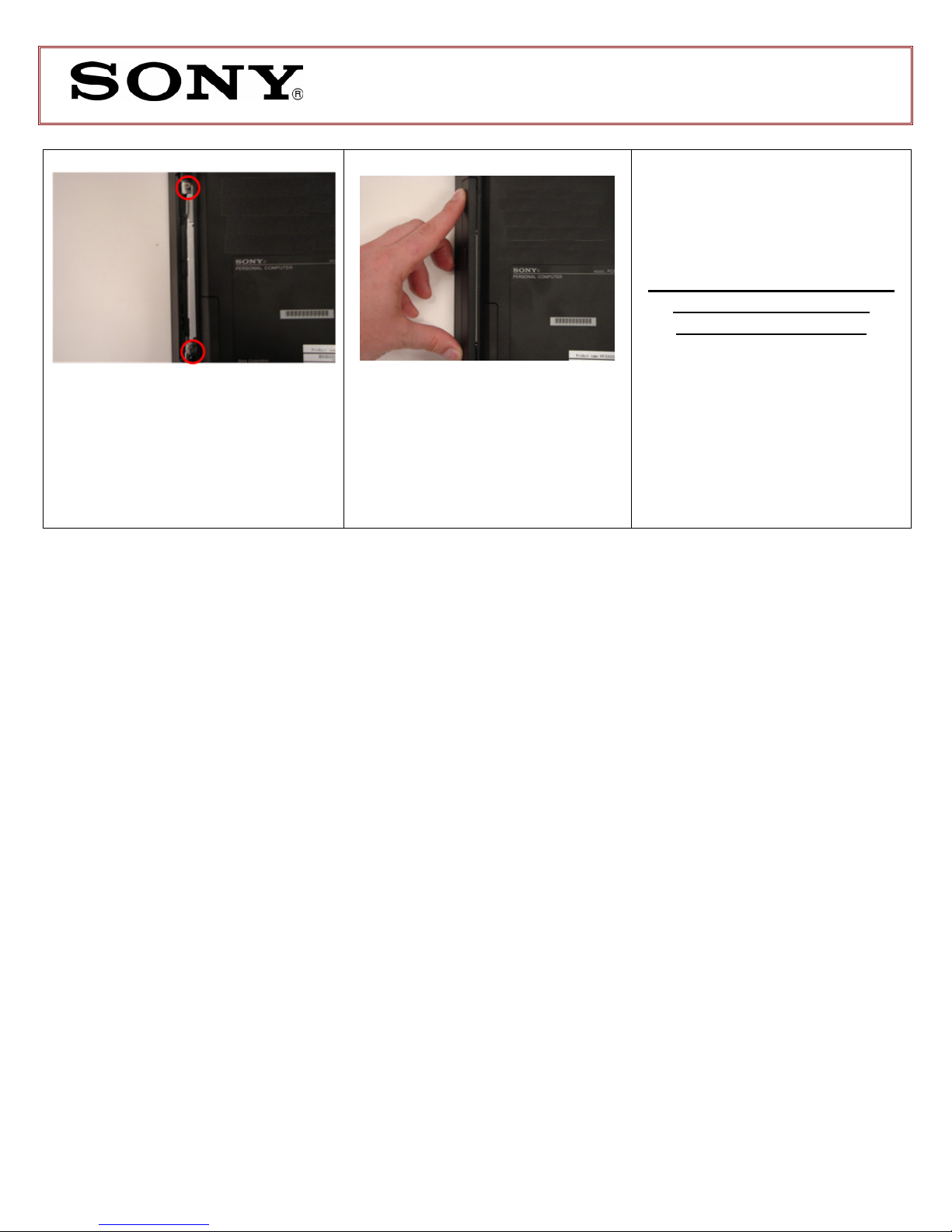

P/N 9892 1985 Rev. B 3/3

Reconnect the AC Adaptor.

Return the old ODD to Sony

following the included

shipping instructions

tep 12

Reinstall the two (2) ODD

Assembly screws to secure the ODD

Assembly.

Step 13

Snap the the new ODD Bezel

on to the ODD Assembly to install.

Make sure the new ODD is seated

flush on the edge of the computer.
