SERVICE MANUAL

Ver. 1.1 2016.05

This product meets ENERGY STAR® guidelines for energy

efficiency. ENERGY STAR and the ENERGY STAR mark are

registered U.S. mark. ENERGY STAR is a registered mark

owned by the U.S. government. (US,CND Model)

9-930- 433-12 RDCM

Home Entertainment Business Group

Blu-ray DiscTM / DVD Player

SONY®

2015K6900-1

Published by Manual design dept.

RMT-VB200U/RMT-VB200D

BDP-S6700 / BDP-BX670

US, Canadian Model

UK Model

AEP Model

Latin America Model

Argentina Model

Singapore Model

Australian/New Zealand Model

BDP-

S6700

US, Canadian Model

BDP-

BX670

SPECIFICATIONS

BDP-S6700 /BDP-BX670

[Australian/New Zealand Model]

System

Laser: Semiconductor laser

Inputs and outputs

(Jack name:

Jack type/Output level/Load

impedance)

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT:

HDMI 19-pin standard connector

LAN (100): 100BASE-TX Terminal

USB:

USB jack Type A (For connecting a

USB memory, memory card reader,

digital still camera, and digital video

camera)*

* Do not use for power charging

purposes.

DC IN: 12 V DC, 850 mA

Wireless

Wireless LAN standard:

Protocol IEEE802.11 a/b/g/n

Frequency range:

2.4 GHz, 5 GHz band

Modulation: DSSS and OFDM

Bluetooth Version: Bluetooth Version 4.1

Bluetooth

Communication system:

Bluetooth Specification v4.1

Output:

Bluetooth Specification Power Class 1

Maximum communication range:

Line of sight approx. 30 m

Frequency band: 2.4 GHz

Modulation method: FHSS

Compatible Bluetooth Profiles:

A2DP v1.2, AVRCP v1.3

Supported Codecs: SBC, AAC, LDAC

Transmission range (A2DP):

• 20 Hz - 40,000 Hz (LDAC in

sampling 96 kHz and transmit by

990 kbps)

• 20 Hz - 20,000 Hz (in sampling

44.1 kHz)

General

Power requirements:

12 V DC with AC adaptor

Rating: Input 220 V - 240 V AC,

50/60 Hz

Power consumption (when using AC

adaptor): 12 W

Dimensions (approx.):

255 mm × 192 mm × 39 mm

(width/depth/height)

incl. projecting parts

Mass (approx.): 0.9 kg

Operating temperature:

5 0C to 35 0C

Operating humidity: 25 % to 80 %

Supplied accessories

• AC adaptor (AC-L1210WW) (1)

• AC power cord (mains lead) (1)

• Remote commander (remote) (1)

• R03 (size AAA) batteries (2)

Specifications and design are subject to

change without notice.

SPECIFICATIONS

[ UK / AEP models ]

System

Laser: Semiconductor laser

Inputs and outputs

(Jack name:

Jack type/Output level/Load

impedance)

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT:

HDMI 19-pin standard connector

LAN (100): 100BASE-TX Terminal

USB:

USB jack Type A (For connecting a

USB memory, memory card reader,

digital still camera, and digital video

camera)*

* Do not use for power charging

purposes.

DC IN: 12 V DC, 850 mA

Wireless

Wireless LAN standard:

Protocol IEEE802.11 a/b/g/n

Frequency range:

2.4 GHz, 5 GHz band

Modulation: DSSS and OFDM

Bluetooth Version: Bluetooth Version 4.1

Bluetooth

Communication system:

Bluetooth Specification v4.1

Output:

Bluetooth Specification Power Class 1

Maximum communication range:

Line of sight approx. 30 m

Frequency band: 2.4 GHz

Modulation method: FHSS

Compatible Bluetooth Profiles:

A2DP v1.2, AVRCP v1.3

Supported Codecs: SBC, AAC, LDAC

Transmission range (A2DP):

• 20 Hz - 40,000 Hz (LDAC in

sampling 96 kHz and transmit by

990 kbps)

• 20 Hz - 20,000 Hz (in sampling

44.1 kHz)

General

Power requirements:

12 V DC with AC adaptor

Rating: Input 220 V - 240 V AC,

50/60 Hz

Power consumption (when using AC

adaptor): 12 W

Network standby:

Less than 3 W (all wired/wireless

network ports ON)

Dimensions (approx.):

255 mm × 192 mm × 39 mm

(width/depth/height)

incl. projecting parts

Mass (approx.): 0.9 kg

Operating temperature:

5 0C to 35 0C

Operating humidity: 25 % to 80 %

Supplied accessories

• AC adaptor (AC-L1210WW) (1)

• AC power cord (mains lead) (1)

• Remote commander (remote) (1)

• R03 (size AAA) batteries (2)

Specifications and design are subject to

change without notice.

BDP-S6700 /BDP-BX670

SPECIFICATIONS

[ Latin America / Argentina models ]

System

Laser: Semiconductor laser

Inputs and outputs

(Jack name:

Jack type/Output level/Load

impedance)

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT: HDMI 19-pin standard

connector

LAN (100): 100BASE-TX Terminal

USB:

USB jack Type A (For connecting a

USB memory, memory card reader,

digital still camera, and digital video

camera)*

* Do not use for power charging

purposes.

AC adaptor (AC-L1210WW):

Input: 100 V - 240 V ~ 50/60 Hz,

0.4 A

Output: 12 V, 1 A

Operating temperature: 0 0C - 45 0C

DC IN:12 V DC, 850 mA

Wireless

Wireless LAN standard:

Protocol IEEE802.11 a/b/g/n

Frequency range:

2.4 GHz, 5 GHz band

Modulation: DSSS and OFDM

Bluetooth Version: Bluetooth Version 4.1

Bluetooth

Communication system:

Bluetooth Specification v4.1

Output:

Bluetooth Specification Power Class 1

Maximum communication range:

Line of sight approx. 30 m

Frequency band: 2.4 GHz

Modulation method: FHSS

Compatible Bluetooth Profiles:

A2DP v1.2

AVRCP v1.3

Supported Codecs: SBC, AAC, LDAC

Transmission range (A2DP):

• 20 Hz - 40,000 Hz (LDAC in

sampling 96 kHz and transmit by 990

kbps)

• 20 Hz - 20,000 Hz (in sampling 44.1

kHz)

General

Power requirements:

12 V DC, 850 mA

Power consumption (when using AC

adaptor): 12 W

Dimensions (approx.):

255 mm × 192 mm × 39 mm

(width/depth/height)

incl. projecting parts

Mass (approx.): 0.9 kg

Operating temperature:

5 0C to 35 0C

Operating humidity: 25 % to 80 %

Supplied accessories

• High Speed HDMI Cable (1)

• Plug adaptor *(1)

• AC adaptor (AC-L1210WW) (1)

• AC power cord (1)

• Remote commander (remote) (1)

• R03 (size AAA) batteries

* This plug adaptor is not for the use in Chile.

Please use this plug adaptor in the countries

where it is necessary.

Specifications and design are subject to

change without notice.

BDP-S6700 /BDP-BX670

SPECIFICATIONS

[ Singapore model ]

System

Laser: Semiconductor laser

Inputs and outputs

(Jack name:

Jack type/Output level/Load

impedance)

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT:

HDMI 19-pin standard connector

LAN (100): 100BASE-TX Terminal

USB:

USB jack Type A (For connecting a

USB memory, memory card reader,

digital still camera, and digital video

camera)*

* Do not use for power charging

purposes.

DC IN: 12 V DC, 850 mA

Wireless

Wireless LAN standard:

Protocol IEEE802.11 b/g/n

Frequency range:

2.4 GHz band: Channels 1-13

Modulation: DSSS and OFDM

Bluetooth Version: Bluetooth Version 4.1

Bluetooth

Communication system:

Bluetooth Specification v4.1

Output:

Bluetooth Specification Power Class 1

Maximum communication range:

Line of sight approx. 30 m

Frequency band: 2.4 GHz

Modulation method: FHSS

Compatible Bluetooth Profiles:

A2DP v1.2, AVRCP v1.3

Supported Codecs: SBC, AAC, LDAC

Transmission range (A2DP):

• 20 Hz - 40,000 Hz (LDAC in

sampling 96 kHz and transmit by

990 kbps)

• 20 Hz - 20,000 Hz (in sampling

44.1 kHz)

General

Power requirements:

12 V DC with AC adaptor

Rating: Input 110 V - 240 V AC,

50/60 Hz

Power consumption (when using AC

adaptor): 12 W

Dimensions (approx.):

255 mm × 192 mm × 39 mm

(width/depth/height)

incl. projecting parts

Mass (approx.): 0.9 kg

Operating temperature:

5 0C to 35 0C

Operating humidity: 25 % to 80 %

Supplied accessories

• High Speed HDMI Cable (1)

• AC adaptor (AC-L1210WW) (1)

• AC power cord (mains lead) (1)

• Remote commander (remote) (1)

• R03 (size AAA) batteries (2)

Specifications and design are subject to

change without notice.

BDP-S6700 /BDP-BX670

SPECIFICATIONS

[ US , Canadian models ]

System

Laser: Semiconductor laser

Inputs and outputs

(Jack name:

Jack type/Output level/Load

impedance)

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT: HDMI 19-pin standard

connector

LAN (100): 100BASE-TX Terminal

USB:

USB jack Type A (For connecting a

USB memory, memory card reader,

digital still camera, and digital video

camera)*

* Do not use for power charging

purposes.

DC IN:12 V DC, 850 mA

Wireless

Wireless LAN standard:

Protocol IEEE802.11 a/b/g/n

Frequency range:

2.4 GHz, 5 GHz band

Modulation: DSSS and OFDM

Bluetooth Version: Bluetooth Version 4.1

Bluetooth

Communication system:

Bluetooth Specification v4.1

Output:

Bluetooth Specification Power Class 1

Maximum communication range:

Line of sight approx. 30 m

Frequency band: 2.4 GHz

Modulation method: FHSS

Compatible Bluetooth Profiles:

A2DP v1.2 , AVRCP v1.3

Supported Codecs: SBC, AAC, LDAC

Transmission range (A2DP):

• 20 Hz - 40,000 Hz (LDAC in

sampling 96 kHz and transmit by

990 kbps)

• 20 Hz - 20,000 Hz (in sampling

44.1 kHz)

General

Power requirements:

12 V DC with AC adaptor

Rating: Input 120 V AC, 60 Hz

Power consumption (when using AC

adaptor): 12 W

Dimensions (approx.):

255 mm × 192 mm × 39 mm

(10 1/8 in. × 7 5/8 in. × 1 9/16 in.)

(width/depth/height)

incl. projecting parts

Mass (approx.): 0.9 kg (2 lb)

Operating temperature:

5 0C to 35 0C (41 °F to 95 °F)

Operating humidity: 25 % to 80 %

Supplied accessories

• High Speed HDMI Cable (1)*

• AC adaptor (AC-M1210UC) (1)

• Remote commander (remote) (1)

• Size AAA (R03) batteries (2)

* Supplied for BDP-BX670

Specifications and design are subject to

change without notice.

BDP-S6700 /BDP-BX670

2. Demo Mode

If the message [[EJECT] Key is currently unavailable.] appears on

the screen after (open/close) is pressed, please perform following

steps

While the player is turned on, press ■(stop) , RETURN, (pause), and then

SUBTITLE button on the remote to disable the DEMO Mode.

NOTES

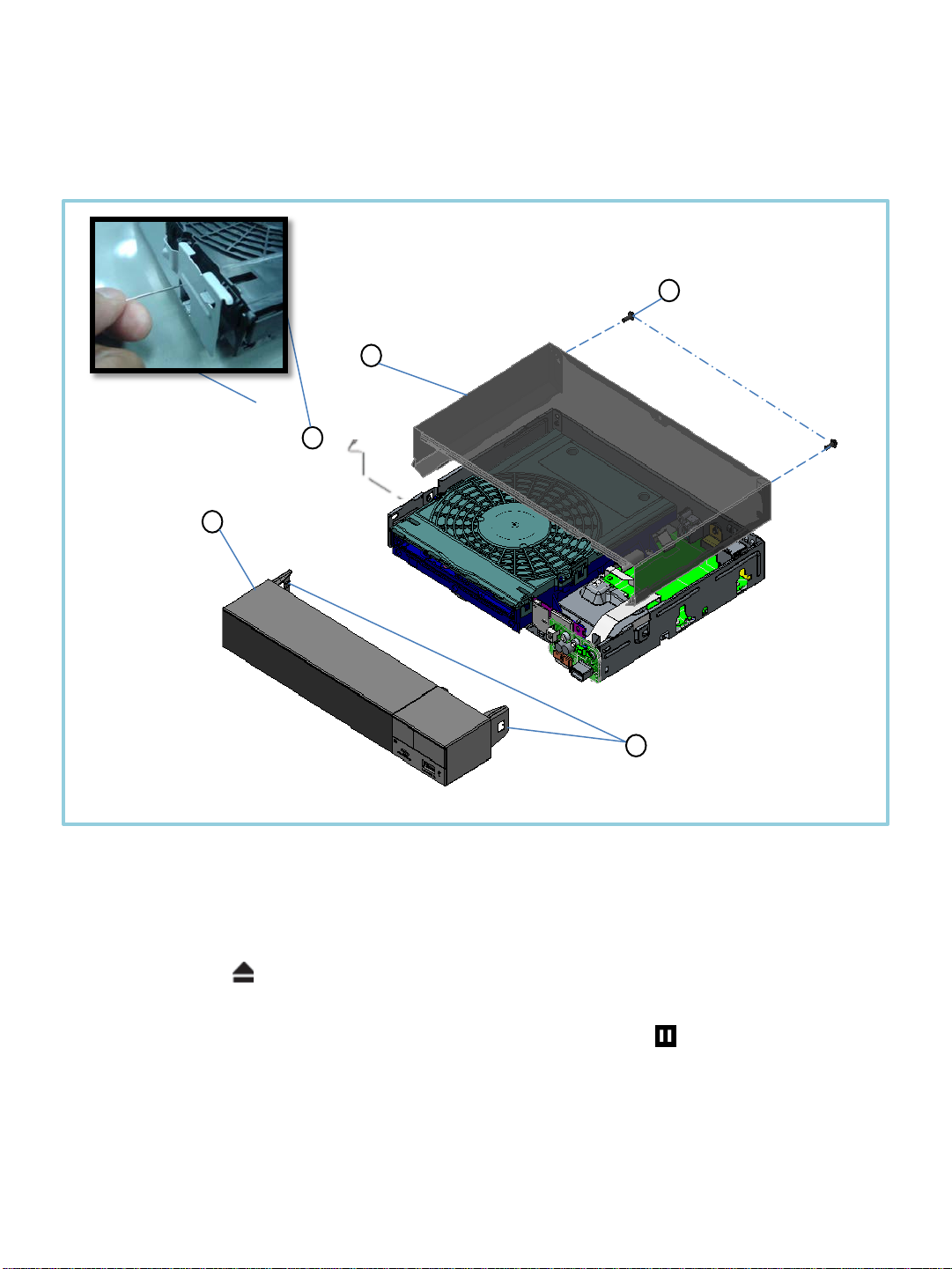

1. DISC REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION)

2 Upper case

Front Panel

3 2 hooks @ Side

2 hooks @ Bottom

Insert a clip in the

hole of Drive to

open the tray

2 screws (Black)

BDP-S6700 /BDP-BX670

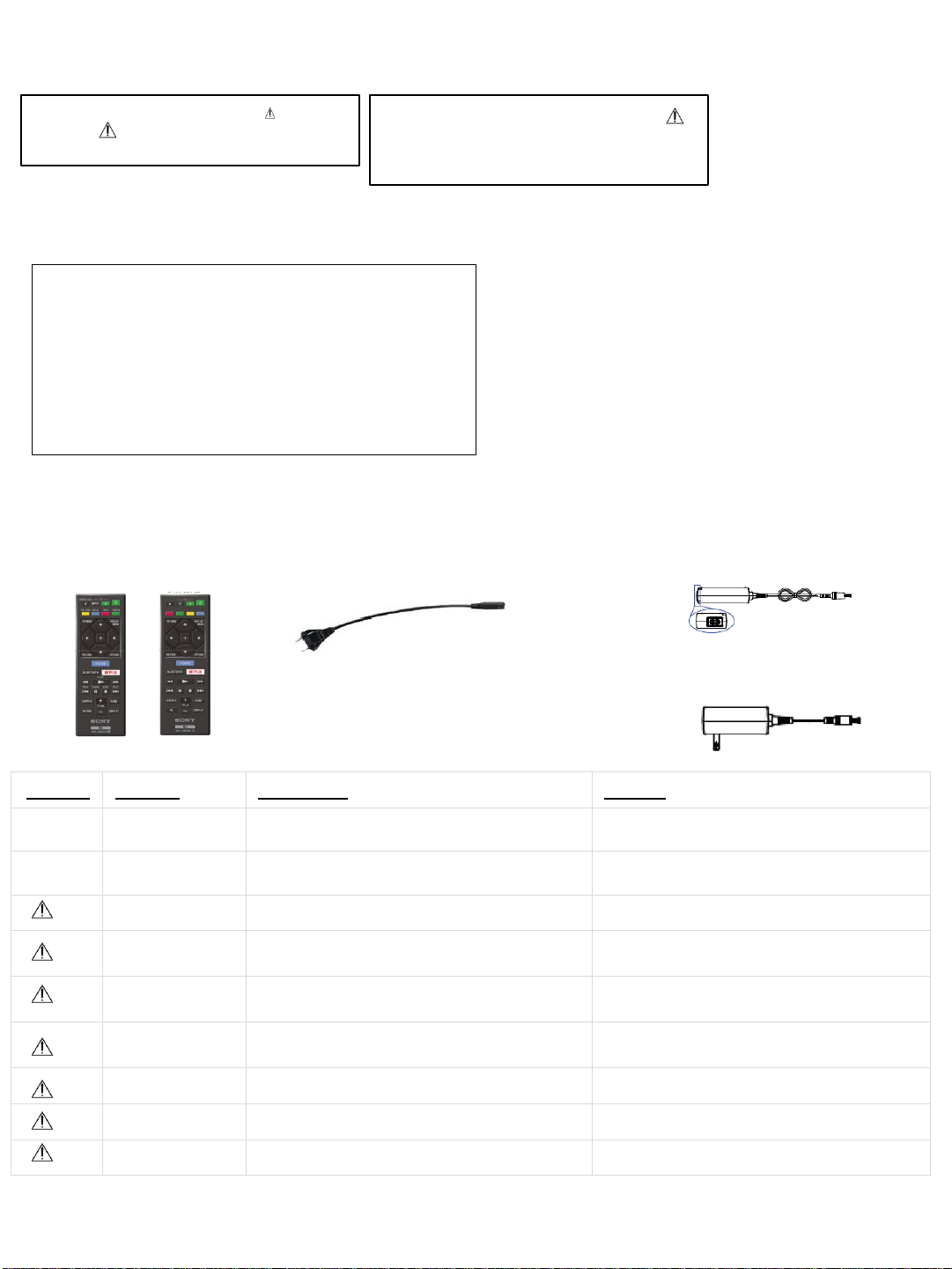

REPAIR PARTS LIST

The components identified by mark or dotted

line with mark are critical for safety.

Replace only with part number specified.

Les composants iden tifiés par une marque

sont critiquens pour la sécurité.

Ne les remplace r que par une pièce portant le

numéro spécifié.

Abbreviation:

ACCESSORIES

200

Remote Commander

202

AC ADAPTOR (AC-L1210WW) (except UC2)

201

Power-Supply Cord Set

Ref. No. Part No. Description Remark

200

-493-105-11

REMOTE COMMANDER (RMT

-VB200U) (BDP-S6700:UC2,E,AR/BDP-BX670)

200

-493-104-11

REMOTE COMMANDER (RMT

-VB200D) (BDP-S6700:UK,AEP,SP,AUS)

201

-846-095-12

CORD SET, POWER

-SUPPLY (BDP-S6700:AUS)

201

-846-094-11

CORD SET, POWER

-SUPPLY (BDP-S6700:UK)

201

-846-093-11

CORD SET, POWER

-SUPPLY (BDP-S6700:AEP,E,SP)

201

-846-091-11

CORD SET, POWER

-SUPPLY (BDP-S6700:AR)

201

-837-421-13

POWER

-SUPPLY CORD SET (BDP-S6700:UK)

202

-493-090-12

AC ADAPTOR (AC

-L1210WW) (BDP-S6700:Except UC2)

202

-493-089-11

AC ADAPTOR (AC

-M1210UC) (BDP-S6700:UC2/BDP-BX670)

The service policy of this model is Product Exchange

IN : India Model

MX : Mexican Model

PX : PX Model

RUS : Russian Model

UK : UK Model

AEP : AEP Model

US : US Model

CND : Canadian Model

AUS : Australian Model

SP : Singapore Model

TH : Thailand Model

E : Latin America Model

AR : Argentina Model

EA: Middle East Model

KS: Saudi Arabia Model

CH: China Model

TW : Taiwan Model

202

AC ADAPTOR (AC-M1210UC) (UC2)

RMT-VB200DRMT-VB200U

BDP-S6700 /BDP-BX670

REVISION HISTORY

Ver. Date Description of Revision

1.0 2015.11 New

1.1 2016.05 UpdateAC Adapter p/n from 1−493−090−11 1−493−090−12 .

BDP-S6700 /BDP-BX670

Altri manuali per BDP-S6700

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sony Lettore DVD

Sony

Sony UBP-X1000ES Manuale utente

Sony

Sony DVP-NS67P Manuale utente

Sony

Sony DVP-C670D - Cd/dvd Player Manuale utente

Sony

Sony DVP-NS72HP Operating Instructions / Manual de... Manuale utente

Sony

Sony DVP-NS355 Manuale utente

Sony

Sony DVP-FX701 Operating Instructions corrections (pg.9:... Manuale utente

Sony

Sony MCE-C98K Manuale utente

Sony

Sony DVP-CX860 Manuale utente

Sony

Sony DVP-SR760H Guida utente

Sony

Sony SLV-D550P Manuale utente

Sony

Sony BDP-S470 - Blu-ray Disc™ Player Manuale utente

Sony

Sony DVP-NS715P Manuale utente

Sony

Sony DVP-NS315BX Manuale utente

Sony

Sony DVP-NS755V Manuale utente

Sony

Sony MV-101 - Mobile Dvd Guida del prodotto

Sony

Sony DVP-PQ1 Marketing Manuale utente

Sony

Sony DVP-K370 Manuale utente

Sony

Sony DVP-SR500H Manuale utente

Sony

Sony DVP-K880D Manuale utente

Sony

Sony DVP-S3000 Operating Instructions / Mode... Manuale utente

Sony

Sony DVP-NS77H/S - Cd/dvd Player. Color Manuale utente

Sony

Sony BDP-BX38 Manuale utente

Sony

Sony DVP-NC685V Manuale utente

Sony

Sony DVP-SR100 Manuale utente

Manuali Lettore DVD popolari di altre marche

Philips

Philips DVP3560K/F8 Manuale utente

LENCO

LENCO DVP-740 X2 Manuale utente

JVC

JVC XV-N650BEU Manuale utente

Aiwa

Aiwa XD-DV370 Manuale utente

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manuale utente

Denon

Denon DVM-1805 - DVD Changer Manuale utente

Toshiba

Toshiba SD-3815 Manuale utente

Tevion

Tevion 44330 Manuale utente

Samsung

Samsung DVD-HD860 Manuale utente

Sylvania

Sylvania DP170SL8 Manuale utente

Toshiba

Toshiba SD-P1200 Manuale utente

JVC

JVC XV-D9000E Manuale utente

Dolby Laboratories

Dolby Laboratories CP650 Manuale utente

Philips

Philips DVD737K/931 Manuale utente

Denon

Denon DVD-5900 Manuale utente

Philips

Philips DVD 951 Manuale utente

Philips

Philips DVDR3460 Manuale utente

Toshiba

Toshiba SD-V394SU Manuale utente
