SERVICE MANUAL

Ver. 1.0 2016.03

9-930-439-11 RDCM

Home Entertainment Business Group

Blu-ray DiscTM / DVD Player

SONY®

2016K6900-1

Published by Manual design dept.

RMT-VB210U / RMT-VB210D

UHP-H1

US Model

UK Model

AEP Model

SPECIFICATIONS

UHP-H1

Specifications and design are subject to

change without notice.

System

Laser: Semiconductor laser

Inputs and outputs

(Jack name:

Jack type/Output level/Load

impedance)

LINE OUT R-AUDIO-L:

Phono jack/2 Vrms/10 kilohms

DIGITAL OUT (OPTICAL):

Optical output jack/–18 dBm

(wave length 660 nm)

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT 1*/2:

HDMI 19-pin standard connector

* Only HDMI OUT 1 supports 4K

output.

LAN (100): 100BASE-TX Terminal

USB:

USB jack Type A (For connecting a

USB memory, memory card reader,

digital still camera, and digital video

camera)*

* Do not use for power charging

purposes.

Wireless

Wireless LAN standard:

Protocol IEEE802.11 a/b/g/n

Frequency range:

2.4 GHz, 5 GHz band

Modulation: DSSS and OFDM

Bluetooth Version: Bluetooth Version 4.1

Bluetooth

Communication system:

Bluetooth Specification v4.1

Output:

Bluetooth Specification Power Class 1

Maximum communication range:

Line of sight approx. 30 m

Frequency band: 2.4 GHz

Modulation method: FHSS

Compatible Bluetooth Profiles:

A2DP v1.2, AVRCP v1.3

Supported Codecs: SBC, AAC, LDAC

Transmission range (A2DP):

• 20 Hz - 40,000 Hz (LDAC in

sampling 96 kHz and transmit by

990 kbps)

• 20 Hz - 20,000 Hz (in sampling

44.1 kHz)

General

Power requirements:

Rating: Input 220 V - 240 V AC,

50/60 Hz [UK, AEP] ; 120 V AC, 60 Hz [US]

Power consumption: 14 W

Network standby: [UK, AEP ]

Less than 3 W (all wired/wireless

network ports ON)

Dimensions (approx.):

360 mm × 250 mm × 50 mm

(width/depth/height)

incl. projecting parts

Mass (approx.): 2.8 kg

Operating temperature:

5 ºC to 35 ºC

Operating humidity: 25 % to 80 %

Supplied accessories

• Remote commander (remote) (1)

• R03 (size AAA) batteries (2)

2. Demo Mode

If the message [[EJECT] Key is currently unavailable.] appears on

the screen after (open/close) is pressed, please perform following

steps

While the player is turned on, press ■(stop) , RETURN, (pause), and then

SUBTITLE button on the remote to disable the DEMO Mode.

NOTES

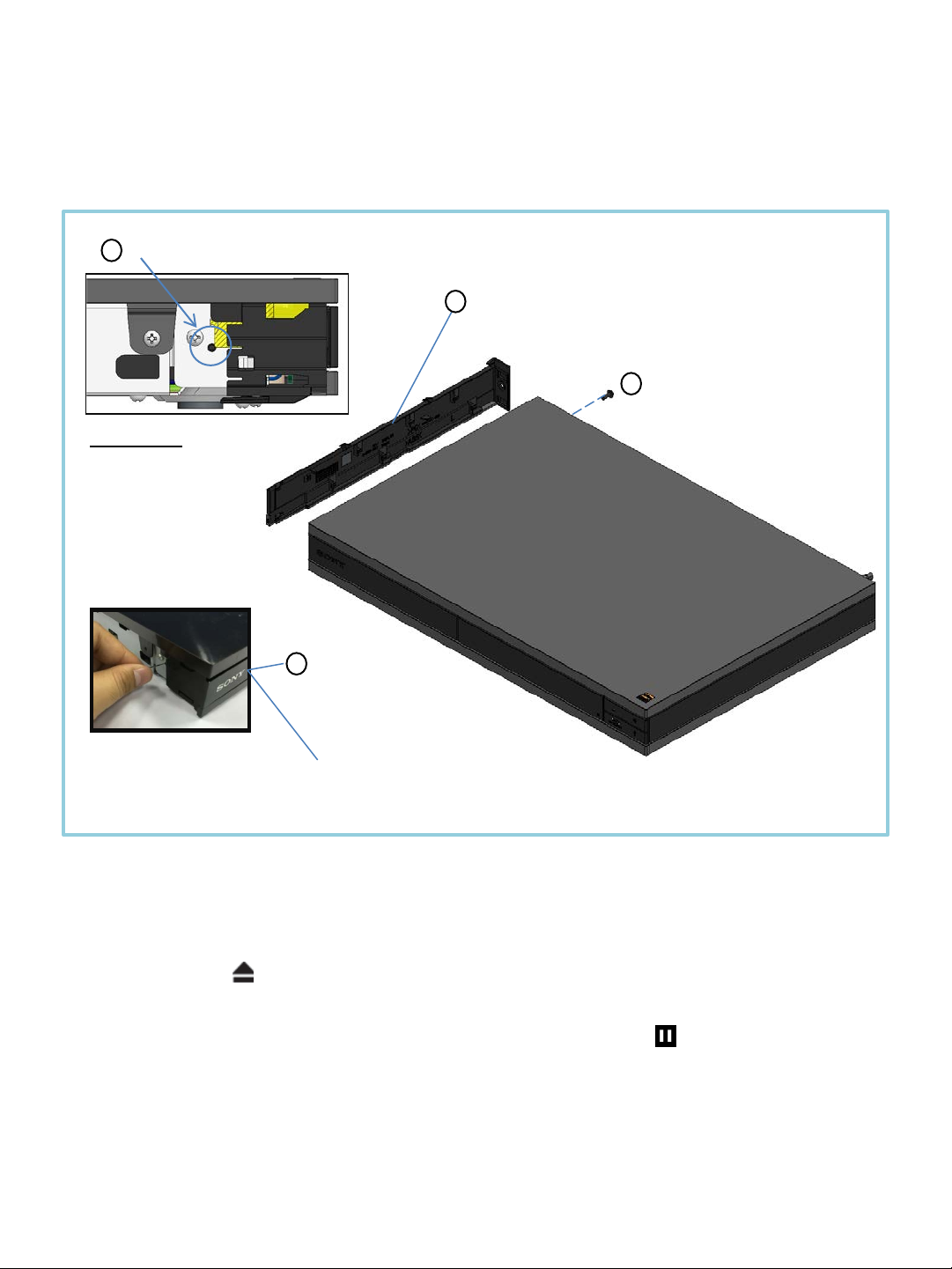

1. DISC REMOVAL PROCEDURE IF THE TRAY CANNOT BE EJECTED (FORCED EJECTION)

UHP-H1

1 screw (Black)

Rear Panel (Left)

Insert a clip

in the hole

of Drive to

open the

Tray

Left view

Eject Hole

REPAIR PARTS LIST

Abbreviation:

ACCESSORIES

200

Remote Commander

Ref. No. Part No. Description Remark

200

-493-167-11

REMOTE COMMANDER (RMT

-VB210U) (US )

200

-493-166-11

REMOTE COMMANDER (RMT

-VB210D) (UK, AEP )

The service policy of this model is Product Exchange

UK : UK Model

AEP : AEP Model

US : US Model

RMT-VB210DRMT-VB210U

UHP-H1

REVISION HISTORY

Ver. Date Description of Revision

1.0 2016.03 New

UHP-H1
