Sony CECHP06 Manuale utente

Quick Reference

快捷參考

4-126-895-21(1)

CECHP06

CECHP07

CECHP12

About the PS3™ system documentation

The PS3™ system documentation includes the following:

• Safety and Support

Before using the product, carefully read this document ﬁrst. It contains safety information

related to use of the PS3™ system, troubleshooting, speciﬁcations and other information.

• Quick Reference (this document)

This document contains information on setting up the PS3™ system, preparing for use and

basic hardware operations.

• User’s Guide (http://manuals.playstation.net/document/)

This online document is accessed through the Internet and contains detailed information

related to the use of the PS3™ system software ( page 29).

Check that you have all of the following items. If any items are missing, contact

the PS3™ service line at the number listed on your warranty card for assistance.

sAV cable

sUSB cable

sPLAYSTATION®3 system

sDUALSHOCK®3 wireless controller

sPrinted materials

sAC power cord

One of the following two cable types is

supplied with the system. The plug

conﬁguration varies depending on the

country or region.

Friends

Chatting and exchanging messages

PLAYSTATION®Network

Using PLAYSTATION®Network services

Network

Connecting to the Internet

Game

Playing games

Video

Playing video

Music

Playing music


Displaying images

Settings

Adjusting PS3™ system settings

Users

Selecting users to log in to the PS3™

system

Home menu

Category

Item

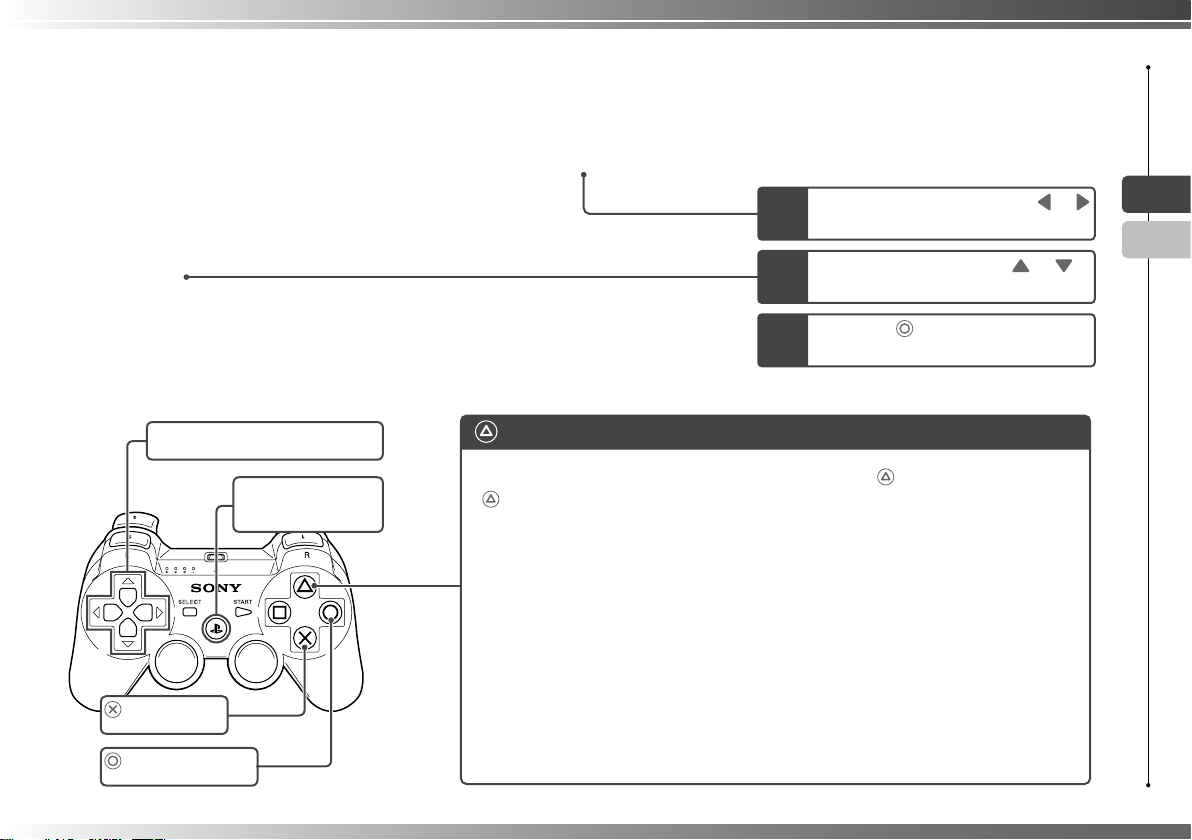

Using "XMB" (XrossMediaBar)

The PS3™ system includes a user interface called "XMB"

(XrossMediaBar). The main screen for "XMB" is called the "home

menu".

Select a category using the or

button.

Select an item using the or

button.

Press the button to conﬁrm the

selected item.

button: Displays the options menu/control panel

Selecting an icon and pressing the

button will display the options menu.

Icons Options menu

Pressing the button during content

playback will display the control panel.

Control panel

Directional buttons:

Used to select on-screen categories/items

button:

Conﬁrms the selected item

PS button:

Displays the home menu

Turns the system on/off

button:

Cancels an operation

Getting started

Part names

System front

PS family logo

Can be rotated to match the

position of the system

Disc slot

Power button

USB connectors

HDD access indicator

WLAN access indicator

Eject button

System rear

DIGITAL OUT (OPTICAL) connector

AV MULTI OUT connector

HDMI OUT connector

MAIN POWER switch

AC IN connector

Vent

LAN connector

Notice

Do not place the system in an area subject to excessive

dust or cigarette smoke. Dust build-up or cigarette

smoke residue on the internal components (such as the

lens) may cause the system to malfunction.

Hint

The system can be set in a horizontal or vertical position.

Set as shown in the diagram at right when setting in the

vertical position.

Caution

• Do not use the system in a closed cabinet or other locations where heat

may build up. Doing so may cause the system to overheat and may lead to

ﬁre, injury or malfunction.

• If the system’s internal temperature becomes elevated, the power indicator

will ﬂash alternately in red and green. In this case, turn off the system (

page 16) and leave it unused for a while. After the system cools down,

move it to a location with good ventilation, and then resume use.

DUALSHOCK®3 wireless controller

SELECT button

USB connector

L2 button

L1 button

Directional

buttons

Left stick/

L3 button*

START button

R2 button

R1 button

button

Right stick/

R3 button*

PS button

Port indicators

* The L3 and R3 buttons function when the sticks are pressed.

Hint

For details on the wireless controller, see "Using the wireless controller"

(page 17).

Getting started

Part names

Getting started

Setting up the PS3™ system

Step 1: Connect to a TV

Video output on the PS3™ system

The PS3™ system can output two types of resolution: HD and SD. Refer to the instruction manual

for the TV in use to check which video mode is supported.

*1This number indicates the number of scan lines. Note that "i" stands for "interlace" and "p" stands for

"progressive". Using progressive results in high-quality video with minimal ﬂickering.

*2SD resolution varies depending on the model of the PS3™ system in use and the content that is being played.

*3The video output setting on the system will display as "Standard (NTSC)".

*4The video output setting on the system will display as "Standard (PAL)".

HD (High Deﬁnition) SD (Standard Deﬁnition)

Video mode *1*21080p 1080i 720p 480p

576p

480i *3

576i *4

Aspect ratio 16:9 16:9 16:9 16:9

4:3

16:9

4:3

Screens showing the difference in resolution

Procedure ﬂow for setting up the

system

Step 3: Connect an Ethernet

cable. Page 10

Step 4: Connect the AC power

cord. Page 11

Step 2: Connect digital audio

devices. Page 9

Step 5: Perform initial setup of

the system software.

Page 11

Step 1: Connect to a TV.

Page 6

HD screen SD screen

Getting started

Setting up the PS3™ system

Video output cable types

The resolution displayed on the TV varies depending on the input connectors on the TV and the type of cable in use. Select a cable to match

the TV in use.

Cable type Input connector on the TV Supported video modes *1*2

HDMI cable

(sold separately) HDMI IN

connector

1080p, 1080i, 720p, 480p / 576p

Component AV cable

(sold separately)

Component

VIDEO IN

connector

YLRPR/CRPB/CB

COMPONENT VIDEO IN AUDIO IN

1080p, 1080i, 720p, 480p / 576p, 480i *3 / 576i *4

S VIDEO cable

(sold separately)

S VIDEO IN

connector

S VIDEO L

AUDIO

480i *3 / 576i *4

AV cable

(supplied)

VIDEO IN

connector

(composite)

VIDEO L

AUDIO

480i *3 / 576i *4

*1Depending on the type of TV or content to be played, some video modes may not be supported.

*2SD resolution varies depending on the model of the PS3™ system in use and the content that is being played.

*3The video output setting on the system will display as "Standard (NTSC)".

*4The video output setting on the system will display as "Standard (PAL)".

Getting started

Setting up the PS3™ system

Connection methods

Caution

• Do not plug the AC power cord for the system into an electrical outlet until

you have made all other connections.

• The socket-outlet shall be installed near the equipment and shall be easily

accessible.

Connecting to a TV using an HDMI cable

Connect the system to the TV using an HDMI cable (sold separately).

An HDMI cable can output both video and audio and enables you to

enjoy digital-quality video and audio with minimal loss of picture

quality.

HDMI IN connector

HDMI cable (sold separately)

HDMI OUT connector

Connecting with other types of cables

Connect cables other than the HDMI cable to the AV MULTI OUT

connector on the system.

VIDEO

AUD IO

VIDEO IN connector

AV cable (supplied)

AV MULTI OUT connector

Example: When using the supplied AV cable

Hint

If you change the type of cable used to connect the system, video may not be

displayed. If this happens, turn off the system and then turn it on again by

touching the power button on the system front for at least ﬁve seconds (until the

system beeps twice). The video output setting will then be reset to the standard

resolution.

Step 2: Connect digital audio devices

You can connect audio devices that support digital audio output,

such as an AV receiver for home entertainment use.

Hint

When connecting a digital audio device to the system, go to (Settings)

(Sound Settings) "Audio Output Settings", and then adjust the settings as

necessary for the audio device.

Audio output on the PS3™ system

The supported channels may vary depending on the output

connector to be used.

PS3™ system output connectors Channels that can be used for output

2 Ch. 5.1 Ch. 7.1 Ch.

AV MULTI OUT connector  

Digital out (optical) connector  

HDMI OUT connector *

* A device compatible with Linear PCM 7.1 Ch. is required to output 7.1 Ch.

audio from the HDMI OUT connector.

Connecting with an optical digital cable

Audio will be output from the optical digital cable. Video will be output

from the video output cable.

Optical digital cable for

audio (sold separately)

Digital audio device

such as an AV receiver

Video output cable

for the TV in use

(page 7)

Hint

Normally, audio cannot be output simultaneously from multiple output

connectors. For example, if your PS3™ system is connected to a TV via an

HDMI cable and to an audio device via an optical digital cable and "Digital Out

(Optical)" is set under "Audio Output Settings", audio will no longer be output

from the TV and will only be output from the audio device.

Getting started

Setting up the PS3™ system

Getting started

Setting up the PS3™ system

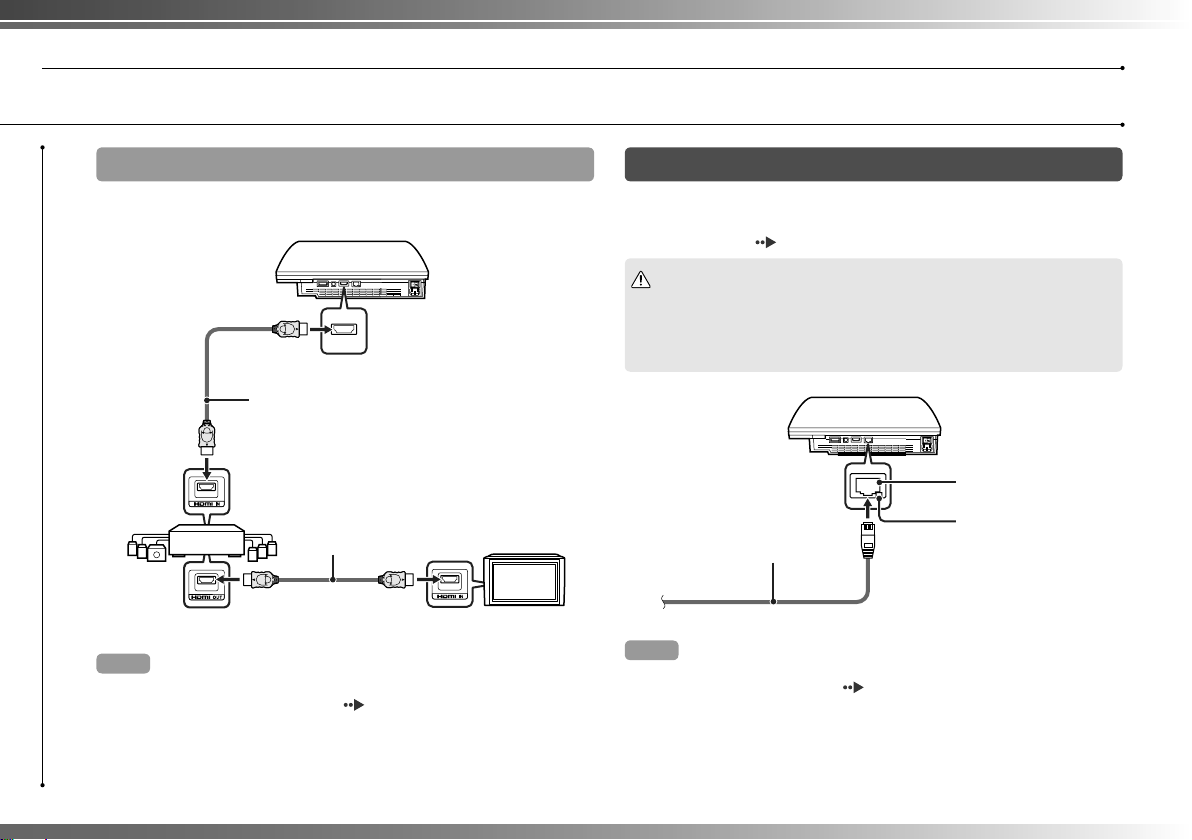

Connecting with an HDMI cable

Both audio and video will be output from the HDMI cable. You can

output the TV picture via an audio device.

HDMI cable (sold separately)

Digital audio device such

as an AV receiver

HDMI cable (sold separately)

Hints

• If your TV is not equipped with an HDMI input connector, use a video output

cable of the correct type for your TV ( page 7) to connect it to the PS3™

system directly.

• If a device is connected to the PS3™ system via an HDMI cable, do not turn

off the device while the system is turned on (power indicator is lit solid

green). Doing so may cause sound distortions or produce abnormal sounds.

Step 3: Connect an Ethernet cable

Using a commercially available Ethernet cable, you can connect the

system to the Internet. For details on network settings, see "Adjusting

network settings" ( page 24).

Caution

The system supports 10BASE-T, 100BASE-TX and 1000BASE-T networks. Do

not connect a standard telephone line or other types of cords or cables that

are not compatible with the system directly to the LAN connector on the

system, as this may cause heat build-up, ﬁre or malfunction.

LAN connector

Commercially available

Ethernet cable

LAN access indicator

Hint

You can connect to the Internet without using an Ethernet cable. For details,

see "Using a wireless connection" ( page 25).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sony Console di gioco

Sony

Sony Playstation Vita PCH-ZPF1 Manuale utente

Sony

Sony Playstation SCPH-9000 Series Manuale utente

Sony

Sony SCPH-50004 SS Manuale utente

Sony

Sony PlayStation 5 Manuale utente

Sony

Sony PlayStation 4 Manuale

Sony

Sony PlayStation Vita Manuale utente

Sony

Sony PS 2 SCPH-77001CB Manuale utente

Sony

Sony 98007 - 3 Game Console Manuale di installazione e funzionamento

Sony

Sony PlayStation 3 (Uncharted: Drake's Fortune Limited Edition... Manuale utente

Sony

Sony SCPH-75006 Manuale utente

Sony

Sony PlayStation 4 CUH-1215B Manuale utente

Sony

Sony PS4 Pro Manuale utente

Sony

Sony 40GB Playstation 3 3-285-687-11 Manuale utente

Sony

Sony PlayStation Vita Manuale utente

Sony

Sony SCPH-30006 R Manuale utente

Sony

Sony CUH-2208A Manuale di installazione e funzionamento

Sony

Sony Play Station 2 Manuale utente

Sony

Sony CECH-2501A Manuale utente

Sony

Sony PlayStation Portable Manuale utente

Sony

Sony Playstation 2 Manuale utente

Sony

Sony 80GB Playstation 3 3-212-098-12 Manuale utente

Sony

Sony SCPH-30001 R Manuale utente

Sony

Sony Playstation 3 PS3 Manuale utente

Sony

Sony PlayStation PSP Go Manuale utente

Manuali Console di gioco popolari di altre marche

Atari

Atari 2600 Manuale utente

PLAYNETIC

PLAYNETIC GameNetic Manuale utente

Nintendo

Nintendo Starlight Fun Center Manuale utente

Saitek

Saitek Alchemist Plus Manuale utente

Sears

Sears Tele-Games 637.99743 Manuale utente

AYANEO

AYANEO 2 Manuale utente

Mattel

Mattel My Meebas N2214 Manuale utente

Entex

Entex PacMan2 Manuale utente

Sega

Sega 32X Manuale utente

Saitek

Saitek Cougar Manuale utente

View-Master

View-Master Interactive Vision Schema elettrico

Excalibur

Excalibur ABC Wide 333 Manuale utente

Microsoft

Microsoft XBOX Manuale del proprietario

LEXIBOOK

LEXIBOOK JL2700 Manuale utente

BeoPlay

BeoPlay A1 Manuale utente

Nintendo

Nintendo VS.-Pak Manuale utente

Nintendo

Nintendo Game Boy Advance Manuale del proprietario

Excalibur

Excalibur king Arthur 915-3 Manuale utente
