Quick Setup Guide

BDV-EF200

Connect the speakers

Connect the speaker cords to match the color of the SPEAKERS jacks of the unit.

Rear panel of the main unit

Red

White

Purple

2-A

Connect with HDMI cables (recommended)

For connecting with video cords instead of HDMI cables, see “2-B Connect with video cords” on the reverse side.

Connecting your TV

HDMI IN DIGITAL OUT

OPTICAL

DIGITAL IN

OPTICAL

ARC

OUT

IN 1 IN 2

VIDEO OUT

AUDIO IN

AUDIO

HDMI cable* Digital optical cord*

Make this connection to enjoy TV sound via the system.

This connection is unnecessary if your TV is compatible with

the Audio Return Channel (ARC) function.

Rear of the main unit

Connecting your set-top box

If you do not use a set-top box, skip to“3 Perform “Easy Setup”” on the reverse side.

To enjoy sound from your set-top box, press FUNCTION repeatedly to select “HDMI 1.”

HDMI OUT

DIGITAL IN

OPTICAL

ARC

OUT

IN 1 IN 2

AUDIO IN

AUDIO

VIDEO OUT

HDMI cable*

Set-top box

Rear of the main unit

*Not supplied.

For details, refer to the Operating Instructions.

Continue to “3 Perform “Easy Setup””

Perform “Easy Setup”

Do not insert a disc before performing the “Easy Setup”.

1. Insert batteries into the remote.

2. Connect the AC power cords of the

main unit and your TV to the AC power

outlet, and then turn on the power of

the main unit and your TV.

3. Switch the input selector on your TV

so that system screens like the ones

below appear on the TV screen.

“Easy Setup” screenStarting up

2-B

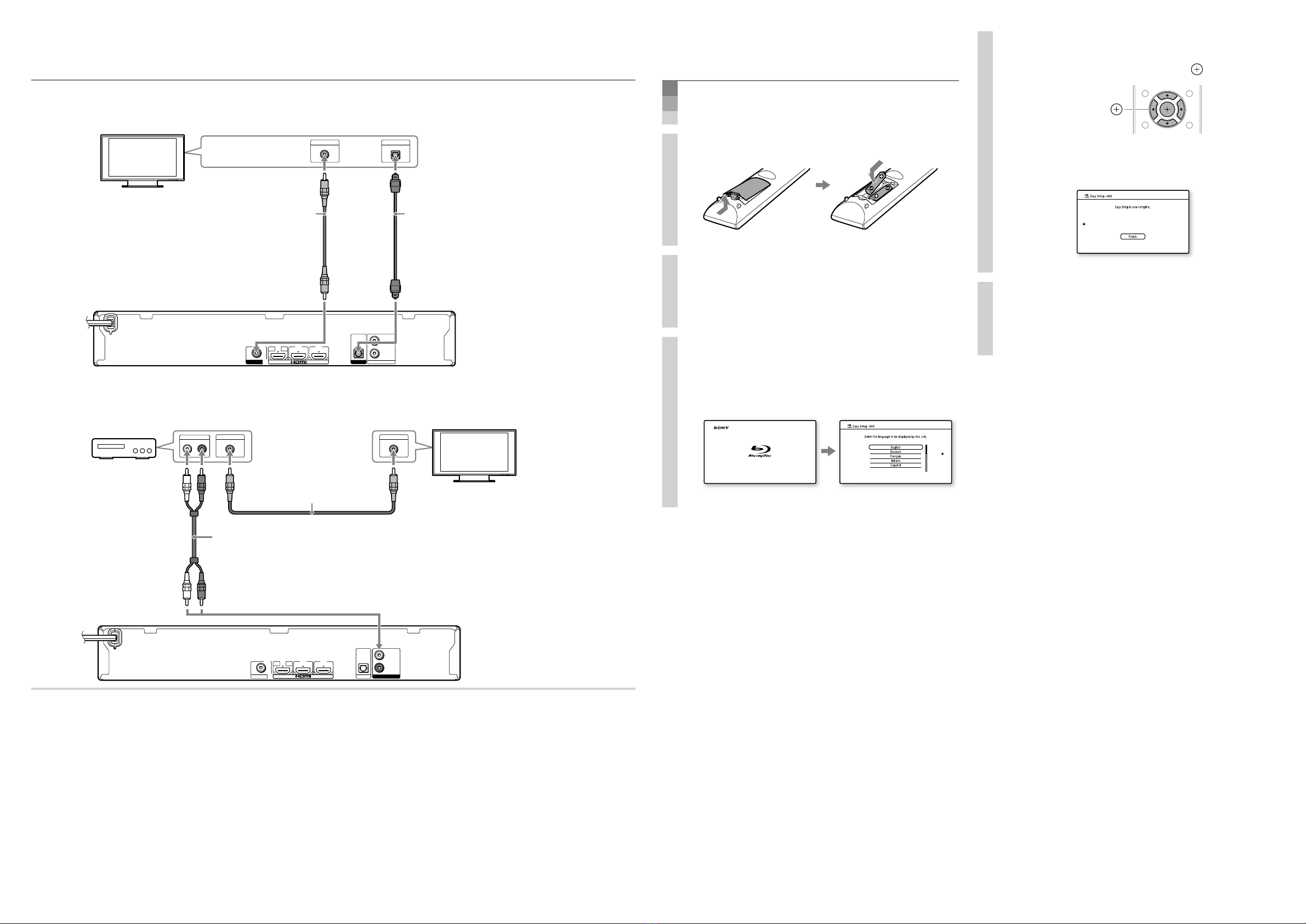

Connect with video cords

If you completed“2-A Connect with HDMI cables (recommended),”skip to “3 Perform “Easy Setup.””

Connecting your TV

Rear of the main unit

VIDEO IN DIGITAL OUT

OPTICAL

DIGITAL IN

OPTICAL

ARC

OUT

IN 1 IN 2

AUDIO IN

AUDIO

VIDEO OUT

Video cord* Digital optical cord*

Make this connection to enjoy TV sound via the system.

Connecting your set-top box

If you do not use a set-top box, skip to“3 Perform “Easy Setup.””

To enjoy sound from your set-top box, press FUNCTION repeatedly to select “AUDIO.”

VIDEO OUT

AUDIO OUT

VIDEO IN

VIDEO OUT

OPTICAL

DIGITAL IN

AUDIO IN

AUDIO

OUT

ARC

IN 1 IN 2

Set-top box TV

Video cord*

Audio cord*

Make this connection to enjoy set-top box sound via the system.

Rear of the main unit

*Not supplied.

4. Perform basic settings by following

the on-screen instructions in “Easy

Setup” using ///and .

///,

[Easy Setup is now complete.] appears when “Easy

Setup” is complete.

Basic setup is complete. Refer to the

supplied Operating Instructions for details

on how to enjoy disc playback and many

other features.
