Sony HT-6500DP Manuale utente

IN OUT IN

CD MD/TAPE

CENTERSURROUND

SPEAKERSSPEAKERS

IMPEDANCE USE 8 – 16

Ω

IMPEDANCE USE 8 – 16

Ω

ANTENNA

Ω

COAXIAL

DVD/LD

COAXIAL

AUDIO IN AUDIO IN AUDIO OUT

AUDIO OUT

AUDIO IN

VIDEO 1

VIDEO IN

VIDEO OUT

VIDEO IN VIDEO OUT

DVD

MONITOR

VIDEO 2

SUB

WOOFER

OPTICAL

VIDEO 2

DIGITAL

FRONT

AUDIO

INPUT

COMPONENT

VIDEO

VIDEO IN

SUB

WOOFER

FRONT SURROUND

CENTER

MULTI CH IN

INPUT

HT-6500DP

HOME THEATER SYSTEM

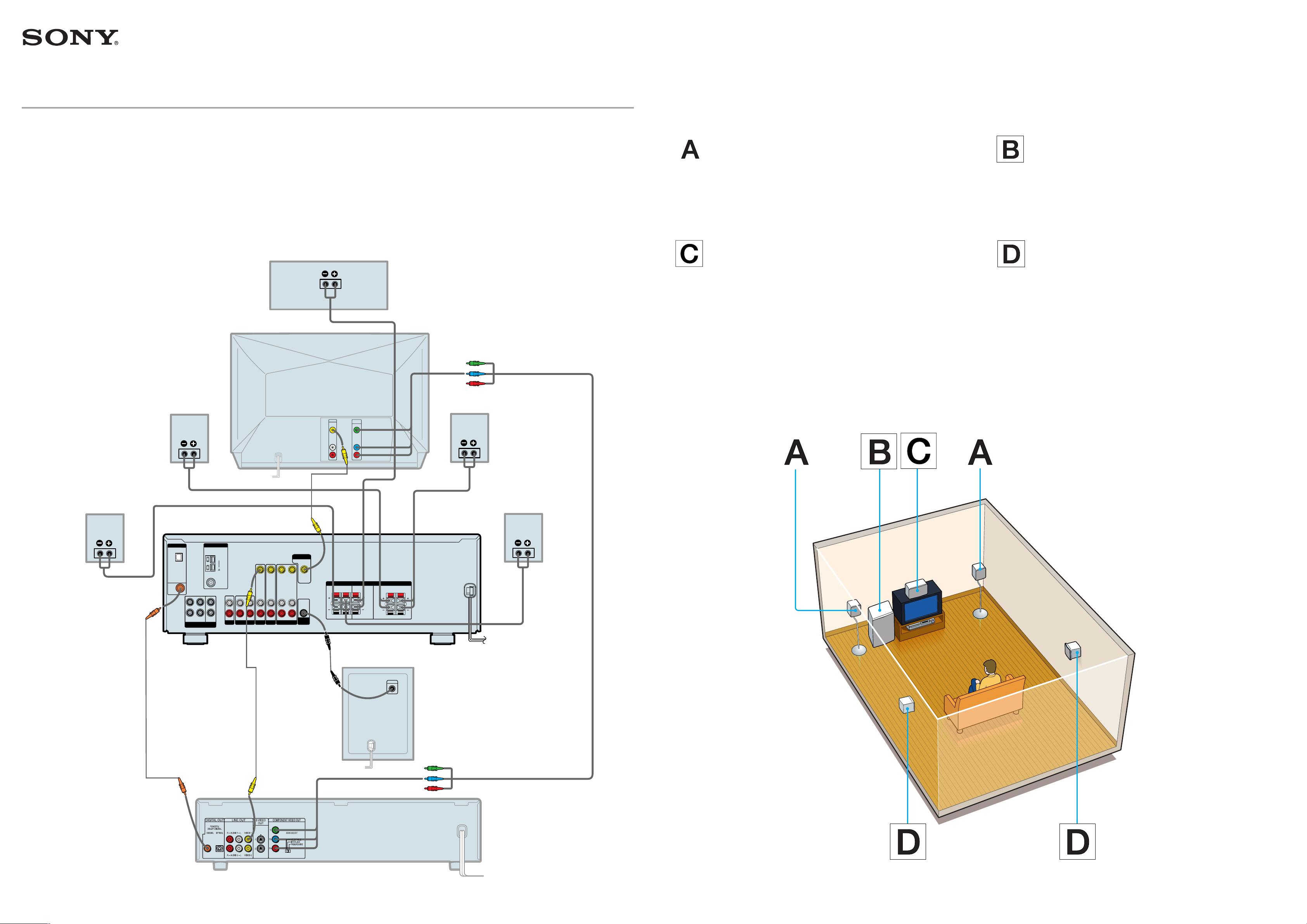

Speakers – Connection and Installation

4-239-992-31(2)

Front speaker

SS-MSP2

Front speaker

SS-MSP2

Center speaker

SS-CNP2

Surround

speaker

SS-MSP2

Surround

speaker

SS-MSP2

Subwoofer

SA-WMSP4

DVP-NC655P

Sony Corporation 2002 Printed in Malaysia

STR-K840P

Speaker installation

For best performance, we recommend speaker placement as shown.

See the Operating Instructions for more information.

For greater flexibility in the positioning of the speakers, use the optional WS-FV10C floor stand

(available only in certain countries).

Center speaker

Place on the top of or below the TV.

Surround speakers

Place right beside or slightly behind your

listening position, and a little higher than

your ears.

Subwoofer

Can be placed anywhere.

Front speakers

Place on both sides of the TV equal distances

apart.

A A

TV monitor

COMPONENT VIDEO HOOKUP

If your TV monitor have COMPONENT VIDEO INPUT jacks, use a component video cord to connect to the

DVD player (DVP-NC655P) for better picture quality.

When you make the component video hookup

• Set SCAN SELECT on the DVD player to “PROGRESSIVE”.

• Set your TV’s video input to match your selection.

• You do not have to connect the LINE OUT VIDEO 1 jack (on DVD player) to the DVD/LD VIDEO 1 jack (on receiver).
