PFM-42V1 series Protocol Manual

(Full access version)

Preliminary Ver. 1.1

1. Communication Parameters

Baud Rate 9600

Character length 8 bits

Parity none

Stop bit length 1 bits

Flow Control none

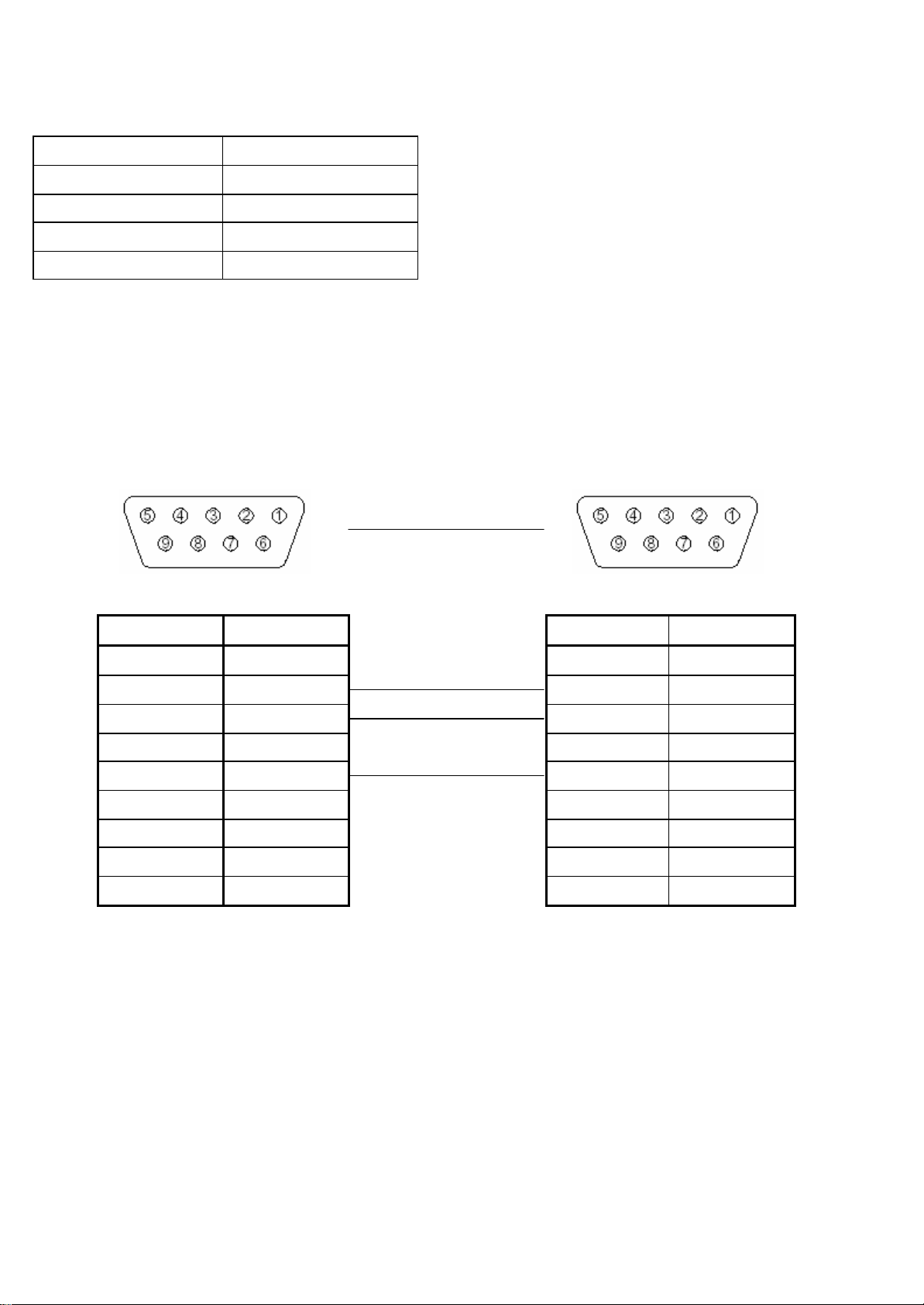

2. Pin Assignment

Monitor side : D-sub 9pin (Female) Host side : D-sub 9pin (male)

Pin number Function Pin number Function

1NC 1NC

2RD 2RD

3TD 3TD

4NC 4NC

5GND 5GND

6NC 6NC

7NC 7NC

8NC 8NC

9NC 9NC

(Straight connection is necessary)

3. Command Table

1. General Function.

(a) Mode Control

Syntax Header Category Function Data1 Data2

Control 0x8C 0x01 Code Table

(1-a)-[b]

Enquiry 0x83 0xFF 0xFF

Execute Judge 0x89

0x00 Code Table (1-a)-

[a]

0xFF 0xFF

Answer Header Answer Return Data Size Return Data1

Return Data2

…

0x70 0x00 Completed

0x70 0x01 Limit Over

0x70 0x02 Limit Under

Control

0x70 0x03 Command Canceled

Enquiry 0x70 0x00 0x01 Code Table

(1-a)-[b]

Completed

0x700x00 Variable Code Table

(1-a)-[b]

……Completed with Enable

Codes

0x70 0x03 Command Disable

Execute Judge

0x70 0x04 Command All Enable

Code table (1-a)

Command Execute Judge ACK

[a] Function [b] Range/Switch Code Control Enquiry Standby Setup

Sequence

Power

0x00 OFF0x00 Power

0x01 ON

Yes Yes Enable Enable Enable

0x08 MON RGB1

0x09 MON YUV1

0x0A MON RGB2

0x0B MON YUV2

0x0C MON VIDEO (COMPOSITE)

0x0D MON VIDEO (Y/C)

0x01 Input Select

0x20 MON DVI

Yes Yes Disable Note Note

0x00 OFF0x02 Force Status Display

0x01 ON

Yes Yes Disable Disable Enable

0x00 OFF0x03 Audio Mute

0x01 ON

Yes Yes Disable Disable Enable

0x00 ON0x04 Auto Status Display

0x01 OFF

Yes Yes Disable Disable Enable

0x00 OFF

0x01 Caption1

0x02 Caption2

0x03 Text1

0x05 Closed Caption

0x04 Text2

Yes Yes Disable Disable Note

0x00 Auto

0x01 NTSC

0x02 NTSC 4.43

0x03 PAL

0x04 SECAM

0x05 PAL-M

0x06 PAL-N

0x06 Color System

0x07 PAL60

Yes Yes Disable Disable Note

0x00 NTSC/PAL/SECAM/NTSC4430x07 Auto Color System

0x01 NTSC/PAL-M/PAL-N

Yes Yes Disable Disable Note

0x00 OFF0x08 Power Saving

0x01 ON

Yes Yes Note Note Note

0x00 OFF Timer

0x01 ON Timer

0x02 ON/OFF Timer

0x09 ON/OFF Timer

0x03 OFF

Yes Yes Note Note Note

Code table (1-a)

Command Execute Judge ACK

[a] Function [b] Range/Switch Code Control Enquiry Standby Setup

Sequence

Power

0x00 OFF0x0A Timer Repeat

0x01 ON

Yes Yes Enable Enable Enable

0x00 OFF

0x01 AUTO

0x0B Picture Inversion

0x02 ON

Yes Yes Note Note Note

0x00 OFF0x0C Picture Orbit

0x01 ON

Yes Yes Enable Enable Enable

0x00 Small

0x01 Middle

0x0D Orbit Range

0x02 Large

Yes Yes Enable Enable Enable

0x00 10 sec.

0x01 30 sec.

0x02 1 min.

0x0E Orbit Cycle

0x03 5 min.

Yes Yes Enable Enable Enable

0x00 Japanese

0x01 English

0x02 Deutsch

0x03 Francais

0x04 Espanol

0x0F Language

0x05 Italiano

Yes Yes Enable Enable Enable

0x10 Index Number 0x01 –0xFF Yes Yes Enable Enable Enable

0x00 ON

0x01 ON

0x11 Remote Mode

0x02OFF

Yes Yes Enable Enable Enable

0x00 OFF0x12 Remote Only

0x01 ON

Yes Yes Enable Enable Enable

0x00 Standard0x13 Energy Saving

0x01 Reduce

Yes Yes Enable Enable Enable

0x00 ON0x14 Speaker Out

0x01 OFF

Yes Yes Disable Disable Enable

0x00 1080i0x16 HD Mode

0x01 1035i

Yes Yes Disable Disable Enable

0x00 DTV0x17 RGB Mode

0x01 PC

Yes Yes Disable Disable Enable

0x00 H/Comp0x18 Sync Mode

0x01 Video

Yes Yes Disable Disable Enable

Code table (1-a)

Command Execute Judge ACK

[a] Function [b] Range/Switch Code Control Enquiry Standby Setup

Sequence

Power

0x00 On/Off0x19 Menu Key

0x01 Return

Yes Yes Disable Disable Enable

0x00 OFF

0x01 30 min

0x02 60 min

0x03 90 min

0x1A Sleep

0x04 120 min

Yes Yes Note Note Note

0x00 OFF0x1B Clock Display

0x01 ON

Yes Yes Enable Enable Enable

0x00 ON0x30 PAP

0x01 OFF

Yes Yes Disable Disable Enable

0x00 Left

0x01 Right

0x31 Active Picture

0x02 Swap

Yes Yes Disable Disable Enable

0x32 Picture Size 0x00 –0x0E Yes Yes Disable Disable Enable

(b) Color matrix

Syntax Header Category Function Data1 Data2 Data3

Control 0x8C 0x02 Code Table

(1-c)

Code Table

(1-b)-[b]

Enquiry 0x83 Code Table

(1-c)

0xFF

Execute Judge 0x89

0x00 Code Table (1-b)-

[a]

0xFF 0xFF

Answer Header Answer Return Data Size Return Data1

Return Data2

…

0x70 0x00 CompletedControl

0x70 0x03 Command Canceled

Enquiry 0x70 0x00 0x02 Code Table

(1-c)

Code Table

(1-b)-[b]

Completed

0x70 0x03 Command DisableExecute Judge

0x70 0x04 Command All Enable

Code Table (1-b)

Command Execute Judge ACK

[a] Function [b] Range/Switch Code Control Enquiry Standby Setup

Sequence

Power

0x00 YCbCr0x1D Color Matrix

0x01 YPbPr

Yes Yes Disable Enable Enable

Code Table (1-c)

Format Select

0x00 480p

0x01 1080i

0x02 720p

Syntax Header Category Function Data1 Data2 Data3

Control 0x8C 0x02 Hour:

0x00 –0x17

Minute:

0x00 –0x3B

Enquiry 0x83 Code Table

(1-c)

0xFF

Execute Judge 0x89

0x00 Code Table (1-d)-

[a]

0xFF 0xFF

Answer Header Answer Return Data Size Return Data1

Return Data2

…

0x70 0x00 Completed

0x70 0x01 Limit Over

0x70 0x02 Limit Under

Control

0x70 0x03 Command Canceled

Enquiry 0x70 0x00 0x02 Hour:

0x00 –0x17

Minute:

0x00 –0x3B

Completed

Execute Judge

0x70 0x04 Command All Enable

Code Table (1-d)

Command Execute Judge ACK

[a] Function [b] Range/Switch Code Control Enquiry Standby Setup

Sequence

Power

ON/OFF Timer

0x1E Power ON Time Yes Yes Enable Enable Enable

0x1F Power OFF Time Yes Yes Enable Enable Enable

Picture Inversion

0x20 Invert Start Time Yes Yes Enable Enable Enable

0x21 Invert End Time Yes Yes Enable Enable Enable

Time Set

0x22 Time Set Yes Yes Enable Enable Enable

2. Picture/Sound

(a) Picture/sound

Syntax Header Category Function Data1 Data2

Control 0x8C 0x01 Code Table

(2-a)-[b]

Enquiry 0x83 0xFF 0xFF

Execute Judge 0x89

0x10 Code Table (2-a)-

[a]

0xFF 0xFF

Answer Header Answer Return Data Size Return Data1

Return Data2

…

0x70 0x00 Completed

0x70 0x01 Limit Over

0x70 0x02 Limit Under

Control

0x70 0x03 Command Canceled

Enquiry 0x70 0x00 0x01 Code Table

(2-a)-[b]

Completed

0x70 0x00 Variable (Data

Size)

Code Table

(2-a)-[b]

……Completed with Enable

Codes

0x70 0x03 Command Disable

Execute Judge

0x70 0x04 Command All Enable

Code table (2-a)

Command Execute Judge ACK

[a] Function [b] Range/Switch Code Control Enquiry Standby Setup

Sequence

Power

0x00 Contrast 0x00 –0x64 Yes Yes Disable Disable Enable

0x01 Brightness 0x00 –0x64 Yes Yes Disable Disable Enable

0x02 Chroma 0x00 –0xC8 Yes Yes Disable Disable Enable

0x03 Phase 0x00 –0x64 Yes Yes Disable Disable Enable

0x00 Cool

0x01 Neutral

0x02 Warm

0x03 User1

0x04 User2

0x04 Color Temp

0x05 User3

Yes Yes Disable Disable Enable

0x09 Sharpness 0x00 –0x14 Yes Yes Disable Disable Enable

0x00 Off

0x01 Low

0x02 Mid

0x0A NR

0x03 High

Yes Yes Disable Disable Enable

Code table (2-a)

Command Execute Judge ACK

[a] Function [b] Range/Switch Code Control Enquiry Standby Setup

Sequence

Power

0x00 On0x0C Dynamic Picture

0x01 Off

Yes Yes Disable Disable Enable

0x00 High

0x01 Mid

0x0E Gamma Correct

0x02 Low

Yes Yes Disable Disable Enable

0x00 Standard

0x01 Vivid

0x02 User1

0x03 User2

0x10 Picture Mode

0x04 User3

Yes Yes Disable Disable Enable

0x30 Volume 0x00 –0x64 Yes Yes Disable Disable Enable

0x31 Treble 0x00 –0x64 Yes Yes Disable Disable Enable

0x32 Bass 0x00 –0x64 Yes Yes Disable Disable Enable

0x33 Balance 0x00 –0x64 Yes Yes Disable Disable Enable

0x00 Off

0x01 Hall

0x34 Surround

0x02 Simulate

Yes Yes Disable Disable Enable
