Sony BDP-S1500 Manuale utente

BDP-S1500/S5500

RMT-VB100U

System

Laser: Semiconductor laser

Inputs and outputs

( Jack name:

Jack type/Output level/Load impedance)

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT:

HDMI 19-pin standard connector

LAN (100):

100BASE-TX Terminal

USB:

USB jack Type A (For connecting a USB memory,memory card reader,

digital still camera, and digital video camera)

AC adaptor:

Input: 100 V - 240 V ~ 50/60 Hz, 240 mA

Output: 12 V, 800 mA

Operating temperature: 0 ºC - 45 ºC

DC (direct current) IN:

BDP-S5500: 12 V DC (direct current),750 mA

BDP-S1500: 12 V DC (direct current), 600 mA

Wireless (BDP-S5500 ONLY)

Wireless LAN (local area network) standard:

IEEE 802.11 b/g/n

Frequency range:

2.4 GHz band : Channels 1-13

Modulation:

DSSS and OFDM

General

Power requirements:

BDP-S5500: 12 V DC (direct current),

750 mA (with AC adaptor)

BDP-S1500: 12 V DC (direct current),

600 mA (with AC adaptor)

Power consumption (when usingACadaptor):

BDP-S1500: 8.8 W

BDP-S5500: 11 W

Dimensions (app rox.):

230mm × 194 mm × 39 mm

(width/depth/height)incl. projecting parts

Mass (approx.):

0.8 kg

Operating Temperature:

5ºC to 35ºC (41ºF to 95ºC)

Operating humidity:

25 % to 80 %

Supplied accessories

• High Speed HDMI cable (1)

• Remote commander (remote) (1)

• R03 (size AAA) batteries (2)

• AC adaptor (AC-M1208WW)(1)

• Plug adaptor *(1)

• AC power cord (1)

* This plug adaptor is not for the use in Chile.

Please use this plug adaptor in the countries

where it is necessary.

Speciﬁcations and design are subject to change without notice.

SPECIFICATIONS

2015A6900-1

Published by Manual Design Dept.

Blu-ray Disc™ / DVD Player

RDCM

Home Entertainment Business Group

9-930-420-11

Photo: BDP-S5500

Remote : RMT-VB100U

Ver. 1.0 2015.01

SERVICE MANUAL Brazilian Model

7-2

BDP-S1500/S5500

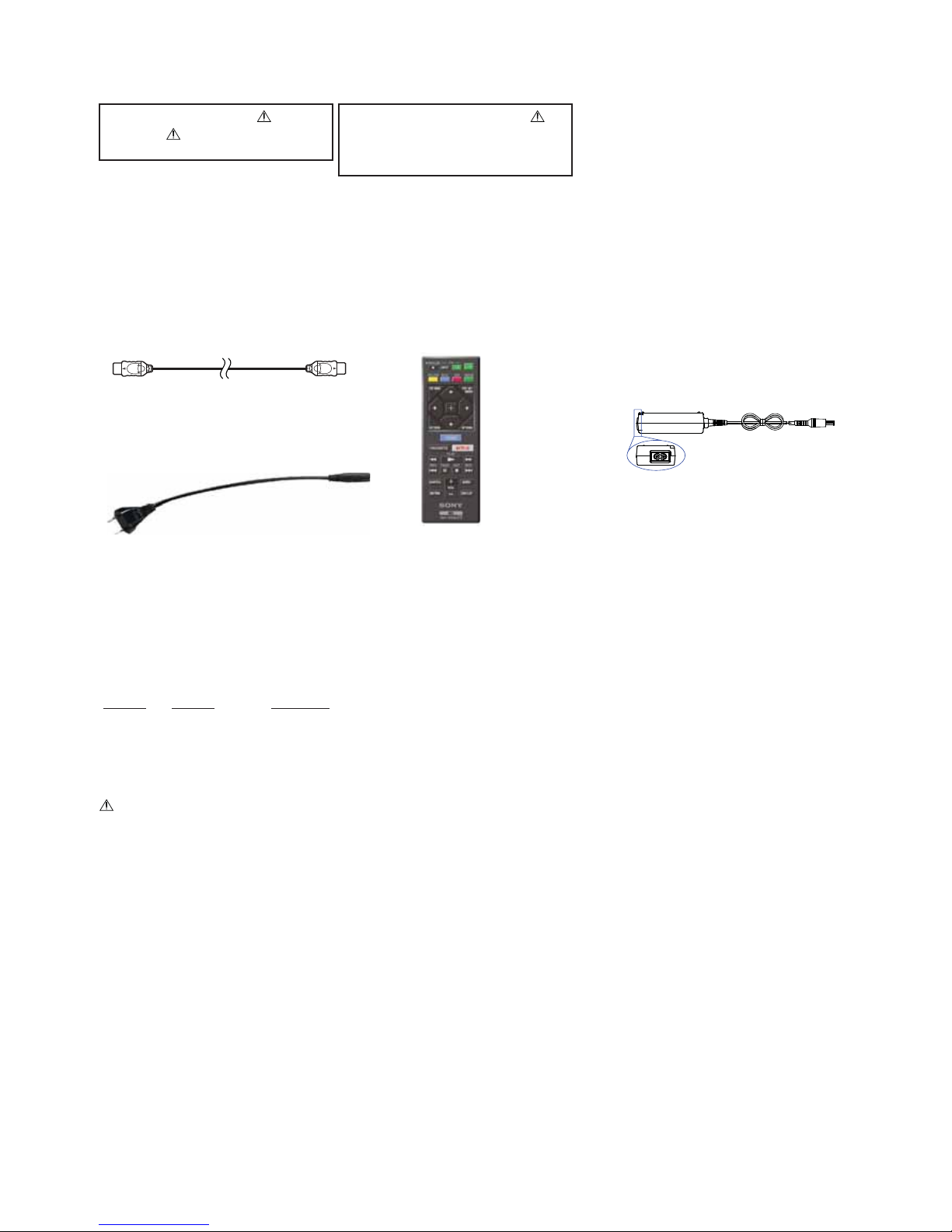

ACCESSORIES

Ref. No. Part No. Description

200 1-848-520-11 HDMI CABLE

201 1-492-954-11 REMOTE COMMANDER (RMT-VB100U)

202 1-492-686-22 AC ADAPTOR (AC-M1208WW)

203 1-846-092-11 CORD SET, POWER-SUPPLY

The components identiﬁed by mark or dotted

line with mark are critical for safety.

Replace only with part number speciﬁed.

Les composants iden tiﬁés par une marque

sont critiquens pour la sécurité.

Ne les remplace r que par une pièce portant le

numéro spéciﬁé.

201

Remote Commander

202

200

HDMI Cable

AC Adaptor (AC-M1208WW)

203

Power-Supply Cord Set

REPAIR PARTS LIST

7-3

BDP-S1500/S5500

REVISION HISTORY

Ver. Date Description of Revision

1.0 2015.01 New
