SONY 3-CCD Color Video Camera

For use of authorised dealers

Product Information Manual

DXC-C33/C33P

New cover1.qxp 01.12.11 2:49 PM Page 1

DXC_C33_C33P.qxd 02.2.8 5:57 PM Page 2

CONTENTS

1. PRODUCT CONCEPT P. 2

2. APPLICATIONS P. 3

3. KEY FEATURES P. 4

4. MENU FUNCTION P. 9

5. CAMERA CONNECTORS P. 12

6. CONNECTOR PIN ASSIGNMENTS P. 14

7. SPECIFICATIONS P. 15

8. OPTIONAL ACCESSORIES P. 18

9. SYSTEM EXAMPLES P. 22

10. DIMENSIONS P. 25

11. TECHNICAL APPENDIX P. 26

12. Q & A P. 30

DXC-C33/C33P

DXC_C33_C33P.qxd 02.2.8 5:58 PM Page 1

1. PRODUCT CONCEPT

High-performance,

remote-head type camera

●Small and light camera head unit

●C mount 3-CCD

●High picture quality

●DV output

●Digital signal processing

–

DXC-C33/C33P Product Information Manual

DXC-C33/C33P

DXC_C33_C33P.qxd 02.2.8 5:59 PM Page 2

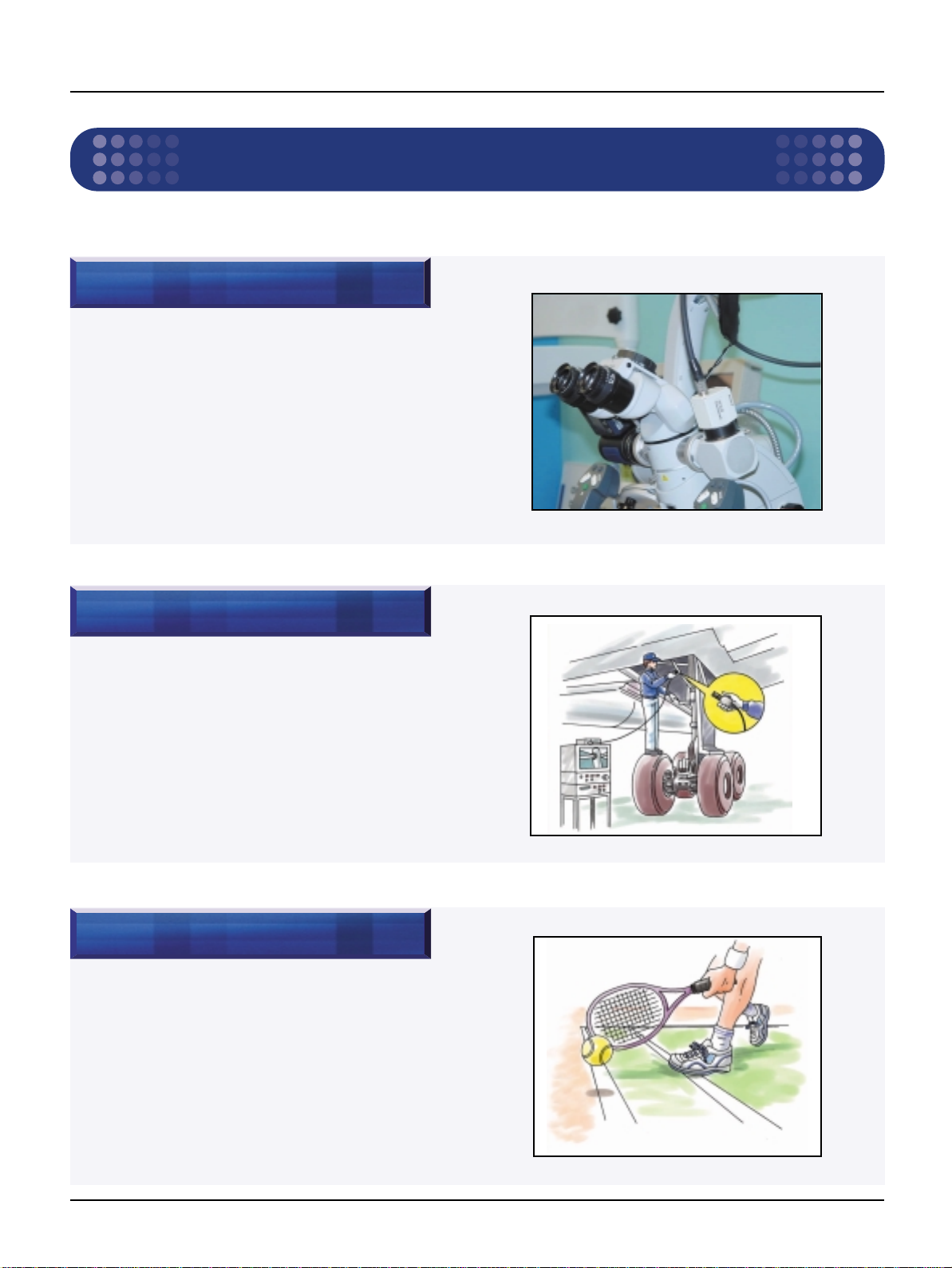

2. APPLICATIONS

DXC-C33/C33P Product Information Manual

–

2. APPLICATIONS

Surgical microscopy

Slit lamp

Semiconductor

Tube

Sports

Production

Medical

Industrial inspection

Special angle shooting

DXC_C33_C33P.qxd 02.2.8 5:59 PM Page 3

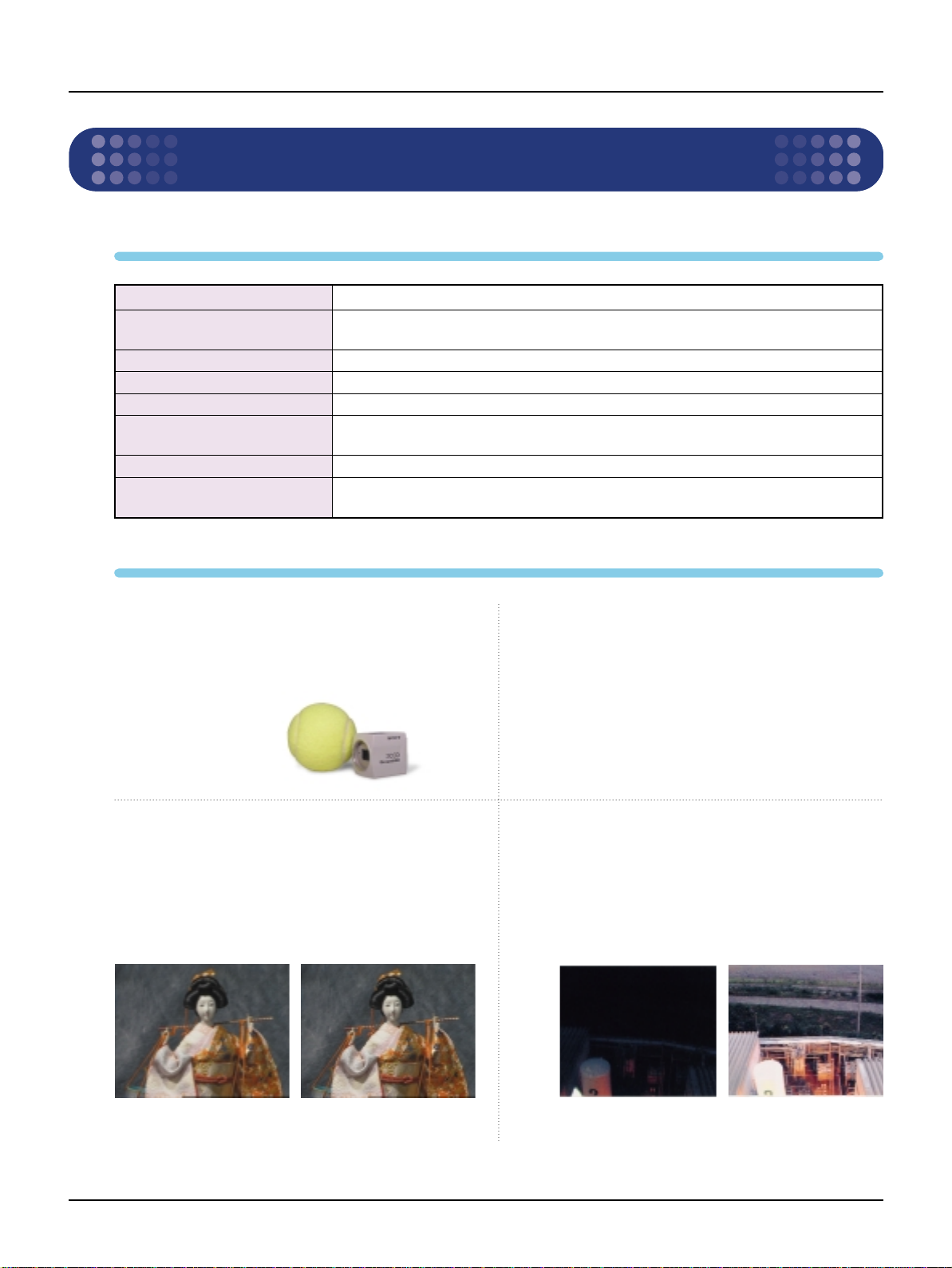

3. KEY FEATURES

–

DXC-C33/C33P Product Information Manual

3. Key Features

Horizontal resolution 850 TV lines

Signal to Noise (S/N) ratio NTSC: 62 dB (typical)

PAL: 61 dB (typical)

Sensitivity F8.0 at 2000 lux (3200 K)

Minimum illumination 4 lux (F2, GAIN: Hyper)

Output signal DV, VBS, RGB/SYNC, Y/C

Dimensions (W x H x D) CHU: 32 x 38 x 40 mm (15/16 x 11/2x 15/8inches)

CCU: 200 x 88 x 242 mm (77/8x 31/2x 95/8inches)

Power consumption Max. 18 W

Mass CHU: 48 g (1.7 oz)

CCU: 2.5 kg (5 lb 8 oz)

3. KEY FEATURES

Basic Specifications

Features

■Small camera head

The DXC-C33/C33P can be installed in space-limited

locations. The size of the camera head unit (CHU) is

one of the smallest of all the 1/3 type 3-CCD

cameras.

■High picture quality

The DXC-C33/C33P can clearly capture detailed

object images. Using three 1/3 type CCDs, the

camera can realize 2000 lux at F8, a S/N ratio of 62

dB (NTSC) or 61 dB (PAL) and achieve a horizontal

resolution of 850 TV lines.

■Frame memory

Built-in frame memory can provide a remakable

freeze image and enhanced image sensitivity by

the Long-Term exposure function. Images captured

by the Long-Term exposure function can be output

continuously.

800 TV lines picture 850 TV lines picture

(Simulated picture)

Gain: 18 dB Long exposure: 32 frames

■10-bit DSP

The DXC-C33/C33P can capture superior pictures

by adopting full Digital Signal Processing (DSP) of

10 bits.

DXC_C33_C33P.qxd 02.2.8 6:03 PM Page 4

3. KEY FEATURES

DXC-C33/C33P Product Information Manual

–

■Partial Enhance

This function allows a particular color to be selected, and its

hue, saturation and detail to be altered. In addition, the detail

produced by the high resolution of the camera can be

softened or emphasized in certain parts of the image with the

Partial Enhance function.

■Two AE areas preset

AE (Automatic Exposure) function is very useful in

determining the best area for incoming light metering.

Users can select and set up two of the six differentAE

modes and can easily switch them on the front panel.

• The Multi mode measures the luminance level on

the 9 divided windows and the center window is

weighted compared to the others.

• In Manual mode, the user can freely define the

light metering area.

■User-friendly control panel

The front panel is very easy to use with good-sized

switches that are smartly arranged.

<MULTI>

<SPOT>

<LARGE>

<SLIT>

<MID>

OPTIONAL AREA

OFF ON

■RS-232C interface

Easy control and operation of the camera by an

external computer is possible. For details of the

RS-232C protocol, please refer to the Control

Protocol or contact your nearest Sony office.

■External synchronization

(VBS Genlock, HD/VD)

The DXC camera can be synchronized with an

external VBS signal from other equipment and

includes a SC/H phase adjustment control. HD/VD

sync signals also can be accepted. This is very

useful in multiple camera operation and in

connection with frame grabber boards.

■Color shading compensation

The color shading compensation feature provides a

uniformed color for images displayed on the screen.

DXC_C33_C33P.qxd 02.2.8 6:03 PM Page 5

3. KEY FEATURES

–

DXC-C33/C33P Product Information Manual

■i.LINKTM (DV) out

DV (Digital Video) is the standard for consumer digital video. DV complies with the same IEEE1394 interface

standard as the DFW Series. Thanks to data-compression technology, the transmission speed of DV is

approximately 25 Mb/s. This figure is about 1/5 of the transmission speed of the DFW Series (no compression).

DV can be connected to a PC and various application software is available for DV. Users can therefore enjoy the

high quality of DV compression with the excellent line-up of the DVCAM Series. The DXC-C33/C33P is equipped

with a DV output terminal so that images can be recorded into an i.LINK interface-equipped VTR with no quality

deterioration.

This feature is first to be introduced to small 3-CCD cameras.

Why was the DVCAM format Born?

The DVCAM format is optimized for professional editing, based on and maintaining cross play with the DV format.

Digitization

• High-quality picture and sound

• Superb dubbing quality

• Unique functions provided by compression technology

High-performance editing

capabilities for professional use

• SMPTE/EBU time code

• RS-422A interface

• Newly developed mechanism

The DVCAM format was developed to meet the following key demands:

•Digitization (trend from analog to digital)

•High-performance editing capabilities for professional use

•Full compatibility with the DV format

CONCEPT - What is the benefit of the DVCAM for the DXC-C33/C33P?

* i.LINK stands for IEEE-1394-1995 standards and their revisions.

Note: Sony VAIO computers are checked with Sony DV products, but not with DVCAM, concerning the i.LINK interconnection.

Some VAIO application software may not work with DVCAM.

DXC_C33_C33P.qxd 02.2.8 6:03 PM Page 6

3. KEY FEATURES

DXC-C33/C33P Product Information Manual

–

The DVCAM format

The DVCAM format, which is available for the DXC-C33/C33P is, a professional development of the DV format.

Specific advantages, shown below, mean it is optimised for professional editing.

The features and benefits of DVCAM format

◆5:1 DV compression

•Longer duration recording (max. 3 hours)

•High-speed data transfer capability

◆Digital components

•High-quality picture

•Superb dubbing quality via QSDI & DV I/O

◆Cassette memory

•Newly developed ClipLink system for top-of-the-range DVCAM VTRs

•Photo mode for mid-range DVCAM VTRs

The DVCAM & DV format

DVCAM

Consumer use

Professional use

•15µm track pitch

•Audio lock recording✱

•10µm track pitch

•Audio unlock recording✱

Audio mode and audio channel are not available in the DXC-C33/C33P

✱

•5 : 1 DV compression method

•New advanced ME tape

•Standard size & Mini size cassettes

•2CH & 4CH audio recording modes✱

DXC_C33_C33P.qxd 02.2.8 6:03 PM Page 7

3. KEY FEATURES

–

DXC-C33/C33P Product Information Manual

Format DVCAM DV DVCPRO

Compression method 5:1 DV compression 5:1 DV compression 5:1 DV compression

Tape material ME ME MP

(Metal Evaporated) (Metal Evaporated)

Cassette size Standard / Mini Standard / Mini L / M

Track pitch 15µm10µm (LP : 7.5µm) 18µm

Tape speed 28.193 mm/s 18.812 mm/s 33.820 mm/s

Compatibility cassette Playback of Mini

with Home DV (Adaptor required)

Full Compatibility —Playback of Standard

cassette

(Menu switching required)

Audio mode Lock mode* Unlock mode Lock mode

Audio channel 16bit 2ch / 12bit 4ch* 16bit 2ch / 12bit 4ch 16bit 2ch

Compatibility X

with i.LINK (DV) terminal O O (compatibility with

other DVCPRO)

Max. duration recording time

184 min. (Max) 270 min. (Max) 184 min. (Max)

Max. cassette size LP: 405 min. (Max)

Max. duration recording time

40 min. (Max) 80 min. (Max) 66 min. (Max)

Min. cassette size LP: 120 min. (Max)

Linear track X X CTL / CUE track

Comparison of 1/4 inch DVCAM, DV, and DVCPRO

* Audio mode and Audio channel are not available in the DXC-C33/C33P.
