Sony OVER 650TVL SERIES Manuale utente

SERVICE MANUAL

1/3” SONY DSP COLOR CCD CAMERA

OVER 650TVL SERIES

V.2E7W_M

The serial number of this product may be found

on the bottom of the unit.

You should note the serial number of this unit in

the space provided and retain this instruction as a

permanent record of your purchase to aid

identification in the event of theft.

Model No.

SerialNo.

▲Before attempting to connect this product, please read and keep this

manual for future use.

Safety Warning

1. Do not open the cover, it may cause electric shock.

Ask a qualified service person for maintenance when you encounter any

problems.

2. Install the camera away from TV, radio transmitter, magnet, electric

motor, transformer, audio speakers because the magnetic fields

generated from above devices will distort the video image.

3. Place this camera on a solid base. Install the camera away from

stoves or other heat generating devices as the high temperature could

cause deformation, discoloration or other damages to the camera.

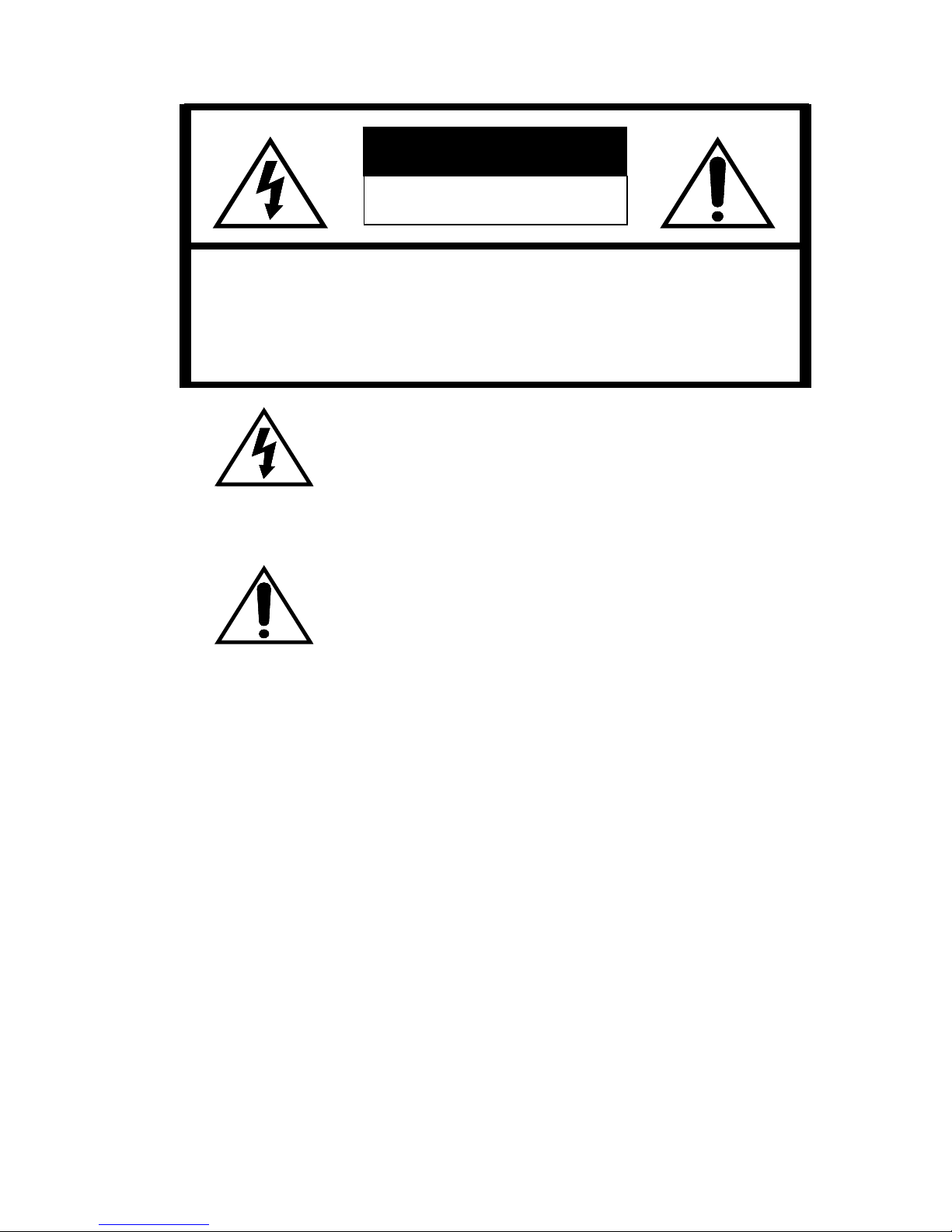

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is interned to alert the user to the

presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

①

Install the camera at where the temperature range does not exceed

-10°C to 50°C (14°F to 122°F)

4. Do not expose and operate the camera in the rain and humid areas.

5. Use only soft dry cloth to clean the camera. Also use lens tissue or

cotton tipped applicator and ethanol to clean the CCD sensor and

camera lens.

6. When the camera is not in use, put the cover cap on the lens mount.

Please do not touch the surface of CCD by bare hand.

Introduction

This OSD series CCD camera introduces a new level of high picture quality

through the digital signal processing LSI’s technology for advanced video

surveillance. It provides the most reliable and accurate color picture in the

security industry.

Main Features

zColor camera with high resolution SONY 1/3” EXview HAD II CCD

image sensor.

zEmploys SONY Enhanced Effio-E DSP chip-set for image control.

zControlled by OSD (On Screen Display) menu in 7 languages.

zHorizontal resolution of over 650TVL.

zATR (Adaptive Tone Reproduction).

z2D-NR (2D Noise Reduction).

zHLC (High Light Cover)

zSupports both C & CS mount lens.

②

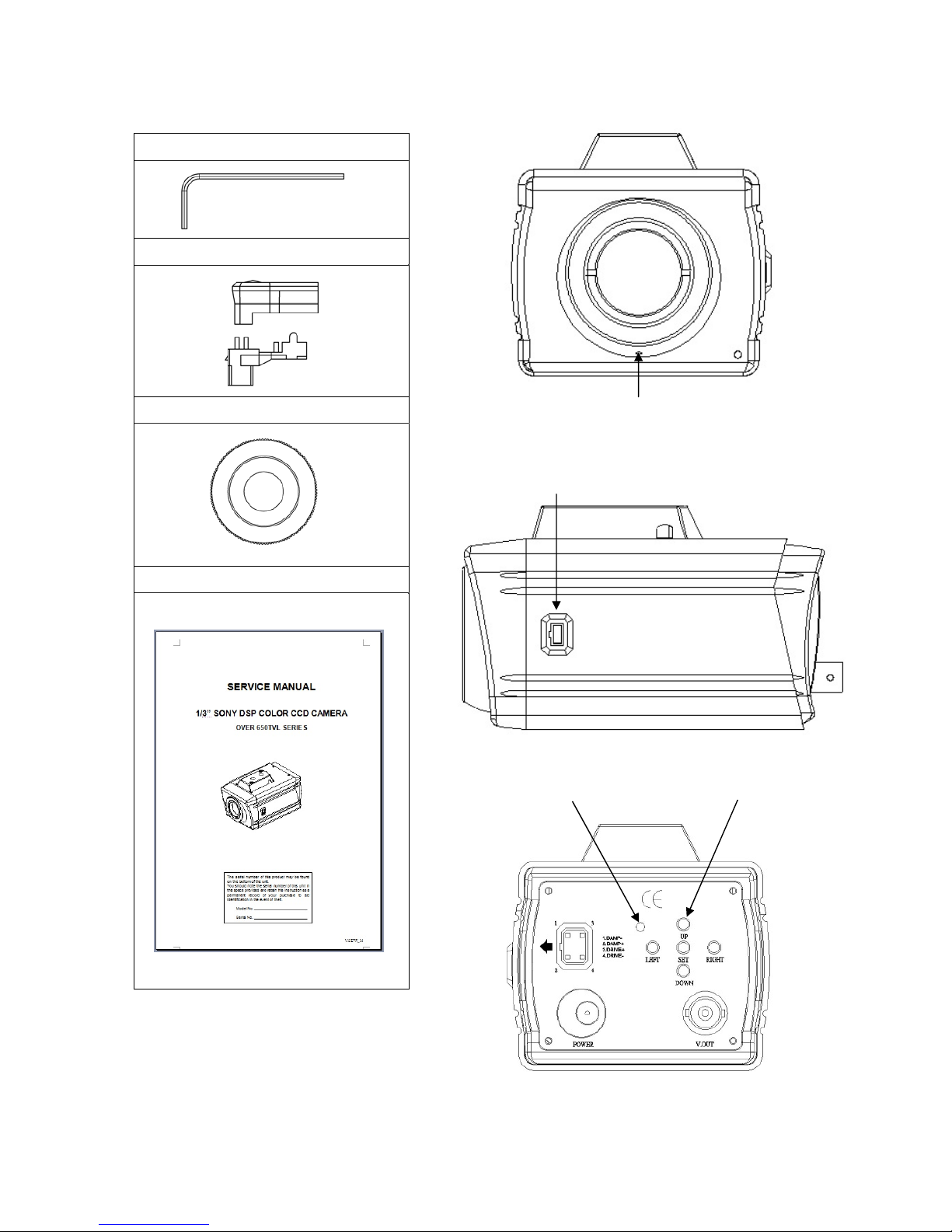

Parts Names & Components

Hex Screwdriver

Auto Iris Plug

C-Mount Ring (Option)

Manual

Power LED Selection & setting buttons

Hole to fix lens

Auto iris connector

③

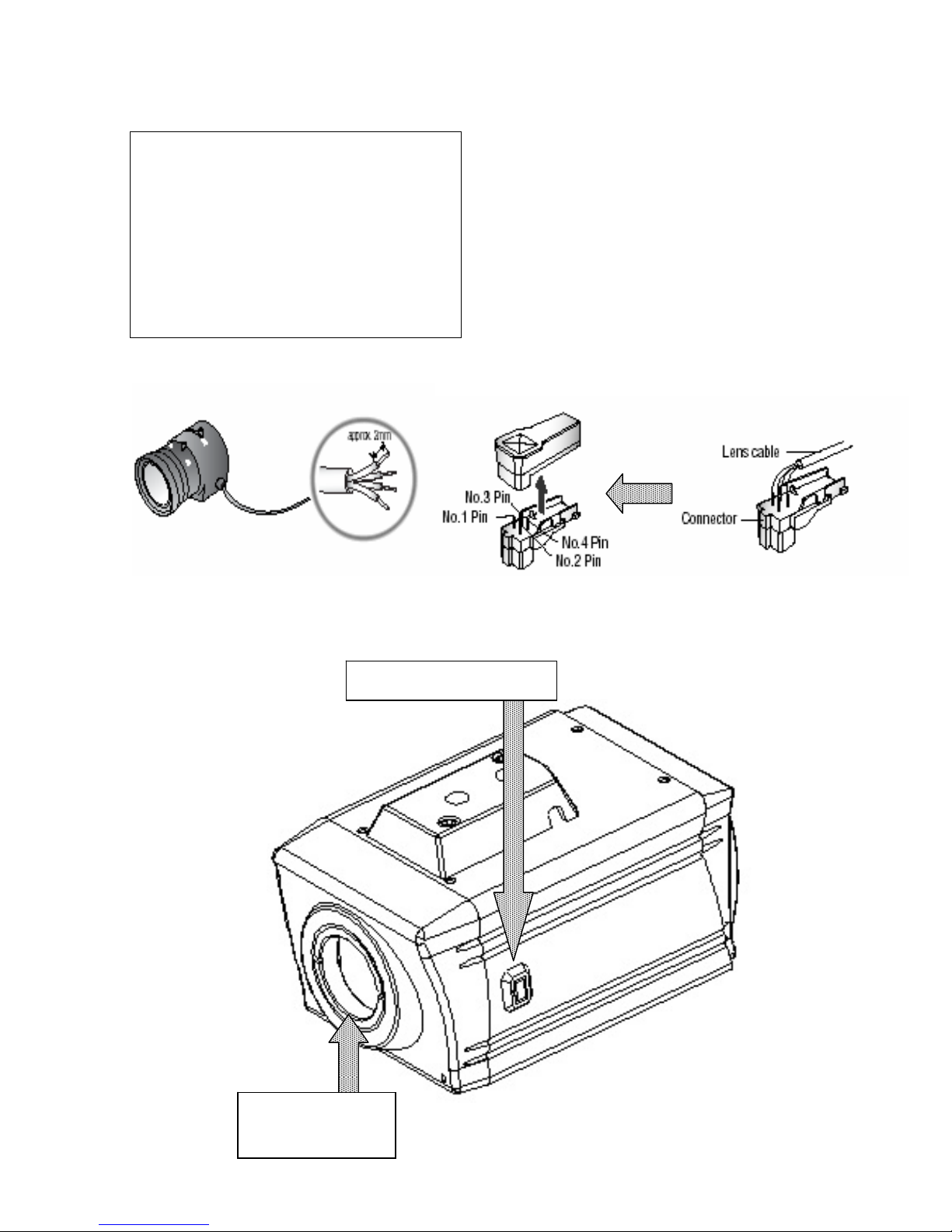

Auto Iris Function

DC DRIVE

Pin 1 (Red) Drive -

Pin 2 (N.C) Drive +

Pin 3 (White) Damp +

Pin 4 (Black) Damp -

④

Plug in auto iris connector

Screw the auto iris

lens on CS mount

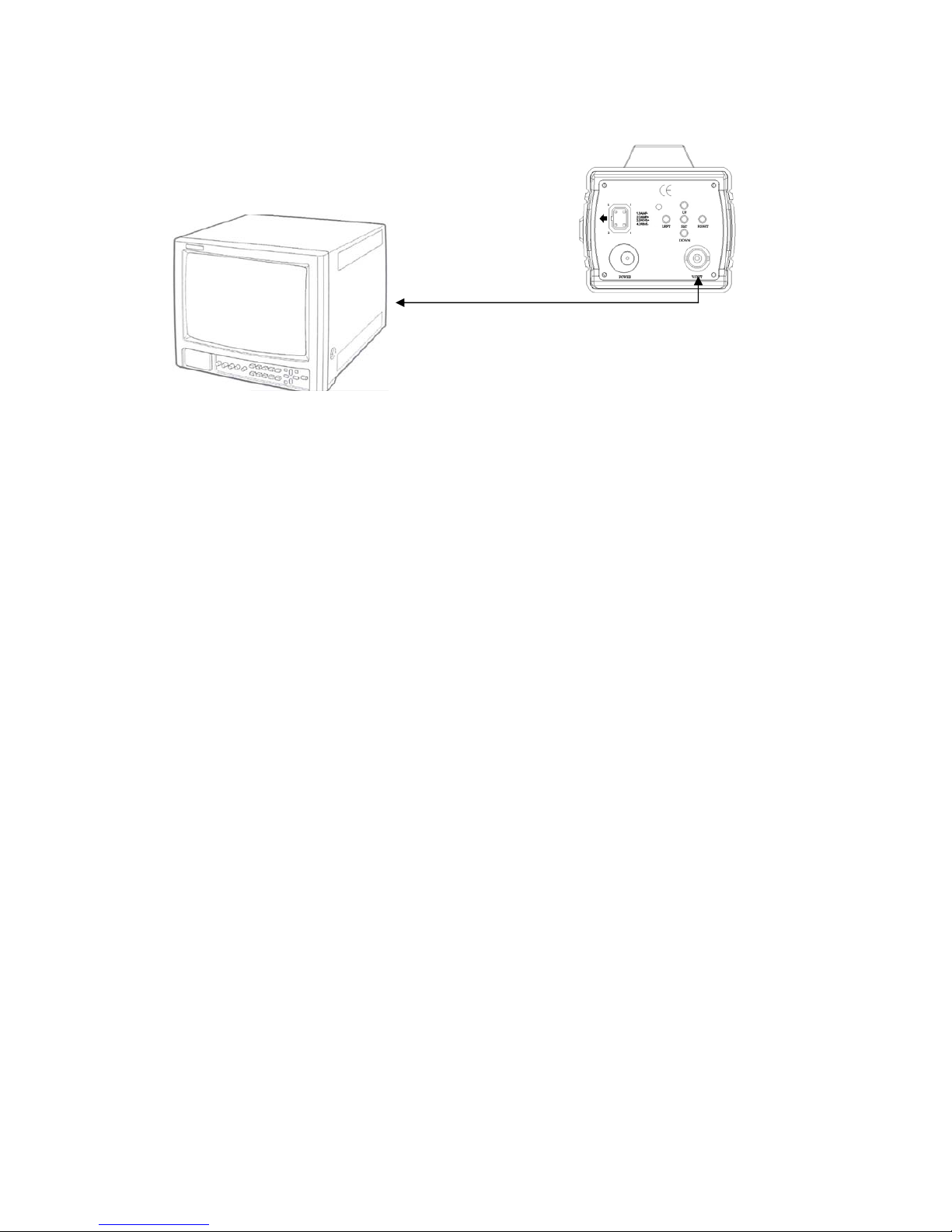

Installation Instructions

(1) Remove the cap from the lens mount.

(2) Select the C mount lens (with mount ring) or CS mount lens.

(3) Screw and fasten the lens into the lens mount.

(4) Connect the video output wire between monitor and camera through

75ohm type coaxial cable.

(5) Connect the power cord input.

(6) When monitor shows the picture, please adjust the focus and iris of the

lens to obtain the best image according to the following procedures:

‧ Choose objects at a distance about 5 ~ 10 meter away.

‧ Loosen the mount lens fixing screw (use hex screwdriver), if

necessary.

‧ Turn the lens and the mount together until image is clear.

‧ Screw the mount to camera.

(7) Fix camera to the bracket, if necessary.

⑤

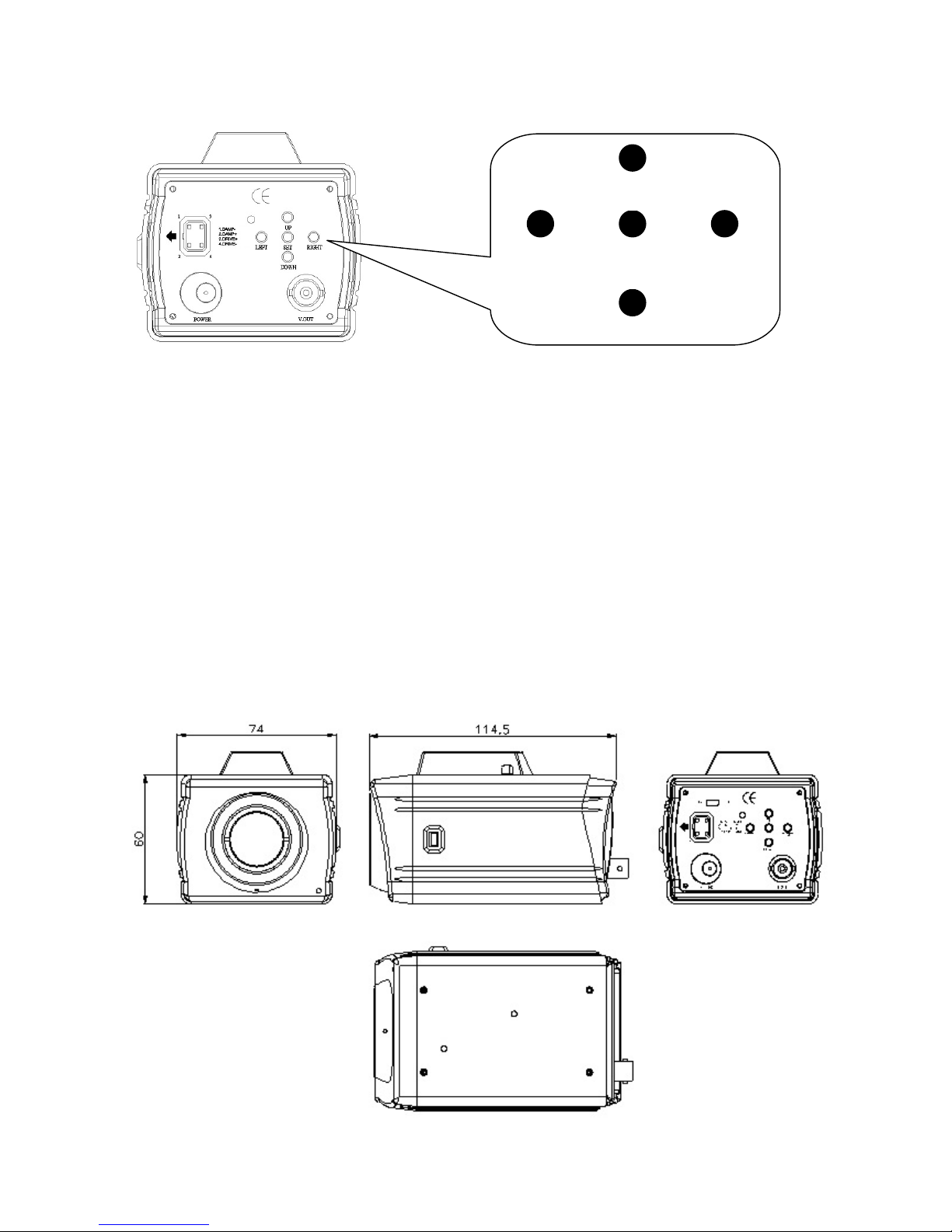

Switch Definition

SET button

Press to display the menu. In the menu, this button functions as “ENTER”.

UP & DOWN buttons

Press to select the item of menu.

LEFT & RIGHT buttons

Press to change the item value.

Size Dimension

DOWN button

LEFT SET RIGHT

button button button

UP button

⑥

Unit: mm

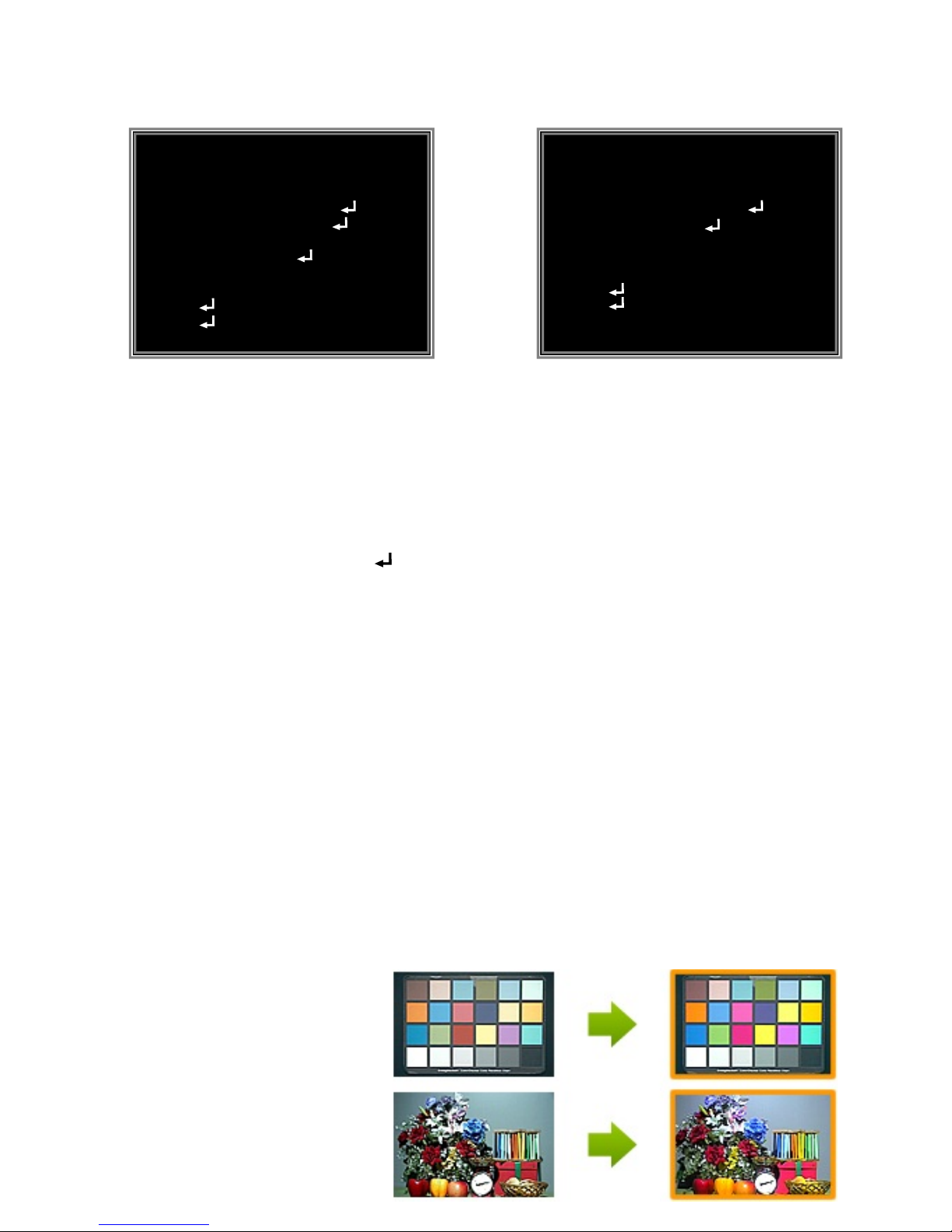

Menu Operation

‧ Press the SET button to display the menu on screen.

‧ Press the UP or DOWN button to select the item.

‧ The selected item will be displayed in gray text.

‧ Press the LEFT or RIGHT button to change mode.

‧ The ENTER symbol means there is a sub-menu. Press the SET

button to enter to the sub-menu.

‧ Select the SAVE ALL item and press the SET button to save settings.

‧ Select the EXIT item and press the SET button to exit the menu.

Advanced Functions

High Color Reproduction

¾Excellent color reproduction.

¾Wide range ATW (1,800°K~10,500°K)

⑦

Color chart (Machbeth)

Under halogen lamp

Still-life object

Under artificial sunlight

Conventional Over 650TVL Series

SETUP MENU

LENS MANUAL

SHUTTER/AGC AUTO

WHITE BAL ATW

BACKLIGHT OFF

PICT ADJUST

ATR OFF

EXIT SAVE ALL

SETUP MENU

PRIVACY OFF

DAY/NIGHT AUTO

CAMERA ID OFF

LANGUAGE ENGLISH

CAMERA RESET

BACK

EXIT SAVE ALL

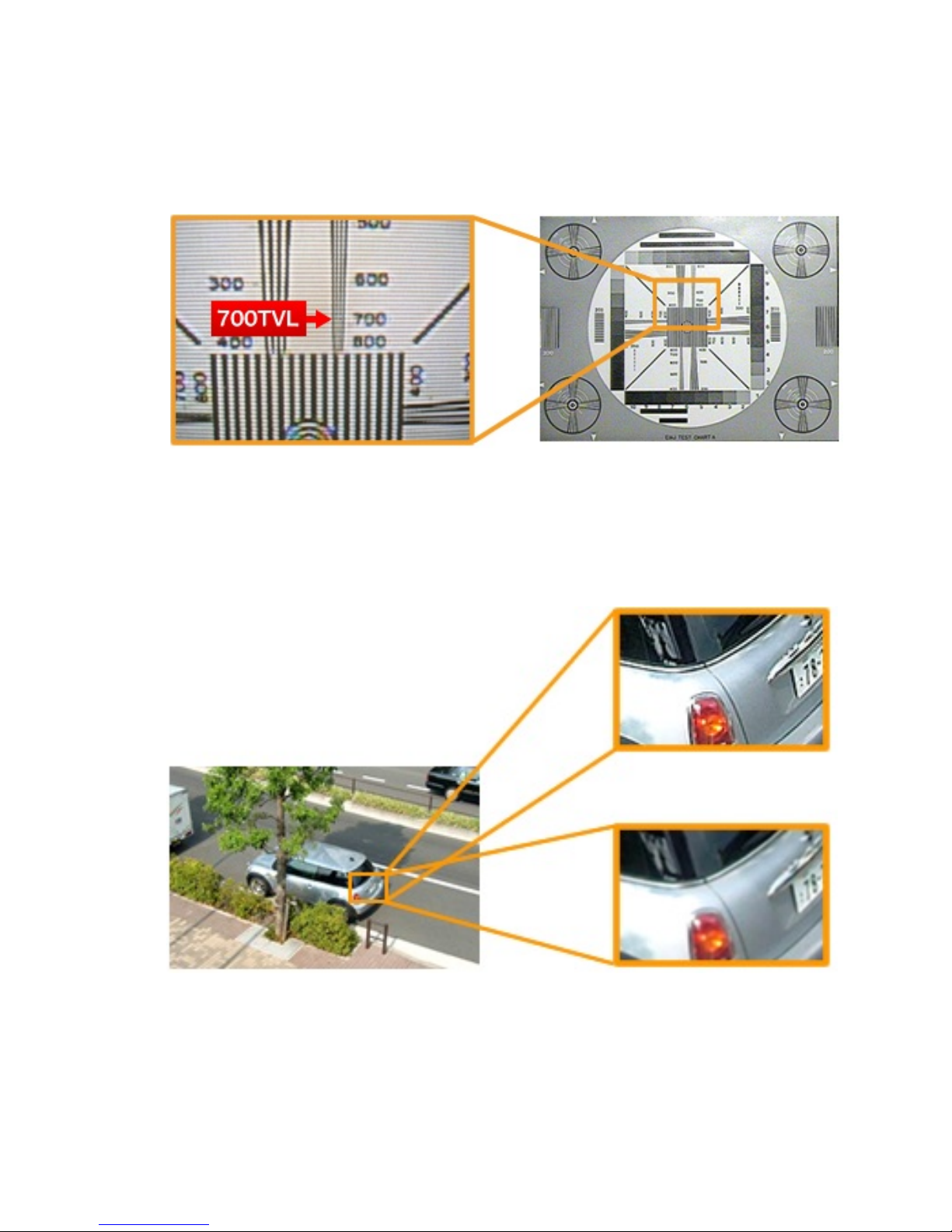

High Resolution

¾Higher horizontal resolution of over 650TVL by SONY 1/3” EXview HAD

II CCD image sensor.

Over 650TVL Series

Truecapturedimage Resolution test chart

¾Finer image after E-Zoom operation

Over 650TVL Series

Original image

Conventional

⑧

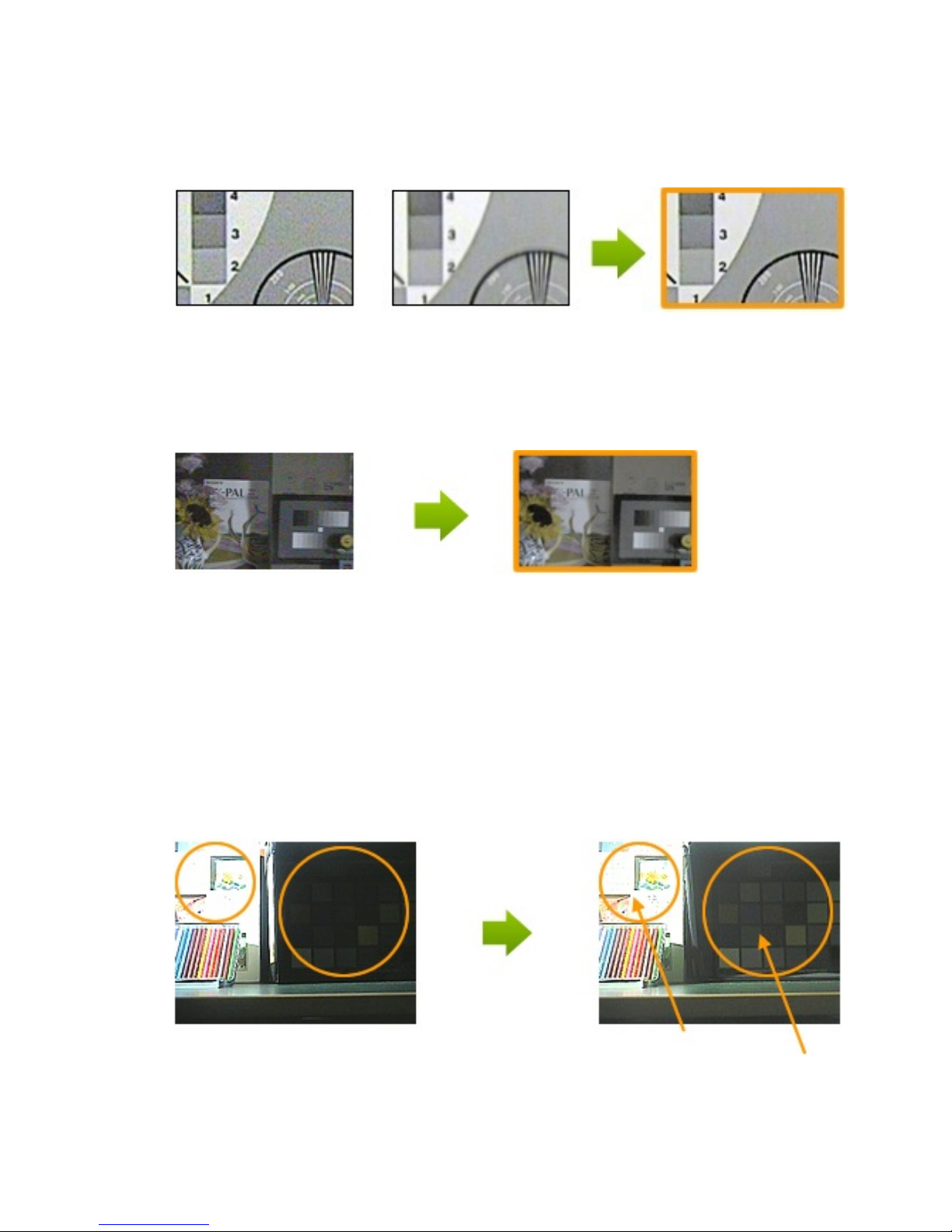

Noise Reduction

ATR (Adaptive Tone Reproduction)

⑨

¾Noise reduction keeping image sharpness

NR OFF Conventional NR 2D-NR

Preserved edge

¾Excellent NR performance under low light condition

NROFF 2D-NR

¾Gradation compensation to improve image contrast.

¾Improvement of loss of dark detail and overexposure area.

Conventional Over 650TVL Series

ATROFF ATRON

Overexposure area improvement

Darkareaimprovement
