CMT-101
HCD-101
f
2
Table of Contents
Getting Started
Step 1: Hooking up the system............ 4
Step 2: Setting the time ......................... 6
Step 3: Presetting radio stations .......... 7
Connecting optional components and
outdoor aerials ................................. 9
Basic Operations
Playing a CD ......................................... 11
Recording a CD on an MD* ................ 12
Playing an MD* .................................... 13
Recording a CD on a tape** ................ 15
Playing a tape** .................................... 16
Listening to the radio ........................... 17
Receiving RDS broadcasts
(European model only) ................. 18
Recording from the radio
on an MD*....................................... 19
Recording from the radio
on a tape** ....................................... 20
The CD Player
Using the display.................................. 22
Playing the CD tracks repeatedly ...... 23
Playing the CD tracks
in random order............................. 24
Programming the CD tracks ............... 25
Labelling a CD ...................................... 26
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
Do not install the appliance in a confined space,
such as a bookcase or built-in cabinet.
US and foreign patents licensed from Dolby
Laboratories Licensing Corporation.
Laser component in this product is capable of
emitting radiation exceeding the limit for Class 1.
This appliance is
classified as a CLASS 1
LASER product. The
CLASS 1 LASER
PRODUCT MARKING
is located on the rear
exterior.
The following label is located inside the unit.
This system is equipped with Dolby Noise
Reduction* system.
* DOLBY noise reduction manufactured under
license from DolbyLaboratories Licensing
Corporation.
“DOLBY” and double-D symbol aare
trademarks of Dolby Laboratories Licensing
Corporation.
About this manual
The instructions in this manual are for the
tuner CD player HCD-101, the optional
MiniDisc deck MDS-MX101 and the optional
stereo cassette deck TC-TX101. The
instructions of the MiniDisc deck and the
stereo cassette deck are only for the
customers who purchased MDS-MX101 and
TC-TX101.
This manual explains how to operate:
– Tuner CD player: HCD-101
– MiniDisc deck: MDS-MX101 (option)
– Stereo cassette deck: TC-TX101 (option)
* For using with the optional MD deck
MDS-MX101
** For using with the optional cassette deck
TC-TX101
3
The MD Deck*
– Playback
Using the display.................................. 28
Playing the MD tracks repeatedly ..... 29
Playing the MD tracks
in random order ............................. 30
Programming the MD tracks .............. 31
– Recording
Before you start recording .................. 32
Recording CDs by specifying the track
order ................................................ 33
Recording on an MD manually .......... 34
Starting recording with 6 seconds of
prestored audio data ..................... 36
Making a space between tracks
3 seconds long ................................ 37
Marking track numbers....................... 38
– Editing
Before you start editing ....................... 39
Erasing recordings ............................... 40
Moving recorded tracks ...................... 42
Dividing recorded tracks .................... 43
Combining recorded tracks ................ 44
Undoing the last edit ........................... 45
Labelling an MD ................................... 46
EN
The cassette deck**
Recording CDs by specifying the track
order ................................................ 48
Recording a CD, etc., on a tape
manually ......................................... 49
Sound Adjustment
Reinforcing Bass (DBFB) ..................... 51
Listening with the surround
feature.............................................. 52
Adjusting the balance
of the speakers................................ 52
Other Features
Labelling the preset stations ............... 53
Falling asleep to music ........................ 54
Waking up to music ............................. 55
Timer-recording radio programmes.. 57
Additional Information
Precautions ............................................ 59
System limitations of MDs* ................ 61
Troubleshooting ................................... 62
Specifications ........................................ 65
Index....................................................... 67
4
Connect the MD deck.
(for the customers who purchased
MDS-MX101 only)
1Connect the system cord of the MD
deck to the MD jack of the tuner CD
player.
To connect
To disconnect
Getting Started

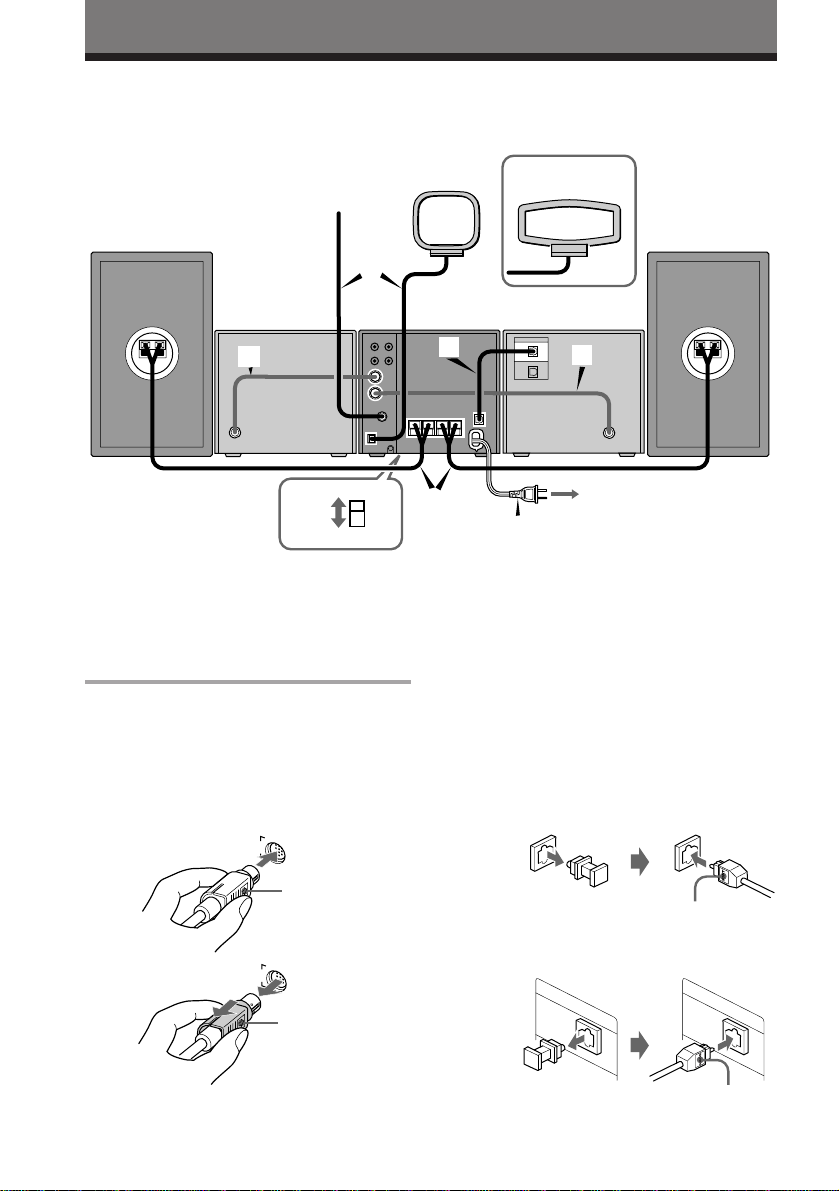

Step 1: Hooking up the system
Do the following procedures 1to 6to hook up your system using the supplied cords and
accessories. To complete the setup, do steps 2 and 3 also.
2Connect the optical cable (supplied
with MDS-MX101) to CD DIGITAL
OUT of the tuner CD player and MD
DIGITAL IN of the MD deck.
To connect tuner CD player
To connect MD deck
1
Left speakerRight speaker
FM aerial AM loop aerial
Tuner
CD player*1
To the wall outlet.
Cassette deck*2MD deck*3
This mark
should be at
the right side.
Pull this part
(the outer frame)
toward you.
The outer frame
slides toward you
and comes out.
MD
MD
*1CMT-101/HCD-101 consists of the CD player, the tuner and the amplifier.
*2This is the optional cassette deck TC-TX101. Connect it to the tuner CD player if you have it.
*3This is the optional MD deck MDS-MX101. Connect it to the tuner CD player if you have it.
*4As for tourist model, the supplied AM loop aerial is different from the other model, but use it as the
following explanation.
SONY logo should be
at the right side.
SONY logo should be
at the left side.
CD DIGITAL OUT
OPTICAL
CD DIGITAL OUT
OPTICAL
DIGITAL
OPTICAL
IN
DIGITAL
OPTICAL
IN
Tourist model
only*4
220-240
110-120
4
5
1-2 1-1
6
3
2
5

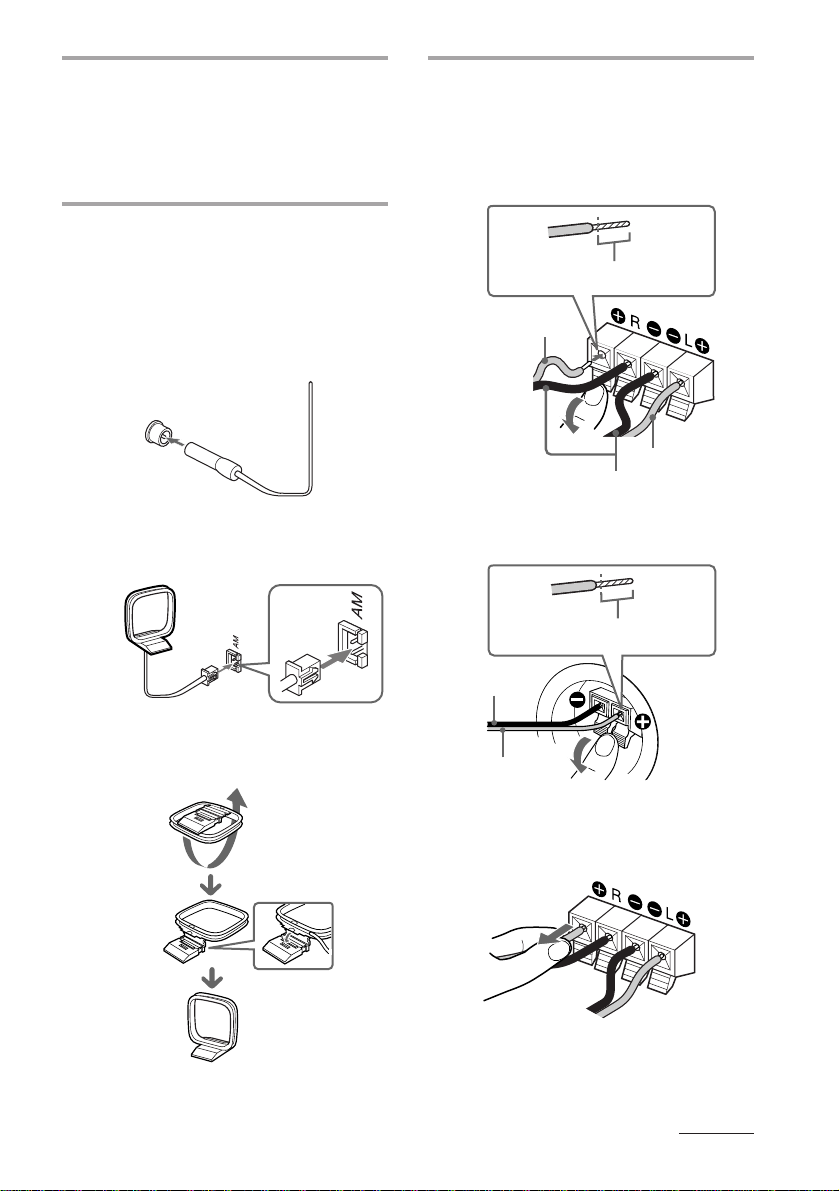

Connect the speakers.
Connect the speaker cords to the speaker
jacks. Be sure to keep the speaker cable
away from the aerials.
the rear side of the tuner CD player
the rear side of the speaker SS-Q101/
Q101A
Make sure if the speaker cords are
connected firmly by pulling the speaker
cords lightly. When they come off,
connect them again.
Connect the cassette deck.
(for the customers who purchased
TC-TX101 only)
Connect the system cord of the cassette
deck to the TAPE jack of the tuner CD
player in the same way as 1-1.
Connect the FM/AM aerials.
FM lead aerial
The supplied FM lead aerial is the
simplified aerial. For better reception,
using the optional FM external aerial is
recommended.
AM loop aerial
Set up the AM loop aerial, then connect
it.
Extend the FM lead aerial
up vertically as high as
possible.
24
3
Insert the plug with the convex
slot on the right into the socket
until it clicks.
continued
Black (})
Gray (])
This part should be inserted.
Gray (])
This part should be inserted.
Black (})
Gray (])
FM 75
Ω
6

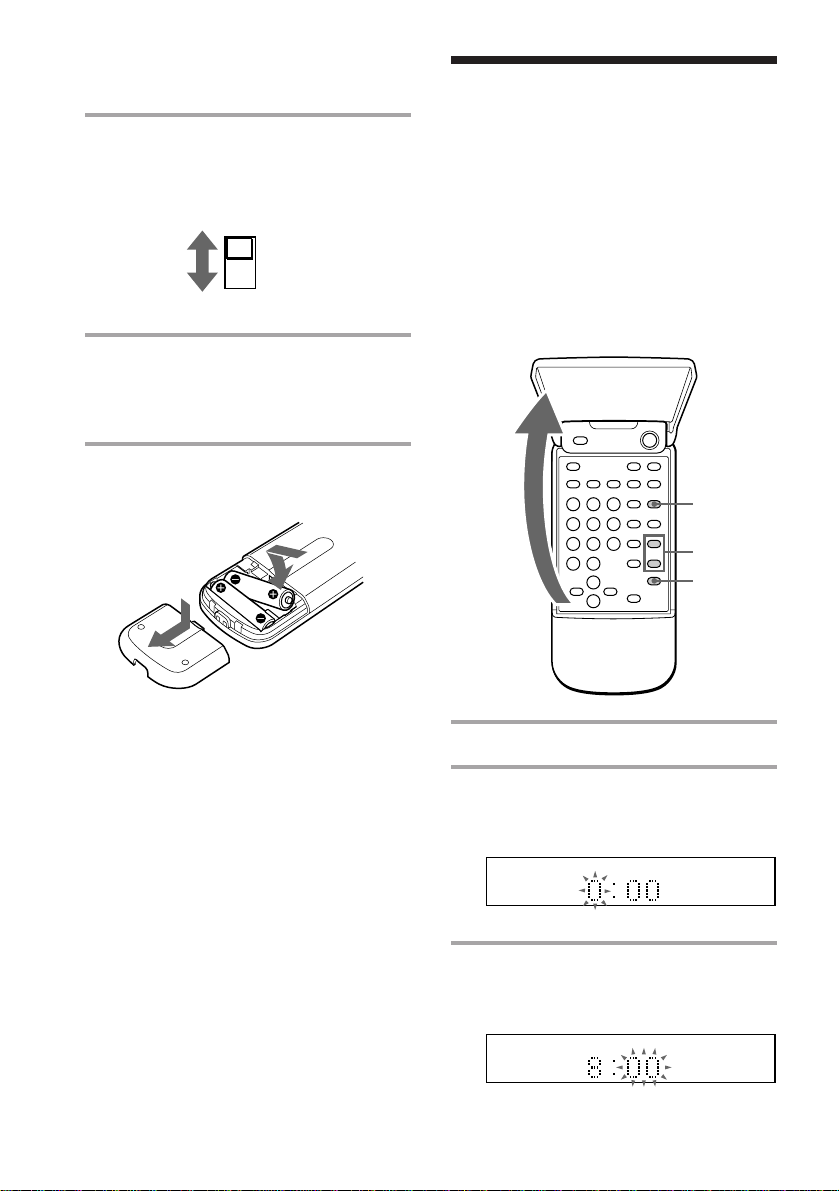

Step 2: Setting the
time
Before turning on the system, you must set
the time beforehand to use the timer function.
The clock is on a 24 -hour system for the
European model, and a 12-hour system for
other models.
The European model is used for illustration
purpose.
1Press TIMER SET.
2Press TIMER + or – to display
“CLOCK” and press ENTER.
The hour indication begins flashing.
3Set the current hour by pressing
TIMER + or – and press ENTER.
The minute indication begins flashing.
Remote (inside)
1
2,3,4
2,3,4
Set VOLTAGE SELECTOR to match
your local power line voltage
(except for European model).
Connect the power.
Connect the mains lead of the tuner CD
player to the mains after you have made
all the above connections.
Inserting two R6 (size AA)
batteries into the remote
Tip
With normal use, the batteries should last for about
six months. When the remote no longer operates
the system, replace both batteries with new ones.
Note
If you do not use the remote for a long period of
time, remove the batteries to avoid possible damage
from battery leakage.
Step 1: Hooking up the system
(continued)
5
220-240
110-120
6
7
4Set the current minute by pressing
TIMER + or – and press ENTER.
The clock starts working.
To correct the clock setting.
Repeat steps 1 through 4.
About the time indication
• The built-in clock shows the time in the display
when power is off.
• The upper dot of the “:” in the time display flashes
for the 0 to 29 seconds and the lower dot flashes
for the 30 to 59 seconds.
continued
n

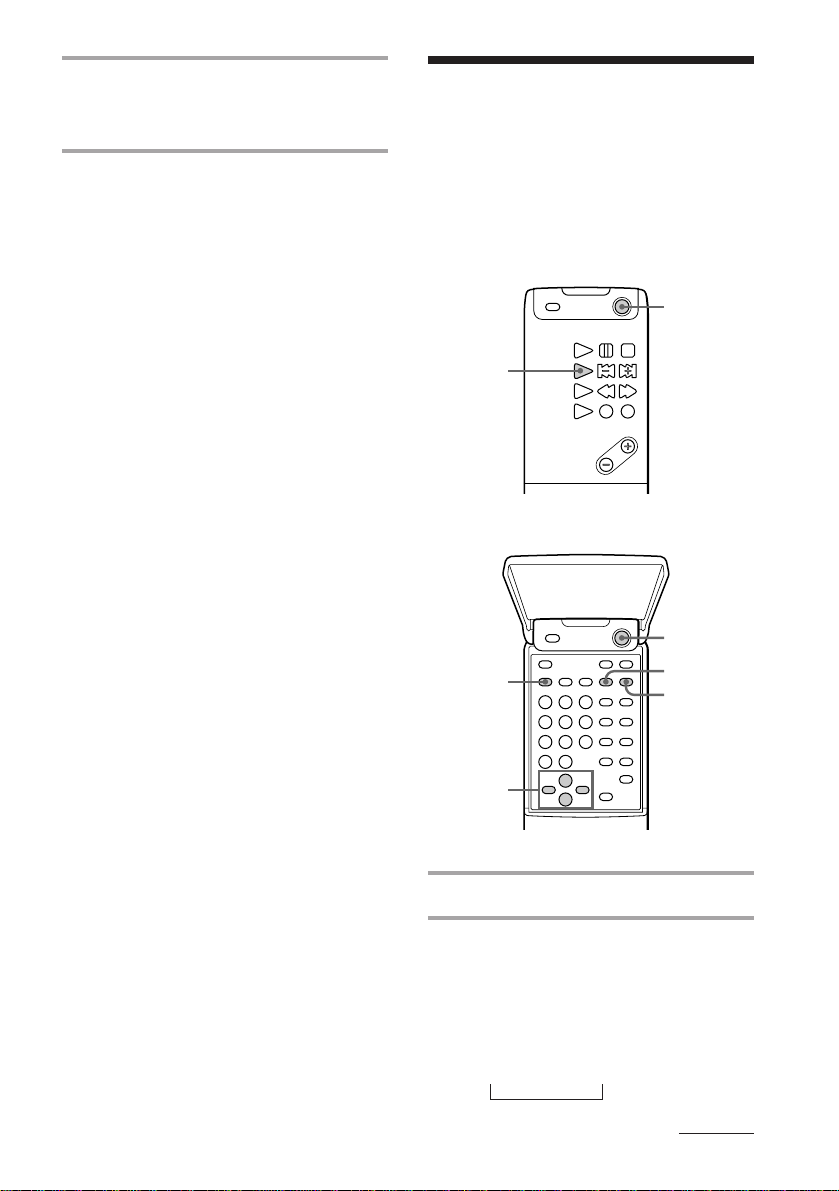

Step 3: Presetting
radio stations
Remote (inside)
Remote (outside)
1Press POWER to turn on the system.
2Press TUNER/BAND repeatedly
until the band you want appears in
the display of the tuner CD player.
2 band model:
FM ˜AM
3 band model:
FM nMW nLW
2
3
4,7
6,8
1
5
1
The 2 band model lets you preset up to 30
stations, 20 for FM and 10 for AM. The 3
band model lets you preset up to 40 stations,
20 for FM, 10 for MW and 10 for LW.
8
3Press TUNING MODE repeatedly
until “AUTO” appears.
4Press + or – to tune in the station
you want to store.
The frequency indication changes and
scanning stops when the system tunes in
the station. “TUNED” and “STEREO”
(for a stereo programme) appear.
5Press EDIT/NO repeatedly until
“Frq-Memory?” appears.
6Press YES.
The preset number flashes in the display.
7Press ?or /and select the preset
number you want.
8Press YES.
The station is stored.
9Repeat steps 2 through 8 to store
other stations.
To tune in a station with a weak
signal
Press TUNING MODE repeatedly until
“AUTO” and “PRESET” disappear in step 3,
then press + or – to tune in the station.
To change the preset number
Start again from step 2.
To change the AM tuning interval
(Except for European models)
The AM tuning interval is factory-preset to 9 kHz
(10 kHz in some areas). To change the AM tuning
interval to 10 kHz (or 9 kHz), press TUNER/BAND
repeatedly until “AM” appears first, then turn off
the power. While holding down +, turn the power
back on.
When you change the interval, the AM preset
stations will be erased. To reset the interval, repeat
the same procedure.
Note
The preset stations are retained for a week even if
you pull out the mains lead or if a power failure
occurs.
Step 3: Presetting radio stations
(continued)
9
Connecting optional
components and
outdoor aerials
To enhance your system, you can connect
optional components. Refer to the
instructions of each component.

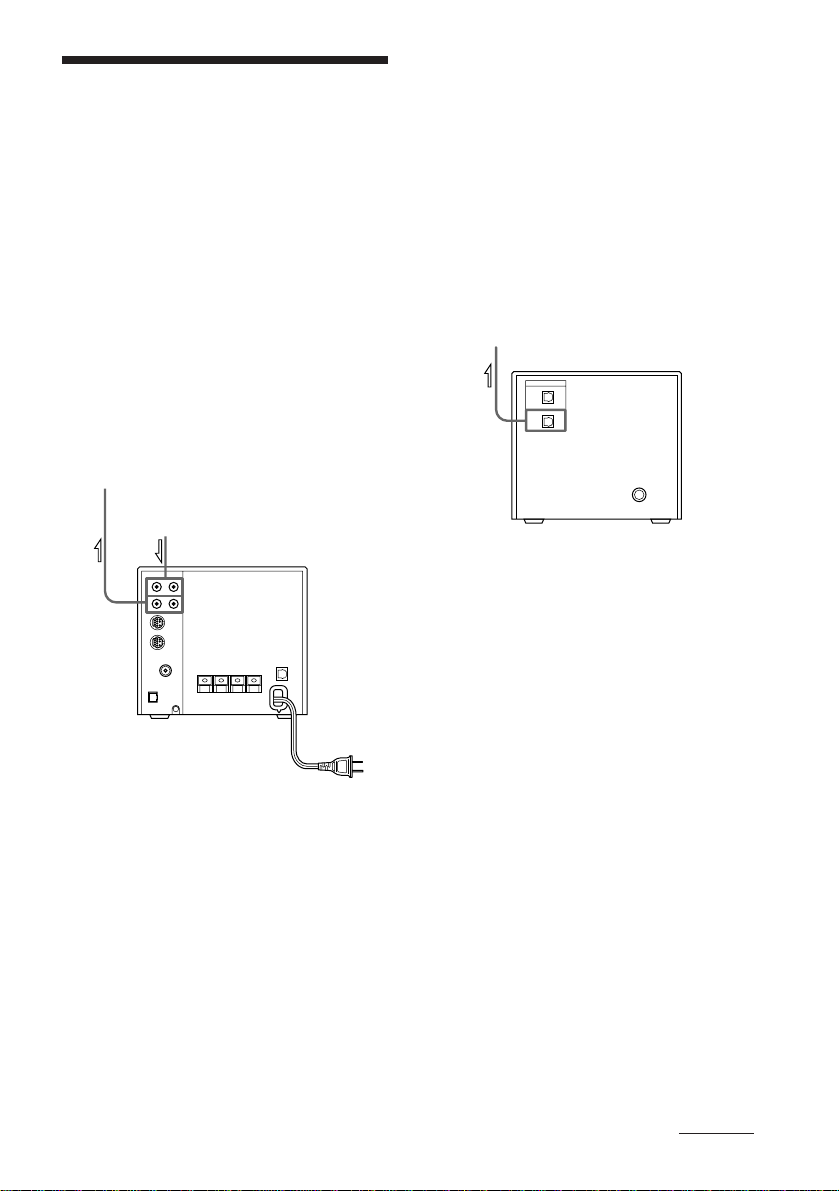

Connecting a VCR/
personal computer
Connect a VCR/personal computer to
VIDEO/PC of the tuner CD player using
audio cords (not supplied).
Make sure to match the colour of the plugs
and the jacks.
To listen to the sound
Press FUNCTION repeatedly until “VIDEO”
appears. You can change the indication
“VIDEO” or “PC” by pressing DISPLAY.
You can listen to the sound of connected VCR
in stereo sound.
Tuner CD player
to the audio output of a VCR/
personal computer
to the audio input of a VCR/
personal computer
Ç: Signal flow
continued
Connecting a digital
equipment like a MD
deck, etc.
(for the customers who purchased
MDS-MX101 only)
You can record in digital sound when you
connect a digital equipment to MDS-MX101.
Connect the MD DIGITAL OPTICAL OUT of
MDS-MX101 to the digital input of a digital
equipment using the optical cable (not
supplied).
Note
This unit uses the Serial Copy Management System
that allows you to make only a single copy of a
recorded digital source through digital- to digital
connections.
to the digital input of a
digital equipmentMD deck
Ç: Signal flow
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Sony Sistema di altoparlanti
Sony
Sony HT-ST9 Manuale utente
Sony
Sony SA-VE335 Manuale di istruzioni per l'installazione
Sony
Sony SRS-RF90RK - Wireless Speaker Sys Manuale utente
Sony
Sony SRS-D511 Manuale utente
Sony
Sony HT-S100F Guida utente
Sony
Sony HT-ST3 Manuale utente
Sony
Sony SA-VE230 Manuale utente
Sony
Sony HT-CT380 Manuale utente
Sony
Sony SA-CRW33 Manuale utente
Sony
Sony SS-B11H Manuale utente
Sony
Sony SS-GT4DB Manuale utente
Sony
Sony HT-S2000 Manuale utente
Sony
Sony SS-CR190 Manuale utente
Sony
Sony SRS-RF90R Manuale utente
Sony
Sony SS-GN800 Manuale utente
Sony
Sony SRS-P11Q Manuale utente
Sony
Sony SA-VE445H Manuale utente
Sony
Sony PMC-DR50 Manuale utente
Sony
Sony SA-VA29 Manuale utente
Sony
Sony SRS-PC15 Manuale utente
Manuali Sistema di altoparlanti popolari di altre marche
Sondpex
Sondpex Active Speaker System and Digital Music... Manuale utente
JVC
JVC NX-PN7 Manuale utente
Marshall Amplification
Marshall Amplification AR-DM61-BT Manuale utente
Yamaha
Yamaha NX-A01 - Speaker Sys Manuale utente
SE Audiotechnik
SE Audiotechnik I-LINE Manuale utente
Gemini
Gemini WRX-843 Series Manuale utente
