SERVICE MANUAL

Sony Corporation

Home Audio Company

Published by Sony Engineering Corporation

SS-CT400S/RC400S/

RS400S

SPEAKER SYSTEM

9-877-939-01

2004E16-1

© 2004.05

•SS-RC400S is composed of following models.

SPECIFICATIONS

Ver 1.0 2004.05

SS-CT400S SS-RS400S

•SS-RC400S is the speaker section

in MHC-WZ80D.

Speaker system 2-way, 2-unit, bass-reflex

type, magnetically

shielded type

Speaker units

Woofer range: 8 cm, cone type

Tweeter: 4 cm, cone type

Nominal impedance 6 ohms

Dimensions (w/h/d) Approx. 255 ×105 ×

120 mm

Mass Approx. 1.1 kg net per

speaker

Speaker system 2-way, 2-unit, bass-reflex

type

Speaker units

Woofer range: 8 cm, cone type

Tweeter: 4 cm, cone type

Nominal impedance 6 ohms

Dimensions (w/h/d) Approx. 105 ×200 ×

120 mm

Mass Approx. 0.9 kg net per

speaker

SS-RS400S SS-CT400S

E Model

Australian Model

SS-RC400S

SURROUND SPEAKER SS-RS400S

CENTER SPEAKER SS-CT400S

2

SS-CT400S/RC400S/RS400S

1A-1056-742-A GRILLE FRAME ASSY

24-986-971-12 SCREW (3.5)

34-246-720-01 CABINET, SPEAKER

44-874-614-82 SCREW

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

51-694-345-11 TERMINAL BOARD

64-874-614-71 SCREW

SP1 1-825-421-12 SPEAKER (8cm)

SP2 1-825-420-12 SPEAKER (4cm)

1

not supplied

SP1

3

2

6

4

4

5

SP2

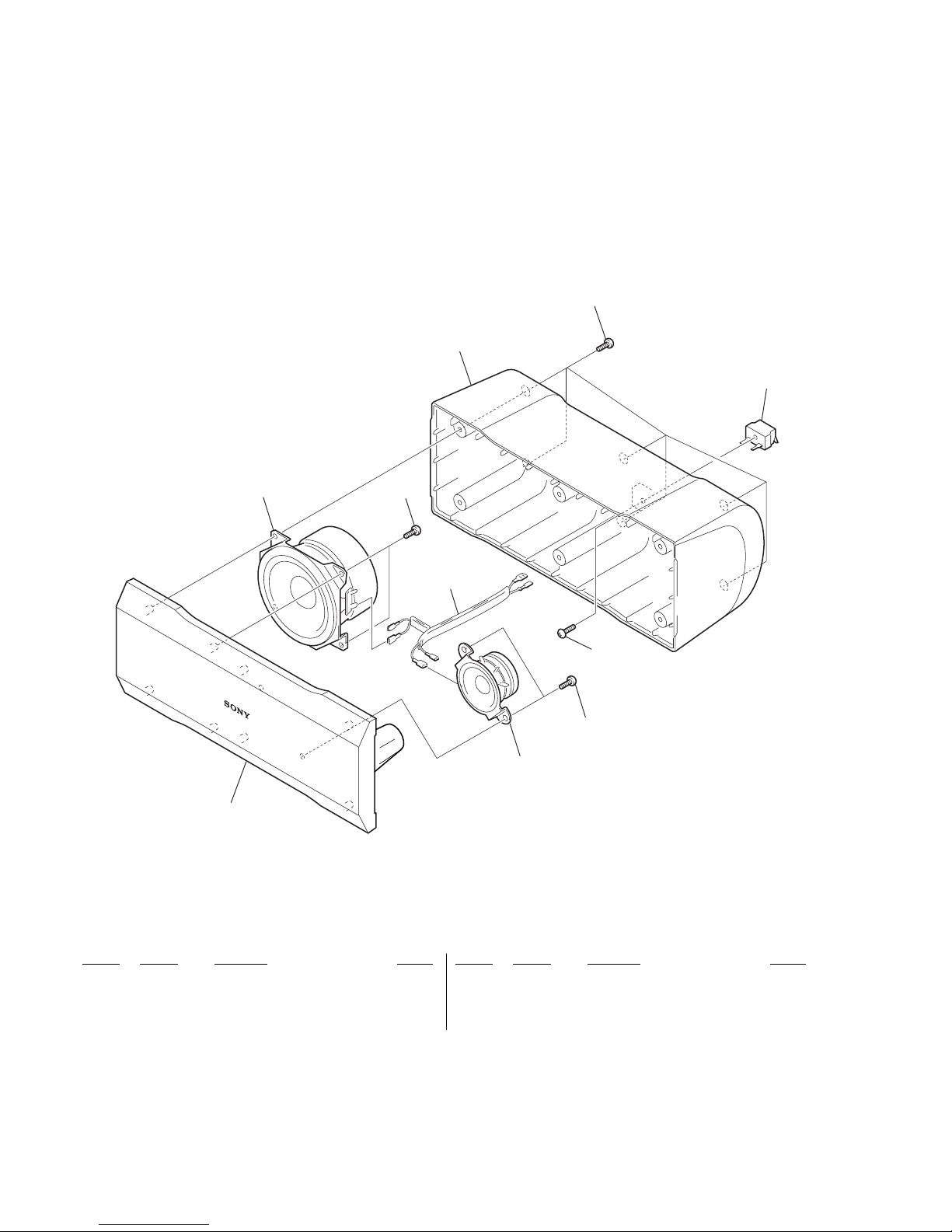

SS-CT400S

EXPLODED VIEWS

NOTE:

•Themechanicalpartswith noreference number

in the exploded views are not supplied. •-XX, -X mean standardized parts, so they may

have some differences from the original one.

3

SS-CT400S/RC400S/RS400S

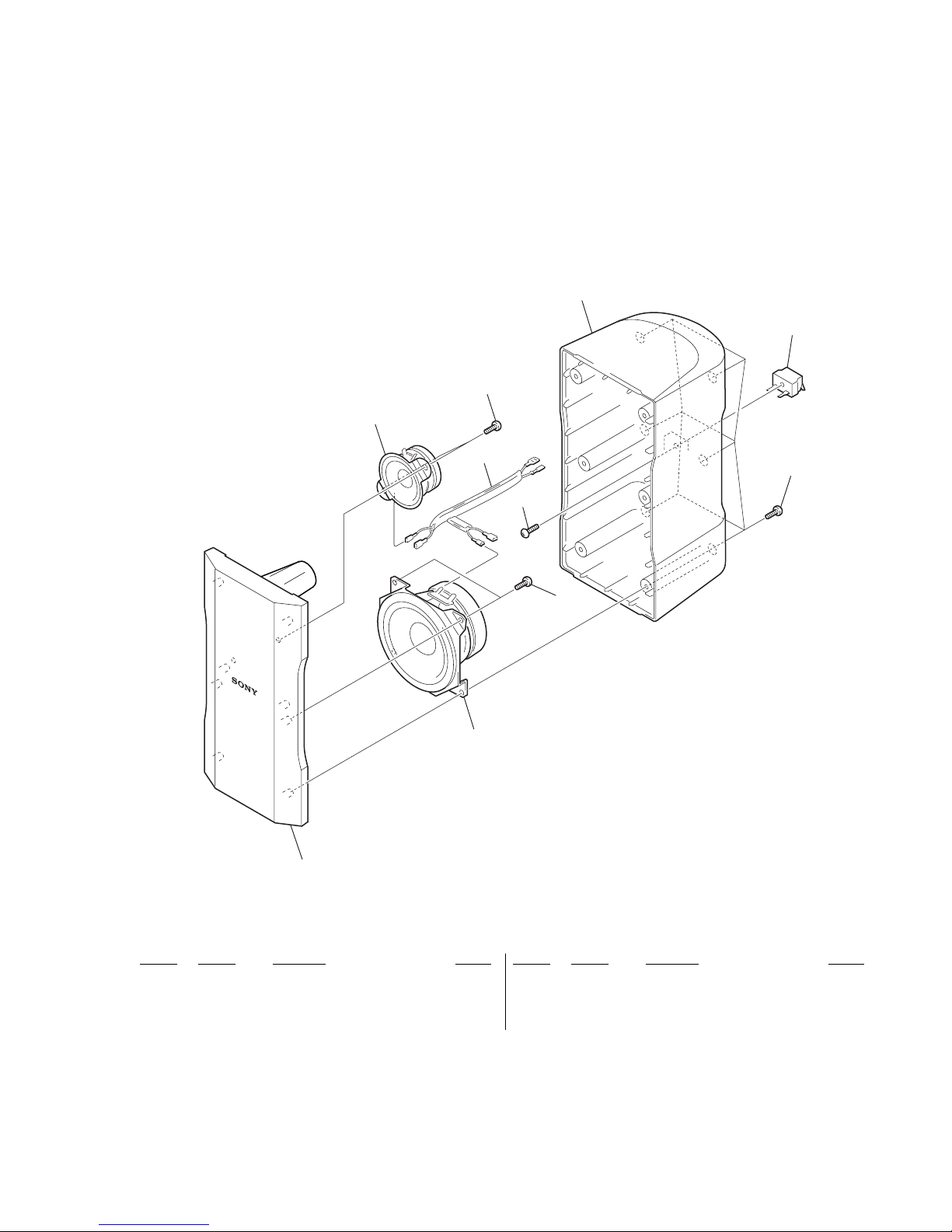

SS-RS400S

not supplied

SP4

SP5

101

106

102

103

104

104

105

101 A-1056-739-A GRILLE FRAME ASSY

102 4-986-971-12 SCREW (3.5)

103 A-4737-899-A CABINET ASSY, SPEAKER

104 4-874-614-82 SCREW

105 1-694-516-21 TERMINAL, SPEAKER

106 4-874-614-71 SCREW

SP4 1-825-419-12 SPEAKER (8cm)

SP5 1-825-420-12 SPEAKER (4cm)

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

SS-CT400S/RC400S/RS400S

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised

page.

Ver. Date Description of Revision

1.0 2004.05 New
