SERVICE MANUAL
Sony Corporation
Home Audio Division
Published by SonyTechno Create Corporation
US Model
Canadian Model
SS-CT71/TS71/TS72/WS71
AEP Model
UK Model
SS-CT71/TS71/WS71
E Model
SS-CT71/TS71
Australian Model
SS-CT71/TS71/TS72
SPEAKER SYSTEM
9-887-522-03
2007D16-1
© 2007.04
Ver. 1.2 2007.04
SS-CT71/TS71/TS72/WS71
•SS-CT71 is the speaker section in
DAV-DZ150K/DZ151KB/DZ230/DZ231/
DZ250M/DZ530/DZ555K/DZ555M/DZ556KB/
DZ630/DZ750K/HDX265/HDX266/HDX267W/
HDX465/HDX466/HDX665/HDZ235.
•SS-TS71 is the speaker section in
DAV-DZ150K/DZ151KB/DZ230/DZ231/
DZ250M/DZ530/DZ555K/DZ555M/DZ556KB/
HDX265/HDX266/HDX267W/HDX465/
HDX466/HDX501W/HDZ235.
•SS-TS72 is the speaker section in DAV-HDX265/
HDX266/HDX267W/HDX500/HDZ235.
•SS-WS71 is the speaker section in DAV-DZ230/
DZ231/DZ530/DZ630/HDZ235.
SPECIFICATIONS
SS-WS71 SS-TS72
SS-CT71
SS-TS71
SS-TS72
Speaker system Bass reflex, magnetically
shielded
Speaker unit 65 mm (2 5/
8
inches) dia,
cone type
Rated impedance 3.0 ohms
Dimensions (approx.) 93 ×221 ×75 mm (3 5/
8
×
8 3/
4
×3 inches) (w/h/d)
Mass (approx.) 0.7 kg (1 lb 9 oz)
SS-CT71
Speaker system Bass reflex, magnetically
shielded
Speaker unit 65 mm (2 5/
8
inches) dia,
cone type
Rated impedance 3.0 ohms
Dimensions (approx.) 261 ×91 ×80 mm (10 3/
8
×
3 5/
8
×3 1/
4
inches) (w/h/d)
Mass (approx.) 0.7 kg (1 lb 9 oz)
SS-TS71
Speaker system Bass reflex, magnetically
shielded
Speaker unit 65 mm (2 5/
8
inches) dia,
cone type
Rated impedance 3.0 ohms
Dimensions (approx.) 93 ×162 ×75 mm (3 3/
4
×
6 1/
2
×3 inches) (w/h/d)
Mass (approx.) 0.6 kg (1 lb 6 oz)
SS-WS71
Speaker system Bass reflex, magnetically
shielded
Speaker unit 160 mm (6 3/
8
inches) dia,
cone type
Rated impedance 3.0 ohms
Dimensions (approx.) 197 ×322 ×345 mm (7 7/
8
×12 3/
4
×13 5/
8
inches)
(w/h/d)
Mass (approx.) 5.6 kg (11 lb 15 oz)
Design and specifications are subject to change
without notice.
2
SS-CT71/TS71/TS72/WS71

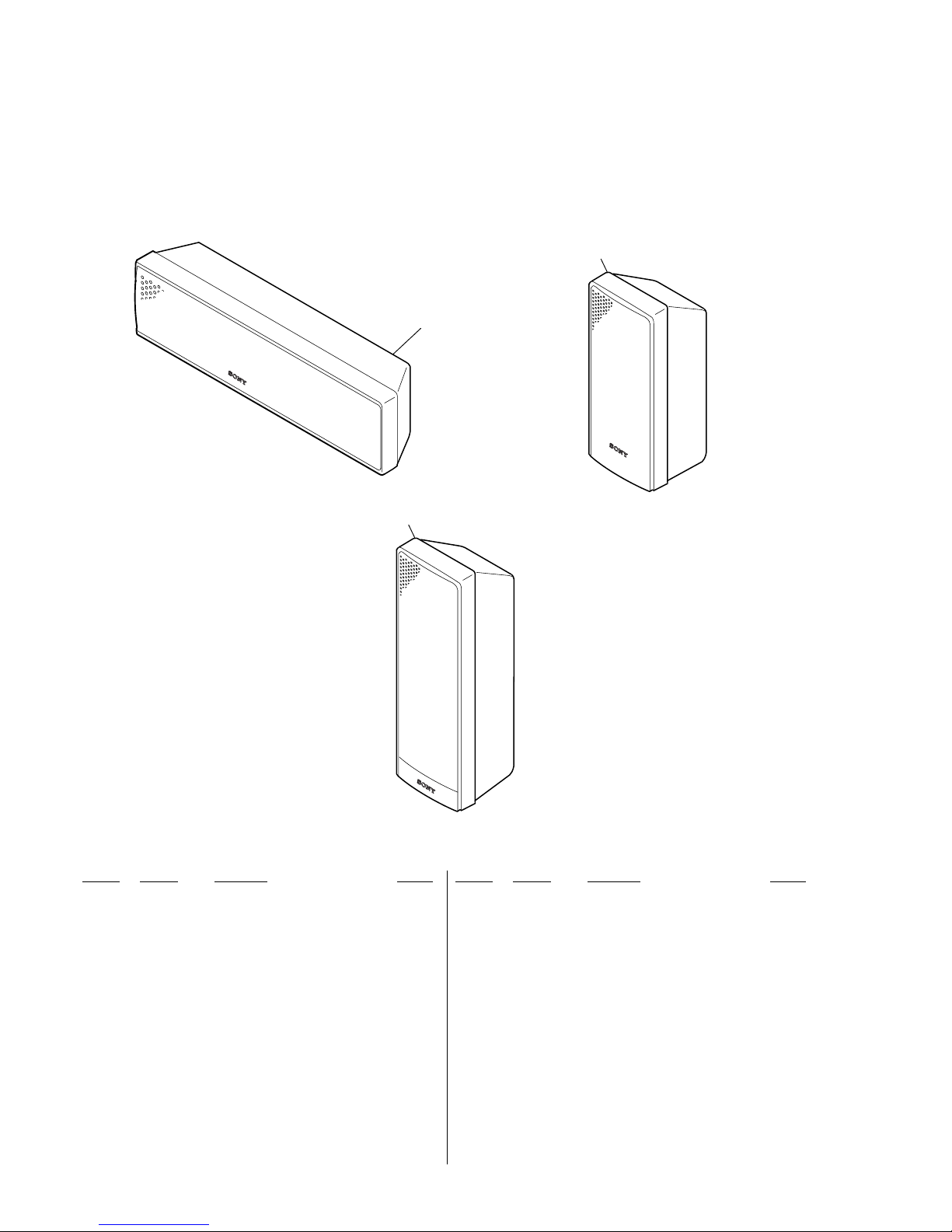

EXPLODED VIEWS
NOTE:
•The mechanical parts with no reference
numberin the exploded viewsarenot supplied.
•XX and -X mean standardized parts, so they
may have some difference from the original
one.
•Abbreviation
AR : Argentine model
AUS:Australian model
CND : Canadian model
E3 : 220 – 240V AC area in E model
E12 : 220 – 240V AC area in E model
SS-CT71/TS71/TS72
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1A-1218-472-A SS-CT71 (AEP, UK, RU, E12, E3, SP)
1A-1218-473-A SS-CT71 (US, CND, KR, AUS)
1A-1218-474-A SS-CT71 (AR, MX, E32)
1A-1247-089-A SS-CT71 (EA)
2A-1218-412-A SS-TS71 FL (for FRONT L ch)
(AEP, UK, RU, E12, E3, SP)
2A-1218-413-A SS-TS71 FR (for FRONT R ch)
(AEP, UK, RU, E12, E3, SP)
2A-1218-414-A SS-TS71 SL (for SURROUND L ch)
(AEP, UK, RU, E12, E3, SP)
2A-1218-415-A SS-TS71 SR (for SURROUND R ch)
(AEP, UK, RU, E12, E3, SP)
2A-1218-416-A SS-TS71 FL (for FRONT L ch) (KR, AUS)
2A-1218-417-A SS-TS71 FR (for FRONT R ch) (KR, AUS)
2A-1218-418-A SS-TS71 SL (for SURROUND L ch)
(US, CND, KR, AUS)
2A-1218-419-A SS-TS71 SR (for SURROUND R ch)
(US, CND, KR, AUS)
2A-1218-420-A SS-TS71 FL (for FRONT L ch) (AR, E32, MX)
2A-1218-421-A SS-TS71 FR (for FRONT R ch) (AR, E32, MX)
2A-1218-422-A SS-TS71 SL (for SURROUND L ch)
(AR, E32, MX)
2A-1218-423-A SS-TS71 SR (for SURROUND R ch)
(AR, E32, MX)
2A-1247-088-A SS-TS71 (EA)
3A-1221-365-A SS-TS72 FL (for FRONT L ch) (US, CND, AUS)
3A-1221-366-A SS-TS72 FR (for FRONT R ch) (US, CND, AUS)
3A-1221-367-A SS-TS72 SL (for SURROUND L ch) (US, CND)
(for HDX500)
3A-1221-368-A SS-TS72 SR (for SURROUND R ch) (US, CND)
(for HDX500)
3A-1256-952-A SS-TS72 FL (for FRONT L ch) (E3)
3A-1256-953-A SS-TS72 FR (for FRONT R ch) (E3)
1
2
3
Ver. 1.2
E32 : 110 – 240V AC area in E model
EA : Saudi Arabia model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
3
SS-CT71/TS71/TS72/WS71
SS-WS71
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 A-1218-491-A OVERALL ASSY (SS-WS71)
52 X-2159-721-1 GRILLE FRAME ASSY
not
supplied not
supplied
not
supplied
52
53
SP1
51
53 2-893-658-01 FRONT PANEL (S)
SP1 1-826-552-11 LOUDSPEAKER (16CM)
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
SS-CT71/TS71/TS72/WS71
Ver. Date Description of Revision
1.0 2007.01 New
1.1 2007.02
Addition of Argentine,Australian, E12 (220
–
240V AC area in E model),
E3 (220
–
240V AC area in E model), E32 (110
–
240V AC area in E
model), Saudi Arabia, Mexican and Singapore model for SS-CT71/TS71
Addition of Australian model for SS-TS72
1.2 2007.04 Addition of Russian model and Korean model for SS-CT71/TS71
Addition of E3 (220 – 240V AC area in E model) model for SS-TS72
