Sony SS-DX5 Manuale utente

SS-DX5/DX5B/DX5J/DX8/DX8B/

VX55/VX55B/VX55J/VX88/VX88B

E Model

SS-DX5/DX5B/DX5J/DX8/DX8B/

VX55/VX55B/VX55J/VX88/VX88B

Australian Model

SS-DX5/DX8

Tourist Model

SS-VX55J

SERVICE MANUAL

SPEAKER SYSTEM

SPECIFICATIONS

Photo: SS-DX5

• This set is the speaker system in

MHC-DX5/DX5J/DX8/VX55/VX55J/VX88.

Speaker system 3-way, 3-unit,

bass-reflex type

Speaker units

Super Woofer: 15 cm, cone type

Woofer: 15 cm, cone type (DX5/DX5B/DX5J/DX8/DX8B)

15 cm, hop type (VX55/VX55B/VX55J/VX88/VX88B)

Tweeter: 5 cm, cone type

Nominal impedance 6 Ω

Dimensions (w/h/d) Approx. 250 ×360 ×360

mm (9 7 /8 ×14 1 /4 ×14 1 /4 in.)

Mass Approx. 6.2 kg net per (DX5/DX5B/DX5J/DX8/DX8B)

Approx. 7.1 kg net per (VX55/VX55B/VX55J/VX88/VX88B)

Design and specifications are subject to change without notice

Ver 1.0 2000.2

Sony Corporation

Home Audio Division Company

9-929-081-11 2000B1626-1D

Published by Quality Assurance Dept.

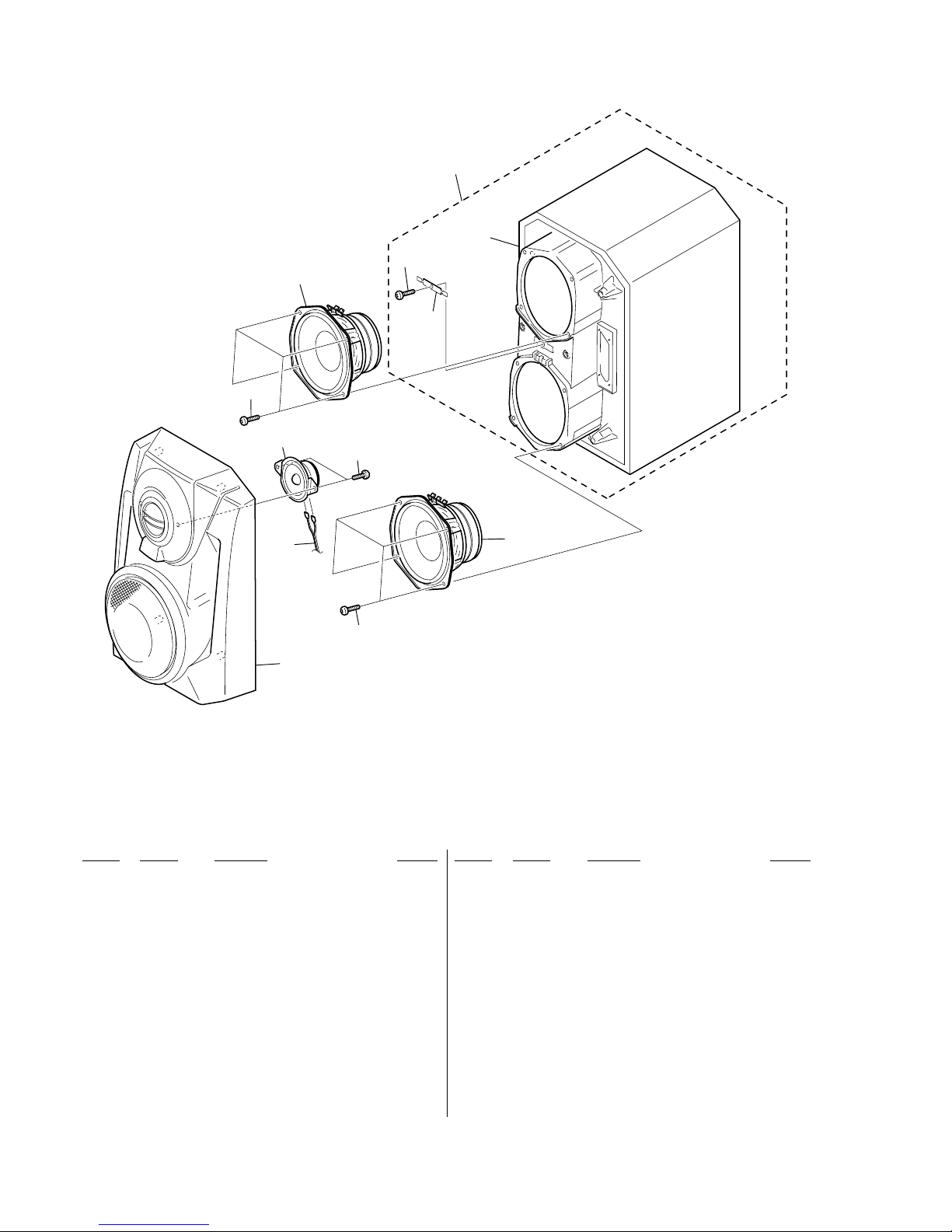

EXPLODED VIEW AND PARTS LIST

not supplied

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

1 A-4412-045-A FRONT PANEL ASSY (DX5:EA)

1 A-4412-047-A FRONT PANEL ASSY

(DX5:E,TH,AUS/DX5J/DX8/VX55:TH/VX55J/VX88)

1 A-4412-252-A FRONT PANEL ASSY (VX55:EA)

1 A-4412-243-A FRONT PANEL ASSY (VX55:E)

1 A-4412-045-A FRONT PANELASSY

(DX5B/DX8B/VX55B/VX88B)

2 4-874-614-21 SCREW(4) (3.5X14), TAPPING

3 1-529-571-11 SPEAKER (15cm)(DX5/DX5B/DX5J/DX8/DX8B)

3 1-529-690-11 SPEAKER (15cm)(VX88/VX88B)

3 1-529-693-11 SPEAKER (15cm)(VX55/VX55B/VX55J)

4 1-529-573-11 SPEAKER (5cm)(DX5/DX5B/DX5J/DX8:TH)

4 1-529-692-11 SPEAKER (5cm)

(DX8:E,EA,MX,AUS/DX8B/VX88/VX88B)

4 1-529-695-11 SPEAKER (5cm)(VX55/VX55J)

5 4-986-971-01 SCREW(3.5)

6 1-529-572-11 SPEAKER (15cm)(DX5/DX5B/DX5J/DX8/DX8B)

6 1-529-691-11 SPEAKER (15cm)(VX88/VX88B)

6 1-529-694-11 SPEAKER (15cm)(VX55/VX55B/VX55J)

7 A-4411-948-A SPEAKER CABINET ASSY

(DX5:E,EA,AUS/DX8:E,EA,MX,AUS/VX88:E,EA)

7 A-4412-253-A SPEAKER CABINET ASSY (VX55:EA)

7 A-4412-241-A SPEAKER CABINET ASSY

(DX5:TH/DX8:TH/VX55:TH/VX88:TH)

7 A-4412-242-A SPEAKER CABINET ASSY (VX55:E)

7 A-4412-244-A SPEAKER CABINET ASSY (DX5J,VX55J)

7 A-4411-948-A SPEAKER CABINET ASSY

(DX5B/DX8B/VX55B/VX88B)

8 1-694-650-11 TERMINAL

9 1-775-512-21 CORD,SPEAKER CONNECTION

• Abbreviation

EA : Saudi Arabia model.

MX : Mexican model.

TH : Thai model.

AUS : Australian model.
