US Model

SS-V130/V150

Canadian Model

AEP Model

UK Model

E Model

Australian Model

SS-V150

SERVICE MANUAL

REAR SPEAKER SYSTEM

•This set is the rear speaker system in

SA-VE130/VE150.

MICROFILM

SS-V130/V150

SPECIFICATIONS

Speaker system Full range, magnetically

shielded

Speaker unit 5 cm x 9 cm (2 x 35/8inches,

CONE TYPE)

Enclosure type Bass reflex

Rated impedance 8 ohms

Power handling capacity Maximum input power:

100W

Sensitivity 86 dB (1W, 1m)

Photo : SS-V130

Frequency range 90 - 20,000 Hz

Dimensions Approx. 67 x 151 x 133mm

(23/4 x 6 x 51/4inches) (w/h/d)

including front grille

Mass SS-V150: Approx. 630g/pc (1lb 6oz)

SS-V130: Approx. 540g/pc (1lb 3oz)

Supplied accessories

Speaker cords (Gray) 2.5m (2) (for front speakers)

10m (2) (for rear speakers)

Feet (4)

Design and specifications are subject to change without notice.

— 2 —

Sony Corporation

Home A&V Products Company

9-922-815-11

98D1690-1

Printed in Japan © 1998.4

Published by Quality Assurance Dept.

(Shibaura)

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

1 X-4950-138-1 FRONT PANEL ASSY

2 7-685-659-79 SCREW + BVTP 4 x 8 TYPE2 IT-3

3 7-685-661-21 SCREW + BVTP 4 x 12 TYPE2 SLIT

*4 X-4950-131-1 CABINET ASSY, SPEAKER

5 4-929-125-01 SCREW (M4 x 16),TAPPING

6 1-537-775-11 TERMINAL BOARD

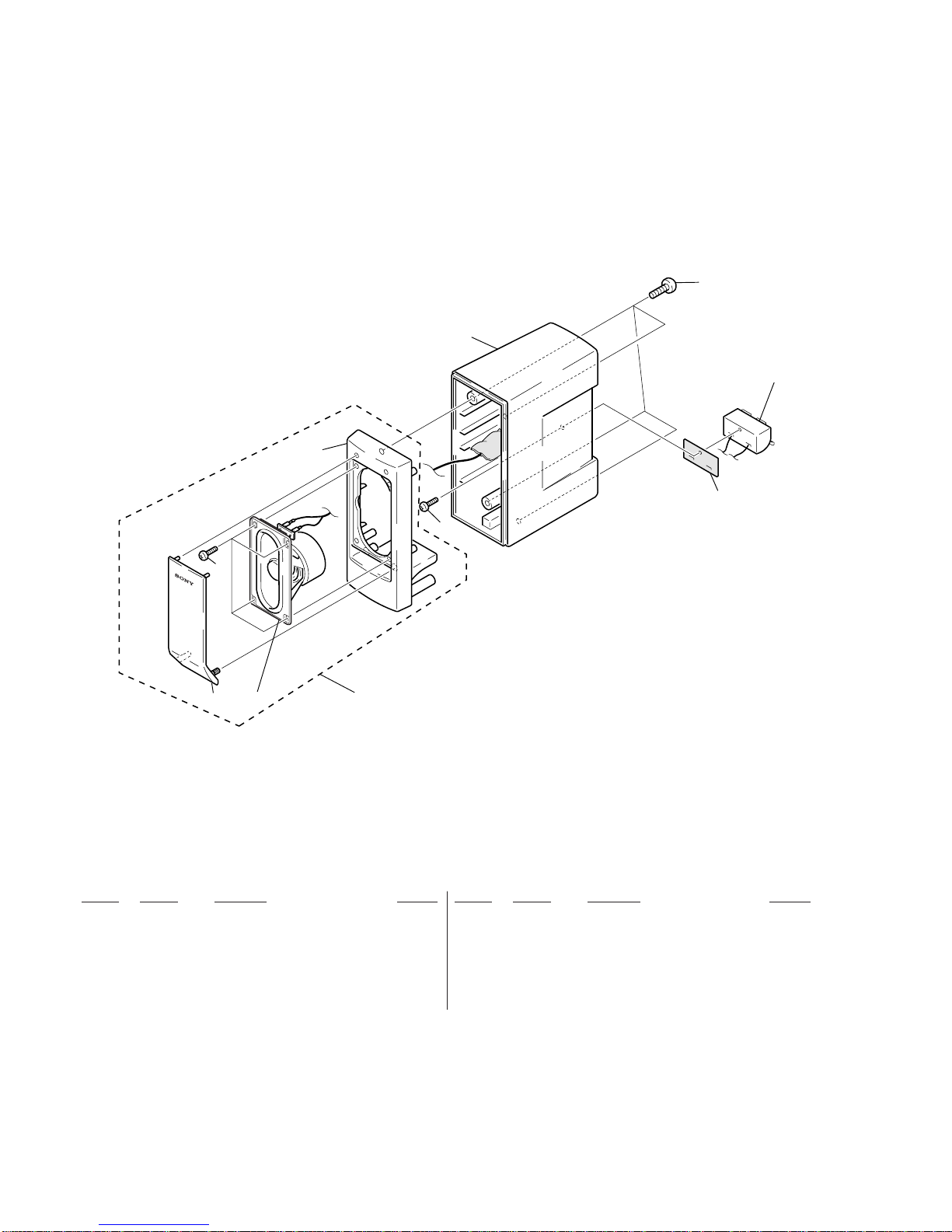

EXPLODED VIEW AND PARTS LIST

5

6

4

3

1

2

not supplied

not supplied

not supplie

d

NOTE:

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delayshouldbeanticipatedwhenorderingthese

items.

ACCESSORIES & PACKING MATERIALS

*******************************

1-769-433-01 SPEAKER CORD (10 m)

1-769-433-11 SPEAKER CORD (2.5 m)

4-972-322-01 FOOT
