Sony SS-X70ED Manuale utente

SS-X70ED/X90ED

US Model

Canadian Model

AEP Model

UK Model

E Model

SERVICE MANUAL

SPEAKER SYSTEM

Sony Corporation

Audio Group

Published by Sony Engineering Corporation

9-873-449-04

2004I16-1

SPECIFICATIONS

Ver 1.3 2004. 09

Photo : SS-X90ED

SS-X90ED

Speaker system 3-way, magnetically shielded

Loud speaker units Woofer: 16.5 cm (6

inches), cone type x2

Mid range: 16.5 cm (6

inches), cone type

Tweeter: 2.5 cm (1 inch), dome type

Enclosure type Bass reflex

Rated impedance 4 ohms

Maximum input power

200 watts

Characteristic sensitivity level

90 dB (2.83 V/m)

Efficiency frequency range

35 Hz-70,000 Hz

Cross over frequency 450 Hz, 3,500 Hz

Dimensions (w/h/d) Approx. 260 x1,000 x300 mm (10

x39

inches)

Weight per speaker Approx. 32 kg (70 lb 6 oz)

Supplied accessories Spike (4)

SS-X70ED

Speaker system 3-way, magnetically shielded

Loud speaker units Woofer: 16.5 cm (6

inches), cone type

Mid range: 16.5 cm (6

inches), cone type

Tweeter: 2.5 cm (1 inch), dome type

Enclosure type Bass reflex

Rated impedance 4 ohms

Maximum input power

150 watts

Characteristic sensitivity level

89 dB (2.83V/m)

Efficiency frequency range

40 Hz-70,000 Hz

Cross over frequency 450 Hz, 3,500Hz

Dimensions (w/h/d) Approx. 260 x900 x300 mm (10

x35

x11

inches)

Weight per speaker Approx. 28 kg (61 lb 8 oz)

Supplied accessories Spike (4)

Design and specifications are subject to change without notice.

SS-X70ED/X90ED

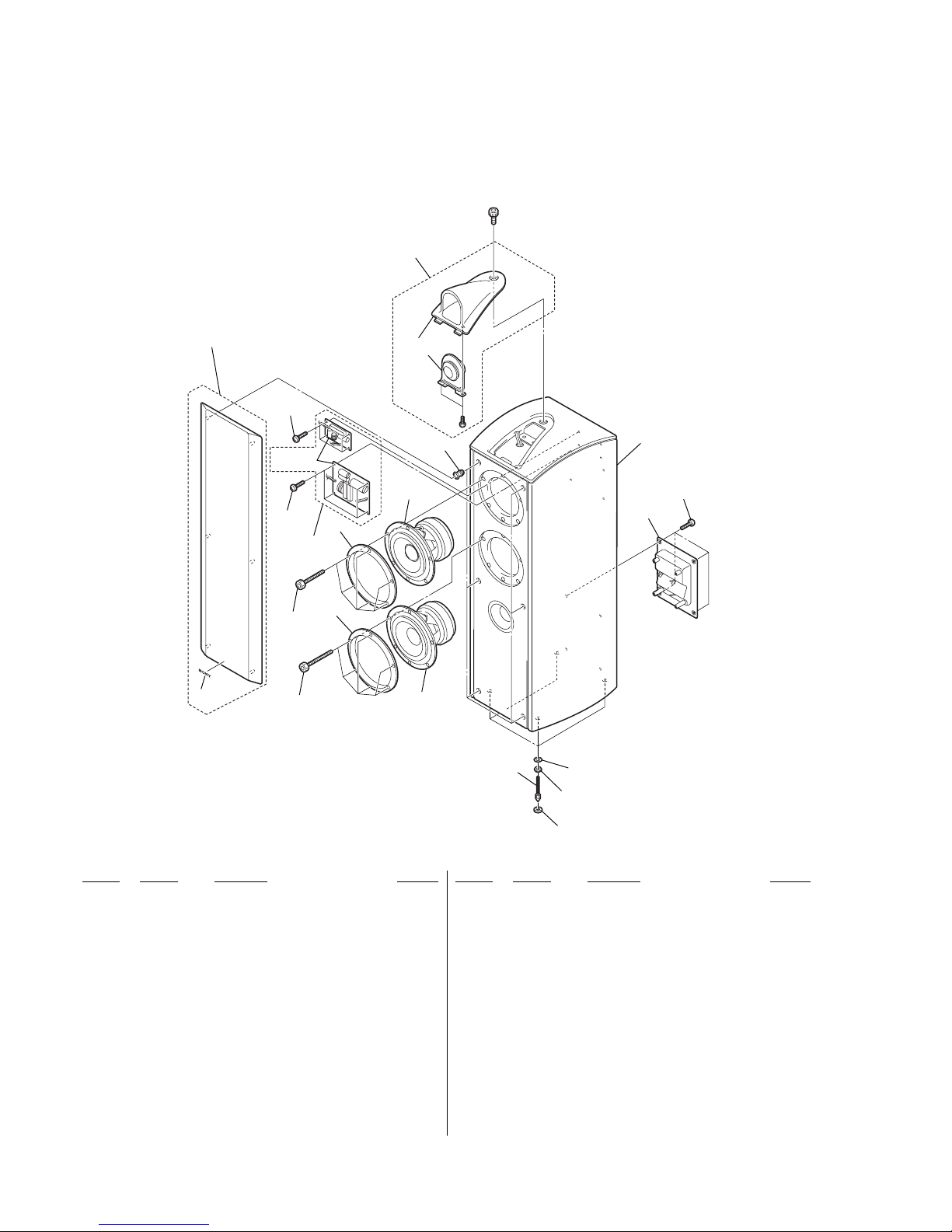

EXPLODED VIEW AND PARTS LIST

NOTE:

•Color Indication of Appearance Parts Example:

KNOB, BALANCE (WHITE) . . . (RED)

↑↑

Parts Color Cabinet's Color

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

1. SS-X70ED

not

supplied

SP1

SP2

not

supplied

not

supplied

1X-4954-515-1 FRAME ASSY, GRILLE (BLACK)

1X-4954-645-1 FRAME ASSY, GRILLE (WOODY)

24-210-830-01 CATCHER

3X-4954-504-1 COVER ASSY, TW (WOODY)

3X-4954-505-1 COVER ASSY (B), TW (BLACK)

44-949-384-11 EMBLEM (NO.6), SONY

51-694-890-11 TERMINAL BOARD

64-874-614-11 SCREW +BVTP 3.5X14

71-761-514-11 MOUNTED PC BOARD

84-237-380-01 RING, ORNAMENTAL

94-238-926-01 BOLT, HEXAGON SOCKET

15 4-238-448-01 PLATE

16 4-238-445-01 SPIKE

17 4-238-446-01 NUT

18 4-238-447-01 WASHER

SP1 1-825-021-11 SPEAKER (16cm)

SP2 1-825-019-11 SPEAKER (16cm)

#1 7-683-420-04 BOLT,HEXAGON SOCKET 4X10

#2 7-682-148-01 SCREW +P 3X8

*************************************************************

ACCESSORIES

************

4-238-600-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH,

SPANISH, PORTUGUESE, CHINESE)

(US, Canadian, UK, E)

4-238-600-21 MANUAL, INSTRUCTION (ENGLISH, FRENCH,

GERMAN, SPANISH, DUTCH, SWEDISH,

ITALIAN, PORTUGUESE, SLOVAK, POLISH,

RUSSIAN, GREEK, FINNISH, DANISH, CZECH)

(APE)

Ver 1.3

SS-X70ED/X90ED

55 56

66 67

56 52

not

supplied

SP3

SP4

not

supplied

not

supplied

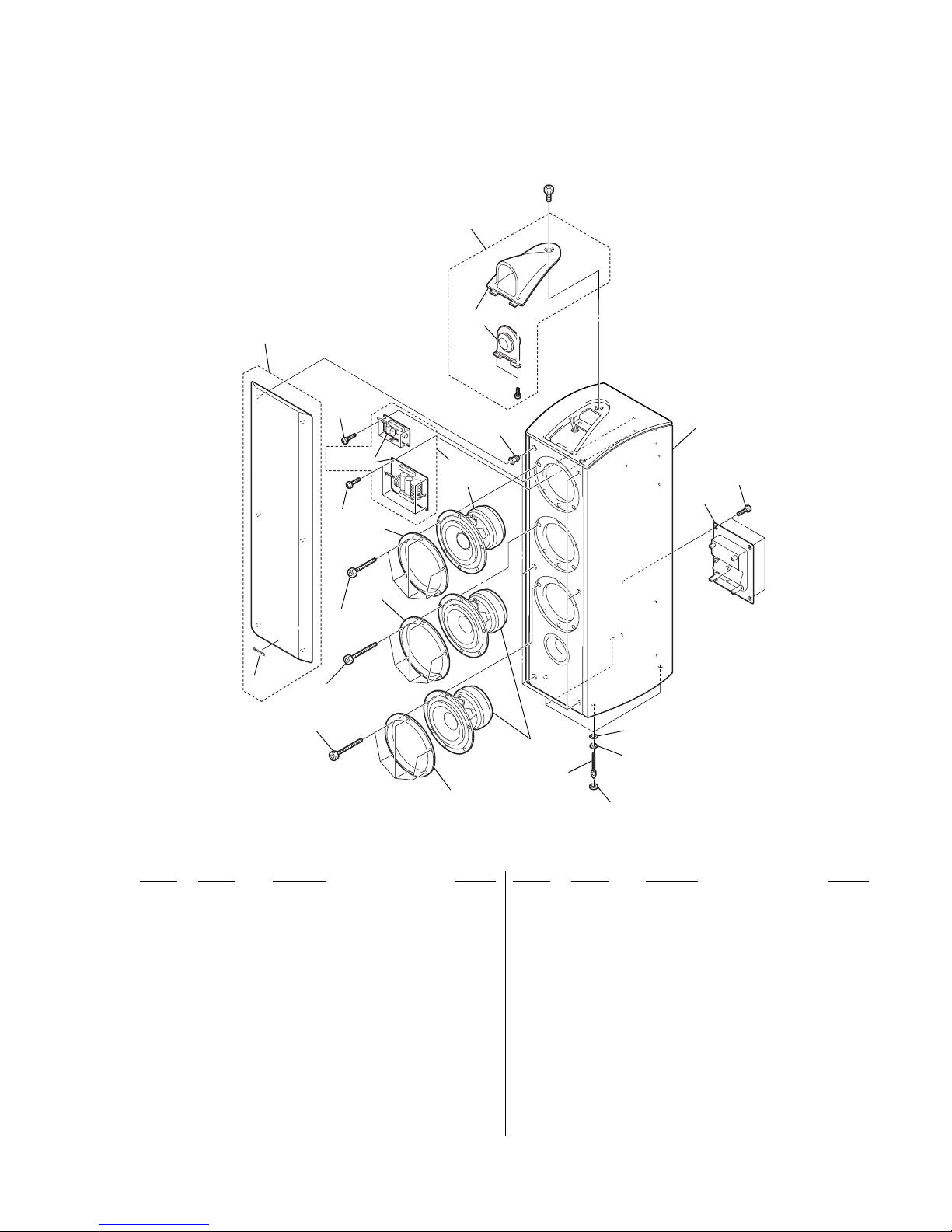

2. SS-X90ED

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

51 X-4954-516-1 FRAME ASSY, GRILLE (BLACK)

51 X-4955-725-1 FRAME ASSY, GRILLE (WOODY)

52 4-210-830-01 CATCHER

53 X-4954-504-1 COVER ASSY (B), TW (WOODY)

53 X-4954-505-1 COVER ASSY (B), TW (BLACK)

54 4-949-384-11 EMBLEM (NO.6), SONY

55 1-694-890-11 TERMINAL BOARD

56 4-874-614-11 SCREW +BVTP 3.5X14 (BLACK)

57 1-761-515-11 MOUNTED PC BOARD

58 4-237-380-01 RING, ORNAMENTAL

59 4-238-926-01 BOLT, HEXAGON SOCKET

65 4-238-448-01 PLATE

66 4-238-445-01 SPIKE

67 4-238-446-01 NUT

68 4-238-447-01 WASHER

SP3 1-825-022-11 SPEAKER (16cm)

SP4 1-825-019-11 SPEAKER (16cm)

#3 7-683-420-04 BOLT,HEXAGON SOCKET 4X10 (BLACK)

#4 7-682-148-01 SCREW +P 3X8

*************************************************************

ACCESSORIES

************

4-238-600-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH,

SPANISH, PORTUGUESE, CHINESE)

(US, Canadian, UK, E)

4-238-600-21 MANUAL, INSTRUCTION (ENGLISH, FRENCH,

GERMAN, SPANISH, DUTCH, SWEDISH,

ITALIAN, PORTUGUESE, SLOVAK, POLISH,

RUSSIAN, GREEK, FINNISH, DANISH, CZECH)

(APE)

Ver 1.3

SS-X70ED/X90ED

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised

page.

Ver. Date Description of Revision

1.0 2001.12 New

1.1 2003.05 Change of Ref.No.51 (SPM-03020)

1.2 2004.08 Addition of SP5 and SP6 (SPM-04077)

1.3 2004.09 Deletion of SP5 and SP6 (SPM-04091)
