Sony STR-DN840 Manuale utente

Sony STR-DN840 [GB] 4-454-471-11(1)

STR-DN840Multi Channel AV Receiver

Start here

Hello, this is your Quick Setup Guide

Sony STR-DN840 [GB] 4-454-471-11(1)

Connecting your TV and other devices

Other connections

Optimizing and on-screen [Easy Setup]

Playback

Setting up the speakers

Sony STR-DN840 [GB] 4-454-471-11(1)

What’s in the box

You will need to have a speaker system in place

and/or other equipment ready to connect.

Multi Channel AV Receiver (1)

Optimizer microphone (ECM-AC2) (1) R6 (size-AA) batteries (2)

Remote (RM-AAU169) (1) FM wire antenna (aerial) (1)AM loop antenna (aerial) (1)

Sony STR-DN840 [GB] 4-454-471-11(1)

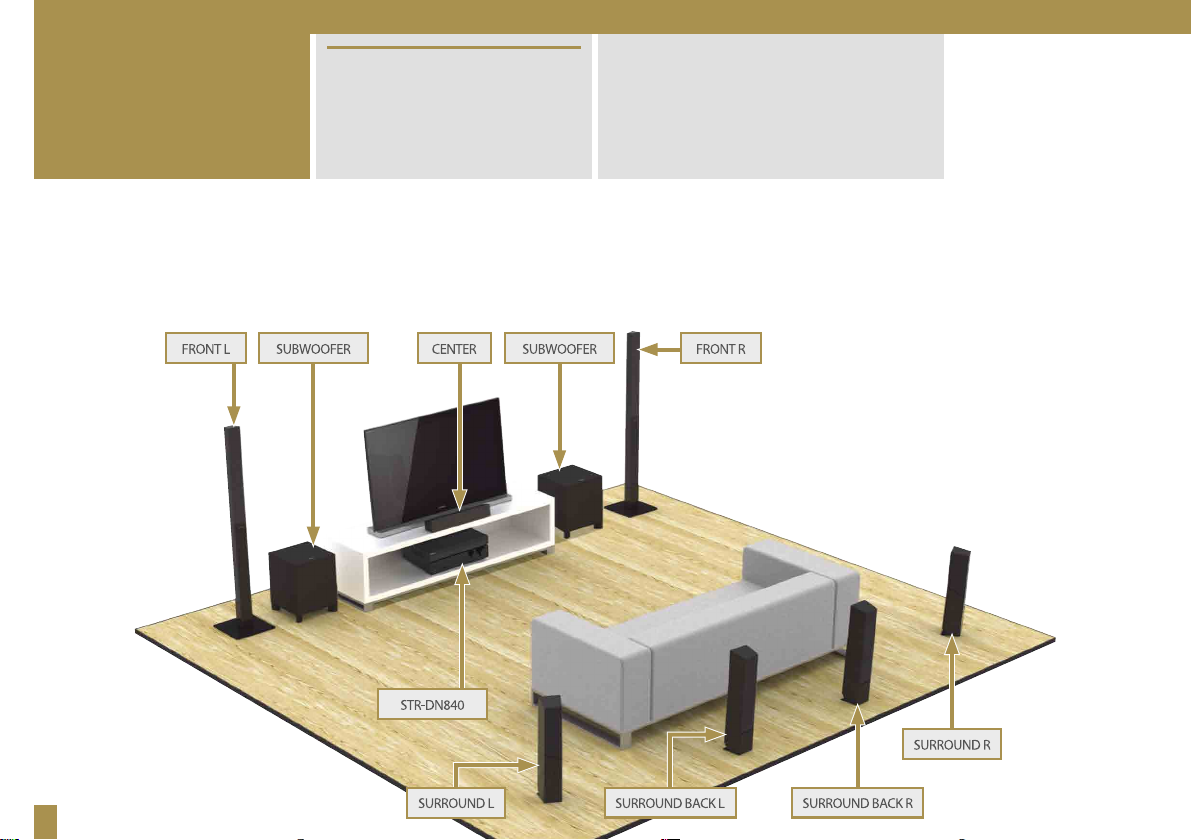

First, position your existing

speakers around the room

using the illustration below as a

reference.

 You can connect two FRONT HIGH

speakers instead of two SURROUND

BACK speakers if you prefer.

 Up to two subwoofers can be connected.

Sony STR-DN840 [GB] 4-454-471-11(1)

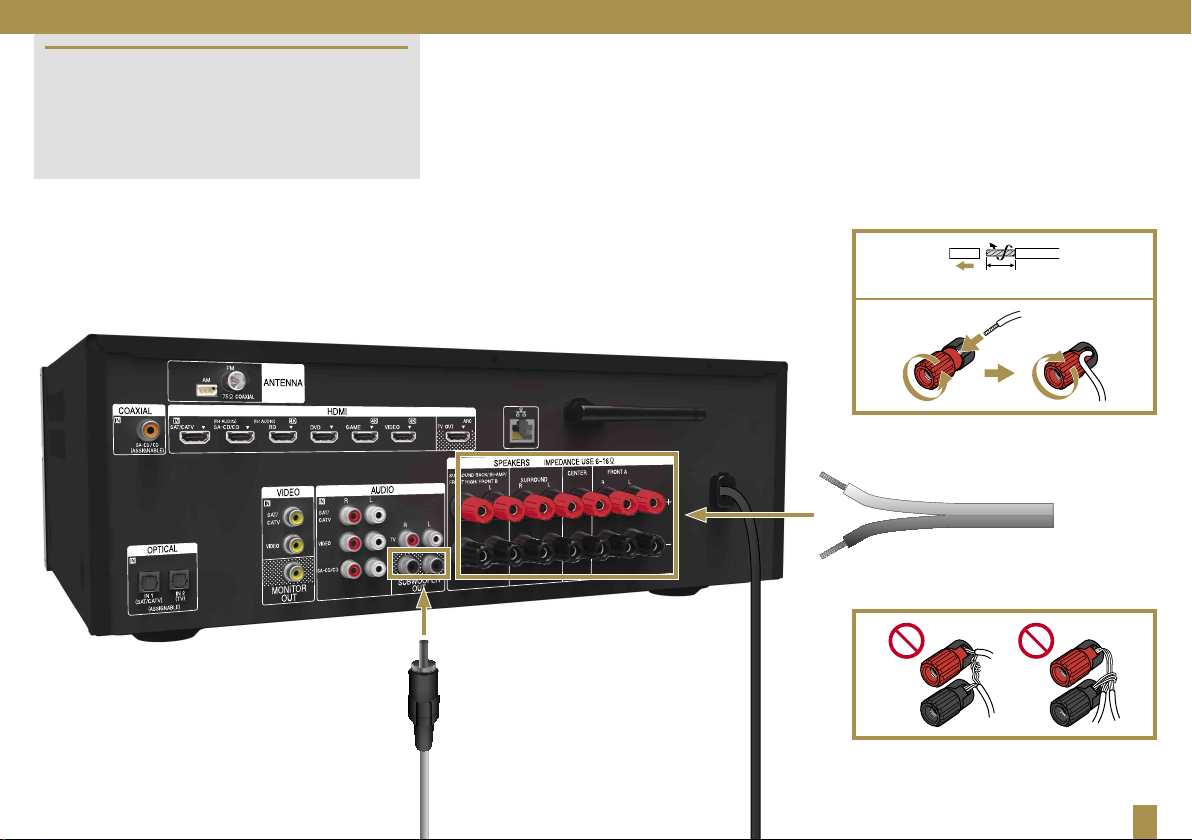

Next, connect your speakers to the AV receiver.

Match the labels for each terminal to the

position of each speaker. Do not forget to

connect the subwoofer cable(s) as well.

Subwoofer





10 mm

Sony STR-DN840 [GB] 4-454-471-11(1)

Continue by connecting your TV.

To enjoy high-quality video and

audio, the optimal method is to

connect via a High Speed HDMI

cable (not supplied).

To connect your Blu-ray Disc

player, PlayStation®3, or satellite

tuner, simply connect with a High

Speed HDMI cable.

Blu-ray Disc player, PlayStation®3, or satellite tuner

Digital (better quality)

Analog (good quality)

Sony STR-DN840 [GB] 4-454-471-11(1)

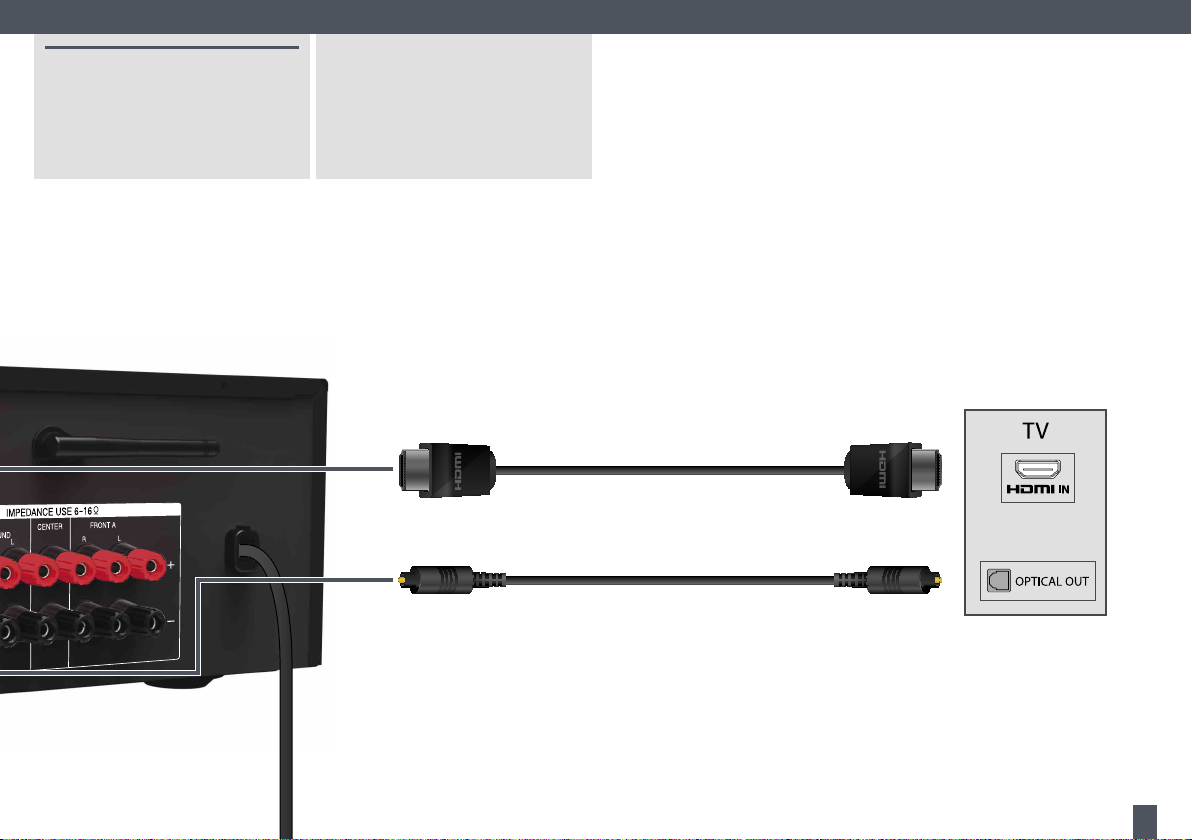

If your TV has an HDMI ARC

jack, you do not need an optical

digital cord.

If your TV has no HDMI ARC jack,

you need an optical digital cord

(not supplied) to enjoy TV sound

through the system speakers.

HDMI cable

Optical digital cord

Sony STR-DN840 [GB] 4-454-471-11(1)

For FM radio, connect the

supplied FM wire antenna (aerial)

into the FM ANTENNA jack and

extend it for optimal reception.

Alternatively, connect your own

external antenna (aerial).

You can also connect your iPod/

iPhone to the iPod/iPhone

terminals.

Apple USB Cable

(not supplied)

 

AM loop antenna (aerial)

FM wire antenna (aerial)

To iPod, iPhone, etc.

Sony STR-DN840 [GB] 4-454-471-11(1)

The shape of the AC power

cord (mains lead) and the

AC outlet (mains), varies

depending on the area.

Connect to the Internet and home network via

a wireless LAN or LAN cable  (not supplied).

[Network Settings] can be found in the

[Settings] menu of the home menu.

For further details, visit:

http://support.sony-europe.com/

Connect the AC power cord

(mains lead)  to a wall outlet

(mains).

Now you can switch on the AV

receiver, TV, subwoofer and other

devices.





Sony STR-DN840 [GB] 4-454-471-11(1)

Next, plug the supplied

optimizer microphone into the

AUTO CAL MIC jack.

Place it roughly where you would

normally sit, and at ear level – on

the back of a sofa, for instance.

Confirm active subwoofer setup.

When a subwoofer is connected,

turn it on and turn up the volume

prior to activating it. Turn the

subwoofer’s LEVEL dial up about

1/3 of the way.
