MICROFILM

US Model

Canadian Model

AEP Model

UK Model

E Model

CMT-M11C

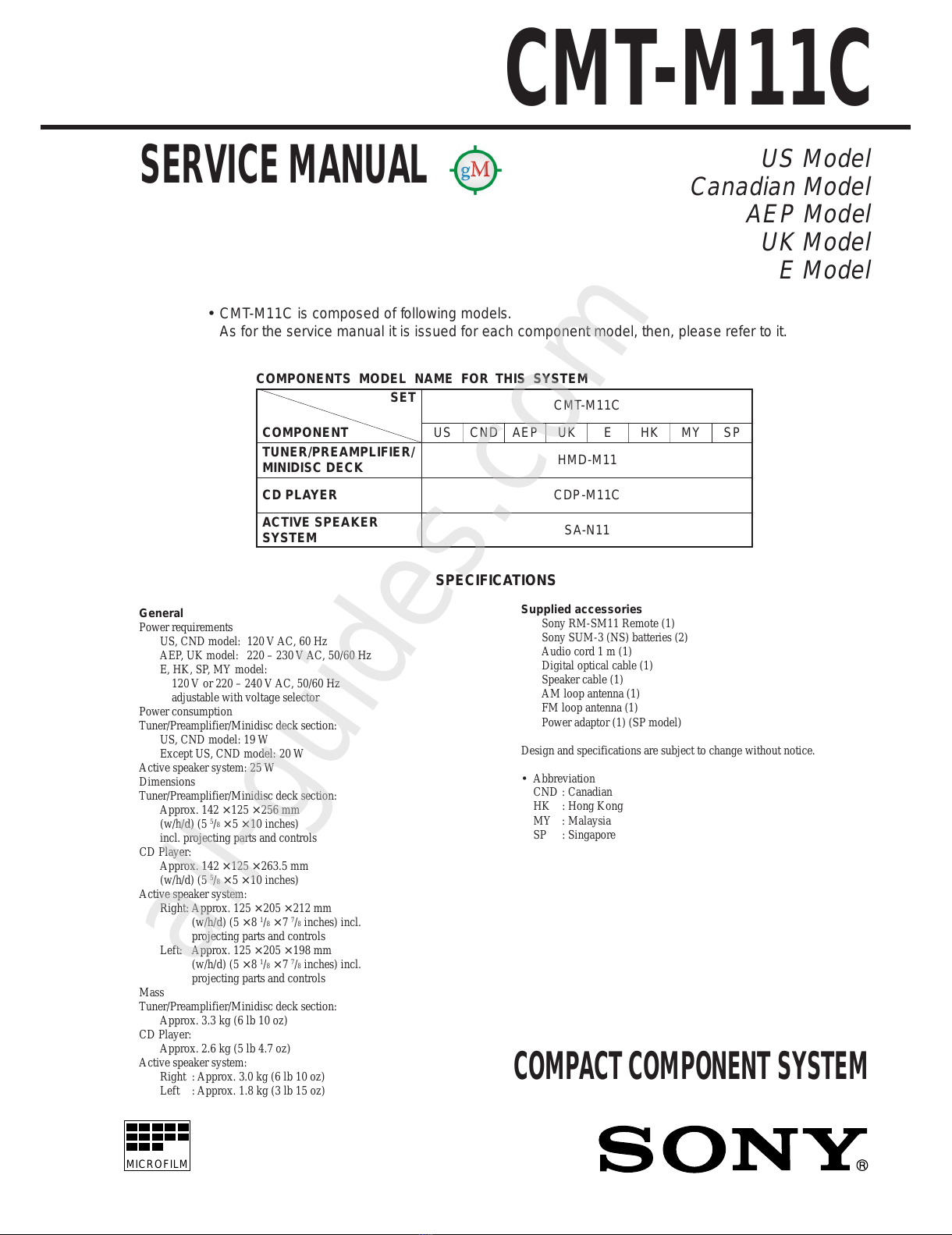

SERVICE MANUAL

COMPACT COMPONENT SYSTEM

•CMT-M11C is composed of following models.

As for the service manual it is issued for each component model, then, please refer to it.

SPECIFICATIONS

General

Power requirements

US, CND model: 120 V AC, 60 Hz

AEP, UK model: 220 – 230 V AC, 50/60 Hz

E, HK, SP, MY model:

120 V or 220 – 240 V AC, 50/60 Hz

adjustable with voltage selector

Power consumption

Tuner/Preamplifier/Minidisc deck section:

US, CND model: 19 W

Except US, CND model: 20 W

Active speaker system: 25 W

Dimensions

Tuner/Preamplifier/Minidisc deck section:

Approx. 142 ×125 ×256 mm

(w/h/d) (5 5/8×5 ×10 inches)

incl. projecting parts and controls

CD Player:

Approx. 142 ×125 ×263.5 mm

(w/h/d) (5 5/8×5 ×10 inches)

Active speaker system:

Right: Approx. 125 ×205 ×212 mm

(w/h/d) (5 ×8 1/8×7 7/8inches) incl.

projecting parts and controls

Left: Approx. 125 ×205 ×198 mm

(w/h/d) (5 ×8 1/8×7 7/8inches) incl.

projecting parts and controls

Mass

Tuner/Preamplifier/Minidisc deck section:

Approx. 3.3 kg (6 lb 10 oz)

CD Player:

Approx. 2.6 kg (5 lb 4.7 oz)

Active speaker system:

Right :Approx. 3.0 kg (6 lb 10 oz)

Left : Approx. 1.8 kg (3 lb 15 oz)

Supplied accessories

Sony RM-SM11 Remote (1)

Sony SUM-3 (NS) batteries (2)

Audio cord 1 m (1)

Digital optical cable (1)

Speaker cable (1)

AM loop antenna (1)

FM loop antenna (1)

Power adaptor (1) (SP model)

Design and specifications are subject to change without notice.

•Abbreviation

CND : Canadian

HK : Hong Kong

MY : Malaysia

SP : Singapore

COMPONENTS MODEL NAME FOR THIS SYSTEM

SET

COMPONENT

TUNER/PREAMPLIFIER/

MINIDISC DECK

CD PLAYER

ACTIVE SPEAKER

SYSTEM

CMT-M11C

US CND AEP UK E HK MY SP

HMD-M11

CDP-M11C

SA-N11

All manuals and user guides at all-guides.com

all-guides.com

– 2 –

SECTION 1

AGING MODE

1-1. CONNECTION AND PREPARATION

Before entering the aging mode, connect as shown below, load a

writable disc (MD) into the HMD-M11 and set three discs (CD)

into the CDP-M11C.

1-3. RELEASING THE AGING MODE

In the aging mode, press any button on HMD-M11, then press

POWER button on HMD-M11, and the power goes in OFF sta-

tus, then the set becomes ready for normal operation.

1-4. OPERATION IN AGING MODE

When the aging mode is activated, 4 cycle aging ↔10 minute CD

sync. dubbing are repeatedly executed until any button is pressed.

During a cycle aging, normal display is made (if an error occurs,

the operation stops with an error message kept displayed). Dur-

ing 10 minute CD sync. dubbing, MD retry count and a cause of

retry are displayed with a hexadecimal number, and also CD sound

skip count is displayed.

84218421 Description

Bit b7 b6 b5 b4 b3 b2 b1 b0

00000000 00 (Not used) (Not used)

00000001 01 shock Track was skipped due to a shock

00000010 02 ADIP error ADIP error occurred more than 5 times successively

00000100 04 address error ADIP addresses are not serial

Decimal

00001000 08 Din unlock Digital input is unlocked

00010000 10 focus Focusing failed

00100000 20 IV-R ABCD signal level exceeded the specified range

01000000 40 CLV unlock CLV is unlocked (CLV is out of range)

10000000 80 cannot access Access failed

Hexa-

decimal

Lower BitUpper Bit

Table 1-1. Description of Retry Cause Display

Name of Retry

Cause

Hexa-

decimal

Note: The contents of disc are all erased, if a recorded disc is

used in the aging mode.

1-2. SETTING THE AGING MODE

With the power in OFF status, press =0 button and

VOL + button on the HMD-M11 simultaneously, and the aging

mode is activated.

CDP-M11C

Compact Disc

Player









HMD-M11

Mini-disc deck/

Tuner/Preamp









optical cable

System control cable

(Attached to HMD-M11) AC IN

Retry count

Cause of retr

Sound skip count

All manuals and user guides at all-guides.com

– 3 –

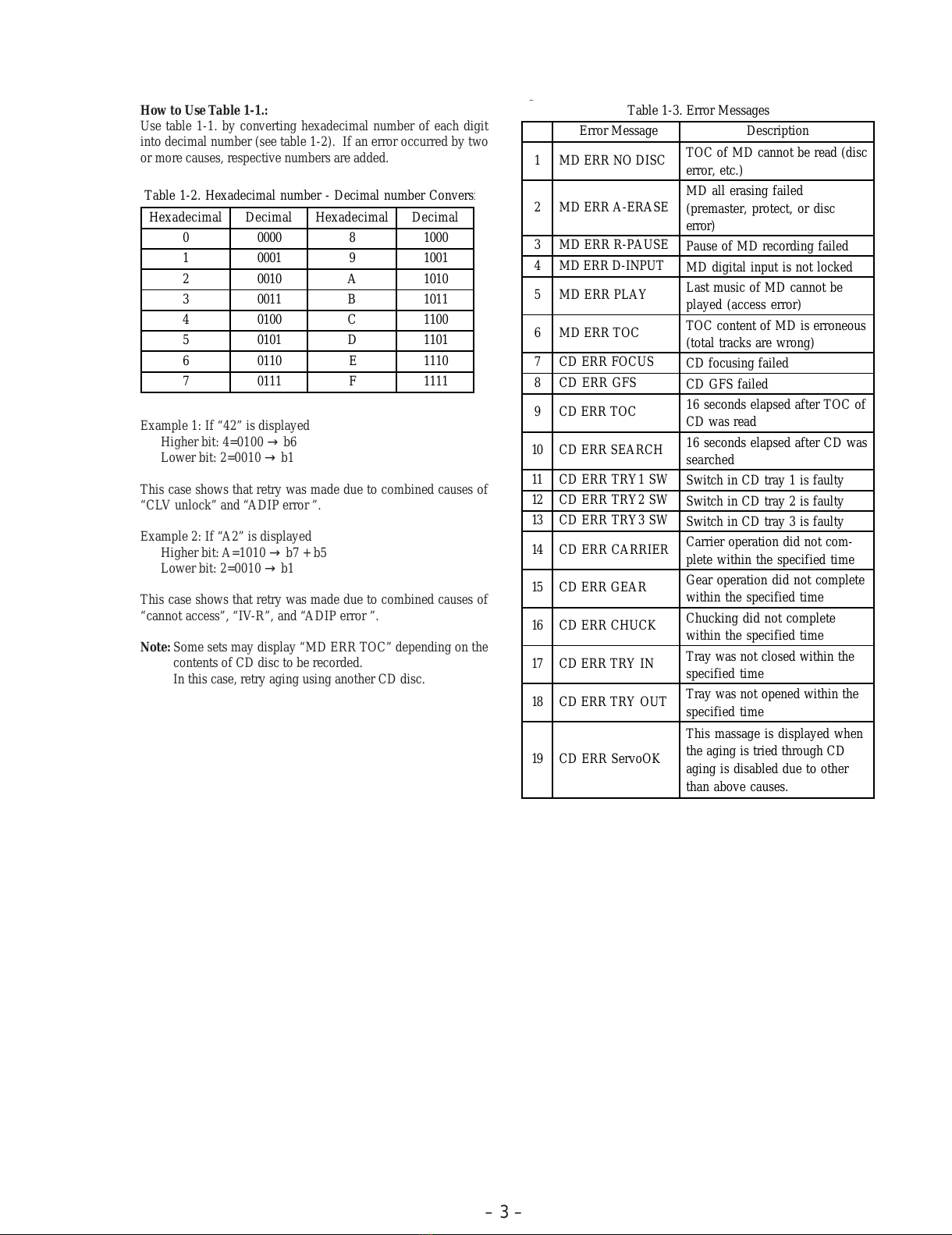

How to Use Table 1-1.:

Use table 1-1. by converting hexadecimal number of each digit

into decimal number (see table 1-2). If an error occurred by two

or more causes, respective numbers are added.

Hexadecimal Decimal Hexadecimal Decimal

0 0000 8 1000

1 0001 9 1001

2 0010 A 1010

3 0011 B 1011

4 0100 C 1100

5 0101 D 1101

6 0110 E 1110

7 0111 F 1111

Table 1-2. Hexadecimal number - Decimal number Convers

Example 1: If “42” is displayed

Higher bit: 4=0100 →b6

Lower bit: 2=0010 →b1

This case shows that retry was made due to combined causes of

“CLV unlock” and “ADIP error ”.

Example 2: If “A2” is displayed

Higher bit: A=1010 →b7 + b5

Lower bit: 2=0010 →b1

This case shows that retry was made due to combined causes of

“cannot access”, “IV-R”, and “ADIP error ”.

Note:Some sets may display “MD ERR TOC” depending on the

contents of CD disc to be recorded.

In this case, retry aging using another CD disc.

Error Message Description

1 MD ERR NO DISC TOC of MD cannot be read (disc

error, etc.)

2 MD ERR A-ERASE MD all erasing failed

(premaster, protect, or disc

error)

3 MD ERR R-PAUSE Pause of MD recording failed

4 MD ERR D-INPUT MD digital input is not locked

5 MD ERR PLAY Last music of MD cannot be

played (access error)

6 MD ERR TOC TOC content of MD is erroneous

(total tracks are wrong)

7 CD ERR FOCUS CD focusing failed

8 CD ERR GFS CD GFS failed

9 CD ERR TOC 16 seconds elapsed after TOC of

CD was read

10 CD ERR SEARCH 16 seconds elapsed after CD was

searched

11 CD ERR TRY1 SW Switch in CD tray 1 is faulty

12 CD ERR TRY2 SW Switch in CD tray 2 is faulty

13 CD ERR TRY3 SW Switch in CD tray 3 is faulty

14 CD ERR CARRIER Carrier operation did not com-

plete within the specified time

15 CD ERR GEAR Gear operation did not complete

within the specified time

16 CD ERR CHUCK Chucking did not complete

within the specified time

17 CD ERR TRY IN Tray was not closed within the

specified time

18 CD ERR TRY OUT Tray was not opened within the

specified time

19 CD ERR ServoOK

This massage is displayed when

the aging is tried through CD

aging is disabled due to other

than above causes.

Table 1-3. Error Messages

All manuals and user guides at all-guides.com

– 4 –

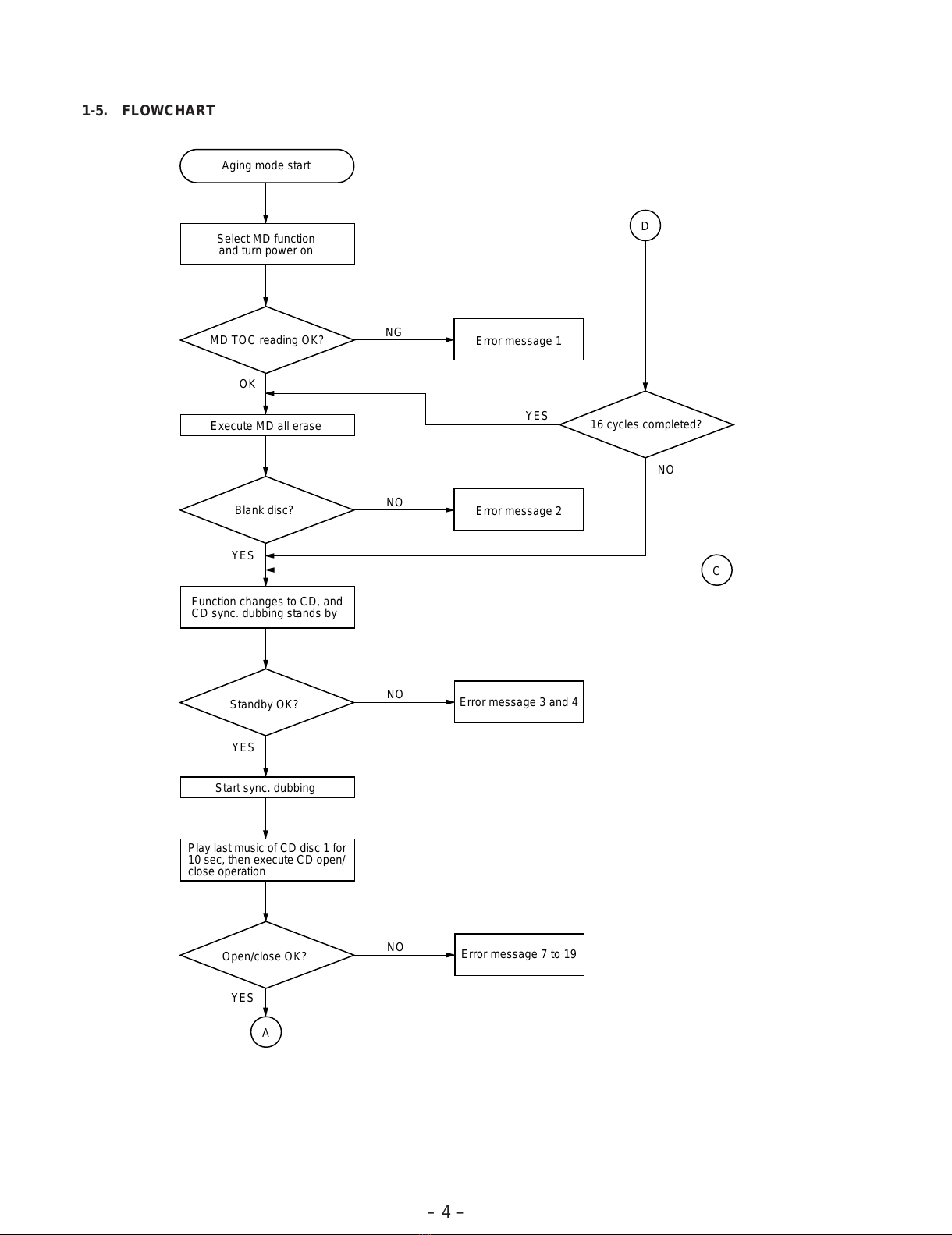

1-5. FLOWCHART

Aging mode start

Select MD function

and turn power on

MD TOC reading OK?

Execute MD all erase

Blank disc?

Function changes to CD, and

CD sync. dubbing stands by

Standby OK?

Start sync. dubbing

Play last music of CD disc 1 for

10 sec, then execute CD open/

close operation

Open/close OK?

Error message 7 to 19

Error message 3 and 4

Error message 2

Error message 1

16 cycles completed?

YES

All manuals and user guides at all-guides.com

– 5 –

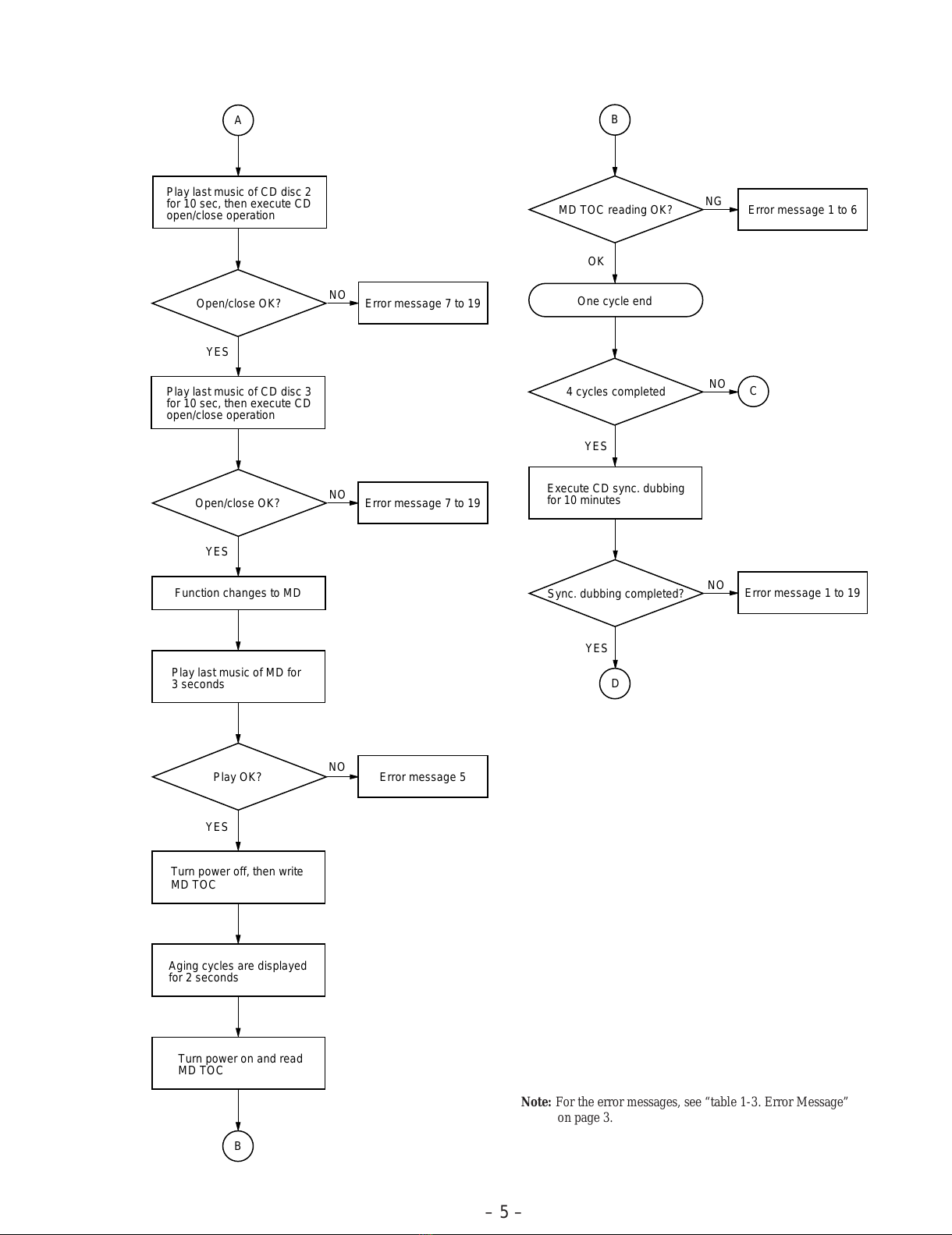

Play last music of CD disc 2

for 10 sec, then execute CD

open/close operation

Open/close OK?

Play last music of CD disc 3

for 10 sec, then execute CD

open/close operation

Open/close OK?

Function changes to MD

Play last music of MD for

3 seconds

Play OK?

Turn power off, then write

MD TOC

Aging cycles are displayed

for 2 seconds

Turn power on and read

MD TOC

Error message 5

Error message 7 to 19

MD TOC reading OK?

One cycle end

4 cycles completed

Execute CD sync. dubbing

for 10 minutes

Sync. dubbing completed?

Error message 1 to 6

Error message 1 to 19

YES

NO C

YES

Error message 7 to 19

Note: For the error messages, see “table 1-3. Error Message”

on page 3.

All manuals and user guides at all-guides.com

– 6 –

CMT-M11C

Sony Corporation

Home A&V Products Company 97C0566-1

Published by Service and Safety

Engineering Dept. (Shibaura)

9-960-794-11

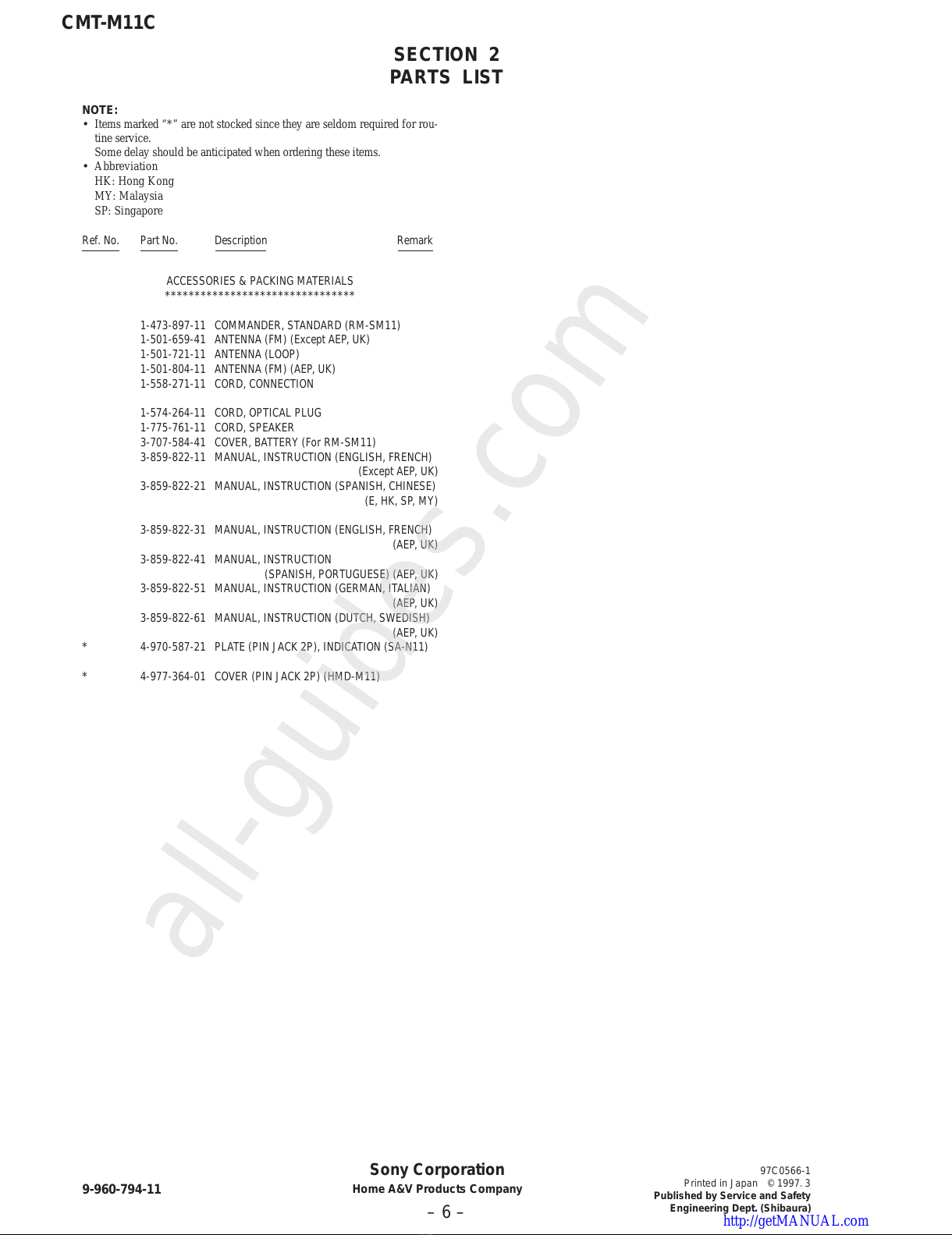

SECTION 2

PARTS LIST

NOTE:

•Items marked “*” are not stocked since they are seldom required for rou-

tine service.

Some delay should be anticipated when ordering these items.

•Abbreviation

HK: Hong Kong

MY: Malaysia

SP: Singapore

Ref. No. Part No. Description Remark

ACCESSORIES & PACKING MATERIALS

********************************

1-473-897-11 COMMANDER, STANDARD (RM-SM11)

1-501-659-41 ANTENNA (FM) (Except AEP, UK)

1-501-721-11 ANTENNA (LOOP)

1-501-804-11 ANTENNA (FM) (AEP, UK)

1-558-271-11 CORD, CONNECTION

1-574-264-11 CORD, OPTICAL PLUG

1-775-761-11 CORD, SPEAKER

3-707-584-41 COVER, BATTERY (For RM-SM11)

3-859-822-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH)

(Except AEP, UK)

3-859-822-21 MANUAL, INSTRUCTION (SPANISH, CHINESE)

(E, HK, SP, MY)

3-859-822-31 MANUAL, INSTRUCTION (ENGLISH, FRENCH)

(AEP, UK)

3-859-822-41 MANUAL, INSTRUCTION

(SPANISH, PORTUGUESE) (AEP, UK)

3-859-822-51 MANUAL, INSTRUCTION (GERMAN, ITALIAN)

(AEP, UK)

3-859-822-61 MANUAL, INSTRUCTION (DUTCH, SWEDISH)

(AEP, UK)

*4-970-587-21 PLATE (PIN JACK 2P), INDICATION (SA-N11)

*4-977-364-01 COVER (PIN JACK 2P) (HMD-M11)
