Sony CMT-ED1/ED1A Manuale utente

Operating Instructions

3-860-292-14(1)

CMT-ED1/ED1A

Compact

Component

Stereo System

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

Laser component in this product is capable of

emitting radiation exceeding the limit for Class 1.

This caution label is located inside the unit.

This stereo system is equipped with the Dolby* B-

type noise reduction system.

* Dolby noise reduction manufactured under license

from Dolby Laboratories Licensing Corporation.

“DOLBY” and the double-D symbol aare

trademarks of the Dolby Laboratories Licensing

Corporation.

This appliance is classified

as a CLASS 1 LASER

product. The CLASS 1

LASER PRODUCT

MARKING is located on

the rear exterior.

Table of Contents

Getting Started

Step 1: Hooking up the system............ 4

Step 2: Setting the time ......................... 7

Step 3: Presetting radio stations .......... 8

Connecting optional AV

components .................................... 10

Basic Operations

Playing a CD ......................................... 12

Recording a CD .................................... 14

Listening to the radio........................... 15

Recording from the radio .................... 16

Playing a tape........................................ 18

The CD Player

Using the CD display........................... 19

Playing CD tracks repeatedly ............. 19

Playing CD tracks in random

order ................................................ 20

Programming CD tracks ..................... 21

The Tape Deck

Recording on a tape manually ........... 22

Recording CD by specifying the track

order ................................................ 23

Sound Adjustment

Activating the bass sound ................... 25

Activating the sound effect ................. 25

Other Features

Falling asleep to music ........................ 26

Waking up to music ............................. 26

Timer-recording radio programmes.. 28

Additional Information

Precautions ............................................ 30

Troubleshooting ................................... 31

Specifications ........................................ 33

Index....................................................... 34

Step 1: Hooking up the system

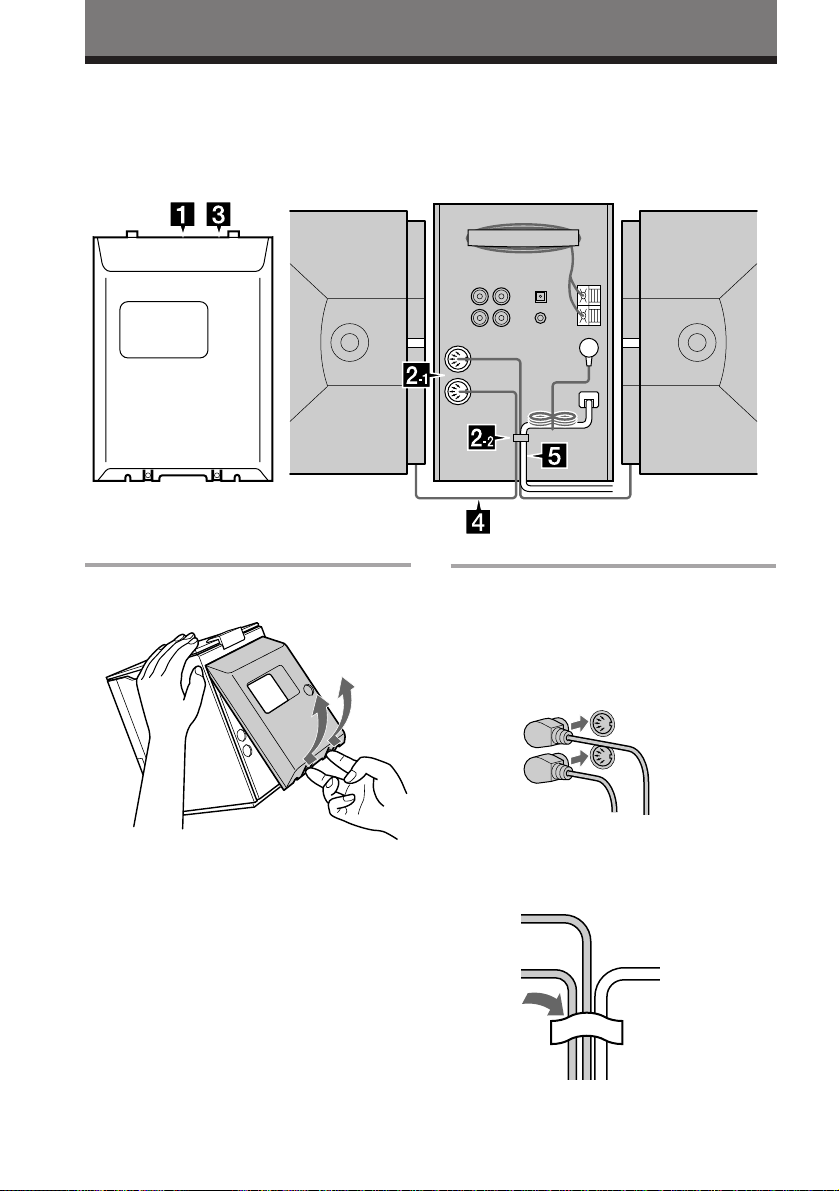

Follow steps 1through 5to hook up your system using the supplied cords and accessories.

Getting Started

1Remove the rear cover.

Push in on the

tabs and pull up

on the cover.

The rear cover Right speaker Left speaker

2Connect the speakers.

1Connect the speaker cords to the

SPEAKER R jack and the SPEAKER L

jack on the rear panel of the unit.

2Attach the speaker cables to the

clump.

SPEAKER

3Attach the speakers.

Facing the front of the unit, attach the

speaker connected to the SPEAKER R

jack onto the right side of the unit and

the speaker connected to the

SPEAKER L jack onto the left side of

the unit.

3Reinstall the rear cover.

Put the wires through the hole at the

bottom of the rear cover.

4Turn the unit upside down holding

the glass door with firm hand and

set the speaker cord into a groove of

the unit.

5Connect the mains lead to mains.

continued

Note on the glass door of CD player

The CD player cover of the CMT-ED1 is made of

tempered glass.

Under normal conditions, this tempered glass is

more shock resistant and able to bear more

weight than ordinary glass. This glass, however,

may shatter if it receives a sharp blow or if it is

scratched.

To detach the speakers

1Slide the speakers in the opposite

direction of the arrows of the

illustration in “Attach the speakers”

(see step 2-3on this page.)

2After detaching the speakers, set the

speaker cords into the speaker cord

groove at the bottom of the speaker.

Otherwise, the speaker cord could be

damaged.

Groove

}}

]

Inserting two AA (R6) batteries

into the remote

Tip

With normal use, the batteries should last for about

six months. When the remote no longer operates the

system, replace both batteries with new ones.

Note

If you do not use the remote for a long period of

time, remove the batteries to avoid possible damage

from battery leakage.

Step 1: Hooking up the system

(continued)

To remove the AM aerial

If noise is heard while listening to an AM

station, remove the AM aerial from the rear

panel and place the aerial outside the cabinet.

1Remove the rear cover.

(See step 1on the page 4.)

2Remove the AM aerial.

3Attach the rear cover.

(See step 3on the page 5.)

You can hang the AM aerial on a wall.

If noise is heard while listening to an FM

station, remove the FM aerial from the rear

panel and place the aerial outside the

cabinet.

To exchange the speaker net

You can remove the speaker net drawing up

to your side and exchange with the supplied

extra net.

Tip

See wire dressing for the rear panel prior to install

the rear cover.

Hook

Step 2: Setting the

time

You must set the time before using the timer

functions.

4Press ENTER.

The minute indication flashes.

5Press ≠/± to set the minutes.

6Press ENTER.

The clock starts working.

Tip

If you make a mistake, start over from step 1.

1Press TIMER SET.

The clock of the display begins flashes.

When “DAILY” or “TIMER REC”

appears, press ≠/± repeatedly so

that it disappears.

2Press ENTER.

The hour indication flashes.

2,4,6

3,5

1/u

(Power)

3Press ≠/± to set the hour.

The clock uses the 24 -hour system.

Step 3: Presetting

radio stations

You can preset up to 30 stations, 20 for FM

and 10 for AM.

1Press FUNCTION repeatedly to

select “FM” or “AM.”

2Press FM or AM (or TUNER/BAND

on the remote repeatedly).

3Press TUNING/PLAY MODE on

the remote repeatedly until

“AUTO” appears.

4Press TUNING +/– (or ≠/±

on the remote).

The frequency indication changes and

scanning stops when the system tunes in

a station. “TUNED” and “ST” (for a

stereo programme) appears.

5Press MEMORY on the remote.

The preset channel number flashes.

6Press TUNING +/– (or ≠/±

on the remote) to select the preset

number you want.

7Press ENTER on the remote.

The station is stored.

8Repeat steps 4 through 7 to store

other stations.

4,6

1/u

(Power)

TUNED

PGM

MHz

TUNED

PGM

MHz

TUNED

PGM

MHz

1/u

(Power)

To tune in a station with a weak signal

Press TUNING/PLAY MODE on the remote

repeatedly until “MANUAL” appears in step

3, then press TUNING +/– (or ≠/± on

the remote) to tune in the station.

To change the preset number

Start over from step 2.

Tip

The preset stations are retained for about two days

when you disconnect the mains lead or a power

failure occurs.

Connecting optional

AV components

To enhance your system, you can connect

optional components. Refer to the

instructions included with each component

for details.

Connecting audio

components

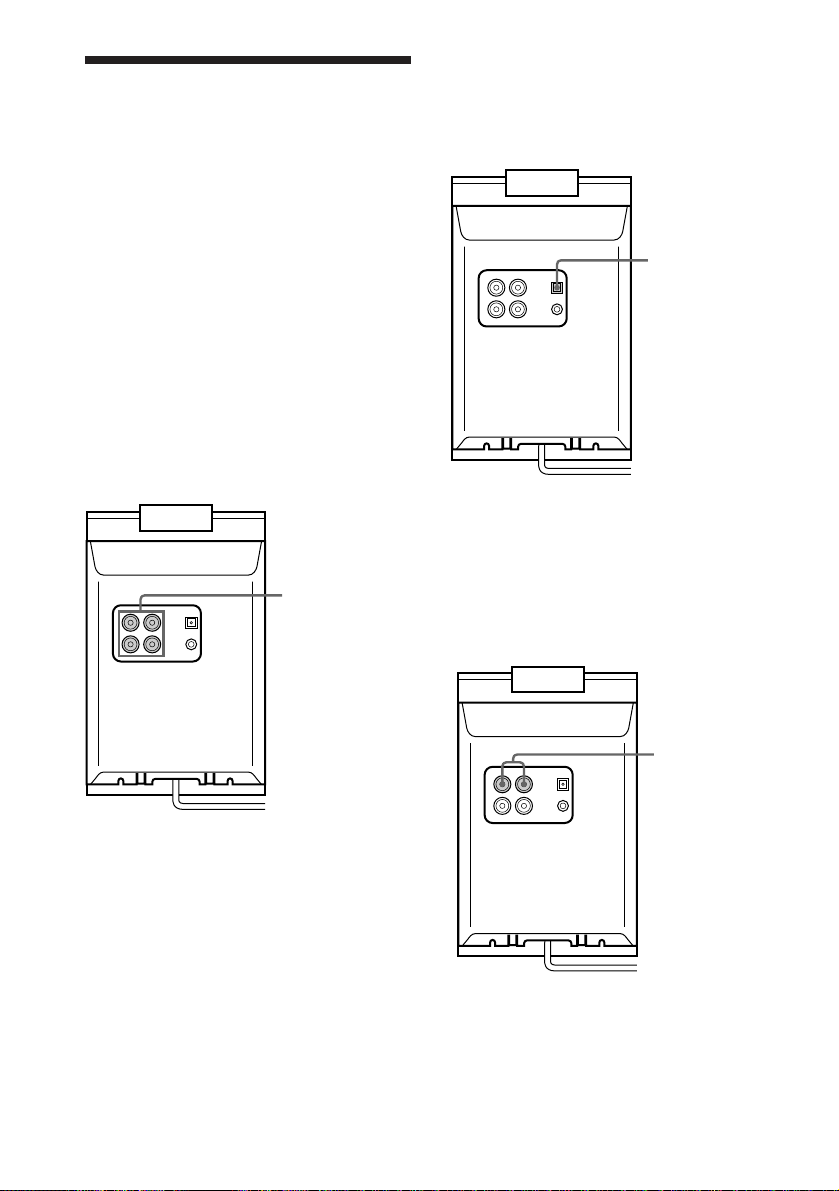

Connecting an MD deck for digital

recording

You can record from CD into the MD deck

digitally by connecting an optical cable.

Connecting an MD deck for analog

recording

Be sure to match the colour of the plugs and

the connectors. To listen to the sound from

the connected MD deck, press FUNCTION

repeatedly until “MD” appears.

Connecting a VCR

Be sure to match the colour of the plugs and

the connectors. To listen to the sound from

the connected VCR, press FUNCTION

repeatedly until “MD” appears.

To the audio

output of the

VCR

To the digital

input of the

MD deck

To the audio

input/output of

the MD deck
