HCD-F150/FR10

US Model

Canadian Model

HCD-F150

AEP Model

UK Model

E Model

Australian Model

HCD-FR10

SERVICE MANUAL

MINI HI-FI COMPONENT SYSTEM

MICROFILM

ManufacturedunderlicensefromDolbyLaboratories

Licensing Corporation.

“DOLBY”andthedouble-Dsymbolaaretrademarks

of Dolby Laboratories Licensing Corporation.

• This set is the tuner, deck, CD

and amplifier section in MHC-F150/FR10.

U.S and foreign patents licensed from Dolby

Laboratories Licensing Corporation.

— Continued on next page —

SPECIFICATIONS

Model Name Using Similar Mechanism HCD-F100/FR1

CD Mechanism Type CDM-46B1

Optical Pick-up Name KSS-213D/Q-NP

Model Name Using Similar Mechanism HCD-GRX5/RX66

TapeTransport Mechanism Type TCM-230AWR1

Section

Tape deck

Section

AUDIO POWER SPECIFICATION:

U.S.A models:

POWER OUTPUTAND TOTAL HARMONIC DISTORTION:

with 8 Ωloads both channels driven, from 70–20,000 Hz; rates 100W

per channel minimum RMS power, with no more than 0.9% total

harmonic distortion from 250 mmW to rated output.

Amplifier section

North American models:

Front Speaker:

Continuous RMS power output 100 + 100 W

(8 Ωat 1 kHz, 10% THD)

Total harmonic distortion less than 0.09%

(8 Ωat 1 kHz, 40W)

Rear Speaker:

Continuous RMS power output 12.5 + 12.5 W

(16 Ωat 1 kHz, 10% THD)

European models:

The follwing measured at AC 230 V, 50 Hz DIN power output (Rated)

50 + 50 W

(8 Ωat 1 kHz, DIN)

Continuous RMS power output (Reference)

60 + 60 W

(8 Ωat 1 kHz, 10% THD)

Other models:

The follwing measured at AC 120/240 V, 50/60 Hz

Continuous RMS power output (Rated)

110 + 110 W

(8 Ωat 1 kHz, 1% THD)

Continuous RMS power output (Reference)

130 + 130 W

(8 Ωat 1 kHz, 10% THD)

Peak music power output (Reference)

1500 W

The follwing measured at AC 110/220 V, 60 Hz

Continuous RMS power output (Rated)

90 + 90 W

(8 Ωat 1 kHz, 1% THD)

Continuous RMS power output (Reference)

110 + 110 W

(8 Ωat 1 kHz, 10% THD)

photo : HCD-F150

HCD-F150/FR10

— 37 — — 38 —

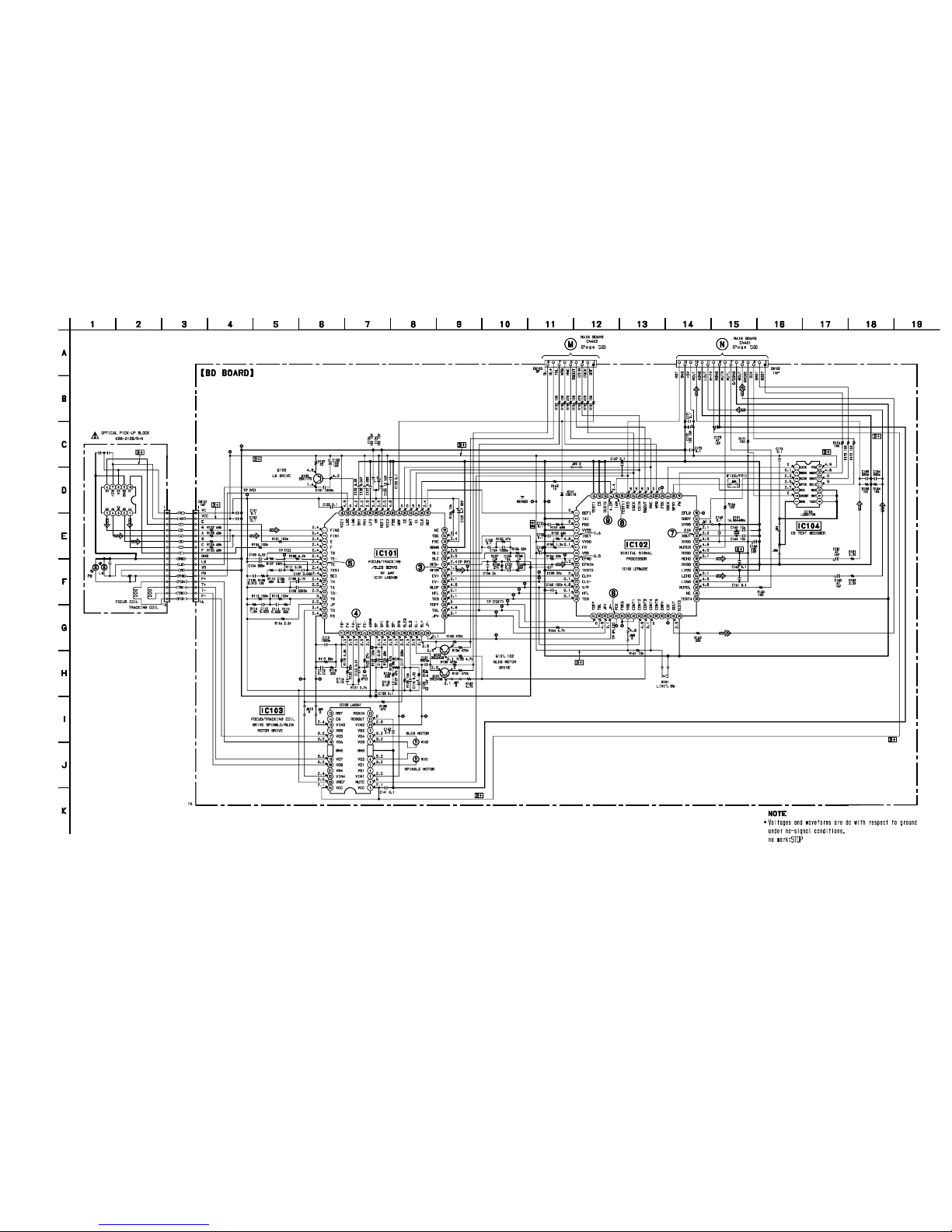

6-6. SCHEMATIC DIAGRAM — BD SECTION — • See page 71 for Waveforms. • See page 72 for IC Pin Functions.

HCD-F150/FR10

— 41 — — 42 —

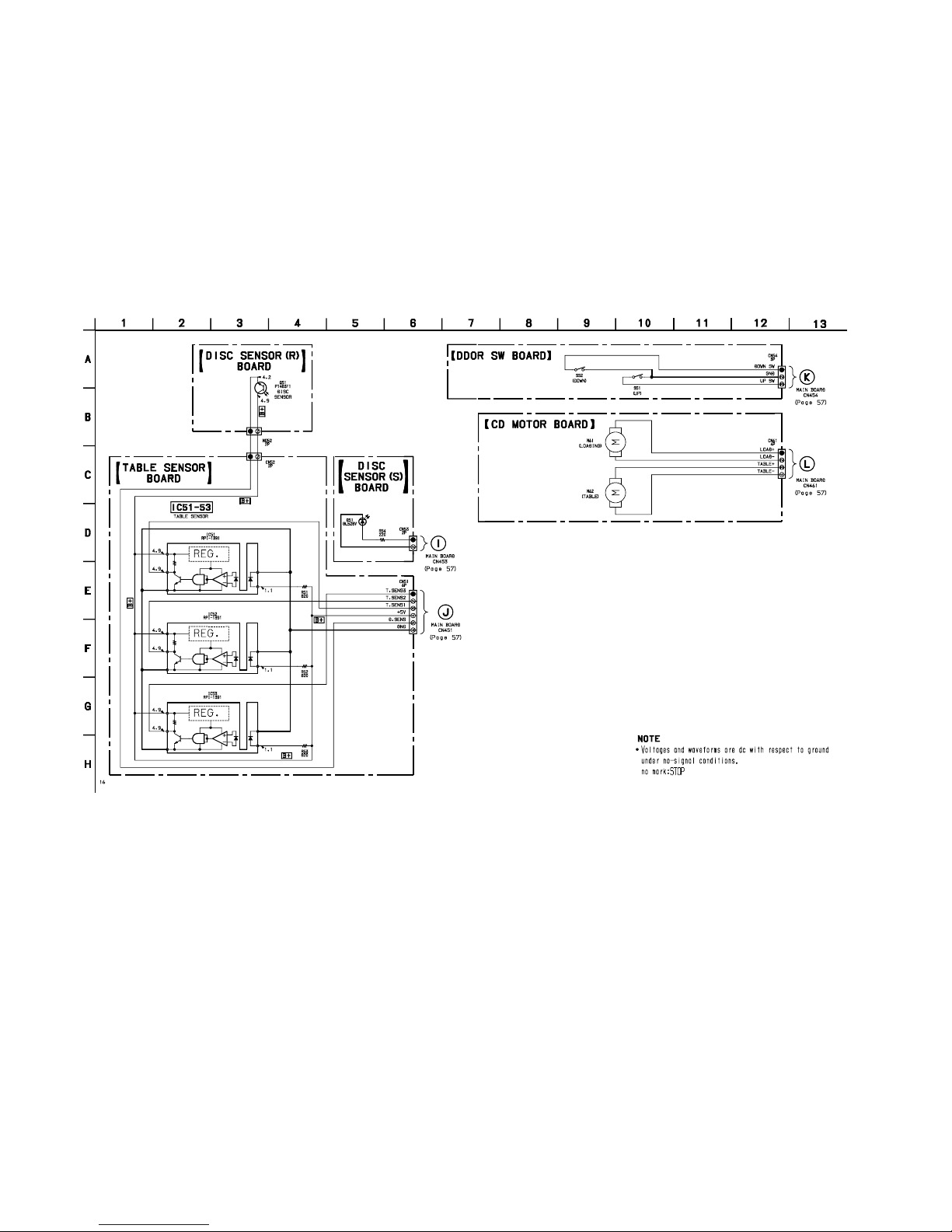

6-8. SCHEMATIC DIAGRAM — CD MOTOR SECTION —

HCD-F150/FR10

— 45 — — 46 —

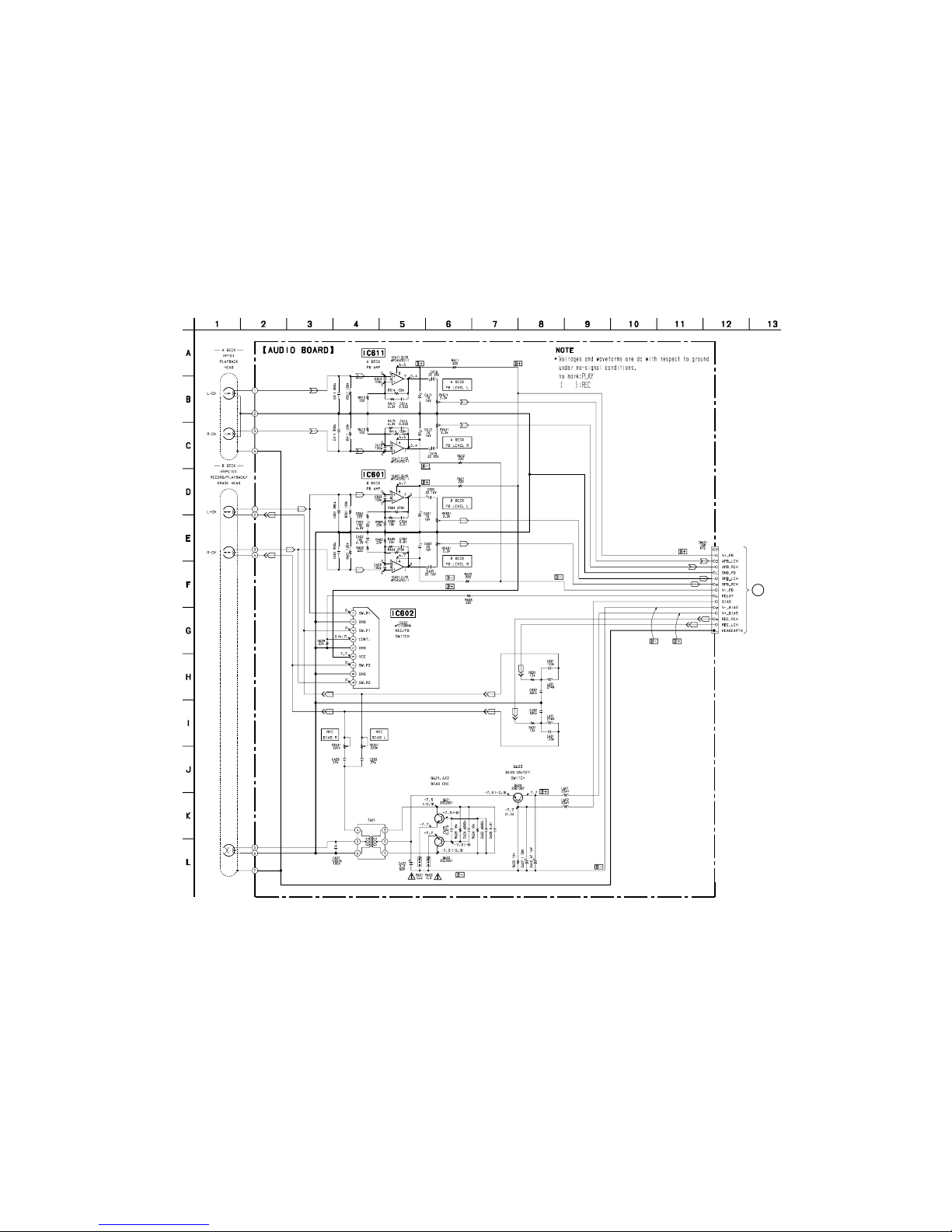

6-10. SCHEMATIC DIAGRAM — AUDIO SECTION —

(Page 55)

MAIN BOARD

CN106

HCD-F150/FR10

— 49 — — 50 —

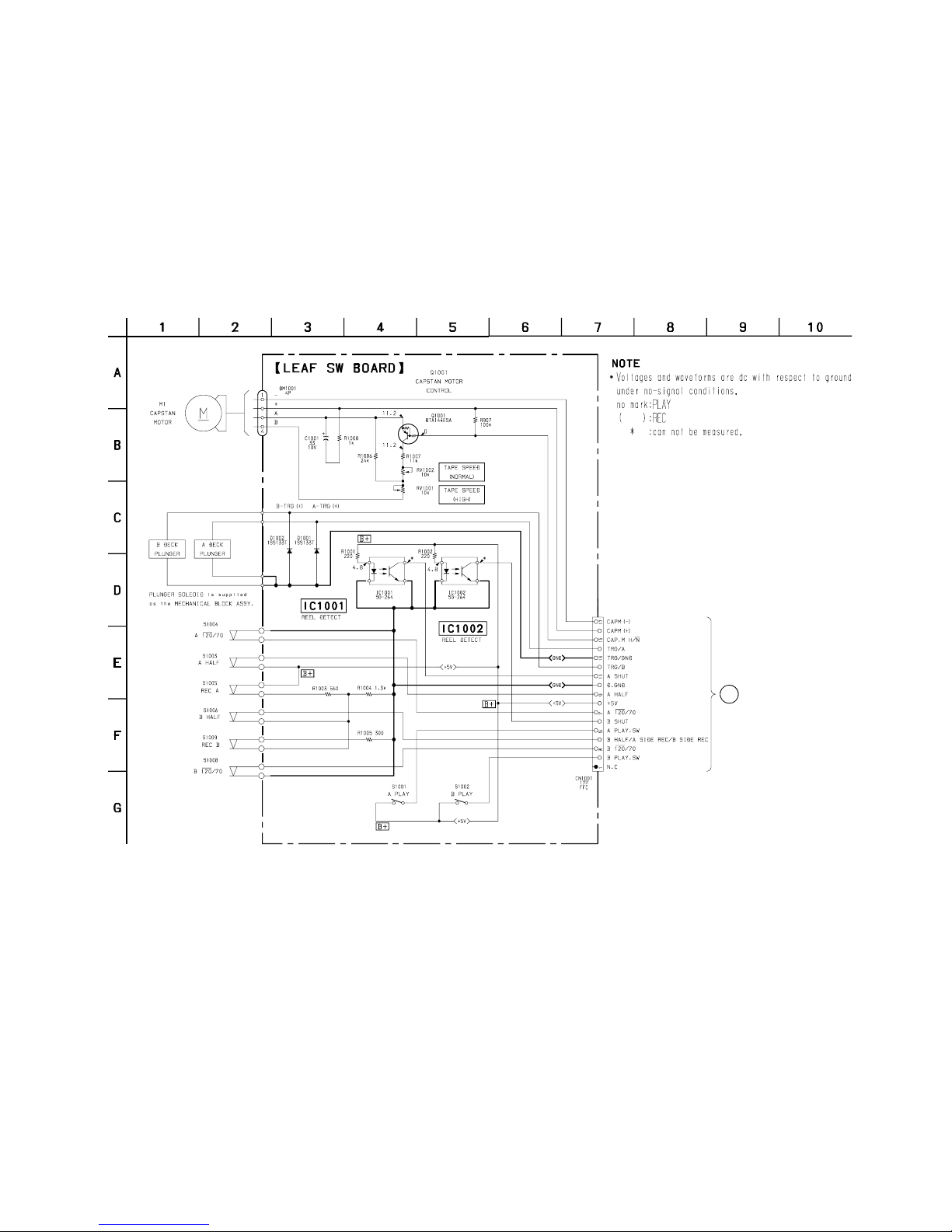

6-12. SCHEMATIC DIAGRAM — LEAF SW SECTION —

(Page 55)

MAIN BOARD

CN107

HCD-F150/FR10

— 53 — — 54 —

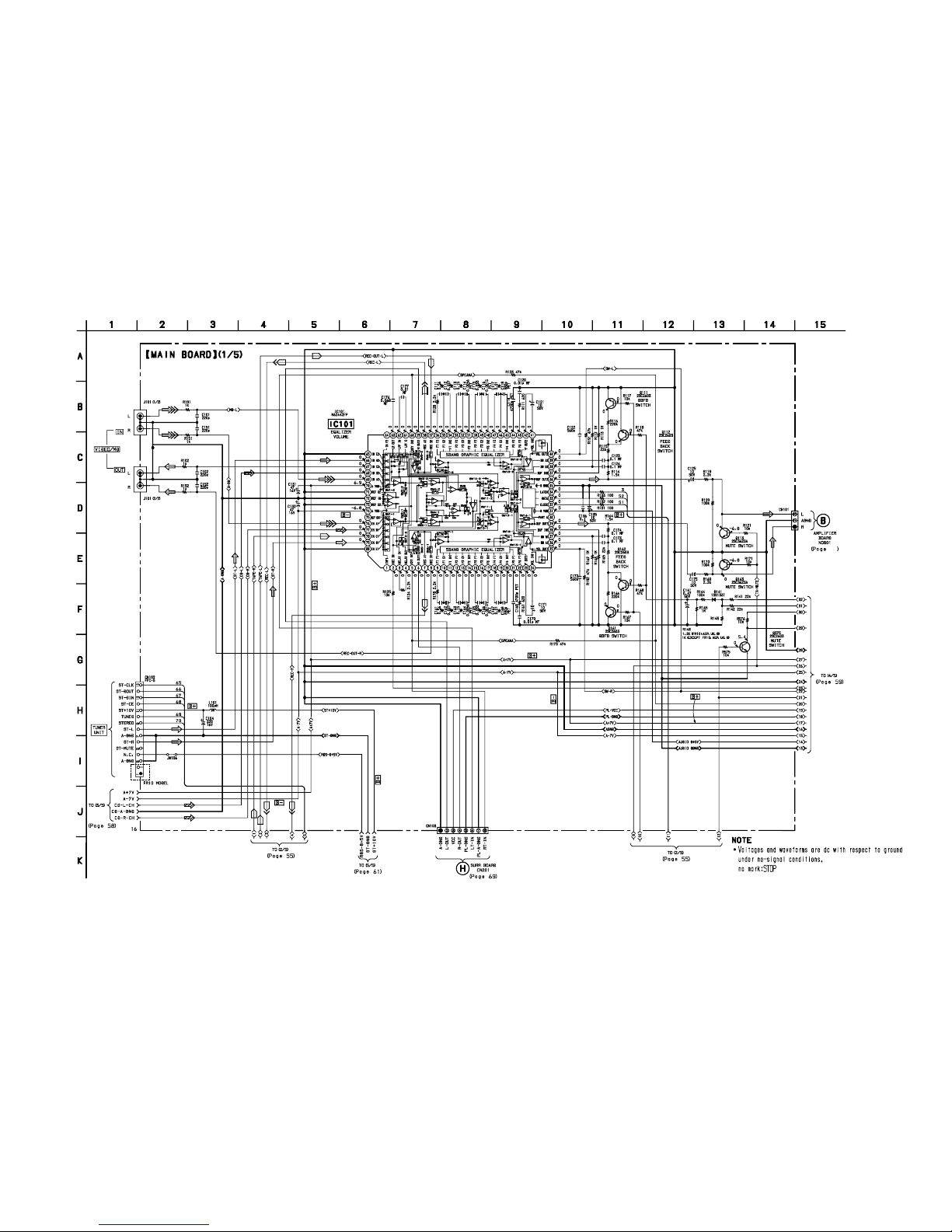

6-14. SCHEMATIC DIARGAM — MAIN (1/5) SECTION —

HCD-F150/FR10

— 55 — — 56 —

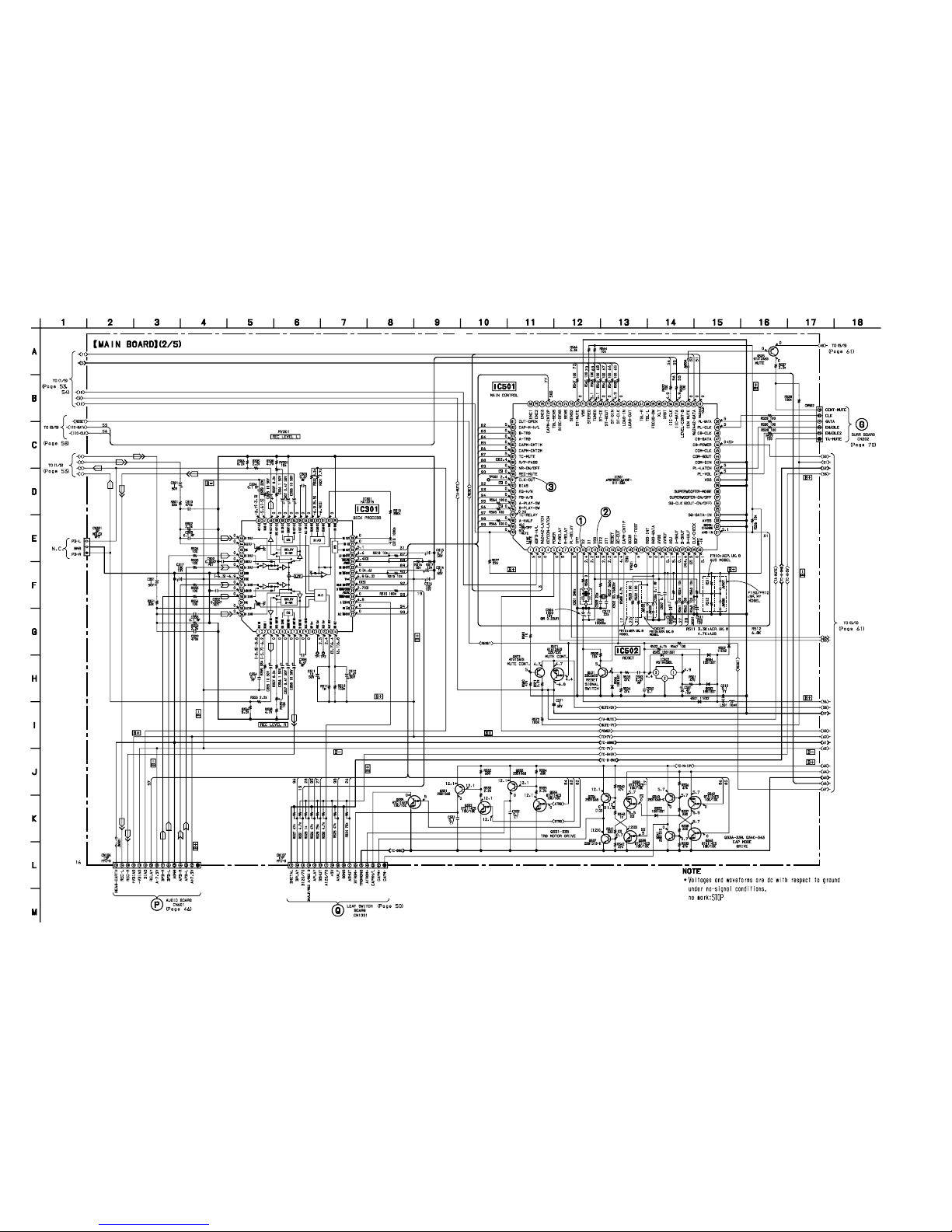

6-15. SCHEMATIC DIARGAM — MAIN (2/5) SECTION — • See page 51 for Printed Wiring Board. • See page 71 for Waveforms. • See page 77 for IC Pin Functions.

HCD-F150/FR10

— 57 — — 58 —

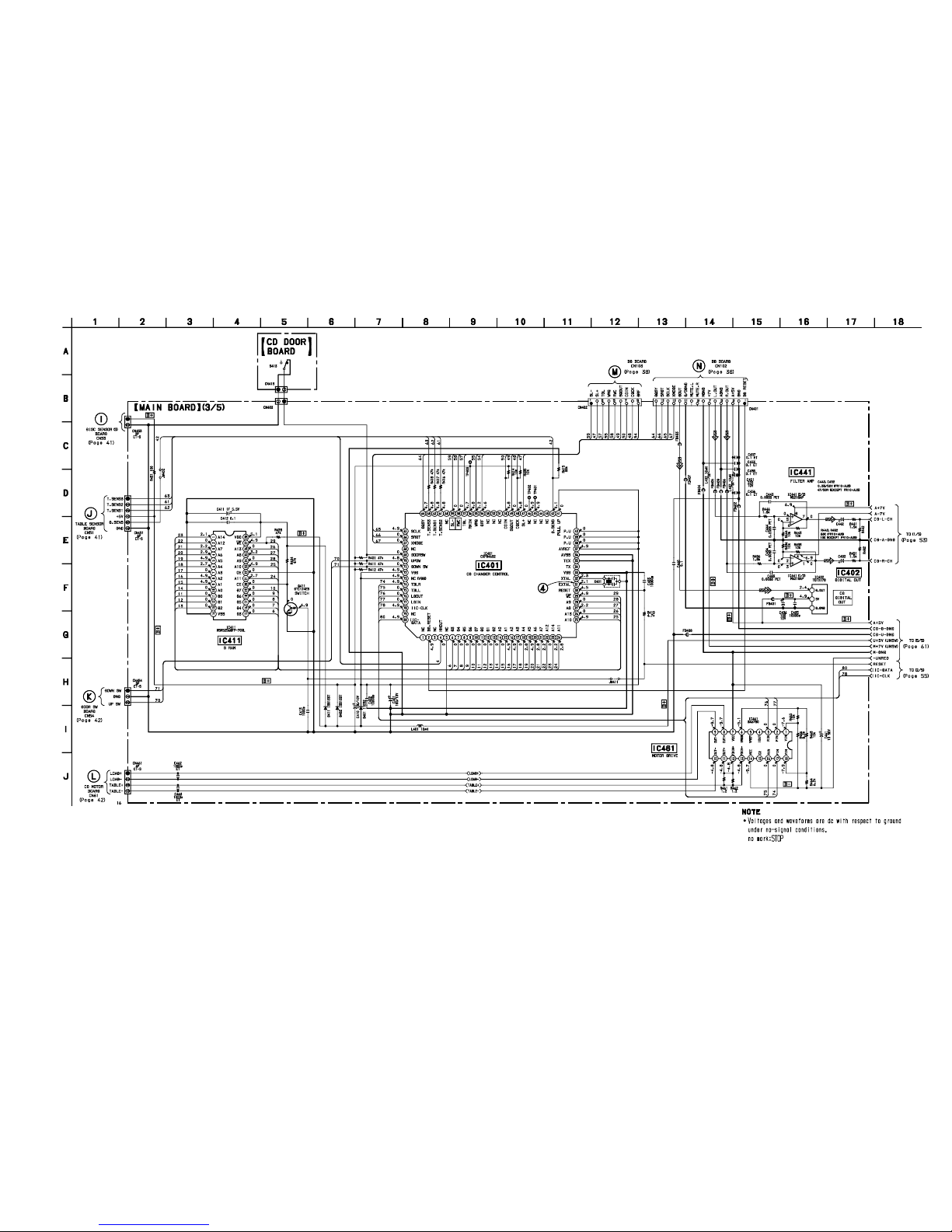

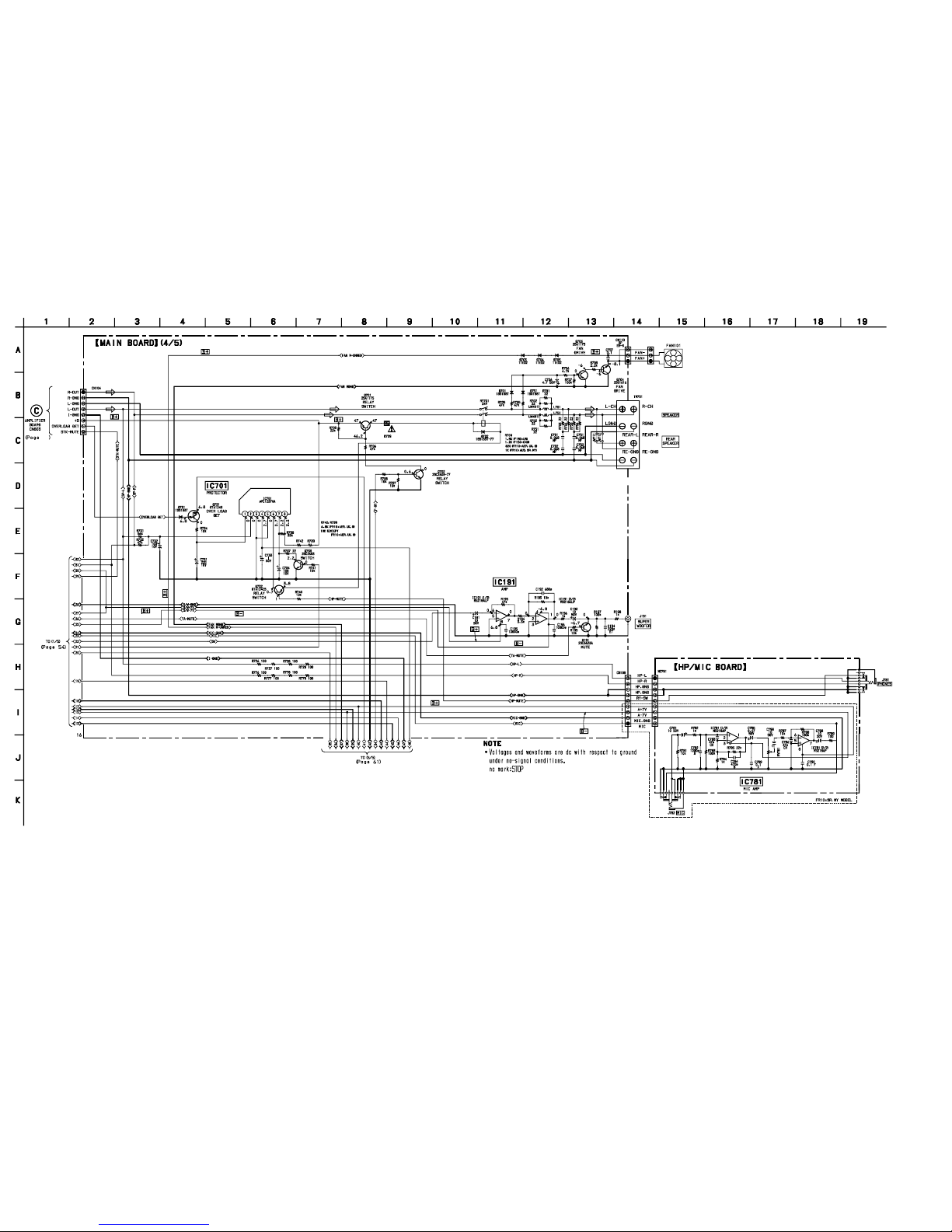

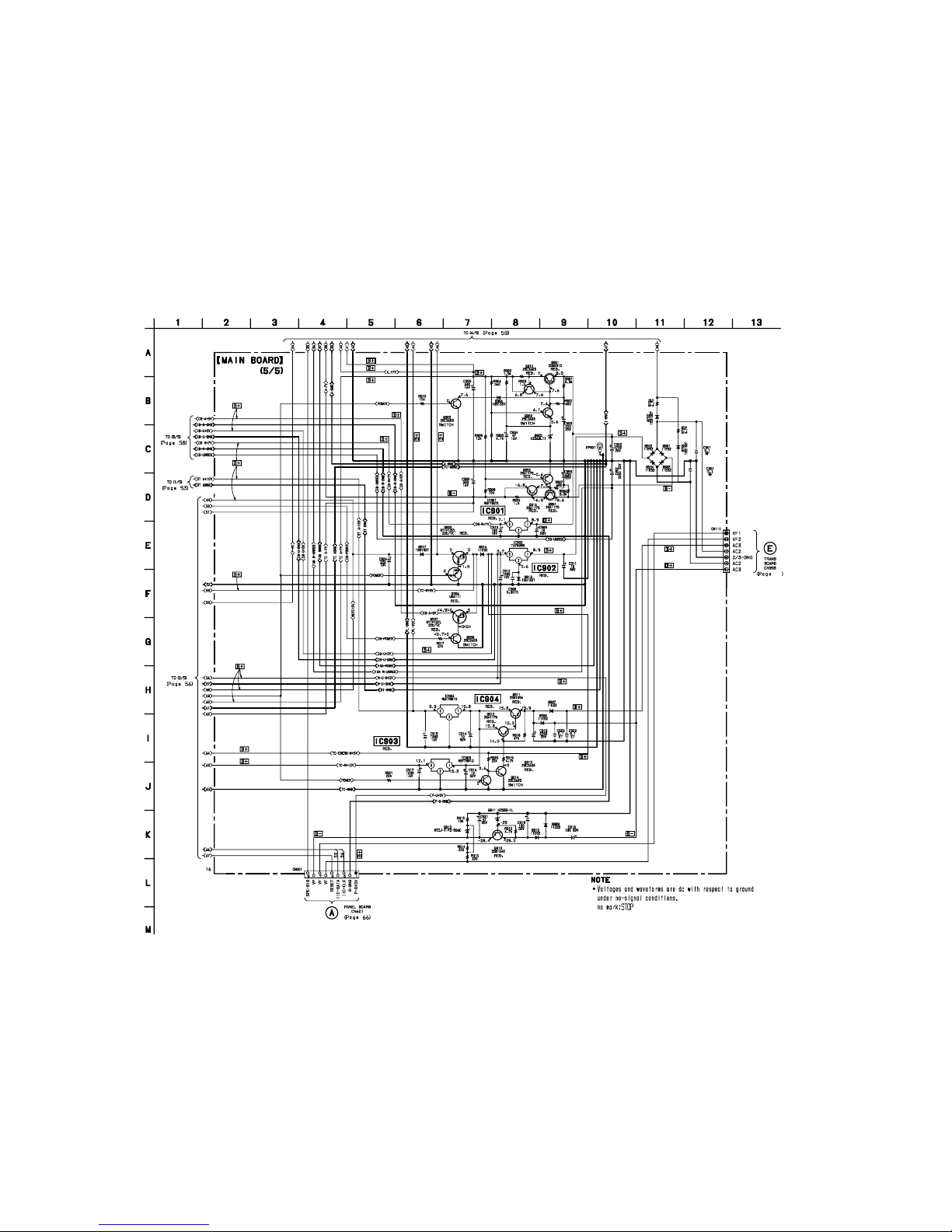

6-16. SCHEMATIC DIARGAM — MAIN (3/5) SECTION — • See page 51 for Printed Wiring Board. • See page 71 for Waveforms. • See page 76 for IC Pin Functions.
