Operating Instructions

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To prevent fire, do not cover the ventilation of the

apparatus with news papers, table-cloths, curtains,

etc. And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

This appliance is classified as

a CLASS 1 LASER product.

This label is located on the

rear exterior.

Don’t throw away the battery with

general house waste, dispose of it

correctly as chemical waste.

ExceptforEuropeanmodels

ENERGY STAR®is a U.S.

registered mark.

As an ENERGY STAR®Partner,

Sony Corporation has determined

that this product meets the ENERGY

STAR®guidelines for energy

efficiency.

Table of Contents

List of Button Locations

and Reference Pages

Main unit ............................................... 4

Sub woofer ............................................ 5

Remote Control ..................................... 6

Getting Started

Hooking up the system .......................... 7

Inserting two R6 (size AA) batteries

into the remote .............................. 10

Setting the clock .................................. 11

Loading a CD ...................................... 11

Playing a CD — Normal Play/

Shuffle Play/Repeat Play............... 12

Programing CD tracks

— Program Play ............................ 13

Tuner

Presetting radio stations....................... 14

Listening to the radio

— Preset Tuning/

Manual Tuning .............................. 16

Using the Radio Data System

(RDS)* .......................................... 17

Tape

Loading a tape ..................................... 17

Playing a tape ...................................... 18

Recording to a tape

— CD Synchro Recording/

Recording Manually/

Program Edit ................................. 19

Timer-recording radio programs ......... 20

Sound Adjustment

Selecting the sound system.................. 21

Using the sub woofer........................... 21

Adjusting the sound............................. 22

Selecting the sound effect.................... 22

Adjusting the graphic equalizer and

storing............................................ 23

Selecting the surround effect ............... 23

Display

Turning off the display

— Power Saving Mode ................. 24

Using the CD display .......................... 24

Other Features

Enhancing video game sound

— Game Sync ............................... 25

Changing the spectrum analyzer

display ........................................... 25

Mixing video game sound with other

sound source — Game Mixing ..... 25

Singing along....................................... 26

Falling asleep to music

— Sleep Timer .............................. 27

Waking up to music — Daily Timer ...27

Optional Components

Hooking up optional components........ 29

Listening to audio from a connected

component ..................................... 30

Recording on a connected

component ..................................... 30

Troubleshooting

Problems and remedies........................ 31

Messages ............................................. 32

Additional Information

Precautions .......................................... 33

Specifications ...................................... 34

* European model only

List of Button Locations and Reference Pages

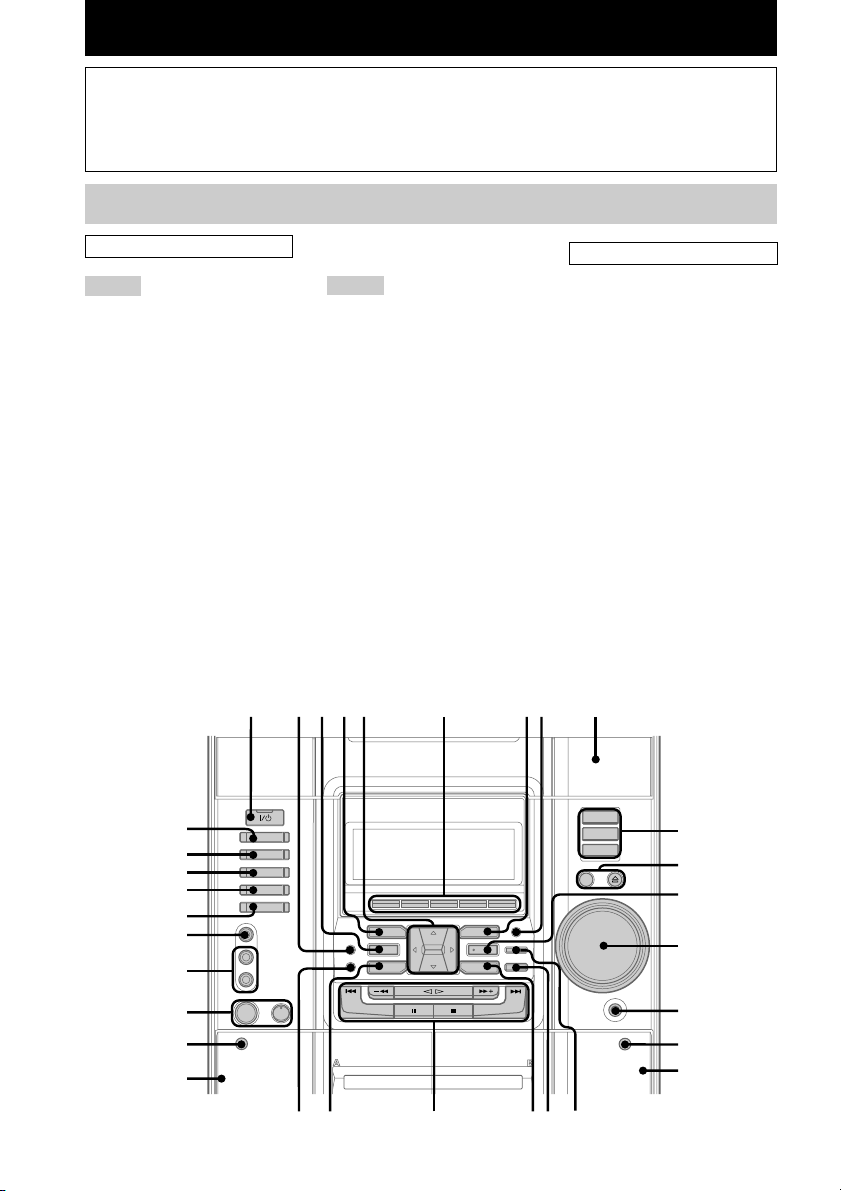

How to use this page

Use this page to find the location of buttons and other

parts of the system that are mentioned in the text.

Illustration number

TUNER/BAND ea (14 – 16, 19)

Name of button/part Reference page

Main unit

ALPHABETICAL ORDER

A – G

AUDIO jacks wh (29)

CD es (12, 13, 19, 20)

CD SYNC qj (19, 20)

Deck Awd (17, 18)

Deck Bqh (17 – 21, 26)

DIRECTION 6(18 – 20, 26)

DISC 1 – 3 0(12, 13, 20)

DISC SKIP/EX-CHANGE qa (11,

12)

Disc tray 9(11)

DISPLAY 6(17, 24)

EDIT 6(20)

EFFECT ON/OFF 3(22)

ENTER qs (11, 13 – 15, 20, 23,

27, 28)

FM MODE 6(16)

GAME wk (25)

GAME EQ wa (22)

GAME MIXING ws (25)

GROOVE 2(22)

M – Z

MD (VIDEO) wl (30)

MIC jack*1wg (26)

MIC LEVEL control*1wg (26)

MOVIE EQ 7(22)

MUSIC EQ 4(22)

P FILE ql (23)

PHONES jack qf

PLAY MODE 6(12, 13, 20)

REC PAUSE/START qk (19, 20,

26)

REPEAT 6(12)

SPECTRUM 6(25)

SURROUND SPEAKER

MODE*28(21)

TAPE A/B e; (17, 19)

TUNER MEMORY 6(14, 15)

TUNER/BAND ea (14 – 16, 19)

VIDEO jack wj (29)

VOLUME control qd

BUTTON DESCRIPTIONS

?/1 (power) 1

v/V/b/B5

ZOPEN/CLOSE qa

Z(deck B) qg

Mw;

.w;

xw;

hH w;

Xw;

>w;

mw;

Z(deck A) wf

*1Except for European models

*2MHC-RG66 only

12345 6 78 9

qjqkql

w;waws

List of Button Locations and Reference Pages

Sub woofer

(MHC-RG55S only)

ALPHABETICAL ORDER

A – Z

Indicator 1(21)

ON/OFF 2(21)

Remote Control

ALPHABETICAL ORDER

A – G

CD qj (12, 13, 19, 20)

CLEAR 6(13)

CLOCK/TIMER SELECT 2

(21, 28)

CLOCK/TIMER SET 3(11, 20,

27)

D.SKIP ql (12)

EFFECT ON/OFF qa (22)

ENTER qf (11, 13 – 15, 20, 23,

27, 28)

GAME qk (25)

M – Z

MD (VIDEO) 9(30)

P FILE qd (23)

PRESET +/– 5(14 – 16)

PRESET EQ qg (22)

SLEEP 1(27)

SURROUND 0(23)

TAPE A/B 8(17, 19)

TUNER/BAND qh (14 – 16, 19)

TUNING +/– 5(14 – 16)

VOL +/– 7

BUTTON DESCRIPTIONS

?/1 (power) 4

nN 5

v/V/b/Bqs

12 34

Getting Started

FM antenna

Getting Started

Hooking up the system

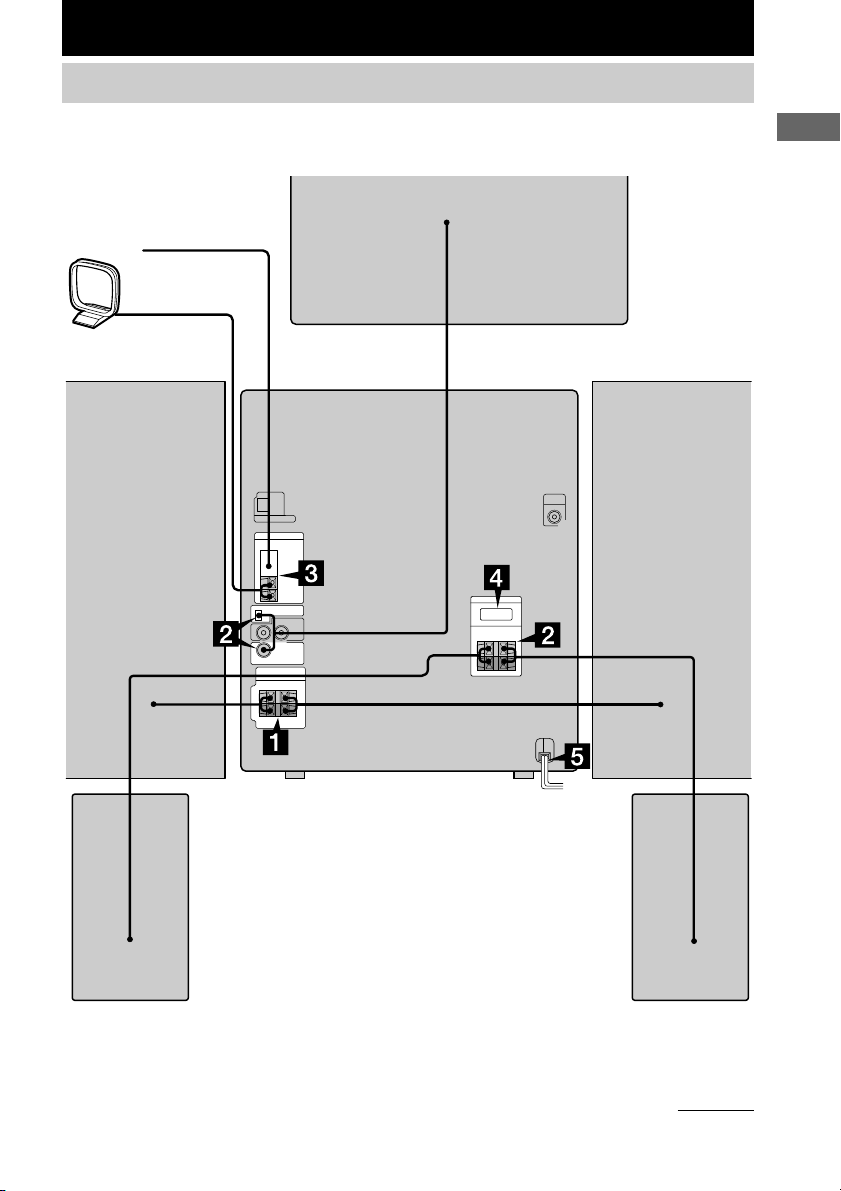

Perform the following procedure 1to 5to hook up your system using the supplied cords and

accessories.

AM loop antenna

Sub woofer speaker**

Front speaker (Right) Front speaker (Left)

Surround speaker (Right)*Surround speaker (Left)*

*MHC-RG66 only

** MHC-RG55S only

continued

Hooking up the system (continued)

Red/Solid

(3)

Black/Stripe (#)

2For MHC-RG66

Connect the surround speakers.

Connect the speaker cords to the

SURROUND SPEAKER jacks as shown

below.

Insert only the stripped portion

–

Red/Solid

(3)

Black/Stripe (#)

AM loop antenna Extend the FM lead antenna

horizontally

Jack type B

FM75

COAXIAL

AM loop antenna

Extend the FM lead

antenna horizontally

1Connect the front speakers.

Connect the speaker cords to the SPEAKER

jacks as shown below.

Insert only the stripped portion

–

3Connect the FM/AM antennas.

Set up the AM loop antenna, then connect

it.

Jack type A

FM75

For MHC-RG55S

Connect the sub woofer speaker.

Connect the speaker cords to the SUB

WOOFER OUT jack and SUB WOOFER

CONTROL jack as shown below.

SUB WOOFER

CONTROL jack

SUB WOOFER

OUT jack

For MHC-RG55

Go to the procedure 3.

4For models with a voltage selector, set

VOLTAGE SELECTOR to the local

power line voltage.

120V220V230 - 240V

Getting Started

Positioning the speakers (MHC-RG66

only)

1Place the front speakers at an angle of

45 degrees from your listening

position.

5Connect the power cord to a wall outlet.

The demonstration appears in the display.

When you press ?/1, the system turns on

and the demonstration automatically ends.

If the supplied adapter on the plug does not

fit your wall outlet, detach it from the plug

(only for models equipped with an adapter).

To connect optional components

See page 29.

To attach the front speaker pads

Attach the supplied front speaker pads to the

bottom of the speakers to stabilize the speakers

and prevent them from slipping.

Notes

•Keep the speaker cords away from the antennas to

prevent noise.

•Do not place the surround speakers on top of a TV.

This may cause distortion of the colors in the TV

screen.

•Be sure to connect both left and right surround

speakers. Otherwise, the sound will not be heard.

Front

speaker

(L)

Front

speaker

(R)

Surround

speaker

(L)

Surround

speaker

(R)

2Place the surround speakers facing

each other at about 60 to 90 cm above

your listening position.

continued

Surround

speaker

60 to 90 cm

Hooking up the system (continued)

Inserting two R6 (size AA)

batteries into the remote

Tip

With normal use, the batteries should last for about

six months. When the remote no longer operates the

system, replace both batteries with new ones.

Note

If you do not use the remote for a long period of time,

remove the batteries to avoid possible damage from

battery leakage.

Positioning the sub woofer (MHC-

RG55S only)

Since the human ear cannot detect the direction

and position where the bass sound being

reproduced by a woofer (below 150 Hz) comes

from, you can place the woofer wherever you

like in your room. To obtain a better bass

reproduction, we recommend you to place the

woofer on a solid floor where the resonance is

unlikely to occur.

Notes

•Always place the woofer vertically, keeping a few

centimeters from away the wall.

•If the woofer is placed in the center of a room, the

bass could be extremely weakened. This is due to

the influence of the standing wave of the room. If

this happened, move the woofer away from the

center of a room or eliminate the cause of the

standing wave, by placing a bookshelf on the wall,

etc.

When carrying this system

Perform the following procedure to protect

the CD mechanism.

1Make sure that all discs are removed

from the system.

2Hold down CD and then press ?/1 until

“STANDBY” appears.

When you release the buttons, “LOCK”

appears.

3Unplug the power cord.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sony Impianto stereo

Sony

Sony HCD-H11 Manuale utente

Sony

Sony HCD-GPX5G Manuale utente

Sony

Sony MEX-BT2800 - Bluetooth Audio System Manuale utente

Sony

Sony HCD-GX25 - System Components Manuale utente

Sony

Sony HCD-EC55 - Receiver System Manuale utente

Sony

Sony MHC-G99AV Manuale utente

Sony

Sony FH-G50 Manuale utente

Sony

Sony HCD-EP505 Manuale utente

Sony

Sony CMT-NEZ3 - Micro Hi Fi Component System Manuale utente

Sony

Sony RDH-GTK33iP Manuale utente

Sony

Sony CMTBX1 - CMT BX1 Micro System Manuale utente

Sony

Sony HCD-VX88 Manuale utente

Sony

Sony MHC-RV555D Manuale utente

Sony

Sony MHC-RV8 Manuale utente

Sony

Sony HCD-EC909iP - Compact Disc Receiver... Manuale utente

Sony

Sony CMT-S20B Manuale utente

Sony

Sony LBT-D109CD Manuale utente

Sony

Sony CDP-SP55 Manuale utente

Sony

Sony PFV-SP3300 Manuale utente

Sony

Sony SRS-BTX300 Manuale utente

Sony

Sony BKSR-2020 Manuale utente

Sony

Sony HCD-GN1100D Manuale utente

Sony

Sony ZS-D5 Manuale utente

Sony

Sony MHC-EC55 Manuale utente

Manuali Impianto stereo popolari di altre marche

LG CM3330B Manuale utente

Cetacea Sound

Cetacea Sound CVS-II Manuale utente

Aiwa

Aiwa XR-H66MD Manuale utente

Denon

Denon UCD-250 Manuale utente

Sanyo

Sanyo DC-MX41i Manuale utente

Sharp

Sharp CD-ES600V Manuale utente

Exibel

Exibel BDX600-UK Manuale utente

Sanyo

Sanyo DC-F320 Manuale utente

Philips

Philips FWM583X Manuale utente

Sharp

Sharp CD-C462 Manuale utente

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuale utente

Aiwa

Aiwa XR-EM70 Manuale utente

Cyrus

Cyrus Lyric Manuale utente

Philips

Philips MCM159/98 Manuale utente

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuale utente

RCA

RCA RS3965SB Manuale utente

Sharp

Sharp XL-UH240 Manuale utente

Philips

Philips FW 690 Manuale utente
