Sony MHC-W555 Manuale utente

Mini Hi-Fi

Component

System

Operating Instructions

3-864-366-11(1)

MHC-W555

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

CAUTION

Do not, under any circumstances, place the CD

player/stereo cassette deck on top of the A/V

control amplifier.

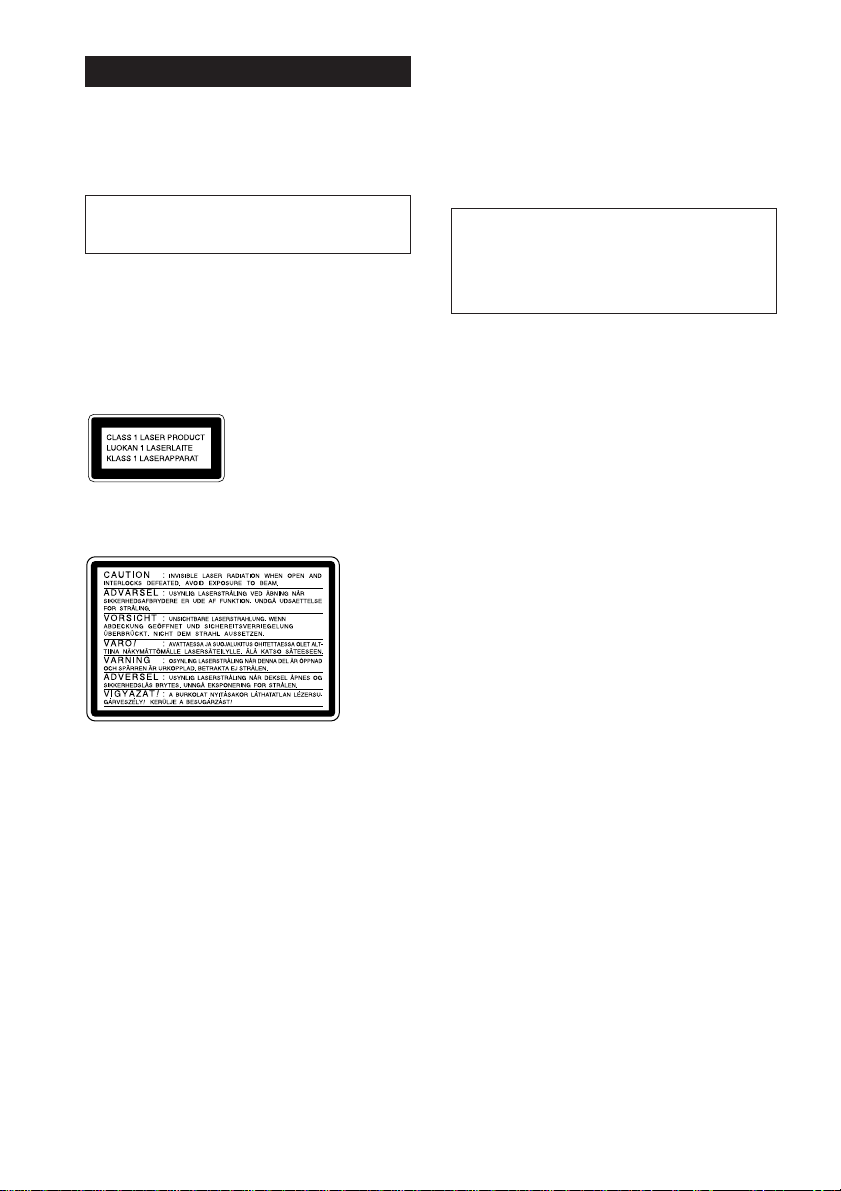

Laser component in this product is capable of

emitting radiation exceeding the limit for Class 1.

This caution label is located inside the unit.

This appliance is classified

as a CLASS 1 LASER

product. The CLASS 1

LASER PRODUCT

MARKING is located on

the rear exterior.

This stereo system is equipped with the Dolby* B-

type noise reduction system.

*Dolby noise reduction manufactured under

license from Dolby Laboratories Licensing

Corporation.

“DOLBY” and the double-D symbol aare

trademarks of the Dolby Laboratories Licensing

Corporation.

The MHC-W555 consist of the following

components:

-A/V control amplifier STR-W555

-CD player/Stereo cassette deck HTC-W555

-Speaker system SS-W777G

Table of Contents

Getting Started

Step 1: Hooking up the system............ 4

Step 2: Setting the time ......................... 6

Step 3: Presetting radio stations .......... 7

Connecting optional AV components . 8

Basic Operations

Playing a CD ......................................... 11

Recording a CD .................................... 13

Listening to the radio........................... 14

Recording from the radio .................... 15

Playing a tape........................................ 16

Recording from a tape ......................... 17

The CD Player

Using the CD display........................... 19

Playing the CD tracks repeatedly ...... 19

Playing the CD tracks in random

order ................................................ 20

Programming the CD tracks ............... 21

Playing CDs without interruption ..... 22

The Tape Deck

Recording on a tape manually ........... 23

Recording a CD by specifying track

order ................................................ 24

DJ Effects

Looping part of a CD ........................... 26

Flashing part of a CD ........................... 26

Sound Adjustment

Adjusting the sound ............................ 27

Selecting the audio emphasis ............. 28

Adjusting the audio emphasis............ 29

Making a personal audio emphasis

file .................................................... 30

Other Features

Singing along: Karaoke ...................... 32

Falling asleep to music ........................ 33

Waking up to music ............................. 34

Timer-recording radio programs ....... 35

Additional Information

Precautions ............................................ 36

Troubleshooting ................................... 37

Specifications ........................................ 40

Index....................................................... 42

Step 1: Hooking up the system

Getting Started

2Connect the speakers.

Connect the speaker cords to the

SPEAKER jacks of the same color.

Keep the speaker cords away from the

antennas to prevent noise.

1Connect the flat cord to the SYSTEM

CONTROL connectors until it clicks.

Insert only the stripped portion.

Black (’)Red (‘)

AM loop antenna

FM antenna

Right Speaker Left Speaker

Do the following procedure 1to 6to hook up your system using the supplied cords and

accessories.

If you set up the stereo system vertically

Be sure to place the A/V control amplifier on top of the CD player/stereo cassette deck.

To disconnect

‘

’

AM loop antenna

FM 75Ω

To activate the automatic sliding

panel

Press OPEN/CLOSE to slide the panel. Press

OPEN SENSOR ON/OFF, so that AUTO

indicator lights up. When you stand within

30 cm from the panel, the panel slides down

automatically.

continued

Extend the FM lead

antenna horizontally.

The panel closes automatically if you do not

operate on or in the panel for about 30

seconds.

Inserting two size AA (R6)

batteries into the remote

Tip

With normal use, the batteries should last for about

six months. When the remote no longer operates the

system, replace both batteries with new ones.

Note

If you do not use the remote for a long period of

time, remove the batteries to avoid possible damage

from battery leakage.

}}

]

3Connect the FM/AM antennas.

Set up the AM loop antenna, then connect it.

4Set VOLTAGE SELECTOR to

position of your local power line

voltage.

5Connect the power cord to a wall

outlet.

Demo mode appears in the display.

If the plug on this unit does not fit

your wall outlet, detach the supplied

adapter from the plug.

6Deactivate the demo mode by

pressing DISPLAY/DEMO when

the system power is turned off.

The demo mode is also deactivated

when you set the time.

SLIDING SENSOR OPEN/CLOSE

OPEN SENSOR ON/OFF

AUTO indicator

1Press CLOCK/TIMER SET.

The hour indication flashes.

2Turn the jog dial to set the hour.

The clock is on a 12-hour system.

3Press ENTER/NEXT.

The minute indication flashes.

4Turn the jog dial to set the minute.

5Press ENTER/NEXT.

The clock starts working.

Tips

•If you’ve made a mistake, start over from step 1.

•Setting the time deactivates the demo mode.

If you want to display the demo mode, press

DISPLAY/DEMO when the power is off.

Note

The previous explanation shows you how to set the

time while the power is off. To change the time

while the power is on, do the following:

1 Press CLOCK/TIMER SET.

2 Turn the jog dial to select SET CLOCK.

3 Press ENTER/NEXT.

4 Perform steps 2 through 5 above.

When carrying this system

Do the following to protect the CD

mechanism.

1Press FUNCTION repeatedly until “CD”

appears in the display.

2Hold down LOOP and press 1/u (power)

so that “LOCK” appears in the display.

To attach the front speaker pads

Attach the supplied front speaker pads to the

bottom of the speakers to stabilize the

speakers and prevent them from slipping.

Step 1: Hooking up the system

(continued)

Step 2: Setting the

time

You must set the time before using the timer

functions.

RELAY

DAILY 1 2 REC SLEEP

DOLBY NR

PROGRAM

REPEAT1

SHUFFLE

TUNED

MONO

STEREO

SYNC

STEP

MHz

kHz

REC

VOLUME

DBFB

SUR

1 2,4 3,5

DSP

RELAY

DAILY 1 2 REC SLEEP

DOLBY NR

PROGRAM

REPEAT1

SHUFFLE

TUNED

MONO

STEREO

SYNC

STEP

MHz

kHz

REC

VOLUME

DBFB

SUR

3Press TUNING MEMORY.

A preset number appears in the display.

4Turn the jog dial to select the preset

number you want.

5Press ENTER/NEXT.

The station is stored.

6Repeat steps 1 to 5 to store other

stations.

To tune in a station with a weak

signal

Press 0– or )+ repeatedly to tune in the

station manually.

To change the preset number

Start over from step 1.

To change the AM tuning interval

The AM tuning interval is factory-preset to 9 kHz

(10 kHz in some areas). To change the AM tuning

interval, tune in any AM station first, then turn off

the power. While holding down the ENTER/NEXT

button, turn the power back on. When you change

the interval, AM preset stations will be erased. To

reset the interval, repeat the same procedure.

Tip

The preset stations are retained for a day even if you

unplug the power cord or if a power failure occurs.

RELAY

DAILY 1 2 REC SLEEP

DOLBY NR

PROGRAM

REPEAT1

SHUFFLE

SALL DISC1

TUNED

MONO

STEREO

SYNC

STEP

MHz

kHz

REC

VOLUME

DBFB

SUR

Preset number

RELAY

DAILY 1 2 REC SLEEP

DOLBY NR

PROGRAM

REPEAT1

SHUFFLE

SALL DISC1

TUNED

MONO

STEREO

SYNC

STEP

kHz

REC

VOLUME

SUR

Step 3: Presetting

radio stations

You can preset up to 40 stations, 20 for FM, 10

for MW and 10 for SW.

1Press TUNER BAND repeatedly

until the band you want appears in

the display.

Every time you press this button, the

band changes as follows:

FM nMW nSW

2Press and hold 0– or )+ until

the frequency indication starts to

change, then release.

Scanning stops when the system tunes in

a station. “TUNED” and “STEREO” (for

a stereo program) appear.

4523

DSP

1/u

(power)

Connecting optional

AV components

To enhance your system, you can connect

optional components. Refer to the

instructions of each component.

Connecting audio

components

Select one of the following two connections,

depending on the equipment to be connected

and method of connecting.

Connecting an MD deck for digital

recording

You can record from CD into the MD deck

digitally by connecting an optical cable.

Connecting an MD deck for analog

recording

Make sure to match the color of the plugs and

the connectors. To listen to the sound of the

connected MD deck, press FUNCTION

repeatedly until “MD” appears.

To the DIGITAL IN jack of the MD deck

To the audio input

of the MD deck

To the audio output

of the MD deck

Tip

When you connect a Sony MD deck, you can use the

MD (, P, and pbuttons on this unit's remote to

perform play, pause and stop operations.

Note

If you cannot select “MD” even when you have

pressed FUNCTION, press 1/u (power) while

pressing FUNCTION when the power is turned off.

“VIDEO 1” will be switched to “MD”. To return to

“VIDEO 1”, do the same procedure.

Connecting the surround Speaker

You can connect the optional Surround

Speaker.

To the right rear speaker

To the left rear speaker

To super woofer

continued

Connecting a super woofer

speaker

You can connect an optional super woofer

speaker.

Connecting a VCR

Make sure to match the color of the plugs and

the connectors. To listen to the sound of the

connected VCR, press FUNCTION repeatedly

until “VIDEO 1” appears.

To the audio output of the VCR

Connecting a video game

player

You can enjoy video games with audio

emphasis by connecting a video game player.

To listen to and watch a video game, press

FUNCTION repeatedly until “VIDEO 2”

appears.

Press OPEN/CLOSE or place your hand to

the sliding sensor to slide the panel. Connect

a video game player as shown below:

To the audio/video output of a video game

player

Note

The sliding panel does not close when the AV

INPUT jacks are connected.

OPEN/CLOSE

To the video input of a TV

FM 75Ω

Connecting optional AV

components (continued)

75-ohm coaxial cable

(not supplied)

Screw clamp

Ground wire (not supplied)

Ground wire

(not supplied)

Screw clamp

Insulated wire (not supplied)

Connecting outdoor

antennas

Connect the outdoor antenna to improve the

reception.

FM antenna

Connect the optional FM outdoor antenna.

You can also use the TV antenna instead.

AM antenna

Connect a 6- to 15- meter (20- to 50- feet)

insulated wire to the AM antenna terminal.

Leave the supplied AM loop antenna

connected.

Important

If you connect an outdoor antenna, ground

from yterminal with the screw clamp. To

prevent a gas explosion, do not connect the

ground wire to a gas pipe.

Indice

Altri manuali Sony Impianto stereo

Sony

Sony SRS-XB2 Manuale utente

Sony

Sony MHC-V71 Manuale utente

Sony

Sony CMT-GP5 - Micro Hi Fi Component System Manuale utente

Sony

Sony MHC-GPX8 Manuale utente

Sony

Sony MHC-W77AV Manuale utente

Sony

Sony CMT-LX20I Marketing Manuale utente

Sony

Sony CMT-CQ1 - Micro Hi Fi Component System Manuale utente

Sony

Sony MHC-EC68 Manuale utente

Sony

Sony CFD-S70 Manuale utente

Sony

Sony MG110 Manuale utente

Sony

Sony MHC-V83D Manuale utente

Sony

Sony HMK-V82 Manuale utente

Sony

Sony MHC-GX8000 - Mini Stereo System Manuale utente

Sony

Sony MHC-V43D Guida di riferimento

Sony

Sony FST-ZUX9 - Mini Hi-fi Component System Manuale utente

Sony

Sony MHC-M20 Manuale utente

Sony

Sony HTC-D259 Manuale utente

Sony

Sony RDP-XF300iPN Manuale utente

Sony

Sony HCD-GP5 Manuale utente

Sony

Sony LBT-XG500 - Compact Hi-fi Stereo System Manuale utente

Sony

Sony HCD-V4800 Manuale utente

Sony

Sony CX-JN1 Manuale utente

Sony

Sony FST-ZX8 Manuale utente

Sony

Sony CMT-GP8D Manuale

Manuali Impianto stereo popolari di altre marche

LG CM3330B Manuale utente

Cetacea Sound

Cetacea Sound CVS-II Manuale utente

Aiwa

Aiwa XR-H66MD Manuale utente

Denon

Denon UCD-250 Manuale utente

Sanyo

Sanyo DC-MX41i Manuale utente

Sharp

Sharp CD-ES600V Manuale utente

Exibel

Exibel BDX600-UK Manuale utente

Sanyo

Sanyo DC-F320 Manuale utente

Philips

Philips FWM583X Manuale utente

Sharp

Sharp CD-C462 Manuale utente

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuale utente

Aiwa

Aiwa XR-EM70 Manuale utente

Cyrus

Cyrus Lyric Manuale utente

Philips

Philips MCM159/98 Manuale utente

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuale utente

RCA

RCA RS3965SB Manuale utente

Sharp

Sharp XL-UH240 Manuale utente

Philips

Philips FW 690 Manuale utente
