5
How to Use this Guide
This Guide describes the DDS Drive Unit SDT-S9000/BM , and how to take
care of it. Please read it carefully before using the unit, and keep it handy for
future reference.
The Guide consists of four parts, plus the specifications. Refer to the parts
that relate to your use of the drive.
Part 1 describes the features of the drive, its system components, and the
name and function of each part.
Part 2 describes the necessary connections between the drive and the host
computer. If other SCSI devices are being used, you may need to change the
SCSI ID setting. Read this part if you are installing the drive.
Part 3 describes how to use the drive, including how to turn it on, and how to
insert and remove cartridges. Read this part if you are going to operate the
drive.
Part 4 describes how to take care of the drive and cartridges, and how to
clean the drive heads. Read this part before using the drive.
The Specifications appendix provides the major specifications of the SDT-
S9000/BM.
6Part 1. Introduction
Part 1. Introduction
About DDS Drives
The SDT-S9000/BM is an external DDS drive unit that uses data cartridges
conforming to the DDS-3 format and DDS-2 format. The SDT-S9000/BM
supports DDS-1, DDS-2 and DDS-3 formats.
Features
The DDS Drive Unit SDT-S9000/BM has the following features:
• The Digital Data Storage format provides a huge data storage capacity on
DDS-1/DDS-2/DDS-3 data cartridges.
• Read After Write Function and third-level error correction code guarantee
high data reliability.
• Data Compression provides 24 gigabytes of storage on a 125 m tape-length
cartridge.*1
The native capacity is 12 gigabytes of storage on a 125 m tape-length
cartridge.
• Stored data are automatically checked for compression.
• The SCSI-2 (ANSI SCSI-2 X3T9.2/86-109 REV.10C) interface is fully
supported for host computer access.
• Read/Write operation is available with both DDS-1, DDS-2 and DDS-3
format.
• Automatic Super Head Cleaner
*1 This is assuming 2 : 1 compression ratio.
The degree of data compression attained while recording data varies according to system
environment and data type.
7
Useable Cartridges
Data cartridges used with the SDT-S9000/BM must be marked with the
DDS-1, DDS-2 or DDS-3 logo.
DDS-3 Logo DDS-2 Logo DDS-1 logo
CAUTION:
Be sure to use only the cartridges designed specifically for DDS (do not use
DAT cartridges for music).
System Components
The SDT-S9000/BM connects to the host computer via a SCSI-2 interface.
SDT-S9000/BM
(This Device) Peripheral Devices
Host Computer
Part 1. Introduction
8
Part Names and Functions

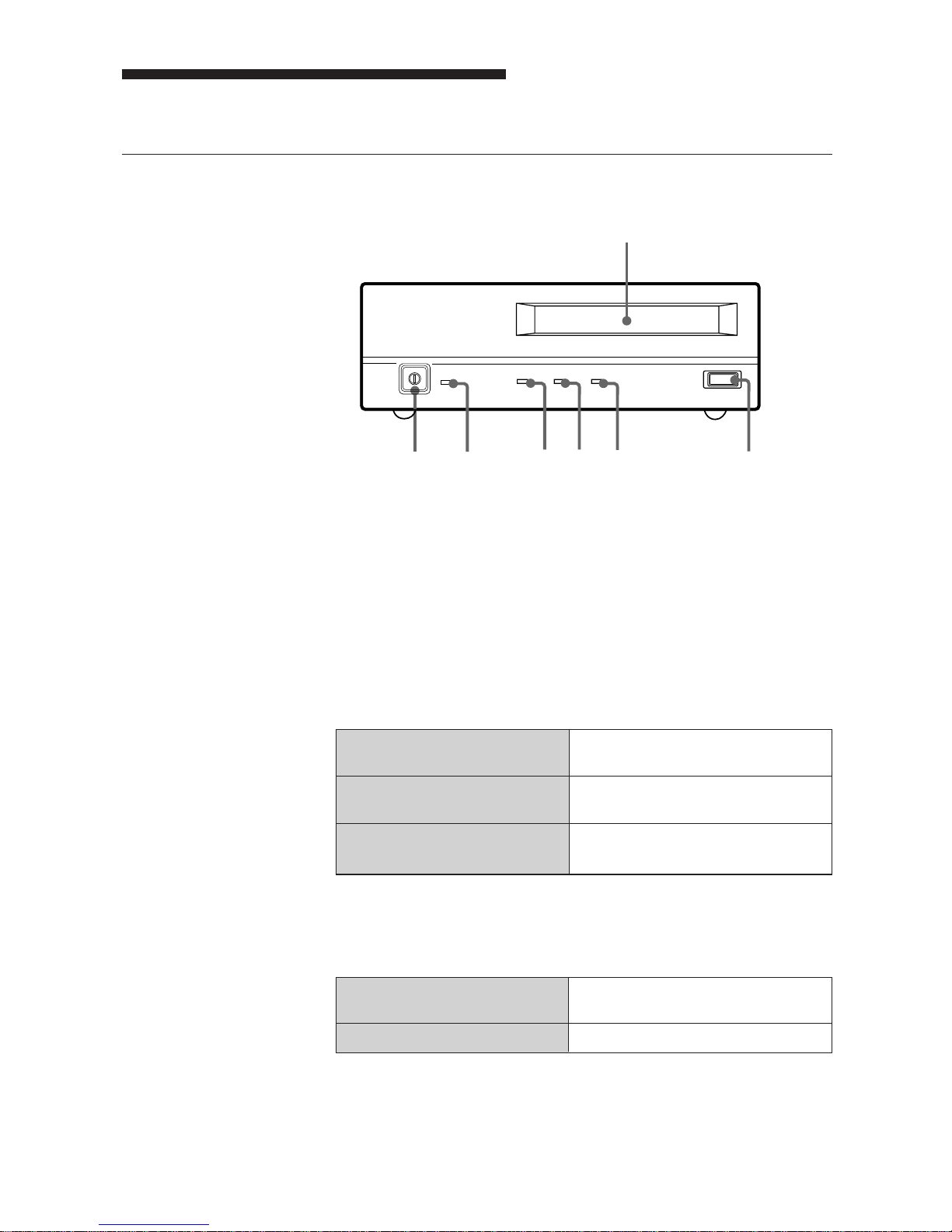

Front panel
1
2
345
6
7
POWER BUSY TAPE STATUS EJECT
1DDS Data Cartridge Receptacle
See page 15 for information on inserting and removing a DDS data
cartridge.
2EJECT Button
Push to remove a data cartridge from the drive.
3STATUS Indicator
Lights when an inserted cartridge is write-protected. This indicator also
lights under the following conditions:
Drive needs cleaning: repeating long-on, short-off
blinking.
End of Tape during cleaning: repeating blinking (same on-off
interval).
Drive Malfunctioning: repeating short-on (once or twice),
long-off blinking.
4TAPE Indicator
When a DDS cartridge is installed, this indicator lights. This also lights
under the following conditions:
Inserting and removing repeated blinking (same on-off
a cartridge: interval).
Cartridge deteriorated: alternating long-short blinking.
Part 1. Introduction
9
5BUSY Indicator
Lights when data is being transferred through the SCSI interface. This
indicator also lights under the following conditions:
Drive is reading or writing repeated blinking (same on-off
normally: interval).
6POWER Indicator
Lights while the drive is on.
7POWER Switch
Press to turn the drive on or off.
Part 1. Introduction
