Sony PLP-91/D Manuale utente
Universal Pitch-Adjustable Wall Mount
For Flat Panel Display PLP-91/D
Your new Wall Mount (PLP-91/D) is a quick disconnect
mounting system with adjustability between 0 and
15 degrees pitch.
Once the Universal Flat Panel Display Wall Mount
Bracket is attached to your display, simply attach the
mount securely on a wall, lock the display in place using
the convenient Q-latch, and attach your audio/video
cables.
The PLP-91/D is virtually invisible when your display is
mounted.
Can Be Used to
Lock Display
BEFORE YOU BEGIN
•Caution: To prevent damage to the PLP-91/D, which could affect or void the Factory warranty, and to the equipment
that will be attached to it, thoroughly study all instructions and illustrations before you begin the installation. Pay par-
ticular attention to the “Important Warnings and Precautions” on Page 1.
• The mount is designed to be installed using wall studs or supporting framework. The fasteners used to anchor the mount must
be capable of supporting five times the total weight of the equipment.
• The maximum weight to be installed on the Universal Pitch-Adjustable Wall Mount is 125 pounds (56.7 Kg).
Sony Electronics Inc. 8805-000087
1 Sony Drive
Park Ridge, NJ 07656
201-930-1000
www.sony.com/displaysystems
INSTALLATION INSTRUCTIONS
Installation Instructions Pitch-Adjustable Mount PLP91/D
1
IMPORTANT WARNINGS AND PRECAUTIONS!
WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.
CAUTION: ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre-
sponding instructions.
•WARNING:Improper installation can result in serious personal injury! Make sure that the structural members can
support a weight factor five times the total weight of the equipment. If not, reinforce the structure before
installing the mount.
•WARNING:Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.
•WARNING:The installer is responsible for verifying that the wall to which the mount is anchored will safely support
the combined load of all attached components or other equipment.
•WARNING:Watch for pinch points. Do not put your fingers between movable parts.
•WARNING:Make sure the mount and brackets are correctly oriented.
•WARNING:Make sure the latching flag securing the display is completely engaged at all times except when removing
or installing the display. The latching flag must be all completely engaged when installing/removing
cables.
•CAUTION: Check the unit for shipping damage before you begin the installation.
•CAUTION: Use only the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
2
Installation Instructions Pitch-Adjustable Mount PLP91/D
CONTENTS
DIMENSIONAL DRAWING .............................. 3
INSTALL MOUNT.............................................. 4
INSTALL PSB-91/D DISPLAY BRACKETS..... 4
MOUNT THE DISPLAY..................................... 6
TOOLS REQUIRED FOR INSTALLATION
• Phillips screwdrivers, No. 1 and No. 2 TIP
• Drill and bit set
• Wrench set
NOTE: Other tools may be required depending on the
method of installation.
Installation Instructions Pitch-Adjustable Mount PLP91/D
3
DIMENSIONAL DRAWING
Tighten this screw
to lock tilt in place
4
Installation Instructions Pitch-Adjustable Mount PLP91/D
INSTALL MOUNT
Install the mount as follows:
1. Determine the exact mounting location prior to installation and
draw a level line to indicate the desired height for the top of the
mounting plate.
WARNING: Improper installation can result in serious per-
sonal injury! Make sure that the structural
framework can support a weight factor five times
the total weight of the equipment. If not, reinforce
the structure before installing the mount.
2. With the mount correctly oriented and level, secure the mount
to the wall (see Figure 1) using four fasteners (not included).
Fasteners must be driven into the supporting wall studs or other
supporting framework.
3. Check mount to ensure it is level and adjust to level if
necessary.
INSTALL PSB-91/D DISPLAY BRACKETS
1. Using a 10-24 button head cap screw inserted from the back
side of the bracket, secure the mounting button, with cham-
fered hole of mounting button (larger surface) facing the
bracket, to bracket (four places) (see Figure 2 and Figure 3).
2. Place Nylon spacers over the mounting holes on the back of the
screen.
Mounting
Holes
Mounting
Holes
Figure 1. Mounting Hole Locations
Figure 2. Mounting Button Attachment
Figure 3. Mounting Button Location
10-24 Button Head
Cap Screw
Attach Mounting Buttons
Using These Holes
Mounting Button
Installation Instructions Pitch-Adjustable Mount PLP91/D
5

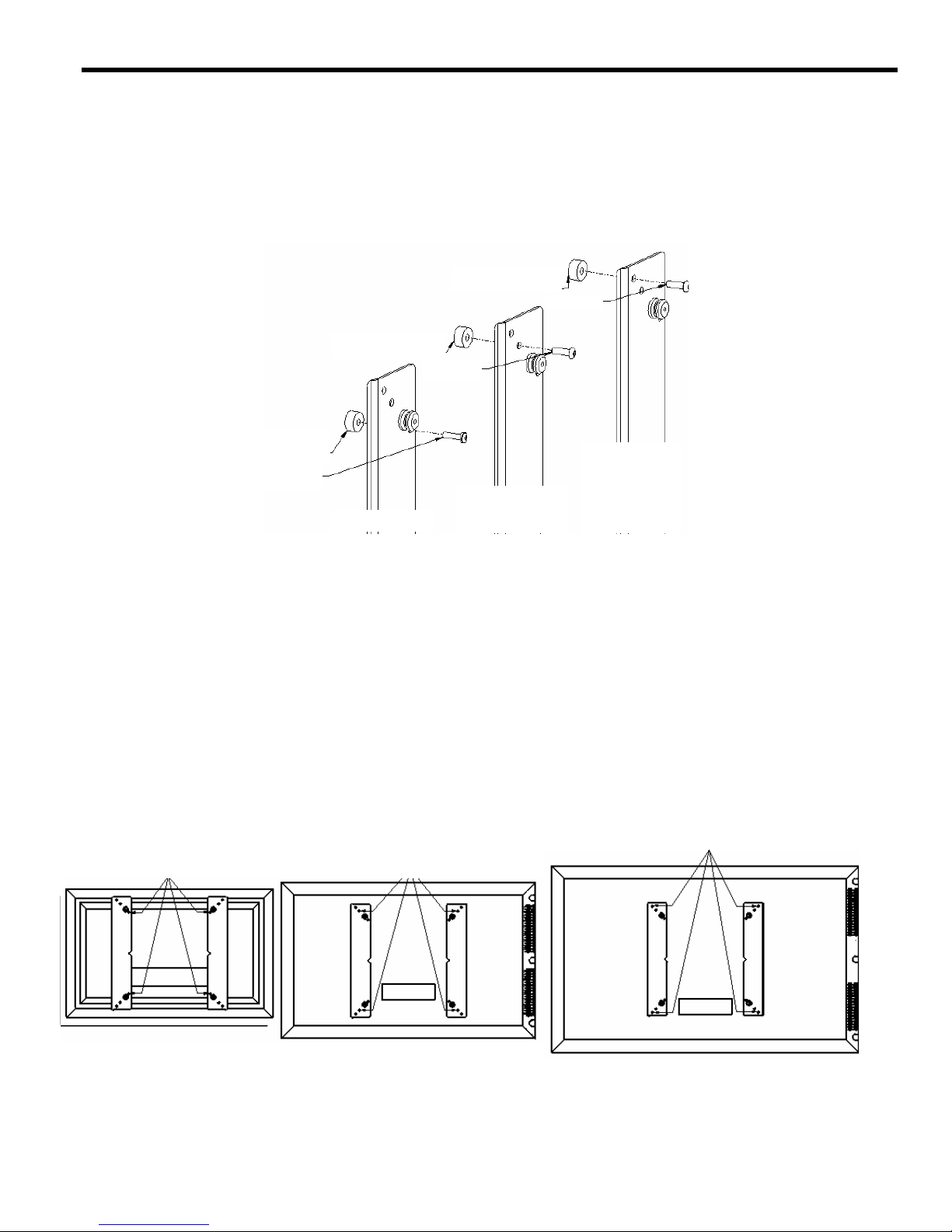

3. Attach mounting brackets to the display using the M5 screws
for 32” screen or M6 for the 42” and 50” screens (see Figure 4
and Figure 5).
Figure 5. Bracket Attachment Location
42”
32”
50”
Nylon Spacer
6mm
6m
m
50” Display
42” Display
32” Display
5mm
Nylon Spacer
Figure 4. Bracket Hole Location
Nylon Spacer
6
Installation Instructions Pitch-Adjustable Mount PLP91/D
MOUNT THE DISPLAY
Mount the display as follows:
1. Make sure no power is supplied to the display and the flag is in
the lowered (open) position before attempting to mount the dis-
play.
2. Using two people, slide the display down over the mount.
Make sure all four Q-buttons of the display engage all four
slots in the mount.
3. With the Q-buttons of the display fully engaged in the slots of
the mount, secure the display on the mount by raising the flag
all the way to their locked position. If the flag does not fully
engage, remove the display and make sure the brackets are
correctly installed.
NOTE: A security lock may be installed through the hole in the
locking flag for additional security (see Figure 6).
NOTE: If display does not remain at desired tilt setting, tighten
the nut and bolt on tilt arms on each side (see Figure 7).
WARNING: Make sure the flag securing the display is com-
pletely lowered at all times except when removing
or installing the display. The flag must be all the
way down when installing/removing cables.
Figure 7. Tilt Tension Adjustment
to adjust tilt tension
Loosen or tighten
this bolt
or lock in place
Figure 6. Optional Security
Security Lock May Be
Installed
