SERVICE MANUAL AE-5A CHASSIS

MODEL

COMMANDER DEST CHASSISNO.

KV-29FQ75A

RM-893 ET SCC-Q45A-A

KV-29FQ75D

RM-893 AEP SCC-Q41D-A

MODEL

COMMANDER DEST CHASSISNO.

KV-29FQ75E

RM-893 ESP SCC-Q43A-A

KV-29FQ75K

RM-893 OIRT SCC-Q42B-A

http://cxema.ru

1. Turn on the main power switch of the set while pressing P + (plus) and P - (minus) buttons on the front drop down control panel.

2. ‘TT’ will appear in the upper right corner of the screen.

3. Press the ‘MENU’ button twice on the remote commander to obtain the service menu on the screen.

4. Push the joystick up or down on the remote commander to select the adjustment item.

5. Push the right button to proceed to the next menu.

6. If the required adjustment item is ‘Deflection’, push the down button to move to ‘Deflection’.

7. Push the joystick to the right to enter into ‘Deflection’.

8. Change the data in order to comply with each standard.

Note :

• Before performing any adjustments ensure that the correct model has been selected in the ‘Model Setting’ menu.

• After carrying out the service adjustments, to prevent the customer accessing the ‘Service Menu’ switch the TV set OFF and then ON.

SECTION 4 CIRCUIT ADJUSTMENTS

4-1.ElectricalAdjustments

Service adjustments to this model can be performed using the supplied Remote Commander RM-893.

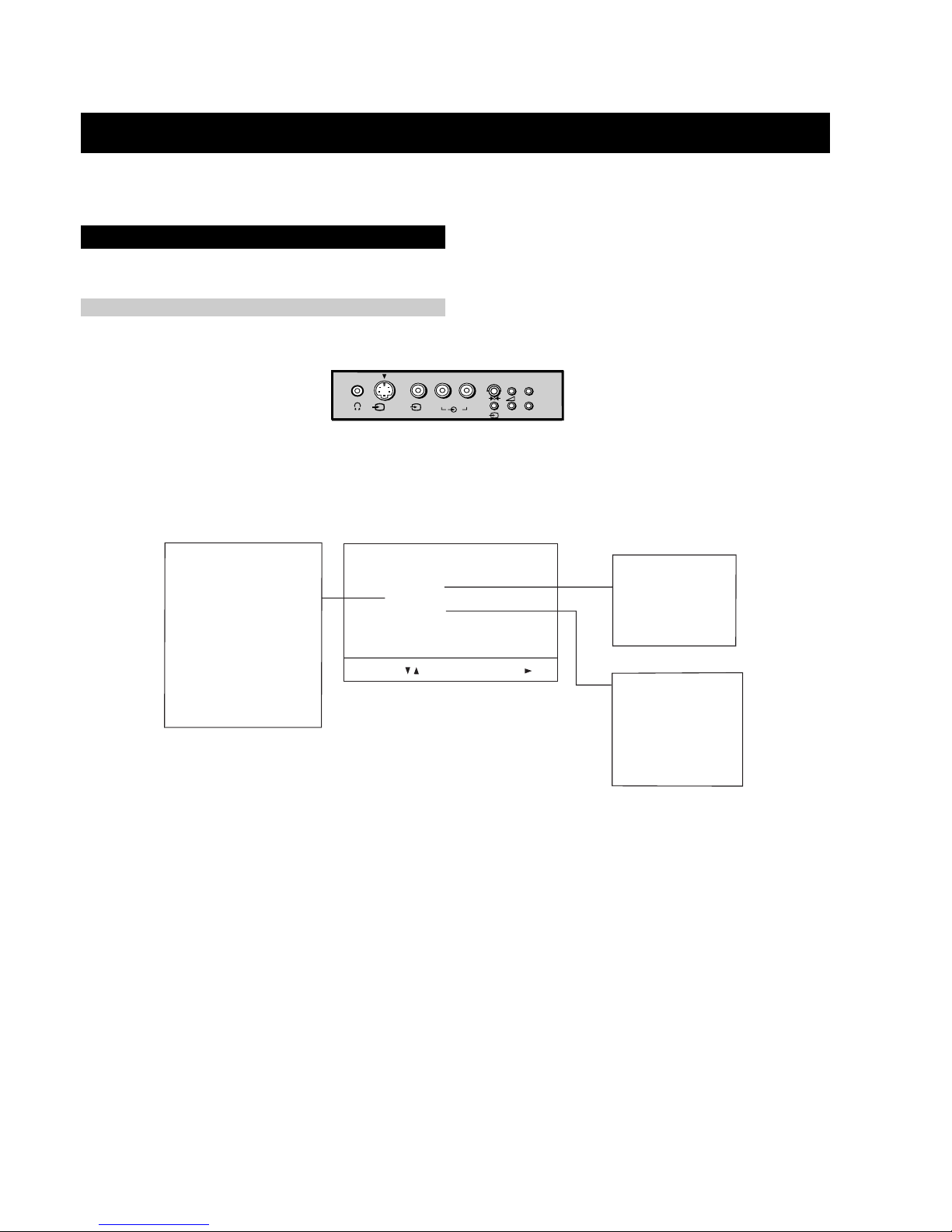

How to enter into the Service Mode

SERVICE MENU

Initialising

Reset Devices

Monitoring

Device Register Setting

Special Adjustment

Select : Next Menu

INITIALISING

Model Setting

Destination Setting

Basic Setting

Feature Setting

MONITORING

Device Status monitor

Error Monitor

Production Monitor

NVM Monitor

Format Monitor

CNI Monitor

RESET DEVICES

Backend

Deflection

Ext Deflection

Dynamic Convergence

Colour Decoder 1

Colour Decoder 2

Audio/Video Switch

Mid-X

External PLL Mid-X

Sound

Analog NR

L/G/S/I R/D/D/D

MONO
