Sony KV-29FX60A Manuale utente

SERVICE MANUAL AE-5 CHASSIS

MODEL

COMMANDER DEST CHASSIS NO.

MODEL

COMMANDER DEST CHASSIS NO.

KV-29FX60A

RM-891 Italian SCC-Q12A-A

KV-29FX60B

RM-891 French SCC-Q13A-A

KV-29FX60D

RM-891 AEP SCC-Q11A-A

KV-29FX60E

RM-891 Spanish SCC-Q14A-A

KV-29FX60U

RM-891 UK SCC-Q15A-A

MICROFILM

TRINITRON

COLOR TV

SECTION 4

CIRCUIT ADJUSTMENTS

4-1.ELECTRICAL ADJUSTMENTS

Service adjustments to this model can be performed using the supplied Remote Commander RM-891.

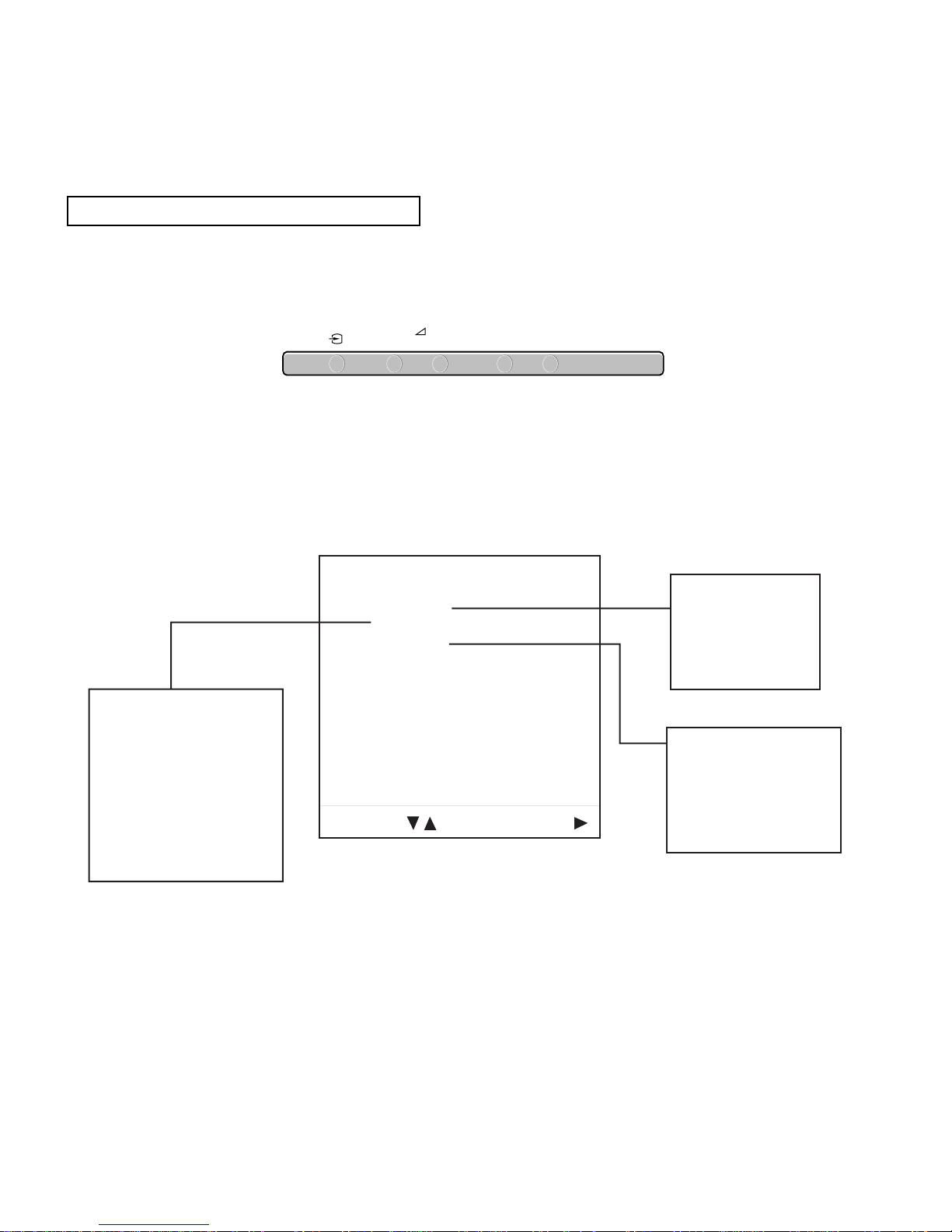

HOW TO ENTER INTO SERVICE MODE

1. Turn on the main power switch of the set while pressing PROG + (plus) and PROG - (minus) buttons on the top panel.

2. "TT" will appear in the upper right corner of the screen.

3. Press the ‘MENU’ button twice on the remote commander to obtain the service menu on the screen.

4. Push the joystick up or down on the remote commander to select the adjustment item.

5. Push the right button to proceed to the next menu.

6. If the required adjustment item is ‘Deflection’, push the down button to move to ‘Deflection’.

7. Push the joystick to the right to enter into ‘Deflection’.

8. Change the data in order to comply with each standard.

NOTE:

• Before performing any adjustments assure that the correct model has been selected in the Model Setting menu.

• After carrying out the service adjustments, to prevent the customer accessing the Service Menu switch the TV set OFF and then ON.

–+

–

PROGR

CONTROL

SERVICE MENU

Initialising

Reset Devices

Monitoring

Backend

Deflection

Dynamic Convergence

Colour Decoder 1

Colour Decoder 2

Feature Low - End

PIP

Special Adjustment

Select :

Backend

Deflection

Dynamic Convergence

Colour Decoder 1

Colour Decoder 2

Feature Box

PIP

Sound

RESET DEVICES

INITIALISING

Model Setting

Basic Setting

Feature Setting

Device Status monitor

Error Monitor

Production Monitor

NVM Monitor

Line 23 Monitor

MONITORING

Next Menu

Fig.4-1

Model Setting

1 KV-29FX60A/D/E

2KV-29FX60B

3KV-29FX60U

4 KV-29FC60A/D/E

5 KV-29FC60B

6 KV-29FC60K

7 KV-29FC60R

8 KV-29FS60A/D/E

9KV-29FS60B

10 KV-29FS60K

11 KV-29FS60R

12 KV-28/32FX60A/D/E

13 KV-28/32FX60B

14 KV-28/32FX60K

15 KV-28/32FX60R

16 KV-28/32FX60U

17 KV-29FS60A/D/E

18 KV-29FS60B

Fig.4-2

Basic setting

No Descr. Min Max Data

1 Sys.B/G OFF ON ON

2 Sys.D/K OFF ON ON

3Sys.L OFFON ON

4 Sys I (UK) OFF ON OFF

5 Sys I (IRL) OFF ON OFF

6 Russian sound OFF ON OFF

7 TXT Nod.option 1 4 3

8 simple PAT OFF ON OFF

9 16:9 CRT OFF ON OFF

10 Sub-woofer OFF ON ON

11 Auto stand-by OFF ON ON

12 comb-filter OFF ON OFF

13 Auto YC det OFF ON ON

14 Auto comb det OFF ON OFF

15 AV2 Available OFF ON ON

16 AV3 Available OFF ON ON

17 AV4 Available OFF ON OFF

18 AV3 Front & rear OFF ON ON

19 SECAM Tape OFF ON OFF Fig.4-3

Backend

No Descr. Def Min Max Data

1R-on ONOFFON ON

2G-on ONOFFON ON

3 B-on ON OFF ON ON

4 D-col OFF OFF ON ON

5Color-axis 2032

6Contrast 6306363

7Limit-Luv 3033

8Hue 3106331

9Colour 3106328

10CTI-Level 2032

11 Brightness 31 0 63 31

12Gamma 2032

13 Sharpness 31 0 63 44

14LTI-Level 0030

15 R-Drive 41 0 63 40

16 BLK-Bottom 0030

17G-Drive 4106338

18ABL-TH 0030

19 B-Drive 41 0 63 21

20ABL-Mode 2032

21 Sub Bright 31 0 63 32

22VM-Level 2032

23 R-Cutoff 31 0 63 41

24Preover 2032

25 G-Cutoff 31 0 63 45

26DPIC-Level 2032

27 B-Cutoff 31 0 63 48

28DC-Tran 1031

29 Sub-Cont 7 0 15 7

30 LRGB2-Lvl 12 0 15 12

31 P-Abl 15 0 15 15

32 DL-Pass OFF OFF ON OFF

33 Sharp.Fo ON OFF ON ON

34 Aging-W OFF OFF ON OFF

35 Aging-B OFF OFF ON OFF

36 CB-offset1 7 0 15 7

37 CR-offset1 7 0 15 7

38 CB-offset2 7 0 15 7

39 CR-offset2 7 0 15 7

40 Sub Colour 0 -8 8 -1

NOTE:

The above table is dependant on model, destination & size.

Fig.4-4

Feature setting

No Descr. Min Max Data

1PIP OFFON ON

Fig.4-5

Colour Decoder 1

No Descr. Def Min Max Data

1 DelayLinMd OFF OFF ON OFF

2Gainset 1031

3 Y-Delay 7 0 15 7

4PhaseTime 0030

5 Vid Ident Md OFF OFF ON OFF

6 Sync Mode OFF OFF ON OFF

7 Vid Ident Sw ON OFF ON ON

8 H-Output OFF OFF ON OFF

9 Enagating OFF OFF ON OFF

10 IF Circuit ON OFF ON ON

11 GP Delay OFF OFF ON OFF

Fig.4-6

Colour Decoder 2

No Descr. Def Min Max Data

1 DelayLinMd OFF OFF ON OFF

2Gainset 1031

3 Y-Delay 7 0 15 7

4PhaseTime 0030

5 Vid Ident Md OFF OFF ON OFF

6 Sync Mode OFF OFF ON OFF

7 Vid Ident Sw ON OFF ON ON

8 H-Output OFF OFF ON OFF

9 Enagating OFF OFF ON OFF

10 IF Circuit ON OFF ON ON

11 GP Delay OFF OFF ON OFF

Fig.4-7

Deflection

No Descr. Def Min Max Data

1 V-Size 31 0 63 34

2V-Position 3106321

3V-Comp 1031

4 V-Linear 7 0 15 7

5S-Corr 7 0158

6 H-Size 31 0 63 29

7 EW-DC OFF OFF ON OFF

8 Pin-Amp 31 0 63 36

9Up-Cpin 3106335

10M-Pin 2032

11 Lo-Cpin 31 0 63 37

12 Trapezium 7 0 15 7

13 H-Position 31 0 63 25

14 AFC-Bow 7 0 15 7

15 AFC-Angle 7 0 15 9

16 Up-Vlin 0 0 15 0

17 Lo-Vlin 0 0 15 0

Fig.4-8

Dynamic Convergence

No Descr. Def Min Max Data

1 Range 63 0 63 32

2 H Stat 33 0 63 33

3 H amp L 37 0 63 37

4 H amp R 36 0 63 36

5UpY 3106331

6LowY 3306333

7YUpL 3006330

8YUpR 3006330

9YLowL 3106331

10 Y Low R 30 0 63 30

11MbowUpL 3106331

12MbowUpR 3206332

13 Mbow Low L 32 0 63 32

14 Mbow Low R 32 0 63 32

15 V Stat 32 0 63 32

16 Linearity 128 0 255 104

17 H Centre 32 0 63 32

18 H Trap 32 0 63 32

19 Rotation 0 0 255 0

20 Focus Phase 128 0 255 128
