Sony KV-PF21DK7 Manuale utente

KV-PF21DK7 RM-952 ME SCC-U30G-A

KV-PF21M70 RM-952 E SCC-U13E-A

KV-PF21N70 RM-915 Taiwan SCC-P13F-A

KV-PF21P70 RM-952 E SCC-U13F-A

KV-PF21Q40 RM-952 GE SCC-U12P-A

KV-PF21Q70 RM-952 E SCC-U13H-A

KV-PF51P40 RM-952 Indonesia SCC-U20N-A

MODEL COMMANDER DEST. CHASSIS NO.

CHASSIS

TRINITRON

COLOR TV

SERVICE MANUAL

BG-3S

MODEL COMMANDER DEST. CHASSIS NO.

RM-915 RM-952

– 2 –

KV-PF21N70/PF51P40/PF21P70/PF21Q40

RM-915 RM-952 RM-952 RM-952

KV-PF21Q70/PF21M70/PF21DK7

RM-952 RM-952 RM-952 SPECIFICATIONS

(except KV-PF21N70)

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND

THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR

CARBON PAINTED ON THE CRT, AFTER REMOVING THE

ANODE.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK!ONTHE

SCHEMATIC DIAGRAMS,EXPLODEDVIEWS AND INTHE PARTS

LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE

COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS

APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS THAT ARE

CRITICAL TO SAFE OPERATION ARE IDENTIFIED IN THIS

MANUAL.FOLLOWTHESEPROCEDURESWHENEVERCRITICAL

COMPONENTS ARE REPLACED OR IMPROPER OPERATION IS

SUSPECTED.

Note

Power requirements 110-240V AC, 50/60 Hz

Power consumption (W) Indicated on the rear of the TV

Television system B/G, I, D/K, M KV-PF21M70

B/G, D/K KV-PF21DK7

B/G KV-PF21P70/PF21Q70

KV-PF21Q40/PF21P40

Color system PAL, PAL60, SECAM, NTSC4.43, NTSC3.58 KV-PF21M70

PAL, PAL60, NTSC4.43, NTSC3.58 (AV IN) KV-PF21P70/PF21P40

PAL, PAL60, SECAM, NTSC4.43 KV-PF21Q70/PF21Q40

KV-PF21DK7

Channel coverage

B/G VHF : E2 to E12/ UHF : E21 to E69/

CATV : S01 to S03, S1 to S41

IUHF : B21 to B68/ CATV : S01 to S03, S1 to S41 KV-PF21M70 only

D/K VHF : C1 to C12, R1 to R12/ UHF : C13 to C57, R21 to R60

CATV: S01 to S03, S1 to S41, Z1 to Z39 KV-PF21M70/PF21DK7

MVHF : A2 to A3/ UHF : A14 toA79/

CATV : A-8 to A-2, A to W+4, W+6 to W+84 KV-PF21M70 only

˘(Antenna) 75-ohm external terinal

Audio output 3W

Number of terminal

(Video) Input : 2 Output : 1 Phono jacks; 1 Vp-p, 75 ohms

(Audio) Input : 2 Output : 1 Phono jacks; 500 mVrms

(Earphone) Output : 1 Minijack

Picture tube 21 inch

Tube size (cm) 54 Measured diagonally

Screen size (cm) 51 Measured diagonally

Dimension (w/h/d, mm) 490 x 458 x 487

Mass (kg) 25

Design and specifications are subject to change without notice.

– 3 –

KV-PF21N70/PF51P40/PF21P70/PF21Q40

RM-915 RM-952 RM-952 RM-952

KV-PF21Q70/PF21M70/PF21DK7

RM-952 RM-952 RM-952

SPECIFICATIONS

(KV-PF21N70 only)

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND

THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR

CARBON PAINTED ON THE CRT, AFTER REMOVING THE

ANODE.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK!ONTHE

SCHEMATIC DIAGRAMS,EXPLODEDVIEWS AND INTHE PARTS

LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE

COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS

APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY. CIRCUIT ADJUSTMENTS THAT ARE

CRITICAL TO SAFE OPERATION ARE IDENTIFIED IN THIS

MANUAL.FOLLOWTHESEPROCEDURESWHENEVERCRITICAL

COMPONENTS ARE REPLACED OR IMPROPER OPERATION IS

SUSPECTED.

Note

Power requirements 110V AC, 50/60 Hz

Power consumption (W) Indicated on the rear of the TV

Television system M

Color system PAL, PAL60, NTSC4.43, NTSC3.58 (AV IN)

Channel coverage

MVHF : A2 to A13/ UHF : A14 toA69/

CATV : A-8 to A-1, A-W, W+1 to W+84

˘(Antenna) 75-ohm external terinal

Audio output 3W

Number of terminal

(Video) Input : 2 Output : 1 Phono jacks; 1 Vp-p, 75 ohms

(Audio) Input : 2 Output : 1 Phono jacks; 500 mVrms

(Earphone) Output : 1 Minijack

Picture tube 21 inch

Tube size (cm) 54 Measured diagonally

Screen size (cm) 51 Measured diagonally

Dimension (w/h/d, mm) 490 x 458 x 487

Mass (kg) 25

Design and specifications are subject to change without notice.

– 4 –

KV-PF21N70/PF51P40/PF21P70/PF21Q40

RM-915 RM-952 RM-952 RM-952

KV-PF21Q70/PF21M70/PF21DK7

RM-952 RM-952 RM-952

TABLE OF CONTENTS

Section Title Page

SELF DIAGNOSIS FUNCTION................................ 4

1. GENERAL .......................................................... 9

2. DISASSEMBLY

2-1. Rear Cover Removal................................................ 35

2-2. Chassis Assy Removal ............................................. 35

2-3. F Bracket Removal .................................................. 35

2-4. Service Position ....................................................... 35

2-5. Replacement of Parts ............................................... 36

2-5-1. Replacement of Control Button ....................... 36

2-5-2. Replacement of Bar Control ............................ 36

2-6. Terminal Bracket Removal ...................................... 36

2-7. Degauss Coil Removal ............................................ 36

2-8. Picture Tube Removal.............................................. 37

3. SET-UP ADJUSTMENTS

3-1. Beam Landing .......................................................... 38

3-2. Convergence............................................................. 39

3-3. Focus Adjustment .................................................... 41

3-4. G2 (Screen) and White Balance Adjustments......... 41

4. CIRCUIT ADJUSTMENTS

4-1. Adjustments with Commander ................................ 42

4-2. Adjustment Method ................................................. 43

4-3. Picture Quality Adjustments.................................... 48

4-4. A Board Adjustment After IC003 (Memory)

Replacement............................................................. 48

4-5. Picture Distortion Adjustment ................................. 49

Section Title Page

5. DIAGRAMS

5-1 Block Diagram ......................................................... 51

5-2 Frame Schematic Diagram ...................................... 54

5-3 Circuit Boards Location .......................................... 56

5-4 Schematic Diagrams and Printed Wiring Boards ... 57

(1) Schematic Diagram of A(1/2) Board ...................... 59

(2) Scheamtic Diagram of A(2/2) Board ...................... 63

(3) Schematic Diagrams of C3 and F Boards ............... 71

5-5 Semicondutors ......................................................... 75

6. EXPLODED VIEW

6-1. Chassis ..................................................................... 77

7. ELECTRICAL PARTS LIST................................... 79

– 5 –

KV-PF21N70/PF51P40/PF21P70/PF21Q40

RM-915 RM-952 RM-952 RM-952

KV-PF21Q70/PF21M70/PF21DK7

RM-952 RM-952 RM-952

The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/TIMER lamp will automatically

begin to flash.

The number of times the lamp flashes translates to a probable source of the problem. A definition of the STANDBY/TIMER

lamp flash indicators is listed in the instruction manual for the user’s knowledge and reference. If an error symptom cannot

be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past

problems and how often these problems occur.

1. DIAGNOSTIC TEST INDICATORS

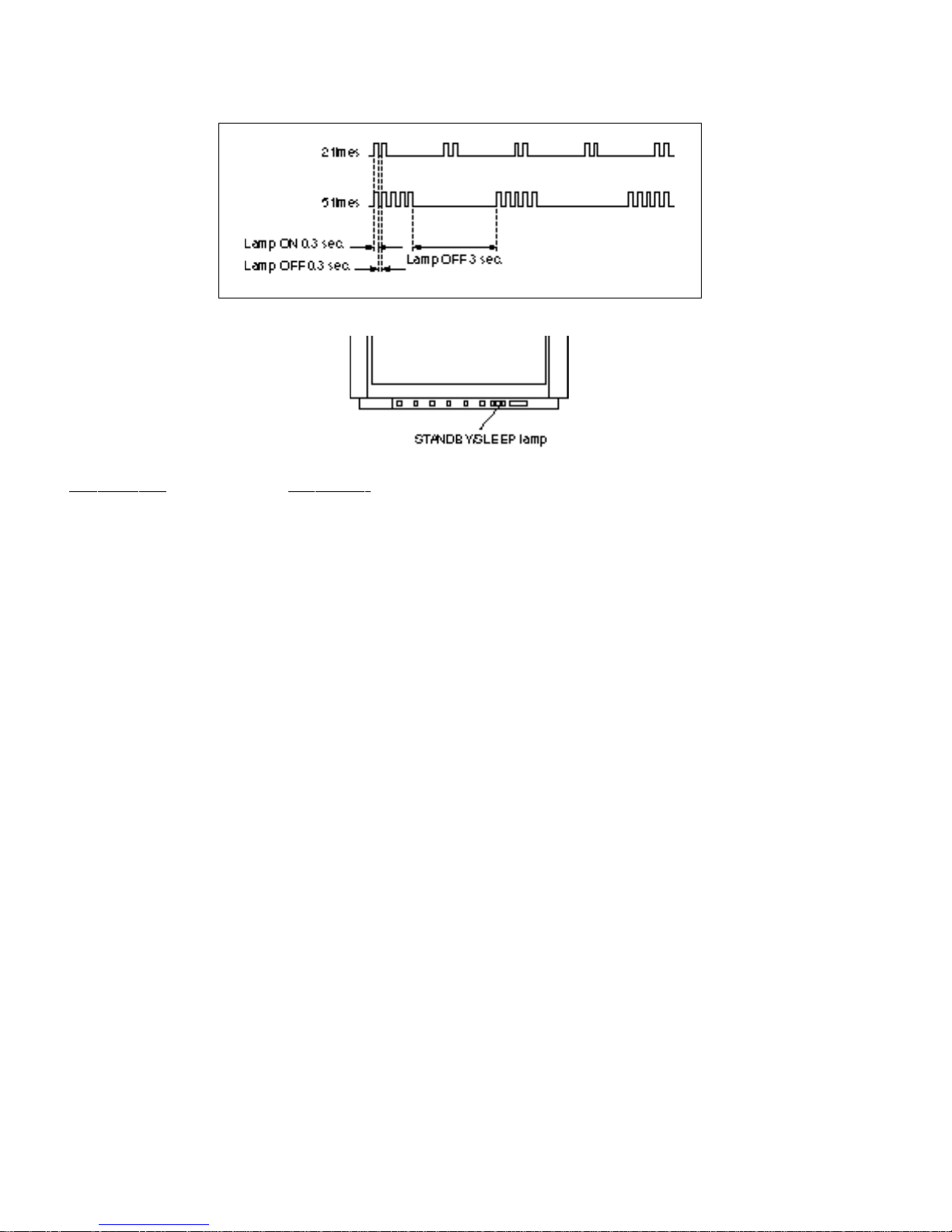

When an errors occurs, the STANDBY/TIMER lamp will flash a set number of times to indicate the possible cause of the

problem. If there is more than one error, the lamp will identify the first of the problem areas.

Result for all of the following diagnostic items are displayed on screen. No error has occured if the screen displays a “0”.

Diagnostic

Item

Description

• Power does not

turn on

• +B overcurrent

(OCP) or

overvoltage

(OVP)

• Vertical deflection

stopped

• Horizontal

deflection

overdrive

• White balance

failure (no

PICTURE)

• Micro reset

No. of times

STANDBY/TIMER

lamp flashes

Does not light

2 times

5 times

—

Self-diagnostic

display/Diagnostic

result

—

002:000 or

002:001~255

003:001~255

004:001~255

at the same time

005:000 or

005:001~225

101:00 or

101:001~225

Probable

Cause

Location

• Power cord is not plugged

in.

• Fuse is burned out F4601

(F Board)

• H.OUT Q511 is shorted.

(A board)

• -13V is not supplied.

(A board)

• IC 503 faulty (A board)

• IC 301 faulty (A board)

• G2 is improperly adjusted.

(Note 2)

• CRT problem.

• IC301 is faulty. (A board)

• No connection A board to

C3 board.

• Discharge CRT

(C3 Board)

• Static discharge

• External noise

Detected

Symptoms

• Power does not come on.

• No power is supplied to the

TV.

• AC power supply is faulty.

• Power does not come on.

• Load on power line is

shorted.

• Has entered standby state

after horizontal raster.

• Vertical deflection pulse is

stopped.

• Power line is shorted or

power supply is stopped.

• No raster is generated.

• CRT cathode current

detection reference pulse

output is small.

• Power is shut down shortly,

after this return back to

normal.

• Detect Micro latch up.

Note 1: If a + B overcurrent is detected, stoppage of the vertical deflection is detected simultaneously.

The symptom that is diagnosed first by the microcontroller is displayed on the screen.

Note 2: Refer to screen (G2) Adjustment in section 3-4 of this manual.

SELF DIAGNOSTIC FUNCTION

– 6 –

KV-PF21N70/PF51P40/PF21P70/PF21Q40

RM-915 RM-952 RM-952 RM-952

KV-PF21Q70/PF21M70/PF21DK7

RM-952 RM-952 RM-952

2. DISPLAY OF STANDBY/TIMER LIGHT FLASH COUNT

Diagnostic Item Flash Count*

+B overcurrent/overvoltage 2 times

Vertical deflection stopped

White balance failure 5 times

* One flash count is not used for self-diagnostic.

3. STOPPINGTHE STANDBY/TIMER FLASH

Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY/TIMER lamp

from flashing.

– 7 –

KV-PF21N70/PF51P40/PF21P70/PF21Q40

RM-915 RM-952 RM-952 RM-952

KV-PF21Q70/PF21M70/PF21DK7

RM-952 RM-952 RM-952

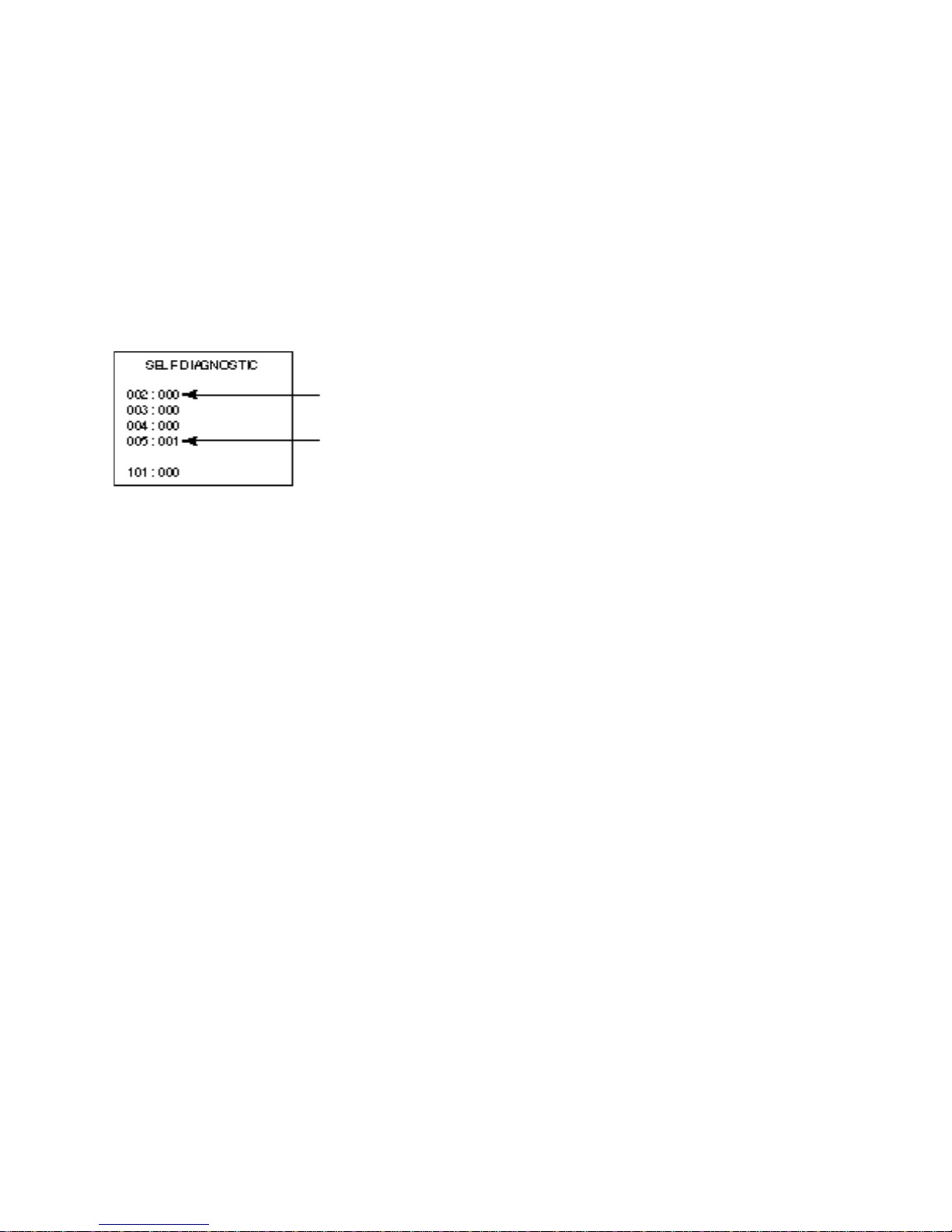

4. SELF-DIAGNOSTIC SCREEN DISPLAY

For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed, it

is possible to bring up past occurances of failure for confirmation on the screen:

[To Bring Up ScreenTest]

In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:

[Screendisplay] /channel [5] /Sound volume [-] /Power ON

Note that this differs from entering the service mode (mode volume [+]).

Self-Diagnosis screen display

5. HANDLING OF SELF-DIAGNOSTIC SCREEN DISPLAY

Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen

during repairs. When you have completed the repairs, clear the result display to “0”.

Unless the result display is cleared to “0”, the self-diagnostic function will not be able to detect subsequent faults after

completion of the repairs.

[Clearing the result display]

To clear the result display to “0”, press buttons on the remote commander sequentially as shown below when the diagnostic

screen is being displayed.

Channel [8] /0

[Quitting Self-diagnostic screen]

To quit the entire self-diagnostic screen, turn off the power switch on the remote commander or the main unit.

Numeral "0" means that no fault has been detected.

Numeral "1" means a fault has been detected.

– 8 –

KV-PF21N70/PF51P40/PF21P70/PF21Q40

RM-915 RM-952 RM-952 RM-952

KV-PF21Q70/PF21M70/PF21DK7

RM-952 RM-952 RM-952

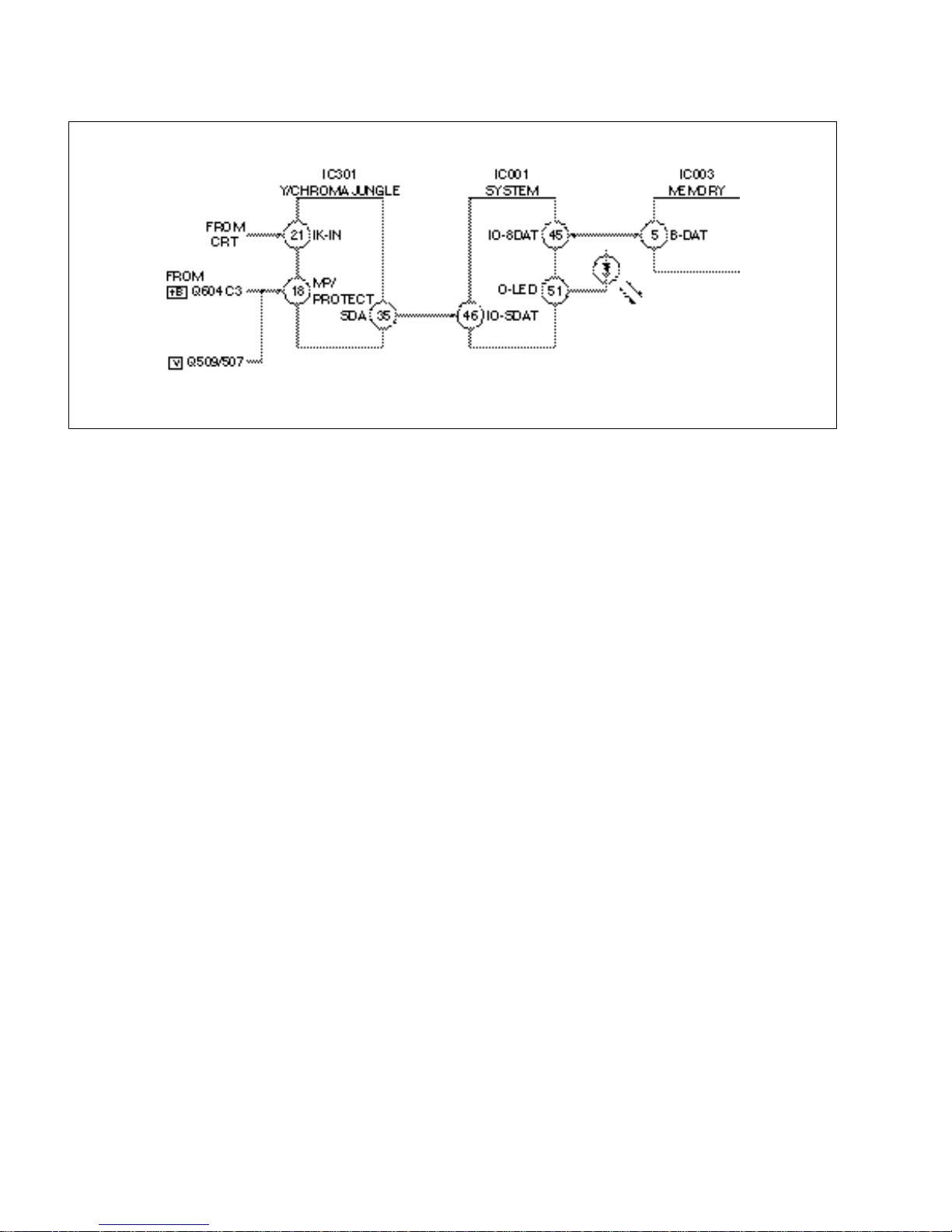

6. SELF-DIAGNOSTIC CIRCUIT

[+BovercurrentªOCPº] Occurs when an overcurrent on the +B(135) line is detected by Q604. If Q604 go to ON

and the voltage to pin 18 of IC301 should go down when V.SYNC is more than seven

verticals in a period, the unit will automatically turn off.

[Verticaldeflectionstopped] Occurs when an absence of the vertical deflection pulse is detected by Q509 and IC001

shut down the power supply.

[Verticaldeflectionovercurrent] Occurs when an overcurrent on V drive line is detected by Q507. Power supply will be

shut down when detect this by IC001.

[Whitebalancefailure] If the RGB levels* do not balance or become low level within 5 seconds, this error will be

detected by IC301.TV will stay on, but there will be no picture.

* (Refers to the RGB levels of the AKB detection Ref pulse that detects IK.)

– 9 –

KV-PF21N70/PF51P40/PF21P70/PF21Q40

RM-915 RM-952 RM-952 RM-952

KV-PF21Q70/PF21M70/PF21DK7

RM-952 RM-952 RM-952

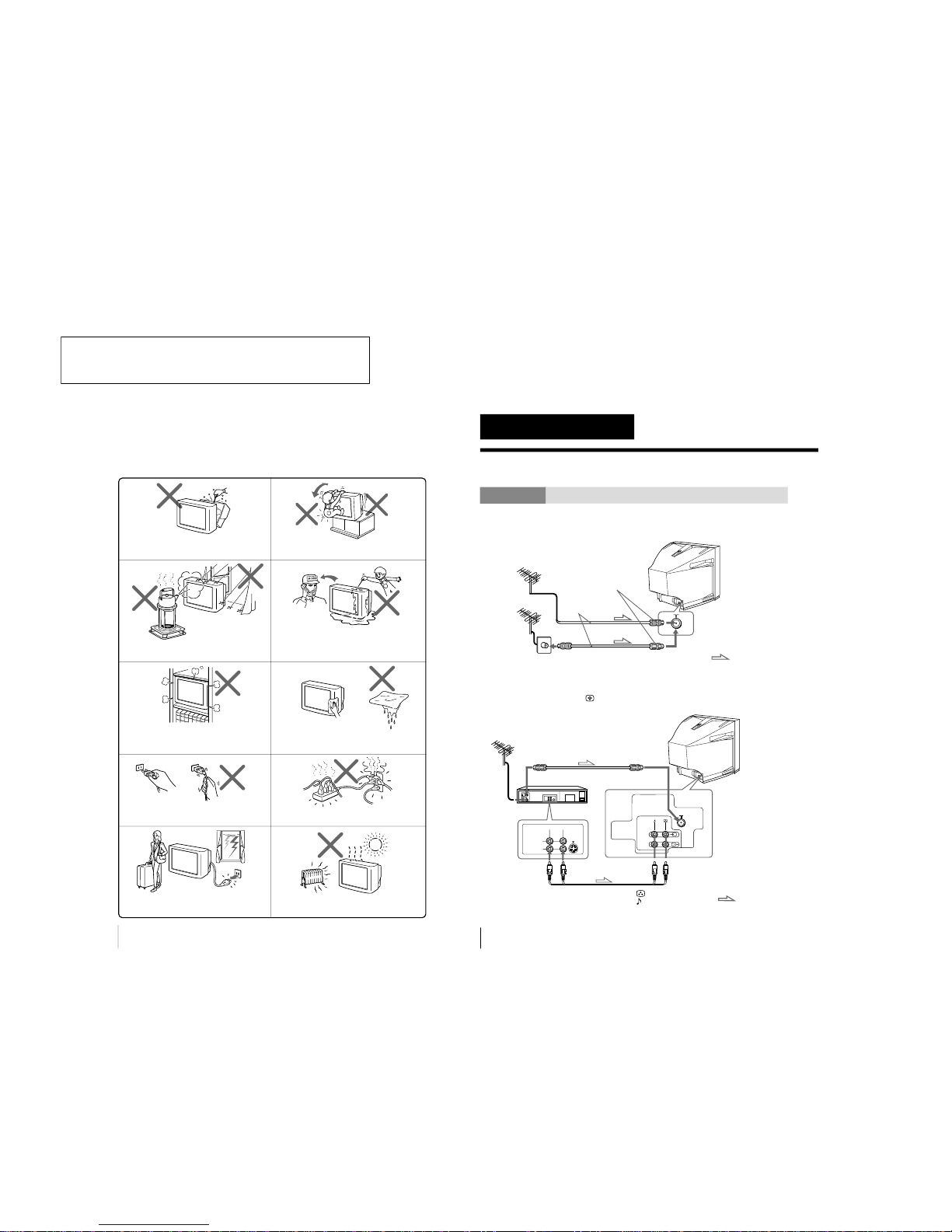

SECTION 1-1

GENERAL

(Except KV-PF21N70)

The operating instructions mentioned here are partial abstracts

from the Operating Instruction Manual. The page numbers of

the Operating Instruction Manual remain as in the manual.

WARNING

• Dangerously high voltages are present inside the TV.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV. Refer servicing to qualified personnel.

Do not install the TV in hot, humid or excessively

dusty places.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not block the ventilation openings of the TV.

Do not pull the power cord to disconnect the TV.

Pull it out by the plug.

Disconnect the power cord during lightning

storms or if you are not going to use the TV for

several days.

Install the TV in a stable position. Do not allow

children to climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

Using Your New TV

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR”diagram below.

Using Your New TV

IEC connector

(not supplied)

To video and

audio outputs

VCR

(yellow)

(black)

Antenna cable (not supplied)

To …1

(video input)

Audio/Video cable

(not supplied) : Signal flow

To antenna

output

Antenna cable

(not supplied)

Rear of TV

Connecting a VCR

To watch the video, press …(see page 12).

: Signal flow

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

Rear of TV

To ˘

(antenna)

–10 –

KV-PF21N70/PF51P40/PF21P70/PF21Q40

RM-915 RM-952 RM-952 RM-952

KV-PF21Q70/PF21M70/PF21DK7

RM-952 RM-952 RM-952

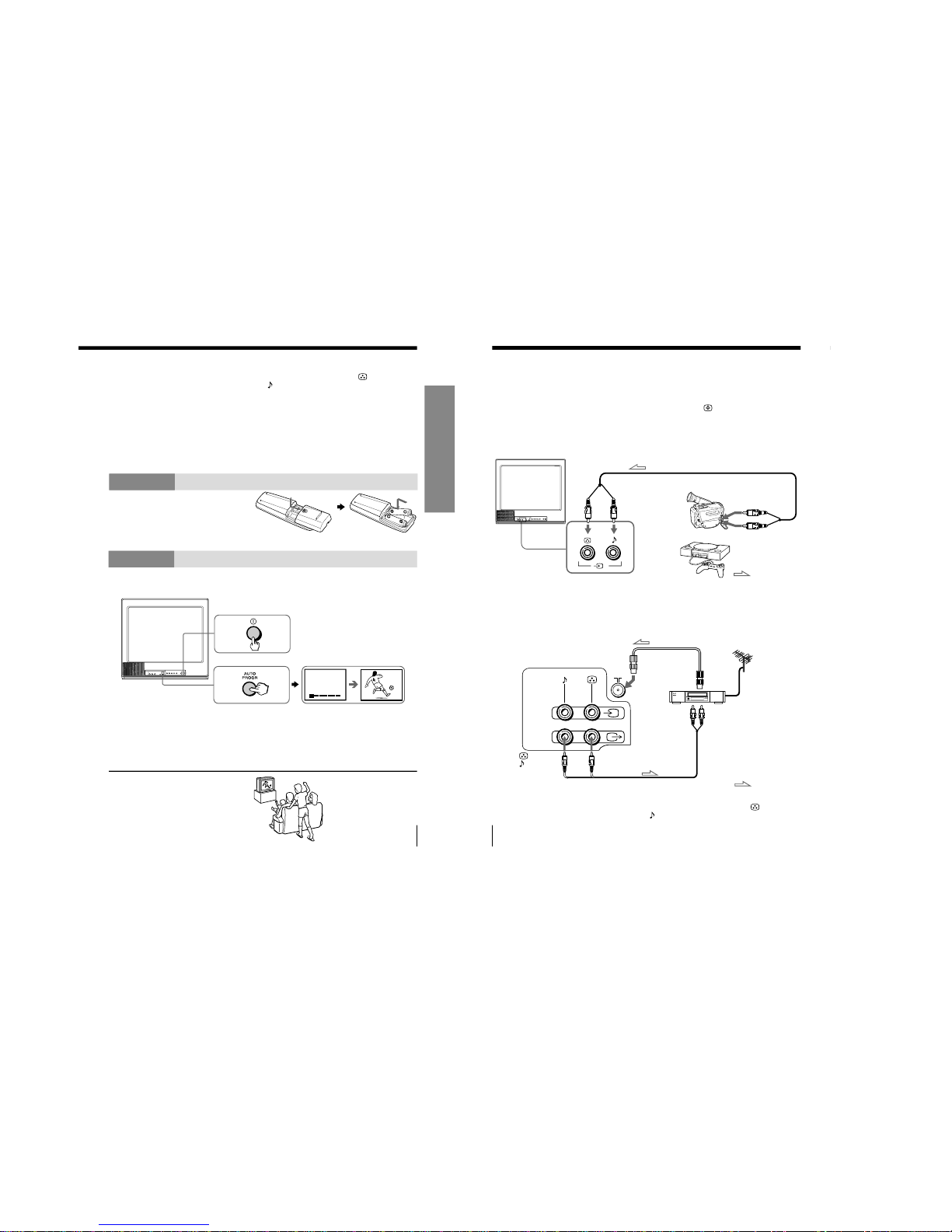

Using Your New TV

Preset the channels automatically

Tips

•If you want to stop automatic channel presetting, press SELECT twice.

•If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 9).

Note (KV-PF21M70 only)

•During automatic channel presetting, your TV screen will indicate “B/G”,

“I”, “D/K”or “M”for the TV system.

Now You Are Ready. . .

To watch your TV, see page 11.

Notes

•If you connect a stereo VCR, connect the yellow plug to (the yellow

jack) and the white plug to (the black jack).

•If you connect a VCR to the ˘(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

•When no signal is input to the connected video equipment, the TV screen

becomes blue.

Step 2

Note

•Do not use old batteries nor use different types of batteries together.

Step 3

CAUTION

Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

Insert the batteries

into the remote

Front of TV

VHF LOW B/G

Using Your New TV

Connecting optional components

You can connect optional video components, such as a VCR, multi disc player,

camcorder or video game.

To watch the picture of the connected equipment, press …(see page 12).

Connecting a camcorder/video game equipment

using the …(video input) jacks

Note

•You can also connect video equipment to the …1 (video input) jacks at

the rear of your TV.

Connecting video equipment using the Ú

(monitor output) jacks

Note

•When connecting a stereo VCR, connect the yellow plug to (the yellow

jack) and the white plug to (the black jack).

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

(yellow)

(black)

Rear of TV

antenna

outputVCR

: Signal flow

To…2

(video input)

To Ú

(monitor

output)

Audio/Video cable (not supplied)

Antenna cable (not supplied)

Audio/Video cable (not supplied) : Signal flow

To video

and audio

inputs

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sony TV

Sony

Sony BRAVIA KDL-49W800G Manuale utente

Sony

Sony Bravia KDL-65W950B Manuale utente

Sony

Sony BRAVIA KDL-32EX720 Manuale utente

Sony

Sony BRAVIA KD-65X8077G Manuale utente

Sony

Sony BRAVIA KD-85X8 TJ Series Manuale utente

Sony

Sony KV-36XBR800 - 36" Trinitron Color Flat Tv Wega... Manuale utente

Sony

Sony TRINITRON KV-HA21M80J Manuale utente

Sony

Sony KV-32XBR48 - 32" Xbr Television Manuale utente

Sony

Sony Trinitron Wega KV-SW212M85 Manuale utente

Sony

Sony Trinitron KV-13M42 Manuale utente

Sony

Sony Trinitron KV-27EXR20 Manuale utente

Sony

Sony TRINITRON KV-21C5B Manuale utente

Sony

Sony KD-75X8xJ Manuale utente

Sony

Sony BRAVIA KLV-48R562C Manuale utente

Sony

Sony Bravia KD-43X8 K Series Manuale utente

Sony

Sony Trinitron Wega KV-HW213 Manuale utente

Sony

Sony KDL-32EX400/H Manuale di installazione e funzionamento

Sony

Sony Bravia XBR-65X950B Manuale utente

Sony

Sony WEGA KV-AR29 Manuale utente

Sony

Sony Wega KV-SW34 Manuale utente

Sony

Sony KV-27S26 - 27" Trinitron Color Television Manuale utente

Sony

Sony KV-PG21 Manuale utente

Sony

Sony Trinitron WEGA KV-SZ29 Manuale utente

Sony

Sony KP 53V80 Manuale utente

Manuali TV popolari di altre marche

Philips

Philips Colour Television Manuale utente

Toshiba

Toshiba 27A10 Manuale utente

Philips

Philips 42PF9630A/37 Manuale utente

Hitachi

Hitachi 32FX48B Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuale utente

Changhong Electric

Changhong Electric uhd55b6000is Manuale utente

Philips

Philips Matchline 21CE7551 Manuale utente

Panasonic

Panasonic Genus TX-G10 Manuale utente

Toshiba

Toshiba 19A20 Manuale utente

Philips

Philips 25PT4523-16 Manuale utente

Philips

Philips PR0930X3 Manuale utente

Philips

Philips Brilliance 231P4QPY Manuale utente

Samsung

Samsung 55S9 B Series Manuale utente

Philips

Philips 32HF9385D Guida alla risoluzione dei problemi

Sharp

Sharp LC-40FI5012E Manuale utente

Loewe

Loewe Table Stand Reference 55 Manuale utente

Philips

Philips 32PFH5300 Manuale utente

Sylvania

Sylvania 6427FB Manuale utente
