Trinitron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

KV-XG29

M30

WARNING

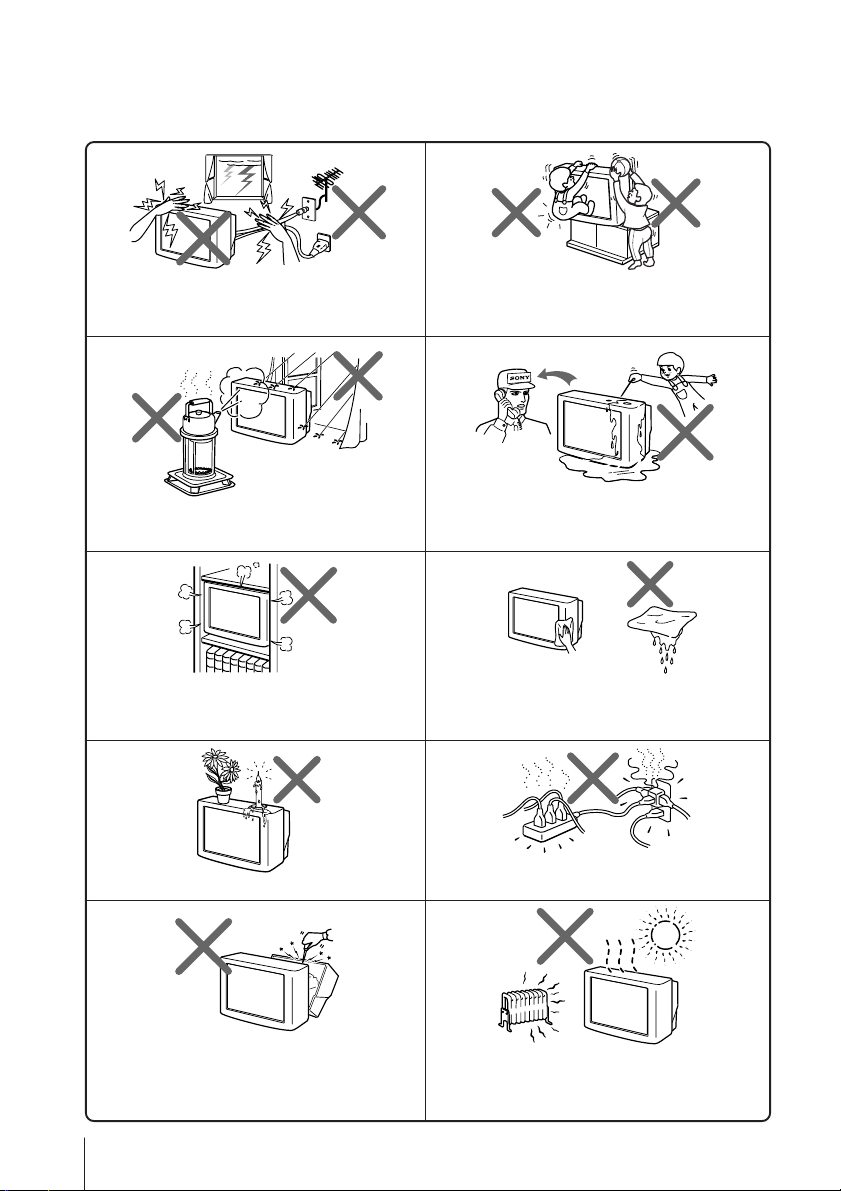

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 220 – 240 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are

present inside the TV. Refer servicing and

disposal of the TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto

it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Do not place any objects on the TV.

Using Your New TV

Table of Contents

Using Your New TV

Getting Started ............................................................................................. 4

Step 1: Connect the antenna .................................................................. 4

Step 2: Insert the batteries into the remote .......................................... 5

Step 3: Preset the channels automatically............................................ 5

Connecting optional components ............................................................. 6

Securing the TV ............................................................................................ 7

Presetting channels ...................................................................................... 8

Watching the TV ........................................................................................ 11

Advanced Operations

Customizing the picture and sound ....................................................... 14

Viewing your favorite channels ............................................................... 16

Blocking the channels (CHILD LOCK) .................................................. 17

Enjoying stereo or bilingual programs ................................................... 18

Additional Information

Self-diagnosis function .............................................................................. 20

Troubleshooting ......................................................................................... 21

Overview of controls ................................................................................. 24

Specifications .............................................................................. Back cover

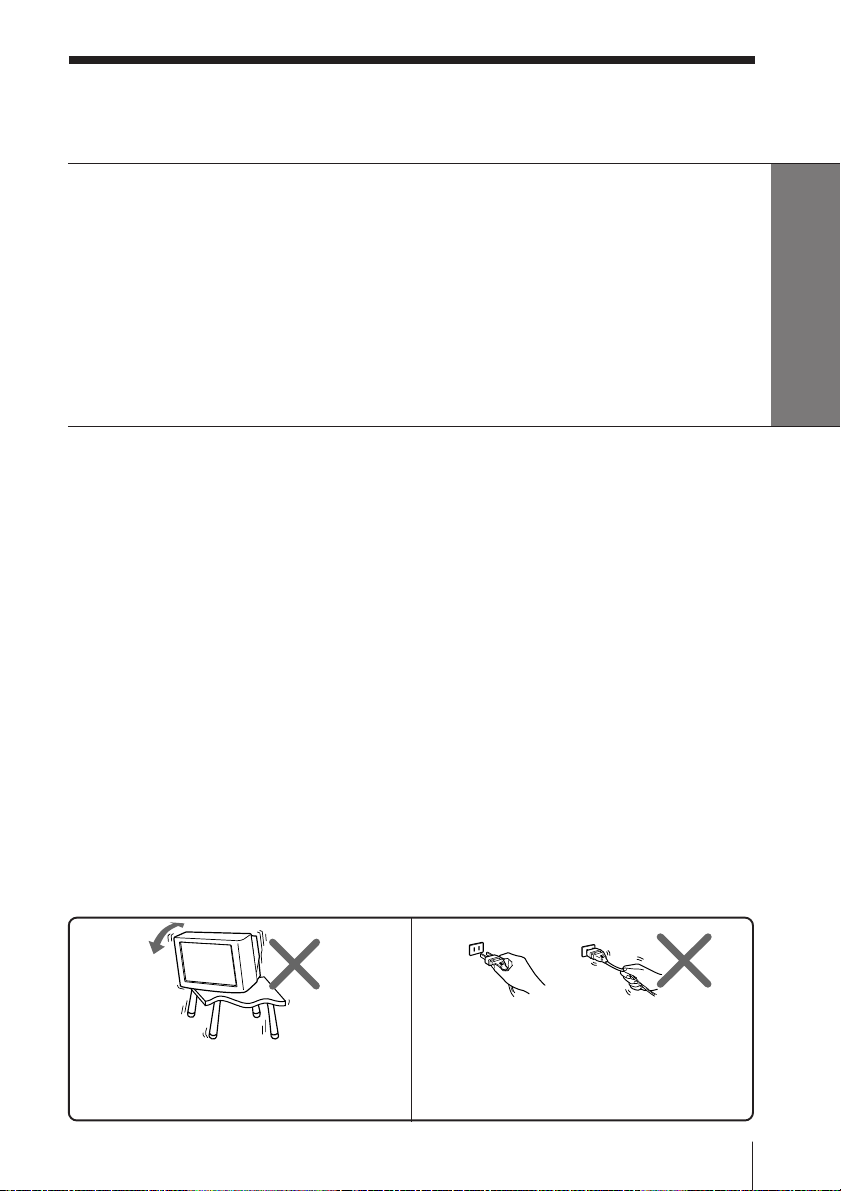

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

Install the TV on a stable TV stand and floor

which can support the TV set weight. Ensure that

the TV stand surface is flat and its area is larger

than the bottom area of the TV.

WARNING (continued)

Using Your New TV

Getting Started

Step 1

Connect the antenna

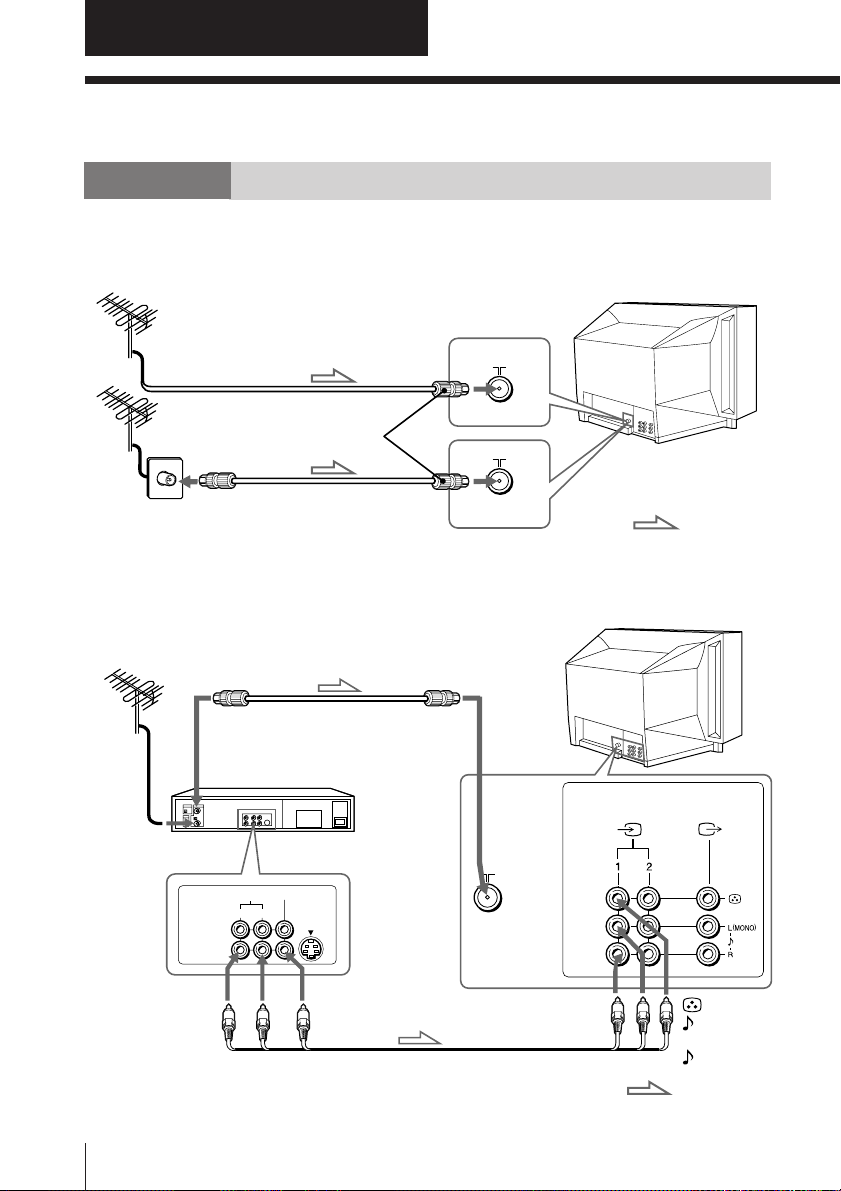

If you wish to connect a VCR, see the Connecting a VCR diagram below.

Using Your New TV

IEC connector

(not supplied)

To video and

audio outputs

VCR

(yellow)

-L (MONO)

(white)

-R (red)

Antenna cable (not supplied)

Audio/Video cable

(not supplied)

To antenna

output

Rear of TV

Connecting a VCR

To watch the video input, press t(see page 12).

: Signal flow

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

To 8

(antenna)

To t1 or 2

(video input)

: Signal flow

Antenna cable (not supplied)

Using Your New TV

Front of TV

Step 3

Preset the channels automatically

Tips

• If you want to stop automatic channel presetting, press SELECT twice.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 9).

Notes

• If you connect a monaural VCR, connect the yellow plug to (the yellow

jack) and the black plug to -L (MONO) (the white jack).

• If you connect a VCR to the 8(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

• Do not connect video equipment to the t2 (video input) jacks at the

front and the rear of your TV at the same time; otherwise the picture will

not be displayed properly on the screen.

• When no signal is input from the connected video equipment, the TV

screen becomes blue.

CAUTION

• Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through

the antenna and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries

from the remote if you are not going to use it for several days. If any

liquid that leaks from the batteries touches you, immediately wash it

away with water.

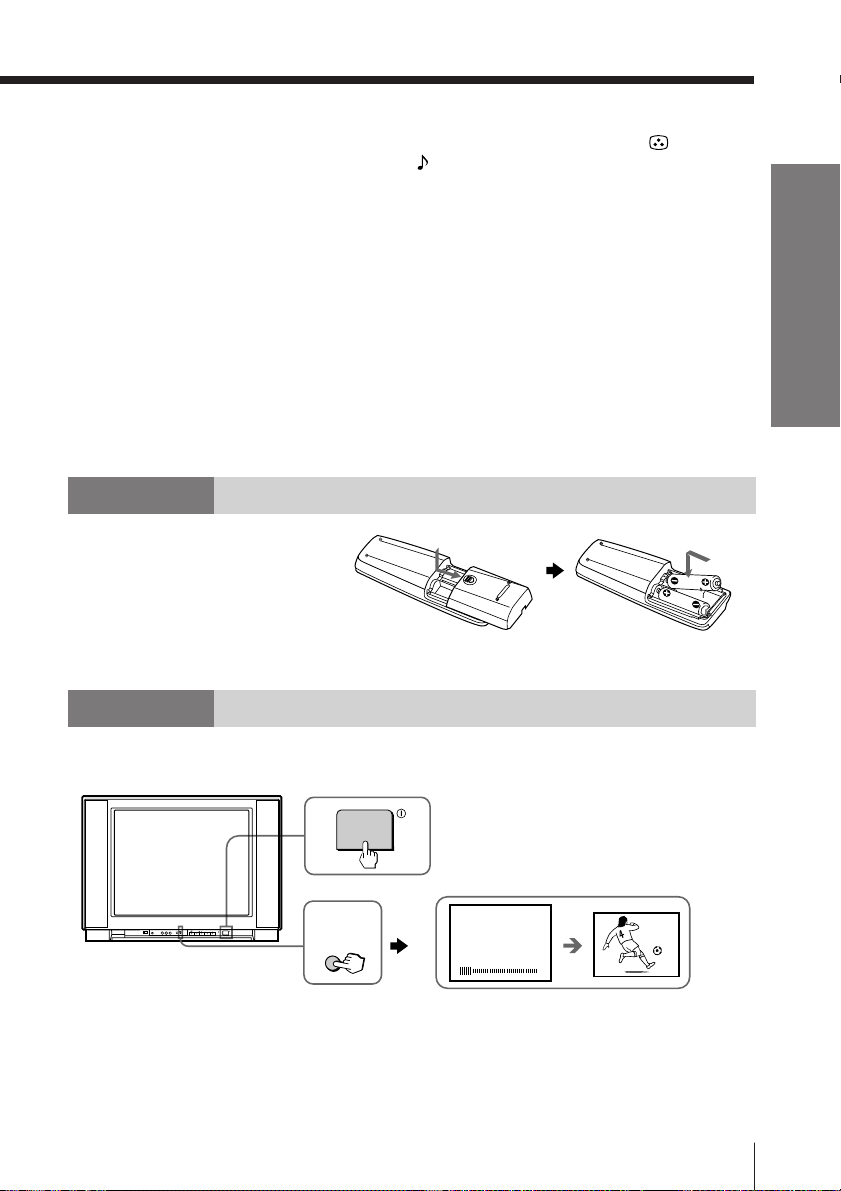

Step 2

Note

• Do not use old batteries nor use different types of batteries together.

Insert the batteries

into the remote

AUTO

PROGR

VHF LOW AUTO

Using Your New TV

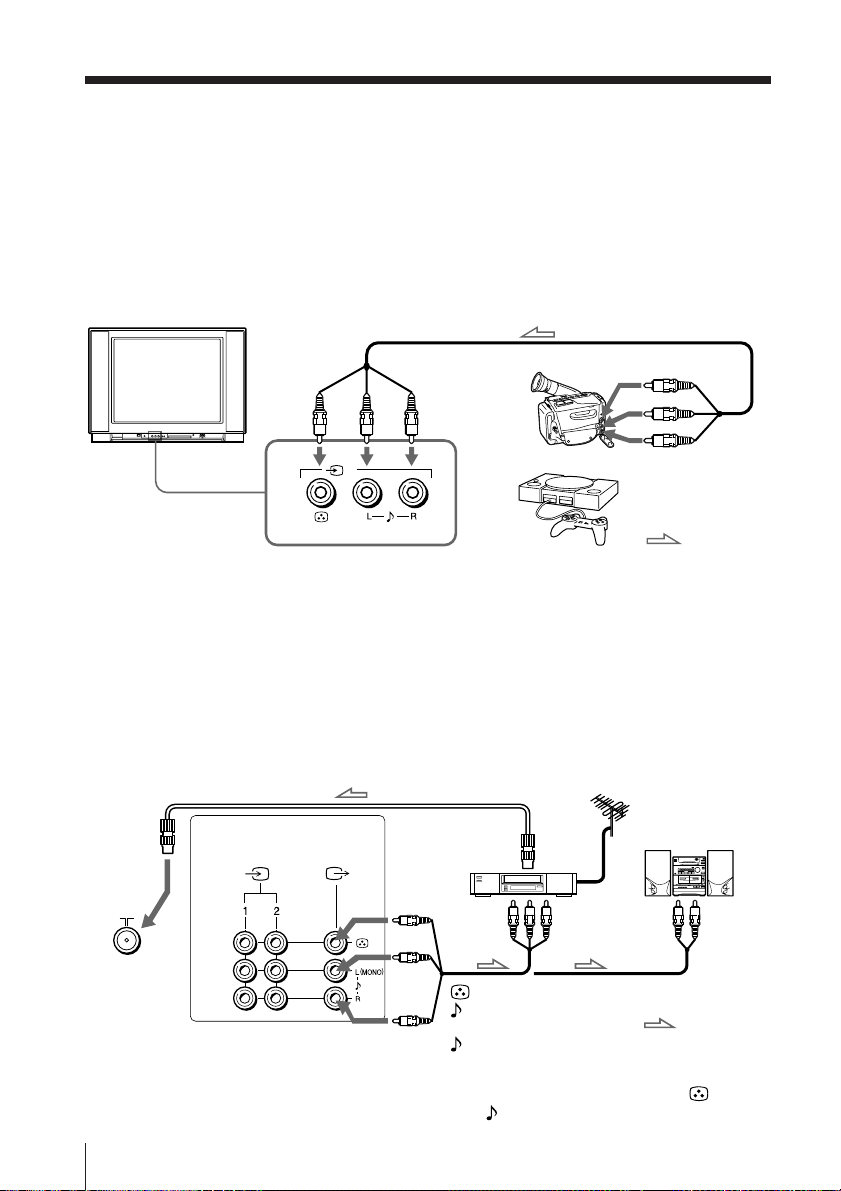

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

camcorder, video game or stereo system.

To watch the video input of the connected equipment, press t(see page 12).

Connecting a camcorder/video game equipment

using the t(video input) jacks

Notes

• You can also connect video equipment to the t1 or 2 (video input) jacks

at the rear of your TV.

• Do not connect video equipment to the t2 (video input) jacks at the

front and the rear of your TV at the same time; otherwise the picture will

not be displayed properly on the screen.

Connecting audio/video equipment using the T

(monitor output) jacks

Note

• When connecting a monaural VCR, connect the yellow plug to (the

yellow jack) and the black plug to -L (MONO) (the white jack).

(MONO)

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

Rear of TV

antenna

output

To video and

audio inputs

Audio system

audio

inputs

VCR

: Signal flow

To t2

(video input)

To T

(monitor

output)

Audio/Video cable (not supplied)

Antenna cable (not supplied)

Audio/Video cable

(not supplied)

(yellow)

-L (MONO)

(white)

-R (red)

Using Your New TV

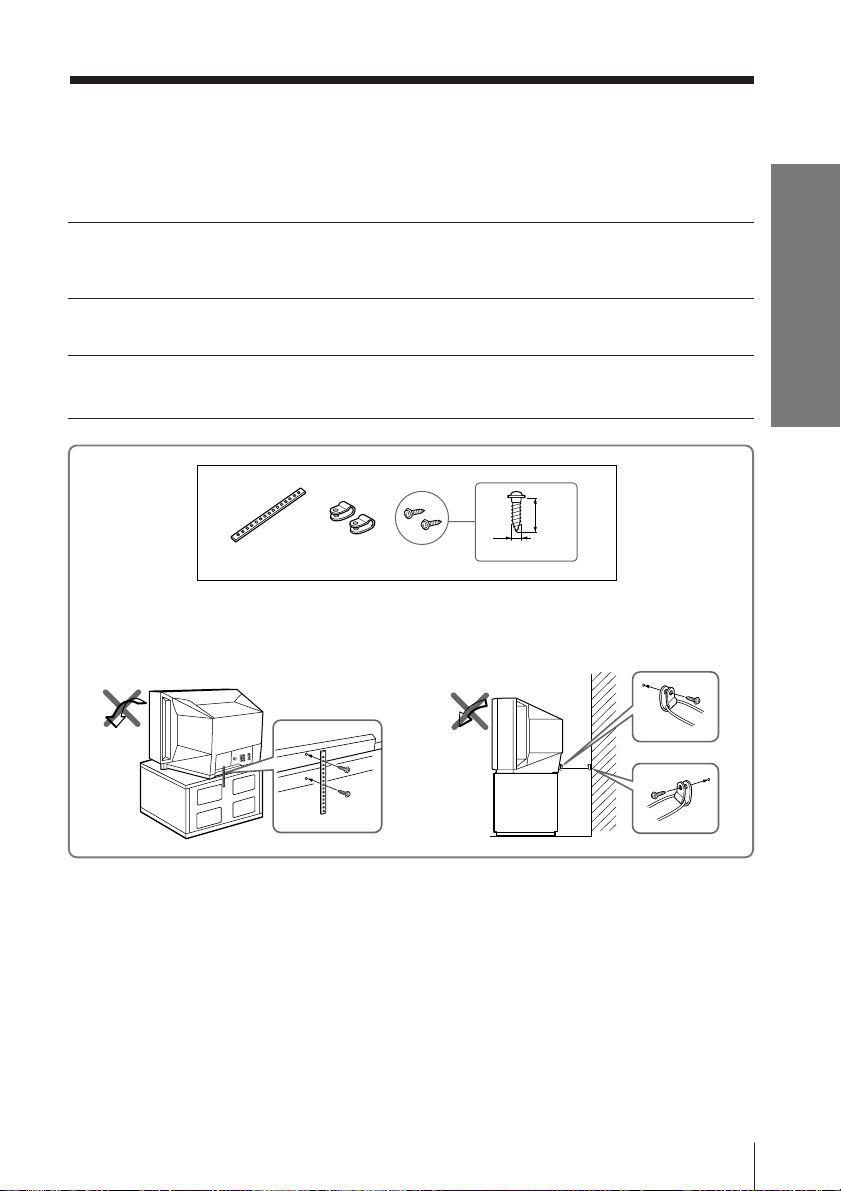

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the band to the TV stand and to the rear of

the TV using the provided hole.

BPut the cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

3.8mm

Using Your New TV

Presetting

channels

You can preset up to 100 TV channels in

numerical sequence from program

number 1 using the remote and the

buttons on your TV as well.

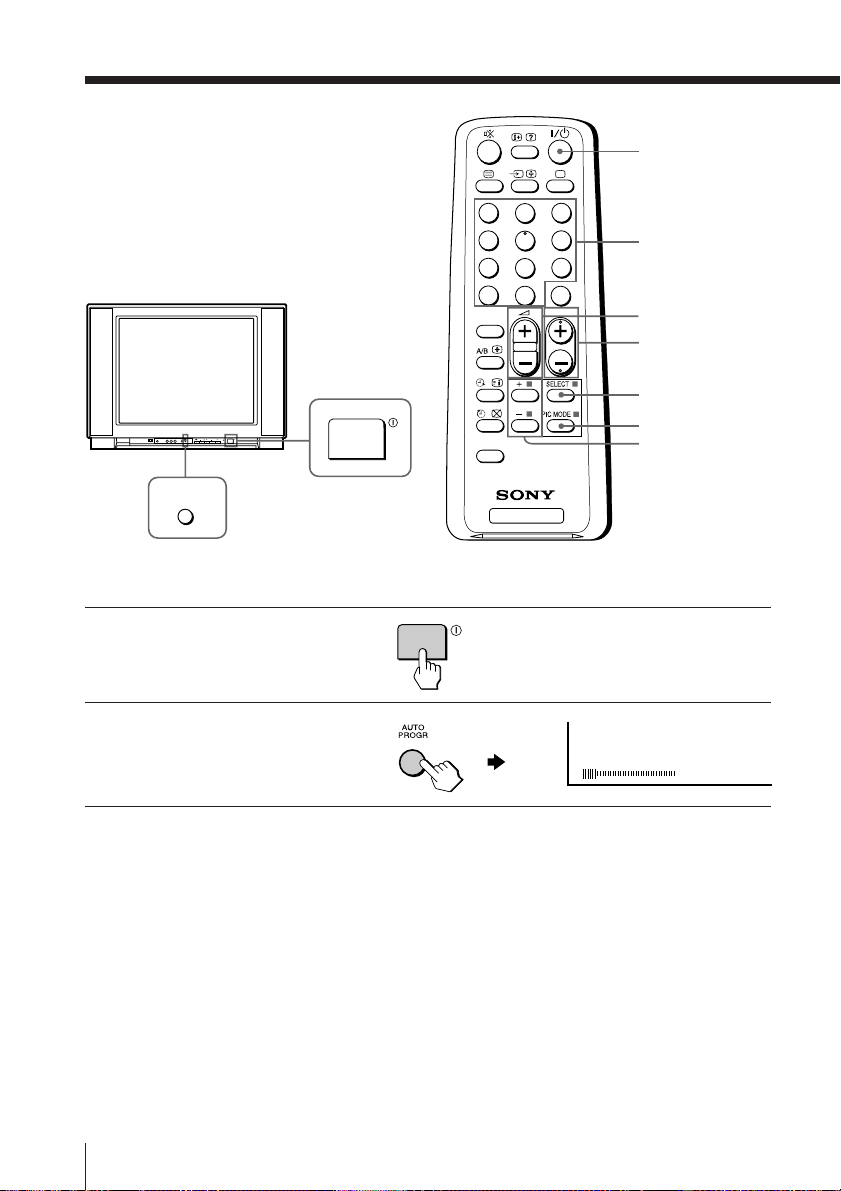

Presetting channels automatically

1Press !to turn on the TV.

2Press AUTO PROGR.

To preset channels automatically from a specified program number

(1) Press SELECT until “AUTO PROGRAM” appears.

(2) Press + or –.

The on-screen display will start flashing.

(3) Press PROGR +/– or the number buttons until the desired program number

appears.

(4) Press + or –.

123

789

-/--

JUMP

SOUND

MODE

FAVORITE

PROGR

?/1

Number buttons

SELECT

2+/–

PROGR +/–

+ or –

PIC MODE

VHF LOW AUTO

PROGR

AUTO

PROGR

Using Your New TV

Presetting channels manually

1Press SELECT until

“MANUAL PROGRAM”

appears.

2Press + or –.

3Press PROGR +/– or the

number buttons until the

desired program number

appears.

4Press + or – until the

desired channel picture

appears.

5Press SELECT.

Note

• If you preset a locked program number, that particular program number

will be unlocked automatically (see page 17).

To change the TV system setting

If the picture or sound is abnormal when receiving programs through the

(antenna)

terminal

(1) Press SELECT until “TV SYS” appears.

(2) Press + or – to select the appropriate

TV system until the picture or sound

quality is optimal.

B/G I D/K M

VHF LOW B/G

TV SYS: B/G

continued

MANUAL PROGRAM

123

456

-/--

PROGR

SELECT

Using Your New TV

To change the color system setting

If the color is abnormal when receiving programs through the

(antenna) terminal

or the

(video input) jack.

(1) Press SELECT until “COLOR SYS” appears.

(2) Press + or – to select the appropriate

color system until the color is

optimal.

Tip

• Normally set “COLOR SYS” to “AUTO”.

Skipping program numbers

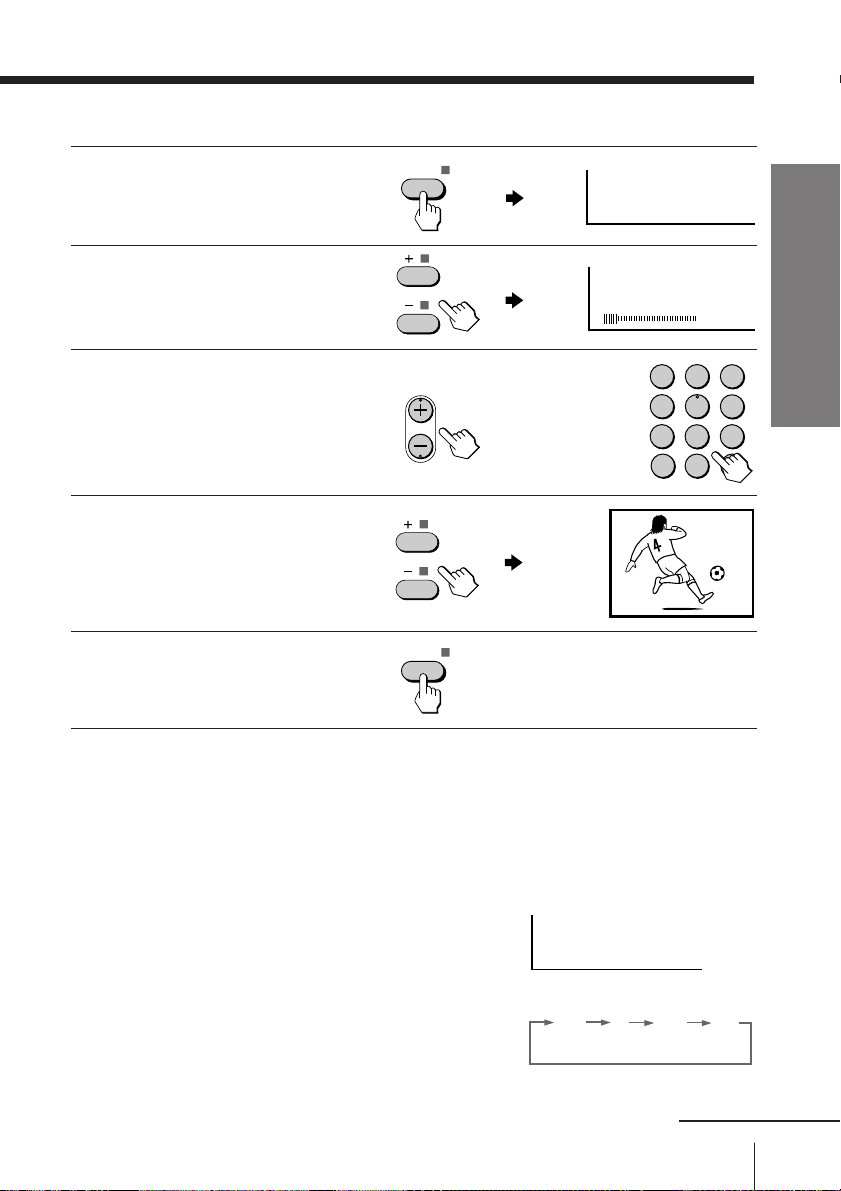

1Press PROGR +/– or the number buttons until the unused or unwanted

program number appears.

2Press SELECT until “MANUAL PROGRAM” appears.

3Press + or –.

4Press PIC MODE.

5Press SELECT.

To restore the skipped program number again

Preset the channel automatically or manually.

Tip

• You can also use SELECT and 2+/– on the TV to preset channels and

skip program numbers.

To use the fine tuning (FINE) function

The fine tuning (FINE) function may help to reduce the following problems:

double images and lines moving across the TV screen.

You can use the fine tuning function as below:

(1) Select the program number you want to adjust.

(2) Press SELECT until “MANUAL PROGRAM” appears on the screen.

(3) Press + or – on the remote control once.

(4) Press to display “FINE” on the screen.

(5) Press + or – continuously until the above problems are minimized.

The + or – icon on the screen flashes while tuning.

(6) Press SELECT to return to normal screen.

Presetting channels (continued)

COLOR SYS: AUTO

AUTO PAL SECAM

NTSC 3.58NTSC 4.43

Indice

Altri manuali Sony TV

Sony

Sony Trinitron KV-XA29 Manuale utente

Sony

Sony KV-27XBR55 - 27" Ctv Xbr Manuale utente

Sony

Sony TRINITRON KV-32FX20A Manuale utente

Sony

Sony BRAVIA KDL-48R55xC Manuale utente

Sony

Sony Bravia KDL-42W706B Manuale utente

Sony

Sony KDF-E50A10 Manuale utente

Sony

Sony Trinitron KV-XG29N90 Manuale utente

Sony

Sony BRAVIA XBR-75X850E Manuale utente

Sony

Sony Bravia XR-77A8 K Series Manuale utente

Sony

Sony Trinitron KV-XA21 Manuale utente

Sony

Sony TRINITRON KV-42DRC700 Manuale utente

Sony

Sony FD Trinitron Wega KV-34HS420 Manuale utente

Sony

Sony KL-37W2U Manuale utente

Sony

Sony RDR-HX900 Manuale utente

Sony

Sony BRAVIA KDL-48R55xC Guida utente

Sony

Sony Wega KV-SW34 Manuale utente

Sony

Sony Trinitron KV-27S20 Manuale utente

Sony

Sony FD Triniton KV-29FQ76E Manuale utente

Sony

Sony KV-XA29K90 Manuale utente

Sony

Sony Bravia KD-50X8 K Series Manuale utente

Sony

Sony BRAVIA XR-50X9xJ Manuale utente

Sony

Sony Bravia KDL-32EX605 Manuale utente

Sony

Sony KDL-40V2500 - Bravia V-series Lcd Hdtv Manuale utente

Sony

Sony Trinitron KV-2027R Manuale utente

Manuali TV popolari di altre marche

Philips

Philips Colour Television Manuale utente

Toshiba

Toshiba 27A10 Manuale utente

Philips

Philips 42PF9630A/37 Manuale utente

Hitachi

Hitachi 32FX48B Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuale utente

Changhong Electric

Changhong Electric uhd55b6000is Manuale utente

Philips

Philips Matchline 21CE7551 Manuale utente

Panasonic

Panasonic Genus TX-G10 Manuale utente

Toshiba

Toshiba 19A20 Manuale utente

Philips

Philips 25PT4523-16 Manuale utente

Philips

Philips PR0930X3 Manuale utente

Philips

Philips Brilliance 231P4QPY Manuale utente

Samsung

Samsung 55S9 B Series Manuale utente

Philips

Philips 32HF9385D Guida alla risoluzione dei problemi

Sharp

Sharp LC-40FI5012E Manuale utente

Loewe

Loewe Table Stand Reference 55 Manuale utente

Philips

Philips 32PFH5300 Manuale utente

Sylvania

Sylvania 6427FB Manuale utente
