Sony Trinitron KV-AR25 Manuale utente

Sony KV-AR34M80B Group C1 (GB)_4-096-378-E1 (3)

Tr initron Color TV

KV-AR34

KV-AR29

KV-AR25

4-096-378-E1 (3)

M80B

X80B

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

Operating Instructions

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

Sony KV-AR34M80B Group C1 (GB)_4-096-378-E1 (3)

Do not place any objects on the TV. The apparatus

shall not be exposed to dripping or splashing and

that no objects filled with liquids, such as vases,

shall be placed on the apparatus.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 220 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

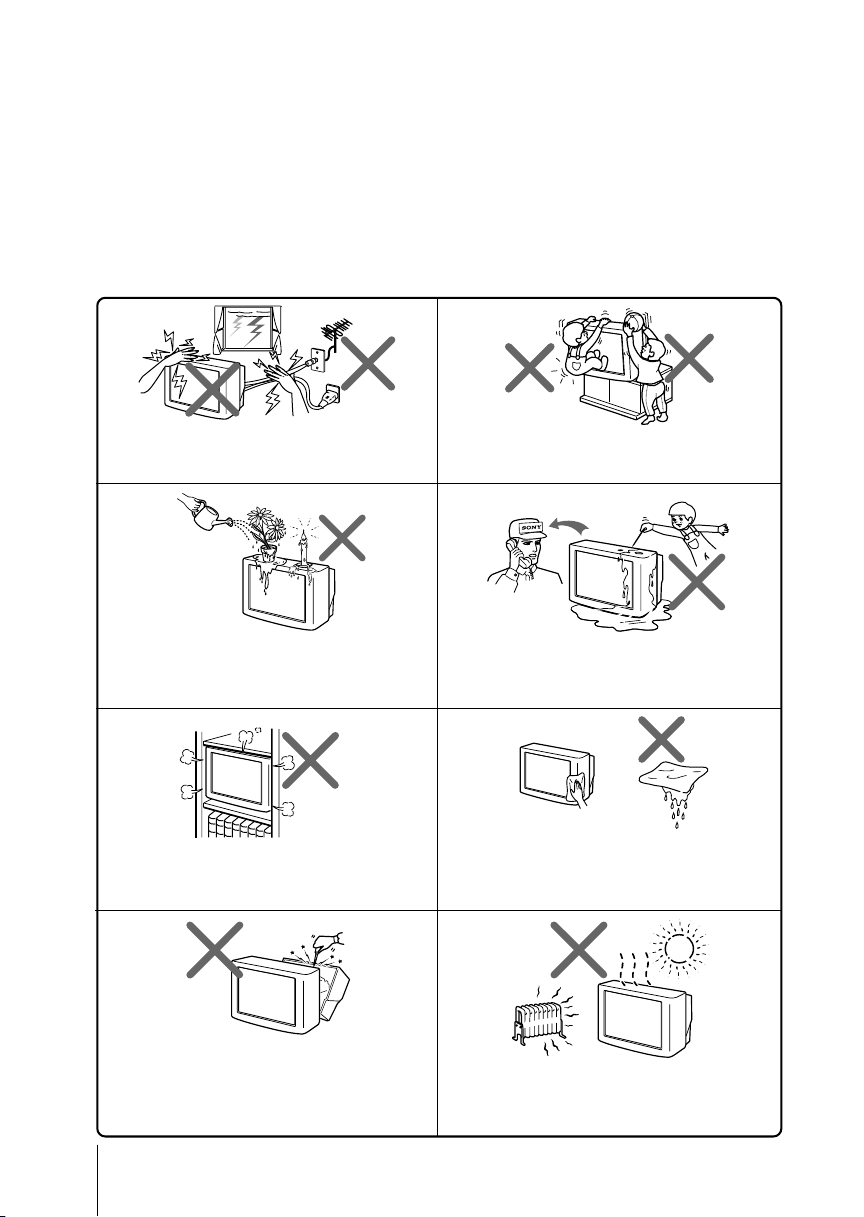

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may be

subject to excessive dust, heat, moisture or

vibrations.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto it.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals to

clean the TV. Do not attach anything (e.g., adhesive

tape, cellophane tape, glue) on the painted cabinet of

the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Sony KV-AR34M80B Group C1 (GB)_4-096-378-E1 (3)

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

Accessories

•FD Trinitron CRT

•New Intelligent Picture

•5-Band Graphic Equalizer

(KV-AR34M80B/AR29M80B/AR25M80B only)

•DVD Signal Terminal

Accessory Quantity

Remote Commander (RM-W104) 1

Batteries (size 5) 2

Stabilizing band 1

Stabilizing clamp 2

Screw (Dia.3.8 ×20) 3

Product Overview

Sony KV-AR34M80B Group C1 (GB)_4-096-378-E1 (3)

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

(1) Screw the band and one clamp to the

provided hole at the rear of your TV.

(2) Screw the band to the TV stand.

(3) Put a cord or chain through both

clamps and screw the other clamp to a

wall or pillar.

(1) Attach each end of a cord or chain to

the provided holders at the rear of your

TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment

which can support the TV set weight.

Note

•Use only the supplied screws. Use of other screws may damage the TV.

(1)

(2)

(3)

Sony KV-AR34M80B Group C1 (GB)_4-096-378-E1 (3)

Menu Adjustment

Introducing the menu system ...........12

Changing the “Picture” setting ......... 15

Changing the “Sound” setting ..........16

Changing the “Timer” setting ...........18

Changing the “Channel Setup”

setting ...................................................19

Changing the “Setup” setting ...........21

Additional Information

Connecting optional components ....22

Troubleshooting .................................. 24

Specifications ....................... Back cover

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“Initial Setup”) .................................... 7

Overview of Controls

TV front and rear panels ..................... 8

Using the remote control and

basic functions ...................................... 9

Advanced Operations

Selecting the picture and sound

modes .................................................. 11

6Installation

Sony KV-AR34M80B Group C1 (GB)_4-096-378-E1 (3)

Installation

xGetting Started

Step 1

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Set up the TV by following the instructions of the

“” (Initial Setup) menu (see page 7).

Plug in the power cord, then press !on the TV to

turn it on.

Note

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a

malfunction.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components

(see page 22).

Installation

Sony KV-AR34M80B Group C1 (GB)_4-096-378-E1 (3)

Setting up your TV

(“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will appear.

You may change the menu language, preset the TV channels automatically and adjust

the picture position using the buttons on the TV front panel.

Tip

•The MENU, and V/v/B/b buttons on the remote control can also be used for the

operations below.

1Press 2+/– to select the desired menu

language, then press t.

The selected menu language appears.

2Press 2+/– to select “Yes”, then press t

to preset the channels automatically or

select “No” to skip automatic channel

presetting.

Once you select “Yes”, your TV will start

searching for all the available channels.

If the message “No channel found. Please

connect cable/antenna.” appears, check your

TV connections, then press t.

3Press 2+/– to adjust the bars on the

top and bottom of the menu if they are

slanted, then press t.

If no adjustment is necessary, then press

4Press 2+/– to select “No”, then press t.

This menu will not appear again the next

time you turn on the TV by pressing !.

To allow this menu to appear again, select

“Yes”, then press t.

Tips

•You can immediately go to the end of the “Initial Setup” menu by pressing MENU.

•You can also set up your TV using the menu system (see page 12).

•You can also preset the channels automatically by pressing MENU (AUTO PROG) button on

the TV front panel for about five seconds.

Start auto program now?

8Overview of Controls

Sony KV-AR34M80B Group C1 (GB)_4-096-378-E1 (3)

Overview of Controls

PROG

(AUTO PROG)

SOUND

MODE

8756

RLYCBCR

qf qd

L(MONO) R

PROG

SOUND

MODE

(AUTOPROG)

TV front panel

TV rear panel

xTV front and rear panels

Button/Terminal Function Page

1!Turn off or turn on the TV. 6

21Standby indicator. 6

2Wake Up indicator. 18

3Remote control sensor. –

4PROG +/– Select program number. –

52+/– Adjust volume. –

6tSelect TV or video input. 22

Menu operations

52+/– Select and adjust items. –

6tConfirm selected items. –

7MENU Display or cancel the menu. –

7(AUTO PROG) Preset channels automatically. 7

8SOUND MODE Select sound mode options. 11

5-Band Graphic Equalizer display will appear

(KV-AR34M80B/AR29M80B/AR25M80B only).

9t3Video input terminal 3. 22

0iHeadphone jack. –

qa Component video input terminal. 23

qs 8Antenna input terminal. 22

qd TMonitor output terminal. 22

qf t1, t2Video input terminal 1, 2. 22

Overview of Controls

Sony KV-AR34M80B Group C1 (GB)_4-096-378-E1 (3)

xUsing the remote control and basic

functions

123

789

PROG

A/B

RESET

continue

Button Description Page

1?/1 Turn off temporarily or turn on the TV. –

2aDisplay the TV program. –

3Jump to last program number that has been –

watched for at least five seconds.

4PROG +/– Select program number. –

52+/– Adjust volume. –

8Change the picture size: –

“On” (16:9 wide-mode), “Off”.

9Mute the sound. –

Display on-screen information. –

qs tSelect TV or video input. 22

qd 0 – 9, -Input numbers. –

qh Select surround mode options: –

(KV-AR34M80B/AR29M80B/AR25M80B only)

“On” (surround), “Simulated” (stereo-like

monaural sound), “Off”.

qk RESET Set TV to factory setting. 24

10 Overview of Controls

Sony KV-AR34M80B Group C1 (GB)_4-096-378-E1 (3)

continued

Button Description Page

ql Select sound mode options. 11

5-band Graphic Equalizer display will appear

(KV-AR34M80B/AR29M80B/AR25M80B only).

w; Select picture mode options. 11

Menu operations

6MENU Display or cancel the menu. 14

7Confirm selected items. 14

qj V, v,B,b Select and adjust items. 14

Timer operations

qf Set TV to turn on automatically. –

qg Set TV to turn off automatically. –

Stereo/bilingual operations

qa A/B Not function for your TV. –
