Sony SLV-669HF Manuale dell'operatore

SLV-669HF

RMT-V266A

US Model

SERVICE MANUAL

VIDEO CASSETTE PLAYER

MICROFILM

S MECHANISM

Refer to the SERVICE MANUAL of VHS

MECHANICAL ADJUSTMENT for

MECHANICAL ADJUSTMENTS. (9-921-647-11)

Differences Manual

• This Service Manual shows only the differences from SLV-679HF (US model).

Refer to the Service Manual (9-921-709-11) of SLV-662HF/679HF also for repair.

• Main Differences

1. Changed of SERVO/SYSTEM CONTROL IC (IC160)

2. Changed of Remote Commander

• Differences Table

Remote Commander

MA-341 Board, Complete

Front Panel

SLV-679HF (US)

RMT-V266

A-6791-734-A

X-3949-201-1

SLV-669HF

RMT-V266A

A-6713-521-A

X-3949-993-1

SPECIFICATIONS

— 2 —

SECTION 4. PRINTEDWIRING BOARDS AND SCHEMATIC DIAGRAMS

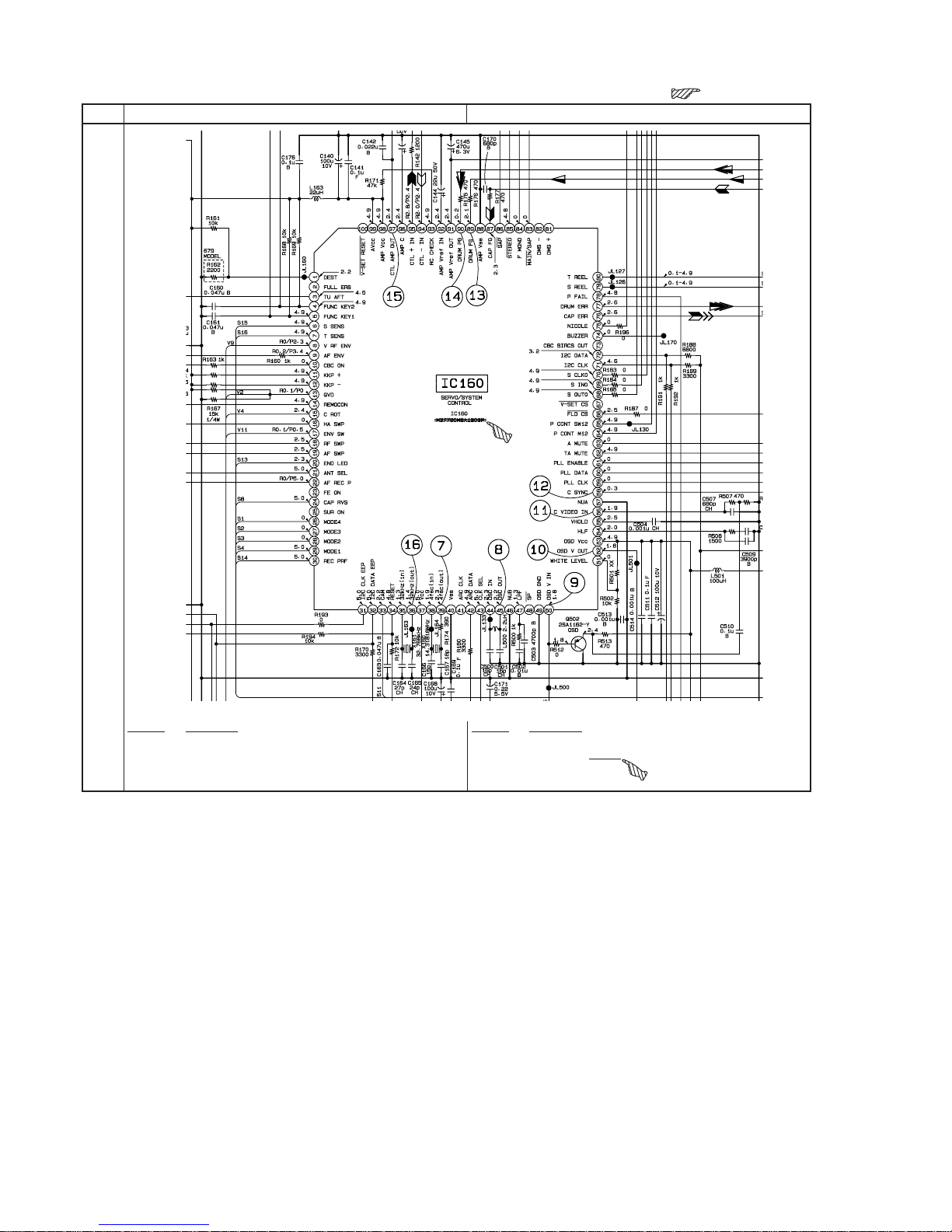

MA-341 (3/7) (SERVO/SYSTEM CONTROL) SCHEMATIC DIAGRAM (Refer to page 4-9)

Page SLV-679HF (US) SLV-669HF

Ref. No. Description Ref. No. Description

IC160 M37760M8A127GP IC160 M37760M8A157GP

4-9

: Changed portion.

— 3 —

SECTION 7. REPAIR PARTS LIST

7-1. EXPLODED VIEWS : Changed portion.

: Deleted portion.

Page SLV-679HF (US) SLV-669HF

Ref. No. Part No. Description Ref. No. Part No. Description

1 X-3949-201-1 PANEL ASSY, FRONT (679)

12 1-418-153-11 COMMANDER,STANDARD (RMT-V266)

1 X-3949-993-1 PANEL ASSY, FRONT

12 1-418-694-11 COMMANDER,STANDARD (RMT-V266A)

7-1

7-1-1. FRONT PANEL AND UPPER CASE SECTION

Ref. No. Part No. Description Ref. No. Part No. Description

*52 A-6791-734-A MA-341 BOARD, COMPLETE (679:US,CND) *52 A-6713-521-A MA-341 BOARD, COMPLETE

7-2

7-2. ELECTRICAL PARTS LIST

Page SLV-679HF (US) SLV-669HF

7-6

Ref. No. Part No. Description Ref. No. Part No. Description

*A-6791-734-A MA-341 BOARD, COMPLETE(679: US, CND)

*********************** *A-6713-521-A MA-341 BOARD, COMPLETE

***********************

Ref. No. Part No. Description Ref. No. Part No. Description

IC160 8-759-580-37 IC M37760M8A120GP IC160 8-759-647-76 IC M37760M8A157GP

7-9

7-13E

Ref. No. Part No. Description Ref. No. Part No. Description

MISCELLANEOUS

***************

12 1-418-153-11 COMMANDER,STANDARD (RMT-V266)

*********************************************************

ACCESSORIES & PACKING MATERIALS

********************************

1-575-334-11 CORD, CONNECTION

3-865-038-11 MANUAL, INSTRUCTION (ENGLISH)

3-865-038-21 MANUAL, INSTRUCTION

(FRENCH/CHINESE)(CND)

MISCELLANEOUS

***************

12 1-418-694-11 COMMANDER,STANDARD (RMT-V266A)

*********************************************************

ACCESSORIES & PACKING MATERIALS

********************************

______________________

3-867-940-11 MANUAL, INSTRUCTION (ENGLISH)

______________________

SLV-669HF

— 4 —

Sony Corporation

HomeVideo Company

9-921-735-11 99H1629-1D

Published by Quality Assurance Dept.
