Sound Acoustics C-540 Manuale utente

Premium Residential & Commercial Audio/Video Products

C-540 , C-8120 and C-8240

Commercial Mixer/Amplifiers

Owner's Manual

MPORTANT NOTE: THIS OWNER'S MAN AL IS PROVIDED AS AN

INSTALLATION AND OPERATING AID. SO ND ACO STICS DOES NOT ASS ME

ANY RESPONSIBILITY AS TO ITS ACC RACY AND SHALL NOT BE LIABLE IN TORT

OR CONTRACT FOR ANY DIRECT, CONSEQ ENTIAL OR INCIDENTAL LOSS OR

DAMAGE ARISING FROM THE INSTALLATION, SE OR INABILITY TO SE THIS

PROD CT.

WARN NG: TO RED CE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT

EXPOSE THIS APPLIANCE TO WATER, RAIN OR MOIST RE.

CAUT ON: TO PREVENT ELECTRIC SHOCK, DO NOT OPEN.

Immediately upon receipt, inspect the unit and shipping container for indications of improper

handling or in-transit damage. This equipment was carefully inspected and tested before leaving

the factory. Notify the Transportation Company, Wholesaler or Retailer immediately if any

damage is found. Be sure to save the carton and packing material as evidence of damage for

later inspection. DO NOT SHIP the unit back to the factory unless authorized to do so by the

factory. IN TRANSIT DAMAGES ARE NOT COVERED BY THE WARRANTY. DO NOT NSTALL OR

ATTEMPT TO OPERATE TH S UN T F T HAS BEEN DAMAGED.

MPORTANT SAFETY NSTRUCT ONS

• Read and keep these instructions.

• Heed all warnings and follow all instructions contained within this manual.

• Do not use this unit near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide

blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• nplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

• Operate the product only with the voltage specified on the unit. Fire and/or electric shock may result if a

higher voltage is used.

• Do not modify, kink, or cut the power cord. Do not place the power cord in close proximity to heaters and

do not place heavy objects on the power cord and/or the product itself, doing so may result in fire or

electrical shock.

• Replace the protective cover over the speaker terminals after installation. Do not touch the 70V speaker

terminals as electric shock may result.

• Ensure that the safety ground terminal is connected to a proper ground. Never connect the ground to a gas

pipe, as a severe explosion and/or fire may result.

• Be sure the installation of this product is stable, avoid slanted surfaces as the product may fall and cause

injury, property damage, electrocution and/or fire.

ntroduction

Congratulations and thank you for purchasing a Sound Acoustics product. The Sound Acoustics “C”

series amplifiers are designed and built to provide ultra reliable performance for professional

background music and paging applications. All Sound Acoustics amplifiers feature color coded

inputs and outputs, ultra low noise components, front panel auxiliary inputs and PRO-RVC remote

control inputs. Sound Acoustics inputs are very flexible and will accept practically any source and

source level. This frees the installer to design the system to suit the customers needs exactly.

Please read this entire manual to get the most from your Sound Acoustics product.

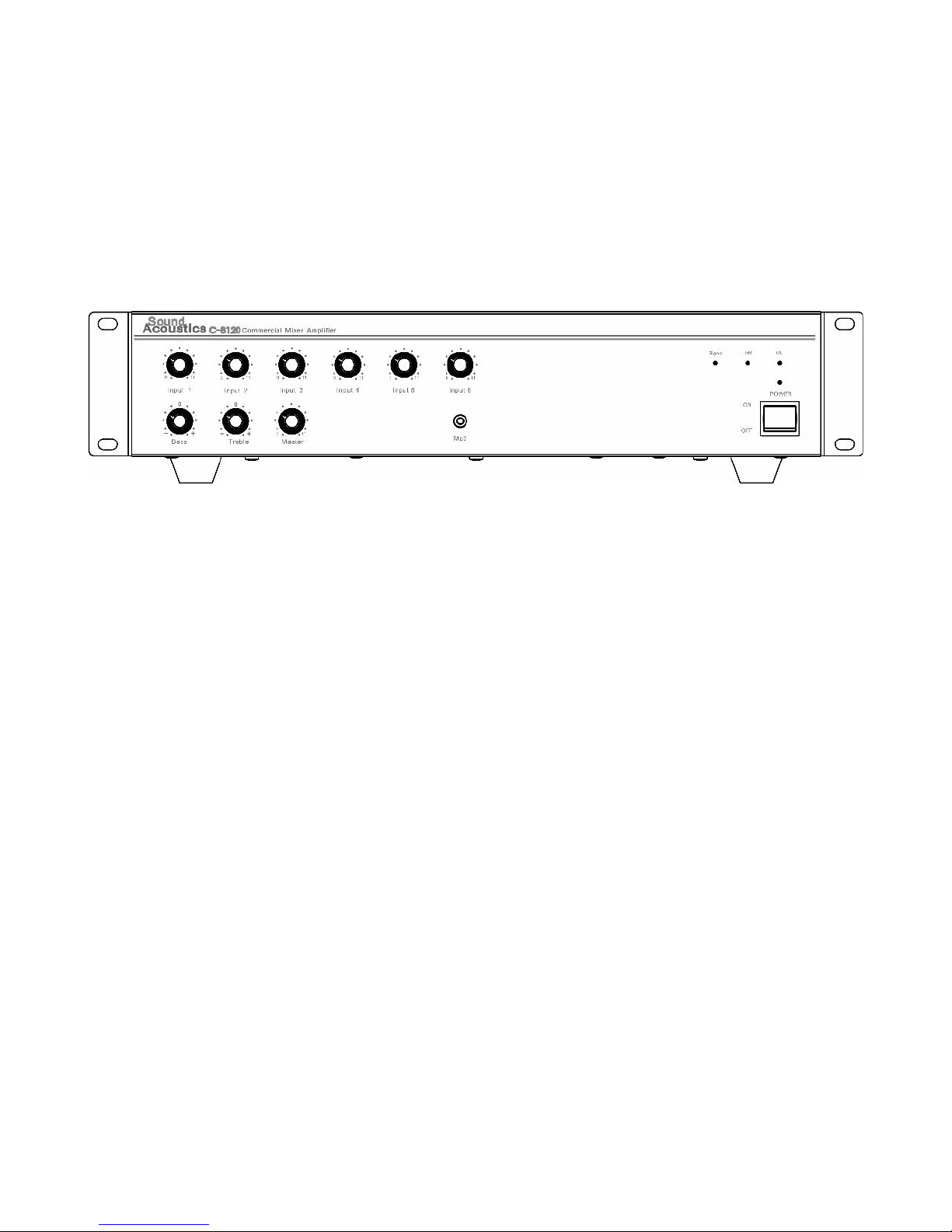

Front Panel Operation and Connections

nputs 1-5 ( nputs 1-2 C-540) - These control the level of each channel in the overall mix. A

good level to start off with is the 12:00 position then adjust as needed.

nput 6 ( nput 3 C-540) - This input controls the level of input 6 (input 3 C-540) in the overall

mix. This also controls the level of the front panel Mp3 input. NOTE: Input 6 (input 3 C-540) also

feeds the Music On Hold “MOH” output which will be explained in detail on page _________later in

this manual.

Bass - The bass control is a shelving type equalizer that boosts or cuts bass frequencies at 100Hz

+/- 12 dB. The center “0” position does not affect the signal. Equalizers should be used sparingly.

Too much boost can cause feedback when using microphones.

Treble - The Treble control is a shelving type equalizer that boosts or cuts bass frequencies at

10kHz +/- 12 dB. The center “0” position does not affect the signal. Equalizers should be used

sparingly. Too much boost can cause feedback when using microphones.

Master - The Master gain control controls the overall output of the amplifier. Pay close attention

to the output LED's. Signal, -3dB and OL. The LED's monitor the output level and provide visual

feedback. It is common to have the signal and -3dB LED's lit. When the OL “RED” LED is lit or

flashing the amplifier is being overloaded. Immediately turn down the Master volume control. Re-

adjust Input level controls 1-6 to the desired mix and then adjust the Master level control to the

desired volume.

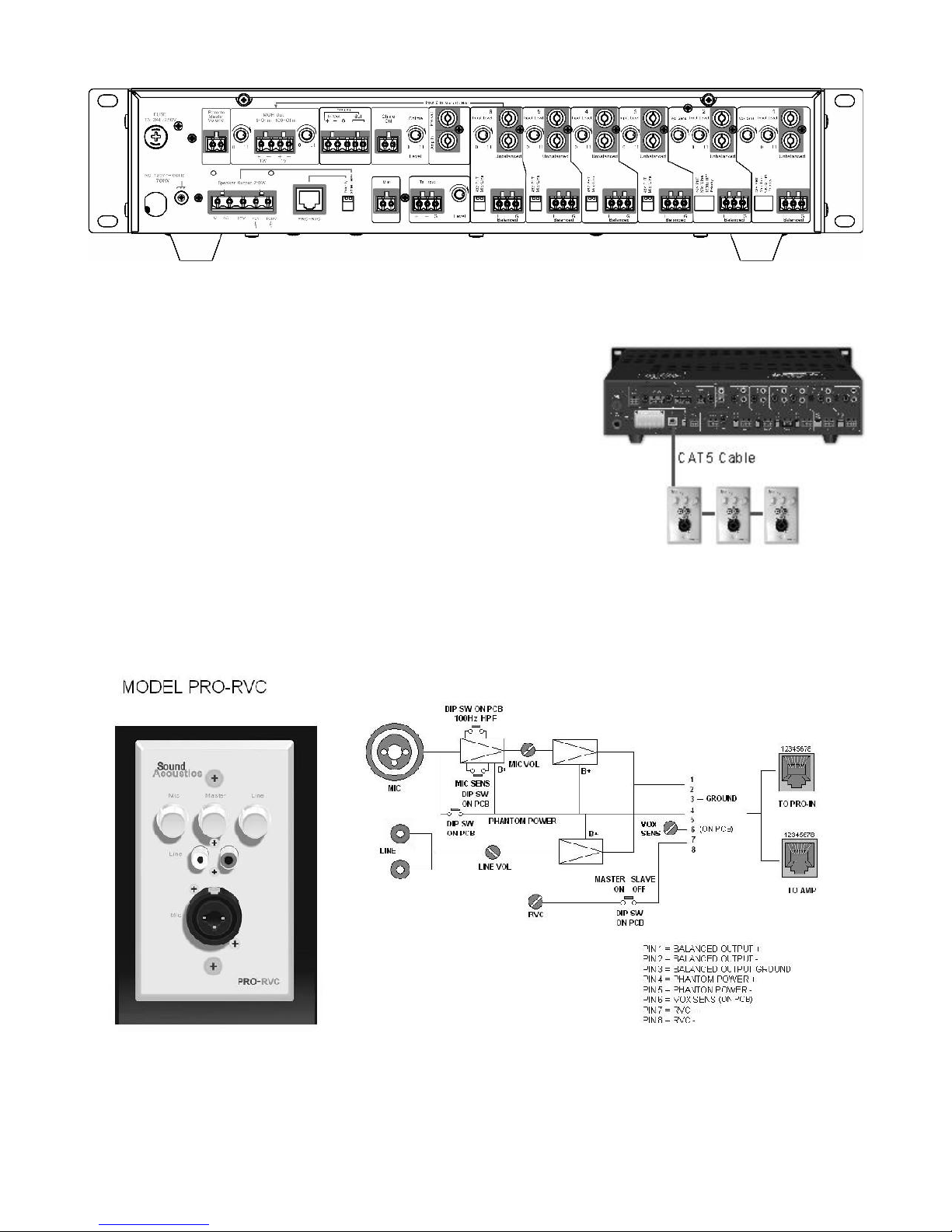

NOTE: When using the PRO-RVC remote control, set the amplifier master volume to 75% then

control the master volume remotely from the PRO-RVC.

Power - The Power switch applies power to the amplifier. The Power switch is also part of the

protection circuitry of the amplifier. If the amplifier is overloaded it will automatically shut down to

protect the circuitry from damage. If this occurs turn the power switch off, turn the master

volume down, wait 15 seconds, then turn the Power switch on. The amplifier should return to

normal operation. If the amplifier continues to shut down automatically check the troubleshooting

guide on page _________ of this manual.

Signal - The Signal LED lights when a signal is present in the master bus output. With a source

connected to one of the inputs and the input level turned up to 12:00 turn the Master volume up

slowly until the Signal LED lights. With a valid source playing it is normal for the Signal LED to be

lit solidly.

-3dB LED - The -3dB LED lights when the signal in the master bus output is 3dB below clipping.

This allows the user to adjust levels to prevent clipping and overloading the amplifier.

OL LED - The OL LED is the overload warning light. When the OL LED flashes occasionally it is

indicating occasional peaks in the output signal. If the OL LED lights solidly the amplifier is being

overdriven. Immediately reduce the input levels and the Master volume control until the OL LED is

not illuminated. Occasional flashing is normal.

MP3 nput - The Mp3 input is a stereo 3.5mm 1/8” jack that will accept signals from practically

any device with a headphone output jack. Mp3 players, iPod's, portable phones, computers,

receivers etc. The Mp3 Input also feeds the music on hold MOH outputs. If a source is connected

to the rear panel Input 6 jacks the Mp3 input will automatically override that source when a

connector is inserted. It is possible to have two output zones with different sources being

broadcast simultaneously by using the Mp3 input or rear panel Input 6 jacks as the source for the

MOH output and using any other input as the source for the main outputs. The Mp3 jack is a quick

way to connect to the amplifier without needing access to the back panel.

Note: All front panel knobs are removable and can be replaced with the included non-adjustable

security covers.

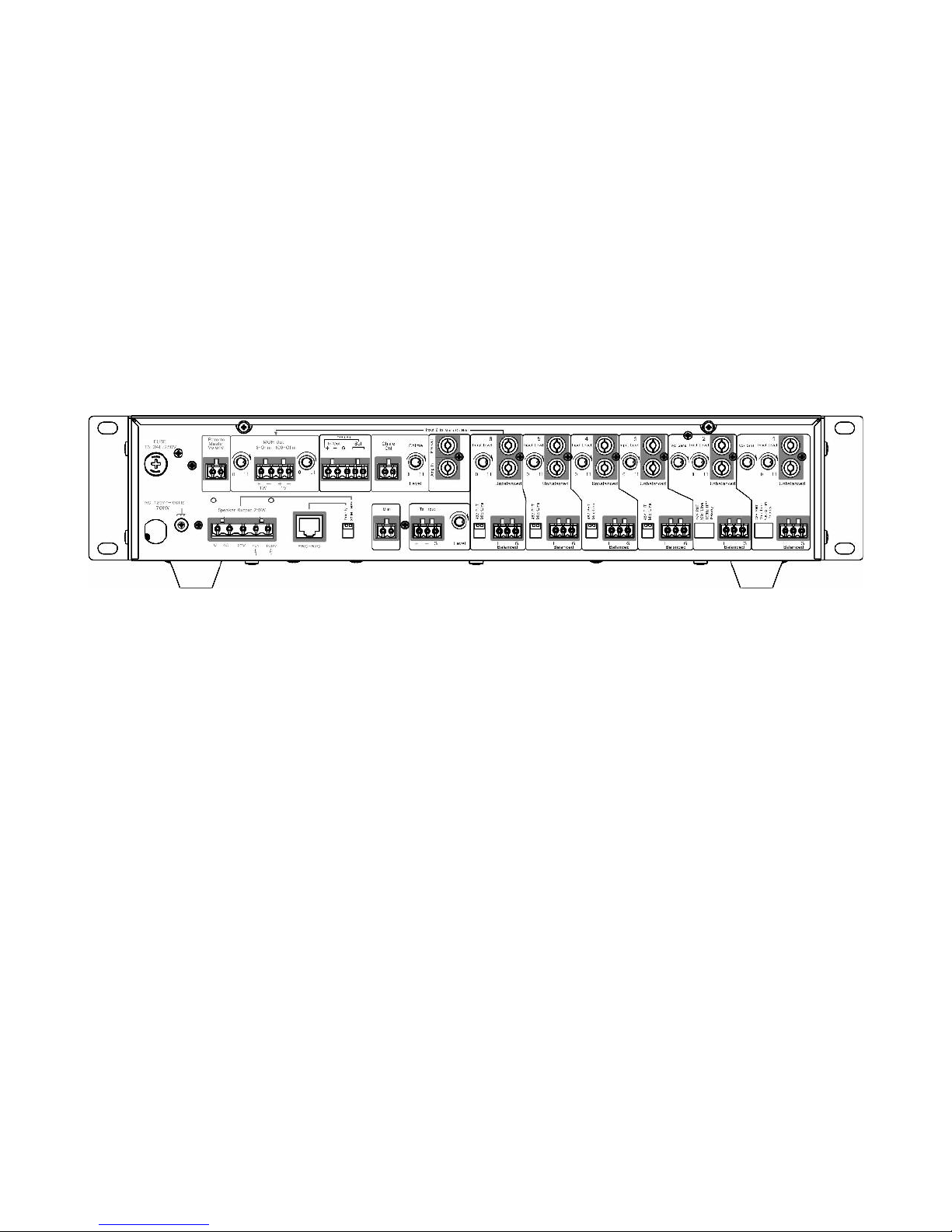

Rear Panel Operation and Connections.

NOTE: Rear Panel color coding

GREEN = Input

RED = Output

nputs 1-2 ( nput 1 C-540) - Inputs 1 &2 are priority inputs. These inputs function the same as

the other input channels but offer some added features suitable for paging microphones. Priority

means “override”. Simply stated the microphone or line level signal will override all other inputs.

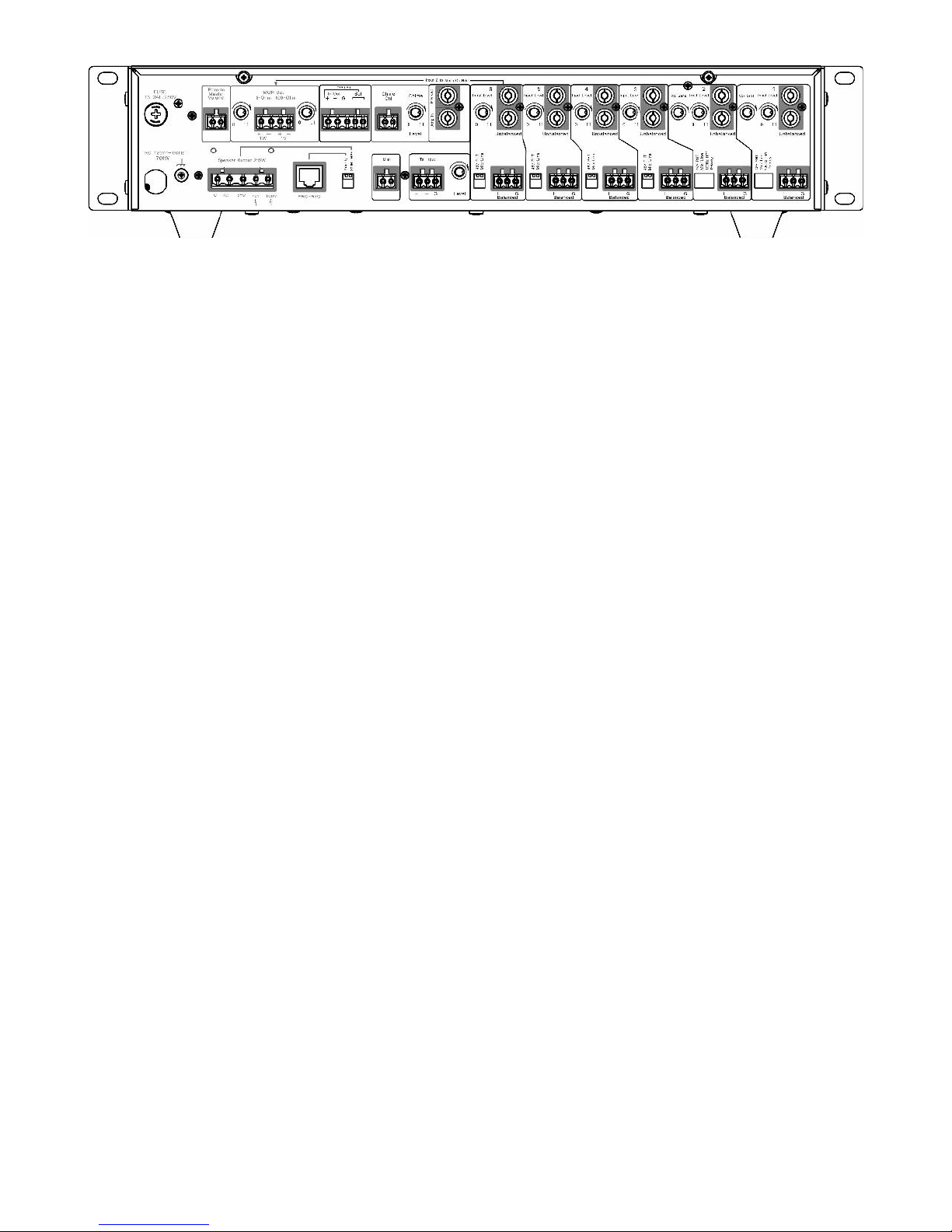

Rear Panel Connections and dip switches:

RCA - These jacks accept line level signals from CD's, DVD's, Tuners etc. This is an unbalanced

input that sums the signal to mono. The INP T LEVEL knob does not affect the RCA input level.

EURO BALANCED - This is a balanced three pin detachable connector that will accept

microphone or line level sources. You can also connect an unbalanced source by connecting the

HOT to + and connecting the COLD or (return) to – and attaching a jumper to – and G. The INP T

LEVEL control affects the input level for the E RO input jack.

NPUT LEVEL – This rotary control adjusts the input level for the E RO connector only. se this

to match the correct input level based on the signal strength of the device connected. A good

starting point is the 12:00 position. If you hear distortion turn the control counter clockwise. Turn

this control clockwise to increase the input level.

VOX SENS – This rotary control adjusts the sensitivity of the override circuit. Turning this control

clockwise triggers the auto sensing circuit sooner. This control will function only when the

PRIORITY #4 dip switch is ON. Start at the 12:00 position, If the override cuts in and out when

there is no page signal present (called false triggering) then reduce the SENS by turning counter

clockwise. If the leading edge of the page is cut off increase the sensitivity by turning the SENS

control clockwise.

D P SW TCH 1 48v PHT – This switch applies 24v to the + and – pins of the E RO BALANCED

jack. This feature provides phantom power for condenser microphones. NOTE: always set the 48v

PHT dip switch P or OFF if a line level source or dynamic microphone source is connected where

phantom power is not needed.

D P SW TCH 2 MIC/LINE – This switch adjusts the sensitivity of the E RO BALANCED jack

between microphone level signals and line level signals. Set the switch up for line level and down

for microphones. Note: line level sources will overload the E RO BALANCED input if the dip switch

is set to MIC. If the dip switch is set to LINE and a microphone is connected the input level will be

too low. Always make sure this dip switch is set appropriately for the device that is connected.

D P SW TCH 3 100Hz HPF - With this switch ON all frequencies below 100Hz will be cut at 18dB

per octave. se this switch with microphones to roll off unwanted low frequency rumbles and

minimize pops from mouth noises.

D P SW TCH 4 PRIORITY – With this switch ON the source connected to the E RO BALANCED

connector will override all other inputs. This is commonly used for paging microphones where the

background music source would be connected to one of the inputs 3-6 and a paging microphone

would be connected to input 1 or 2. When the microphone signal is broadcast the back ground

music source will automatically mute and then return to normal after the broadcast is complete.

NPUTS 3-5 ( NPUT 2 C-540) The remaining inputs function exactly the same as inputs 1 & 2

except they do not have VOX SENS, 100Hz HPF, and Priority.

It is still possible to connect a microphone or a line level source to any input. This provides the

ultimate flexibility.

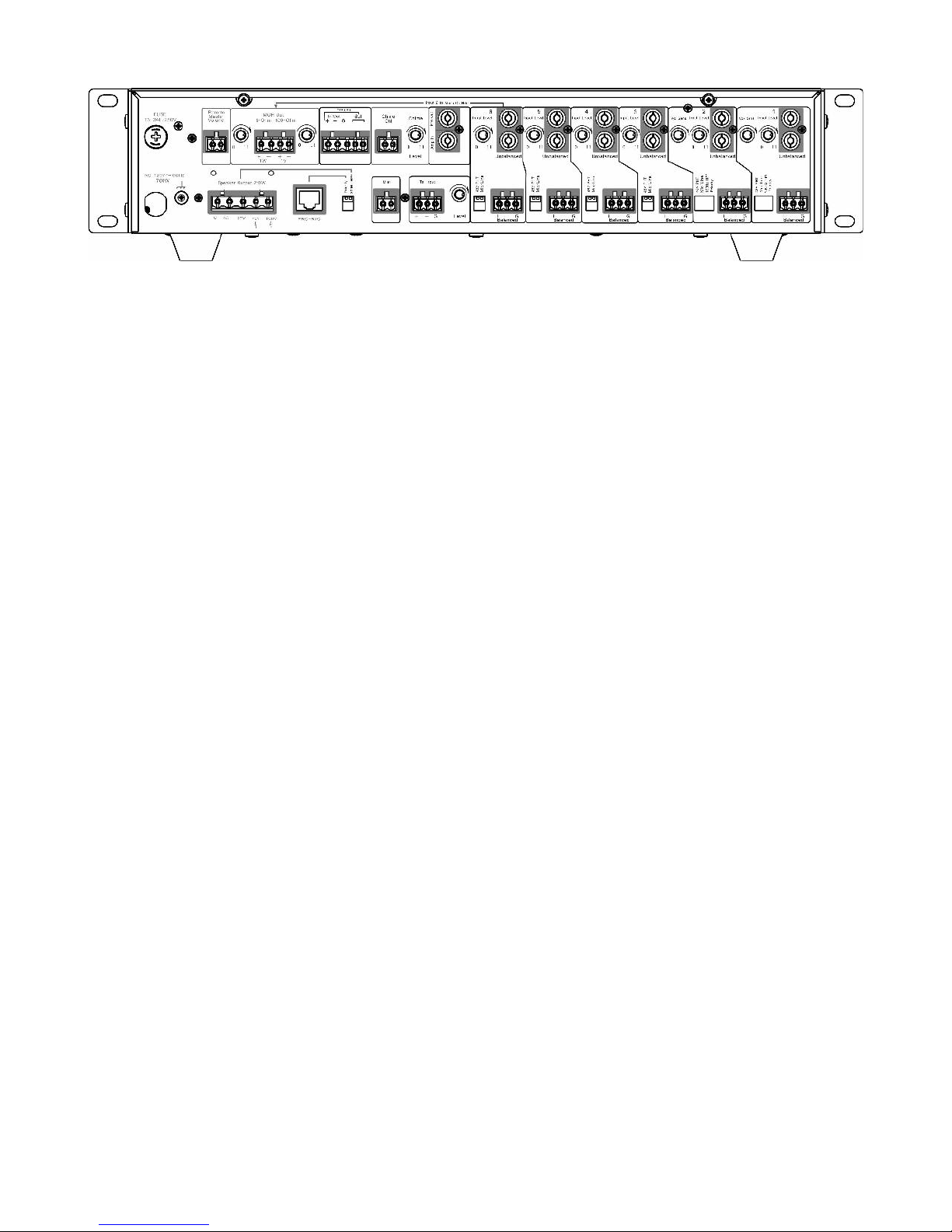

NPUT 6 ( NPUT 3 C-540) These inputs have multiple functions. They can operate the same as

all the other inputs to feed the main outputs and they also feed the music on hold MOH outputs.

When using the music on hold MOH outputs connect your music source or store caster input here.

The dual RCA jacks and the E RO BALANCED jacks can feed the music on hold MOH outputs.

NOTE: The front panel Mp3 jack can also be used to feed the music on hold MOH outputs. When a

source is plugged into the front panel Mp3 jack it will automatically override the source plugged

into the input 6 (or input 3 C-540) RCA jacks. If the front panel volume knob is turned up this

input will broadcast on the main outputs as well as the MOH output. Effectively you can create two

output zones with different sources. Please see the music on hold MOH section for more

information.

PRE OUT – This RCA jack is an unbalanced pre-amp output (post tone controls) that can be used

to connect to other amplifiers or external audio devices. The PRE O T jack and the AMP IN jack

can be used to create and effects loop to feed an external equalizer or feedback eliminator. Take

the PRE O T to the input of the external device and take the output of the external device to the

AMP IN jack to create the loop.

AMP N - The AMP In jack can be used to amplify signals from another mixer or external device.

The internal pre-amp section is overridden when a jack is connected to AMP IN. This can be used

to convert the C-8120/8240/540 into a slave amplifier or used as an effects loop as described

above in the PRE O T section.

TEL NPUT – This is a balanced audio input that is designed to accept signals from an analog

telephone output. Due to the varied output levels from different telephone systems we have

provided a level control that allows precise level adjustments.

NOTE: The TEL INP T automatically overrides all signals in the pre-amplifier and broadcasts the

page when an announcement is made through the telephone system.

NOTE: Some telephone systems carry noise and DC voltages on their outputs. We recommend

using the optional SA-TEL1 isolation transformer between the phone output and the TEL INP T to

eliminate these problems.

Most phone systems provide a balanced tip & ring audio output that can be connected to the +

and – terminals on the E RO input jack.

CH ME - The CHIME contacts can be used as a pre-announce tone for paging or as an alert tone

for doorbells, telephones, etc. Simply short the contacts with a switch from a microphone or

external contact closure and the chime tone will broadcast. We have provided a CHIME LEVEL

control to set the precise volume level desired.

MUTE – The M TE contacts can be used to instantly mute background music sources for

immediate paging or emergency situations. Simply short the M TE contacts with a switch or

external contact closure and all inputs will mute with the exception of the PRIORITY inputs.

PRIORITY inputs will function as normal provided the PRIORITY function is ON. NOTE: When using

the PRO-RVC for a remote music input it is recommended to short the mute contacts. The PRO-

RVC will override other music sources that may be connected to the amplifier.

MOH OUT - The MOH music on hold output offers two output levels. 1.) 600 ohm 1v balanced

which is used to drive line level music on hold inputs. 2.) 8 ohm 1 watt which is used to drive

phone systems that require more input gain. This output can also be used to power an 8 ohm

loudspeaker. The MOH output can also be used as a Zone 2 output. Input 6 (input 3 C-540) and

the front panel Mp3 input signals are fed to the MOH output. All other inputs are fed to the main

outputs. It is possible to have two completely different sources broadcasting simultaneously by

using the MOH output to feed another amplifier or 8 ohm speaker and the main outputs to feed

another group of speakers.

BR DG NG NPUT/OUTPUT – (C8120 & C8240 ONLY) Many installations require flexibility

where multiple amplifiers need to be combined for large room activities and then separated for

smaller multiple room activities. This is referred to as room combining. Sound Acoustics amplifiers

offer this feature with simple easy to use bridging terminals. These terminals provide a way to

send and receive balanced line level audio from the internal mixer of the C-8120 or C8240. The

bridging terminals balanced signal can be sent long distances without introducing noise or

interference using 22 AWG or 24 AWG shielded two conductor stranded copper wire.

Connect the bridging + / -- / G terminals of one Sound Acoustics amplifier to the same terminals

on another Sound Acoustics amplifier. The amplifiers will operate independently until the SEL

contacts are shorted.

SEL CONTACTS (C8120 & C8240 ONLY) - Shorting the SEL terminals using a switch or

external contact closure will combine the pre-amp signals in both the amplifiers. The amplifiers

will operate as one larger amplifier. It is possible to connect multiple amplifiers to create a room

combining system. When connecting multiple amplifiers together you may need to adjust the

volume levels on the individual amplifiers to create a well balanced mix.

NOTE: To combine two or more amplifiers the SEL contacts must be shorted on each amplifier you

wish to combine.

EXAMPLE: Connect the bridge terminals of amp 1 to amp 2. Short the SEL contacts on amp 1.

The amps will not combine. Short the SEL contacts on both amps 1 & 2 and the amps will

combine. Any source that is connected to either amp will broadcast on both amps.

REMOTE MASTER VOLUME (C8120 & C8240 ONLY) - All Sound Acoustics amplifiers have the

ability to control the master volume remotely through the PRO-RVC input. More about this is the

next section. The C-8120 and C-8240 provide an additional remote master volume control input

that can be controlled remotely from a 10kohm potentiometer. Set the maximum volume level

desired with the front panel master volume control and connect a 10Kohm potentiometer to the

REMOTE MASTER VOL ME contacts. The potentiometer will act as an attenuator, controlling the

master volume of the amplifiers remotely.

PRO-RVC - All Sound Acoustics amplifiers provide the unique PRO-RVC input. This is an RJ45

female jack that allows the connection of up to three PRO-RVC remote microphone/line mixers.

This feature can provide up to 6 additional inputs (3 microphone & 3 line level) with individual

volume control plus remote master volume control to any Sound

Acoustics amplifier. The PRO-RVC connects with Cat5 cable

providing one RJ45 input and one RJ45 output for daisy chaining

up to three PRO-RVC's to each amplifier. Power for the PRO-RVC

is provided by the amplifier and additional power supplies are

not necessary. When using using the PRO-RVC short the M TE

contacts if you want the PRO-RVC to maintain constant priority

over other inputs connected to the amplifier. The PRO-RVC input

provides a PRIORITY switch. Set the PRIORITY switch to ON for

momentary override of other sources connected to the amplifier.

Please read the PRO-RVC installation guide included with the

PRO-RVC.

It is possible to use the PRO-RVC with other amplifier brands as a stand alone remote mic/line

mixer by installing the optional RVC-ADAPT. Consult your authorized Sound Acoustics dealer for

more information.

SPEAKER OUTPUTS - Sound Acoustics amplifiers provide 4 speaker level outputs. Do not use

more than one output at a time. This could overload the amplifier.

Remove the E RO style connector and select from the following chart.

C – Common or negative --

4 ohm – Connect to a direct coupled loudspeaker (no transformer) min impedance 4 ohms

25V - Connect to 25V transformer coupled loudspeakers.

70V - Connect to 70V transformer coupled loudspeakers

100V - Connect to 100V transformer coupled loudspeakers

RECOMMENED SPEAKER WIRE

Always use good quality stranded copper wire.

Speaker outputs

4 ohm 12-16 AWG stranded copper unshielded

25V 16-18 AWG stranded copper unshielded

70V 16-18 AWG stranded copper unshielded

100V 16-18 AWG stranded copper unshielded

CAUT ON: Keep the speaker output guard on at all times. This will help prevent shock and fire

hazards. Ensure the power cord is not connected to the AC outlet when making connections.

POWER CORD - Connect the AC power cord to 120V AC outlets only. Do not connect the power

cord until all audio connections are made. Serious damage may result if the amplifier is connected

to line voltages other than 120V AC.

FUSE - TYPE T6, 3al/250V - Always use the correct fuse for replacement. Failure to use the

correct fuse or shorting the fuse could result in fire and serious damage.

SPEC F CAT ONS C-540 C-8120 C-8240

Output Power RMS 40 watts 120 watts 240 watts

Frequency Response 40Hz- 20kHz 40Hz- 20kHz 40Hz- 20kHz

Total Harmonic Distortion 0.5% at rated power 0.5% at rated power 0.5% at rated

power

Signal To Noise Ratio Mic 90dB 90dB 90dB

Signal to Noise Ratio Line 90dB 90dB 90dB

Signal to Noise Ratio Tel 75dB 75dB 75dB

Signal to Noise Ratio

Output

Inputs Microphone 3 expandable to 6 6 expandable to 9 6 expandable to 9

Inputs Line Level 5 expandable to 8 9 expandable to 12 9 expandable to 12

Inputs Telephone 1 1 1

Input PRO-RVC 1 1 1

Chime with level adjust 1 1 1

Speaker Outputs 4ohm,25,70,100V 4ohm,25,70,100V 4ohm,25,70,100V

Line level Outputs 2 3 3

Bridging In/Out 1 Balanced 1 Balanced

MOH Output 8ohm 1W & 600 ohm

8ohm 1W & 600 ohm

8ohm 1W & 600

ohm 1V

Remote Master Volume Via PRO-RVC 10Kohm Pot & PRO-

RVC

10Kohm Pot & PRO-

RVC

Power Requirements AC AC120V/60Hz AC120V/60Hz AC120V/60Hz

Power Consumption AC 120W 350W 700W

Dimensions 8.5”W x 4”H x 11.25”D 17”W x 4” H x 14”D 17”W x 4” H x 14”D

Shipping Weight

Optional Accessories 1 Rack Kit SA-RK2.5 Rack Kit SA-RK2.0 Rack Kit SA-RK2.0

Optional Accessories 2 1-3 PRO-RVC 1-3 PRO-RVC 1-3 PRO-RVC

Optional Accessories 3 SA-TEL1 600 ohm

telephone isolation

transformer

SA-TEL1 600 ohm

telephone isolation

transformer

SA-TEL1 600 ohm

telephone isolation

transformer

Contact nformation

Sound Acoustics HQ

1360 Frances Street

Vancouver BC Canada V5L 1Y9

E-mail: [email protected]

Website: www.mysoundacoustics.com

Warranty

Sound Acoustics commercial amplifiers are warranted to be free from defects in workmanship and

materials for a period of three (3) years without charge for parts or labour. The warranty applies

only to the original owner. The owner’s responsibilities are to provide proof of purchase and

transportation to the dealer the unit was purchased from or transportation to the Sound Acoustics

factory. This warranty does not apply to units which have been subject to misuse, abuse, neglect

or improper installation, and does not apply to repairs or alterations by unauthorized personnel.

This warranty specifically excludes responsibility for consequential damage.

Retention of your dated ORIGINAL BILL OF SALE is required to obtain service under the terms of

the warranty.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sound Acoustics Amplificatore

Sound Acoustics

Sound Acoustics SA-44 Manuale utente

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
